Toyota COROLLA Engine Overhaul Gasket Kit — Figure 1103

Toyota COROLLA EPC diagram 1103, Engine Overhaul Gasket Kit, with 4 images and 2 PNC and OE references.

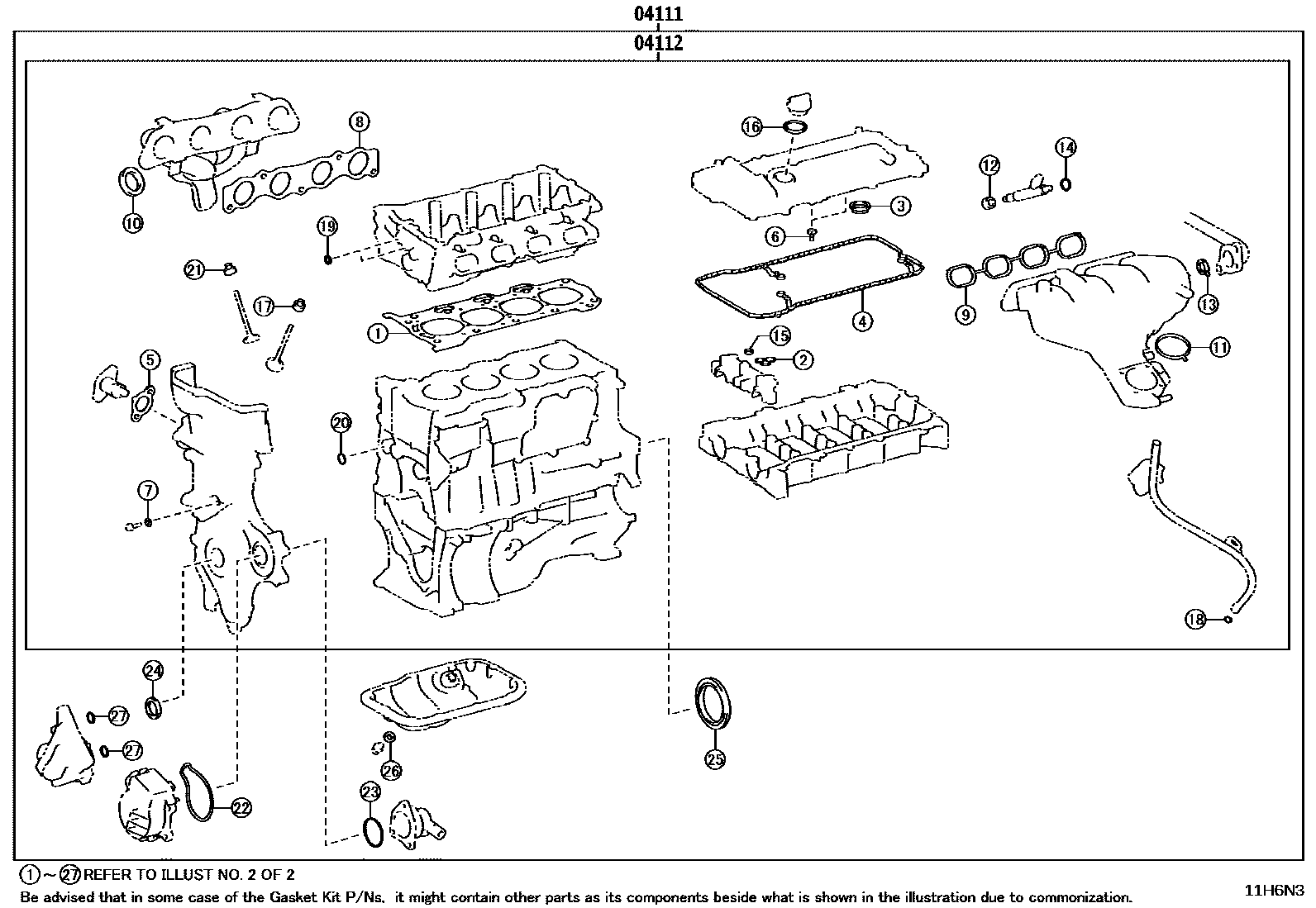

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11H6N3
Engine Overhaul Gasket Kit — 11H6N3 (202505 – 999999)

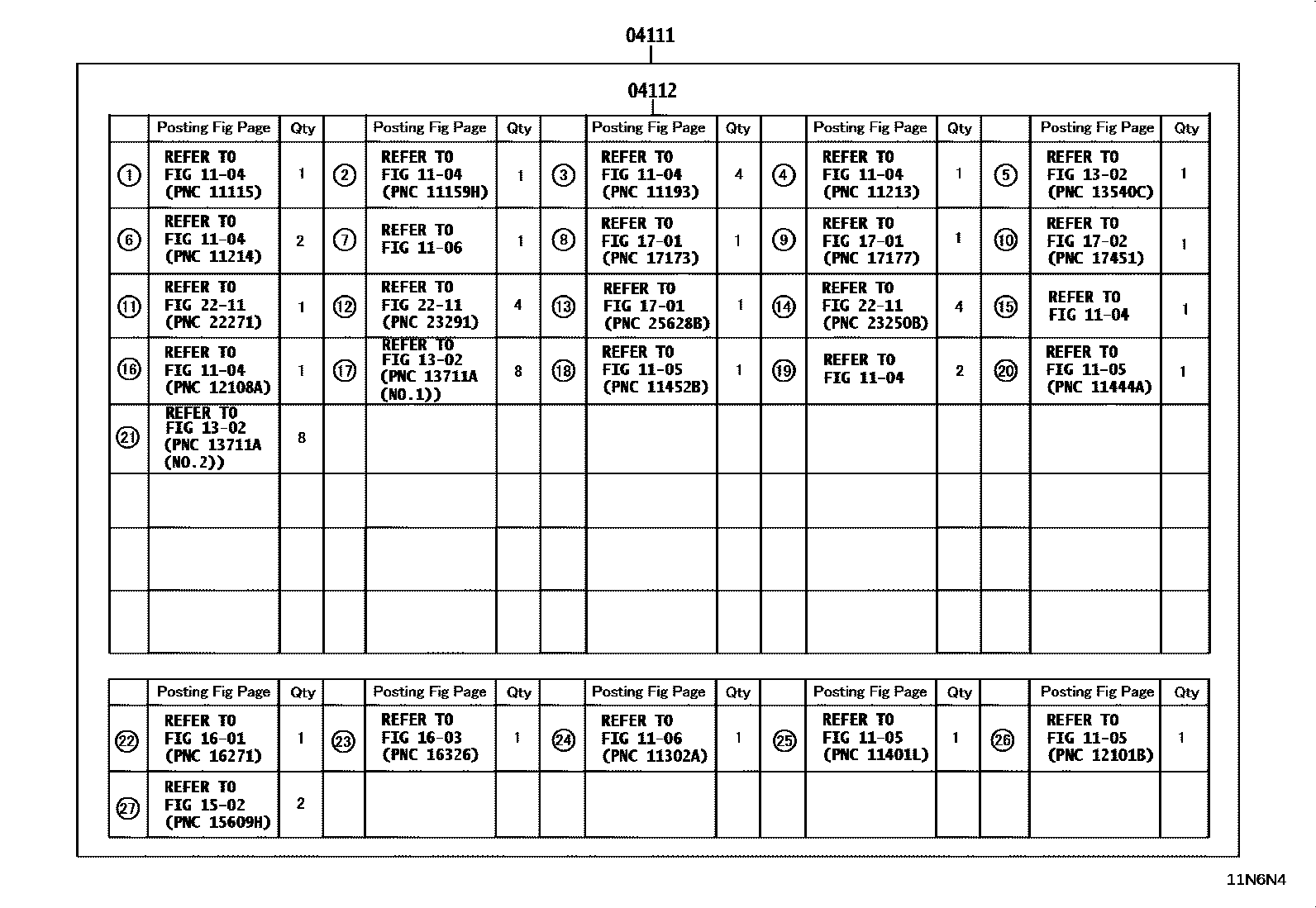

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11H6N4
Engine Overhaul Gasket Kit — 11H6N4 (202505 – 999999)

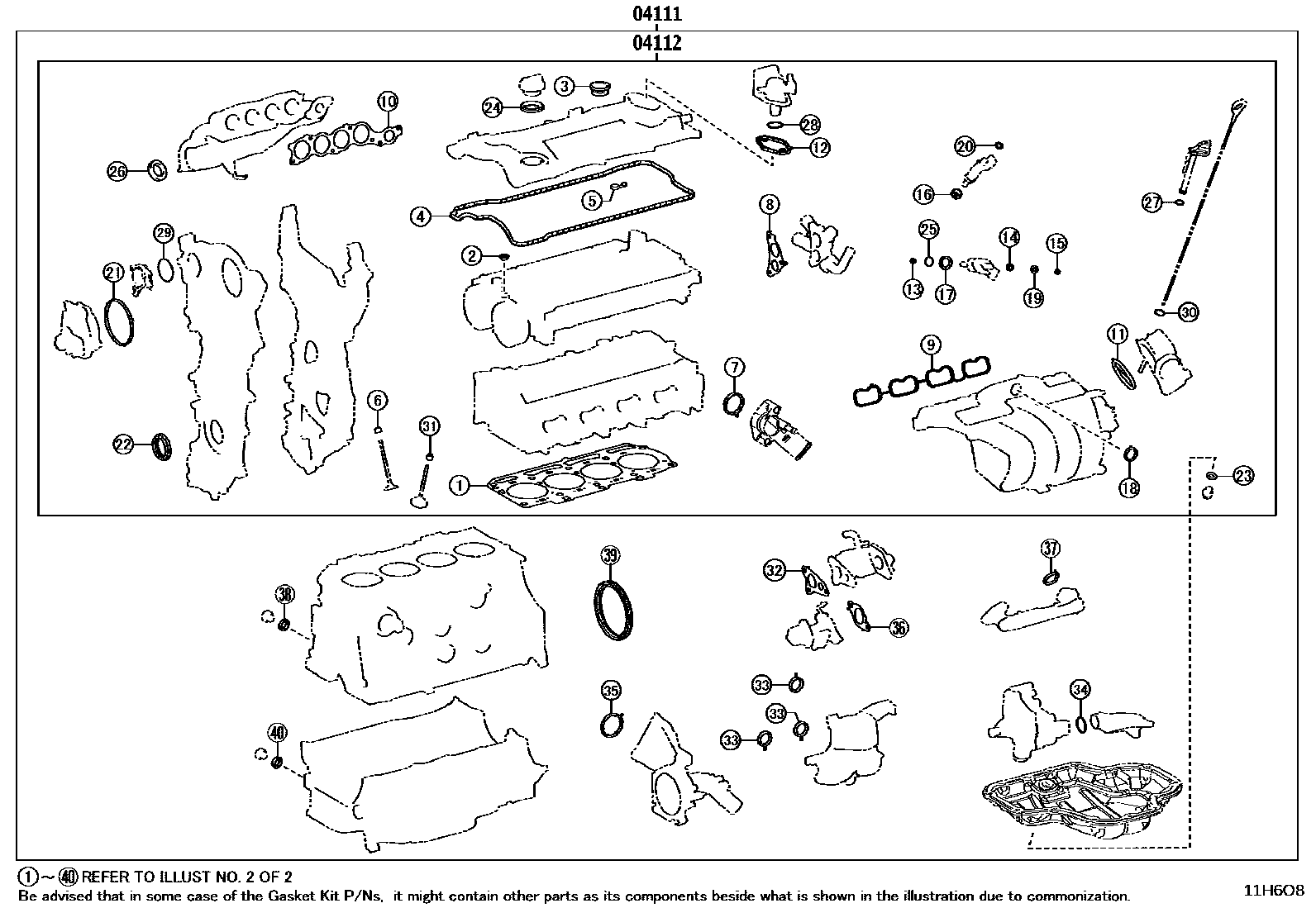

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11H6O8
Engine Overhaul Gasket Kit — 11H6O8 (202505 – 999999)

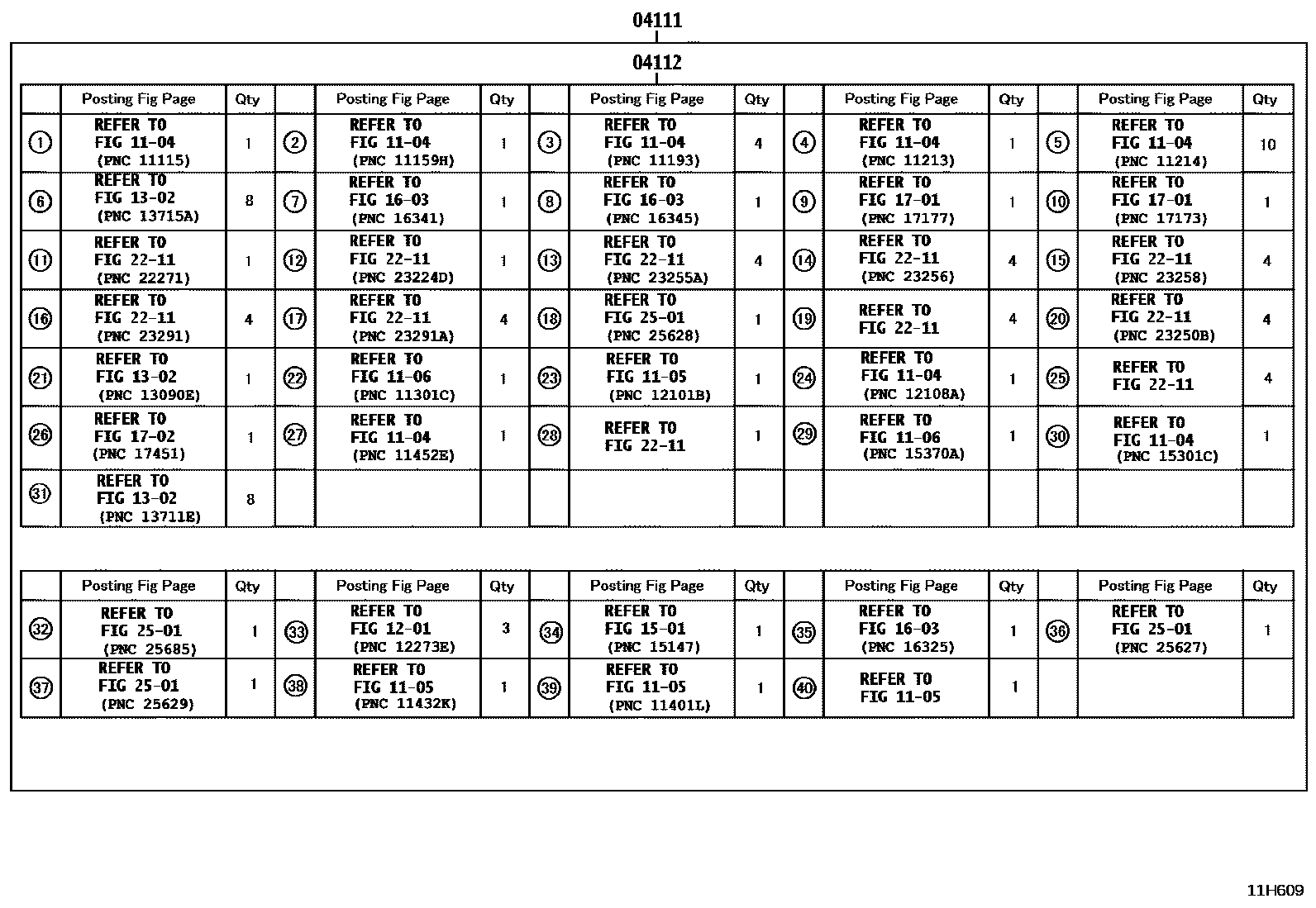

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11H6O9
Engine Overhaul Gasket Kit — 11H6O9 (202505 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-24221 · 04111-37561
04112Engine valve grinding pad assembly04112-24141 · 04112-37401
