Toyota COROLLA 空气净化器或离子发生器 — Figure 8724

Toyota COROLLA EPC diagram 8724, 空气净化器或离子发生器, with 2 images and 3 PNC and OE references.

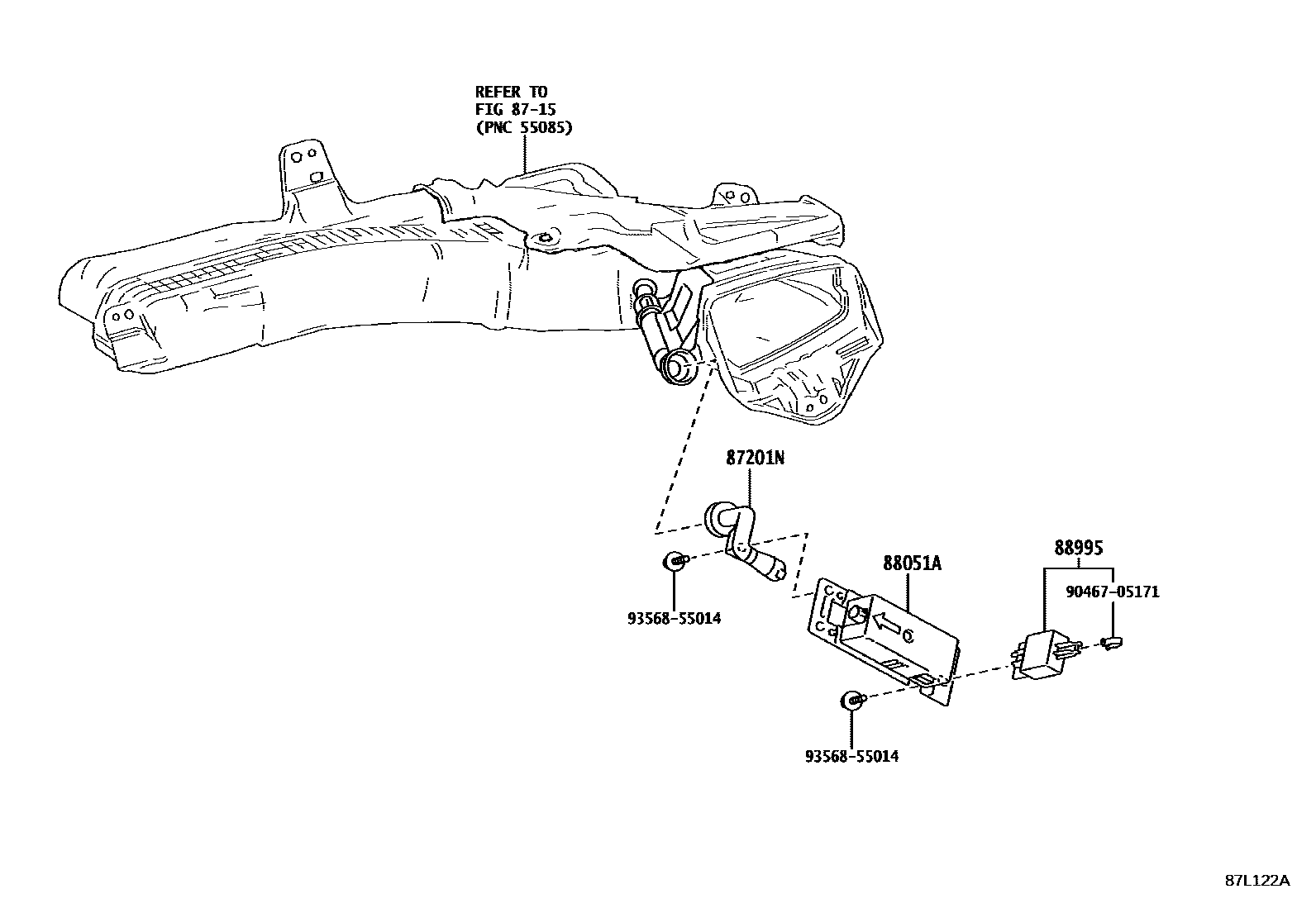

Toyota COROLLA 空气净化器或离子发生器 EPC diagram — 87L122A
空气净化器或离子发生器 — 87L122A (202207 – 999999)

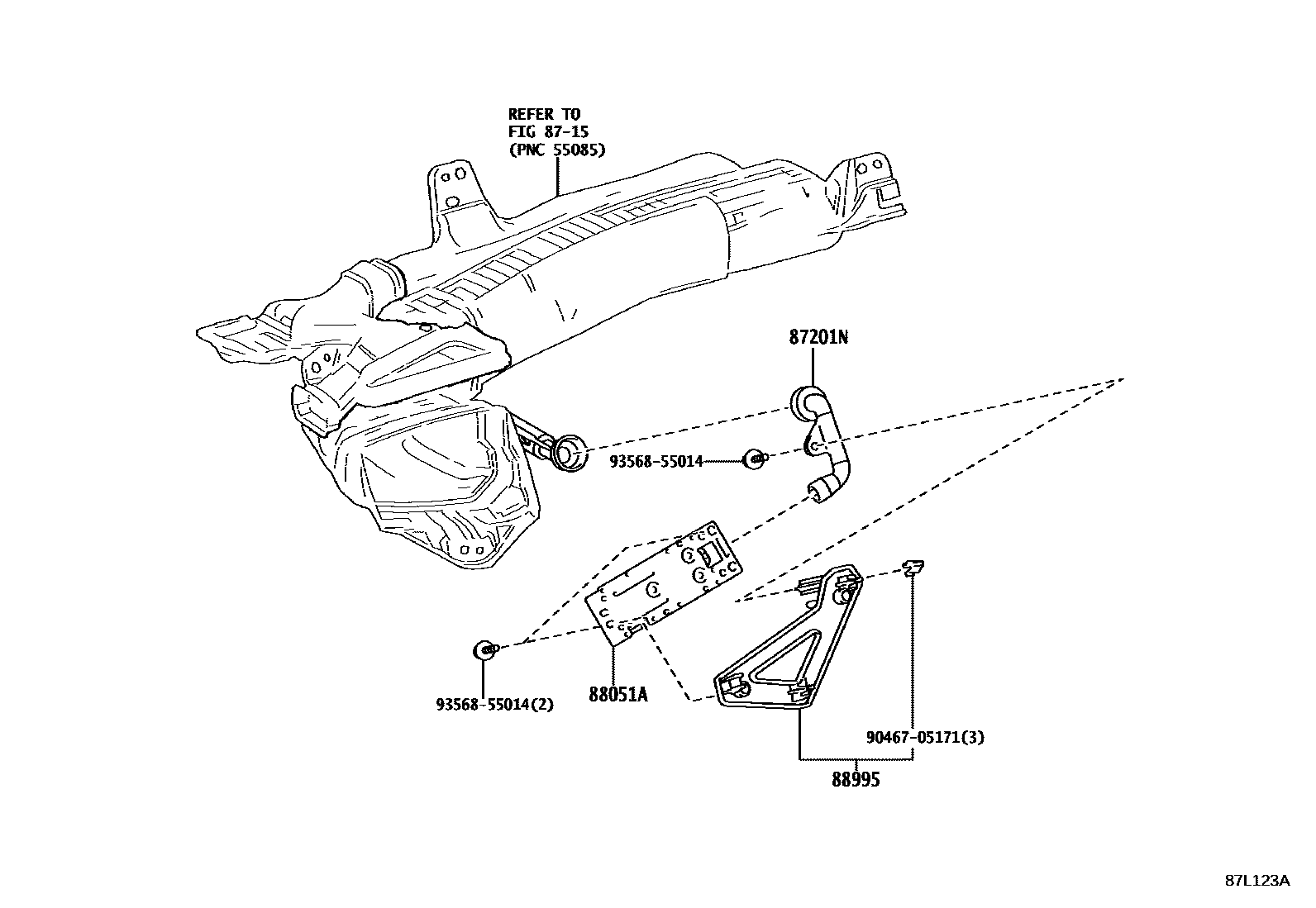

Toyota COROLLA 空气净化器或离子发生器 EPC diagram — 87L123A
空气净化器或离子发生器 — 87L123A (202207 – 999999)

PNC and OE references

PNCPart nameOE numbers
87201NAir duct sub-assembly55848-16030 · 55848-16040
88051AIon generator sub-assembly88051-48010
88995No. 1 ion generator bracket88995-16010 · 88995-16020
