Toyota COROLLA 后视镜 — Figure 8701

Toyota COROLLA EPC diagram 8701, 后视镜, with 2 images and 16 PNC and OE references.

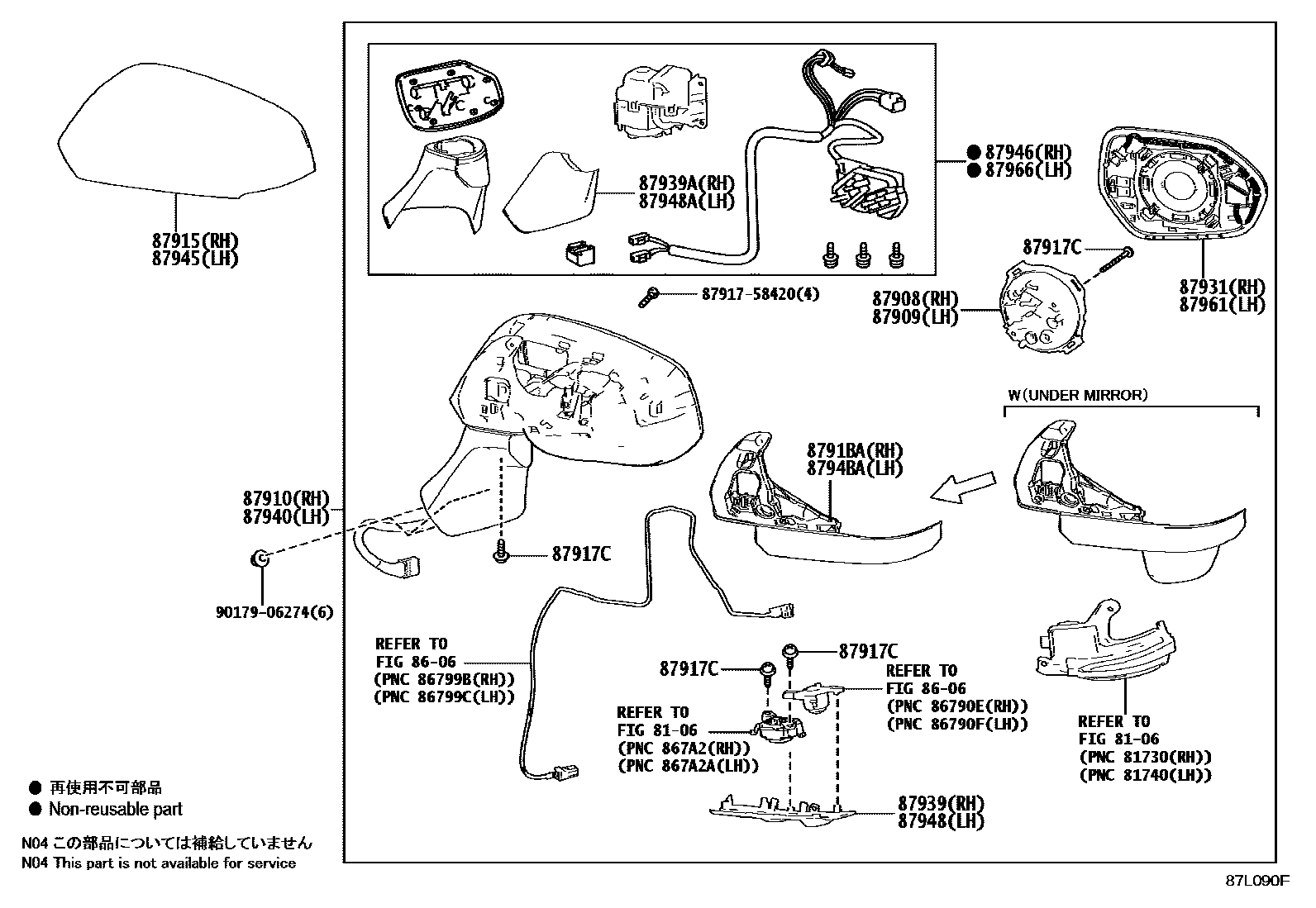

Toyota COROLLA 后视镜 EPC diagram — 87L090F
后视镜 — 87L090F (202207 – 999999)

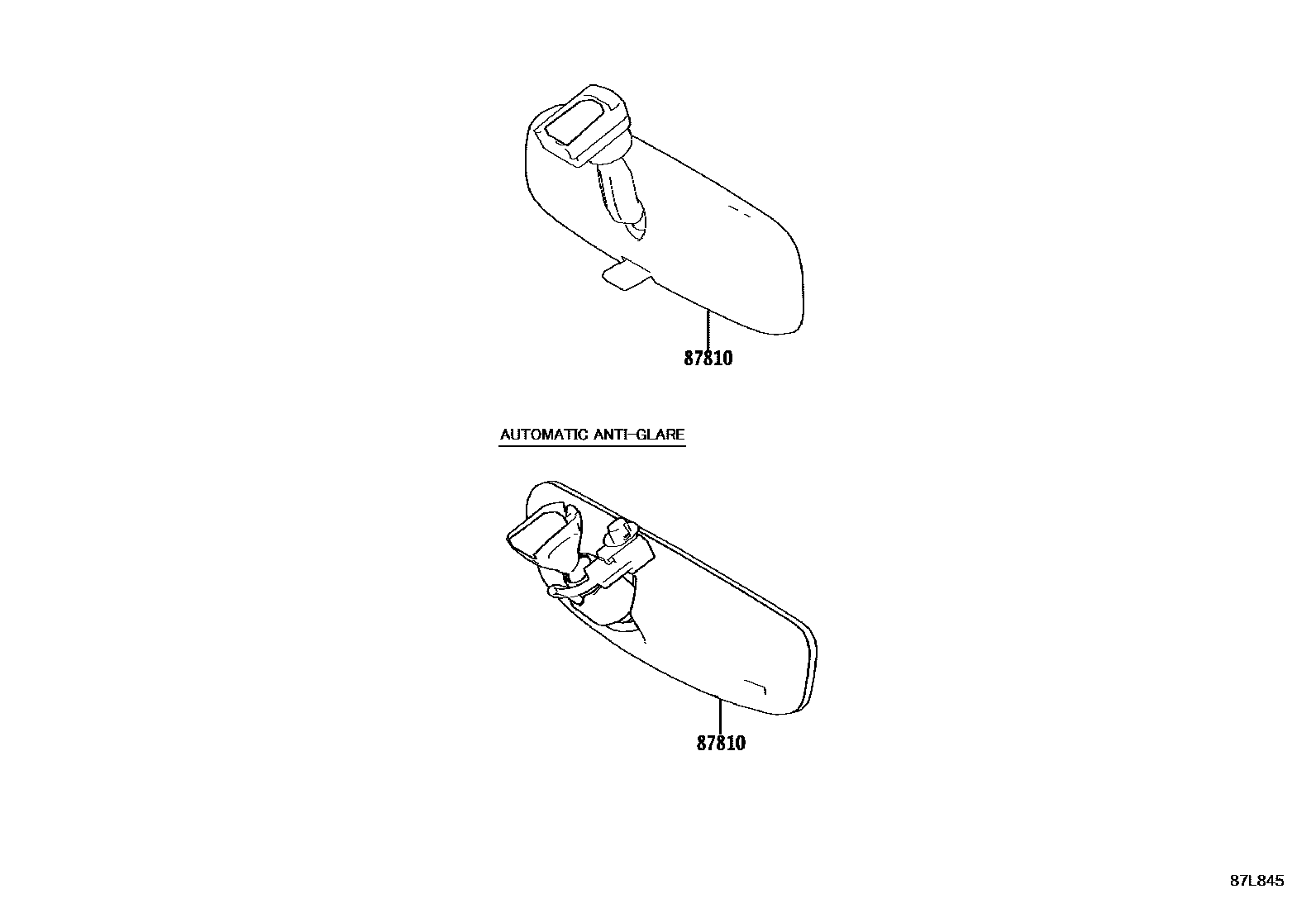

Toyota COROLLA 后视镜 EPC diagram — 87L845
后视镜 — 87L845 (202207 – 999999)

PNC and OE references

PNCPart nameOE numbers
87810Interior rearview mirror assembly87810-16070 · 87810-28140
87908Right exterior rearview mirror actuator assembly87908-42E71
87909Left exterior rearview mirror actuator assembly87908-42E71
87910Right exterior rearview mirror assembly87910-16A60 · 87910-16A70 · 87910-16A90 · 87910-16B00 · 87910-16B10 · 87910-16B20 · 87910-16B30 · 87910-16B40
87917CExterior rearview mirror screws87917-15010
8791BANo. 3 right exterior mirror cover8791B-28C70 · 8791B-28D00
87931Right exterior rearview mirror87931-16A70 · 87931-16A90
87939Right exterior rearview mirror hole cover87939-16A60 · 87939-28D00
87939ARight exterior rearview mirror hole cover87939-16A30 · 87939-16A90
87940Left exterior rearview mirror assembly87940-16A50 · 87940-16A60 · 87940-16A80 · 87940-16A90 · 87940-16B00 · 87940-16B10 · 87940-16B20 · 87940-16B30
87946Right exterior rearview mirror retractor87946-16A00 · 87946-16A10 · 87946-16A30 · 87946-16A60 · 87946-16A70 · 87946-16A90 · 87946-16B20 · 87946-16B30
87948Left exterior rearview mirror hole cover87948-16A50 · 87948-28D40
87948ALeft exterior rearview mirror hole cover87948-16A30 · 87948-16A80
8794BANo. 3 left exterior rearview mirror cap8794B-16A80 · 8794B-28D40
87961Left exterior rearview mirror87961-16A60 · 87961-16A80
87966Left exterior rearview mirror retractor87966-16A00 · 87966-16A10 · 87966-16A30 · 87966-16A50 · 87966-16A60 · 87966-16A80 · 87966-16B10 · 87966-16B20
