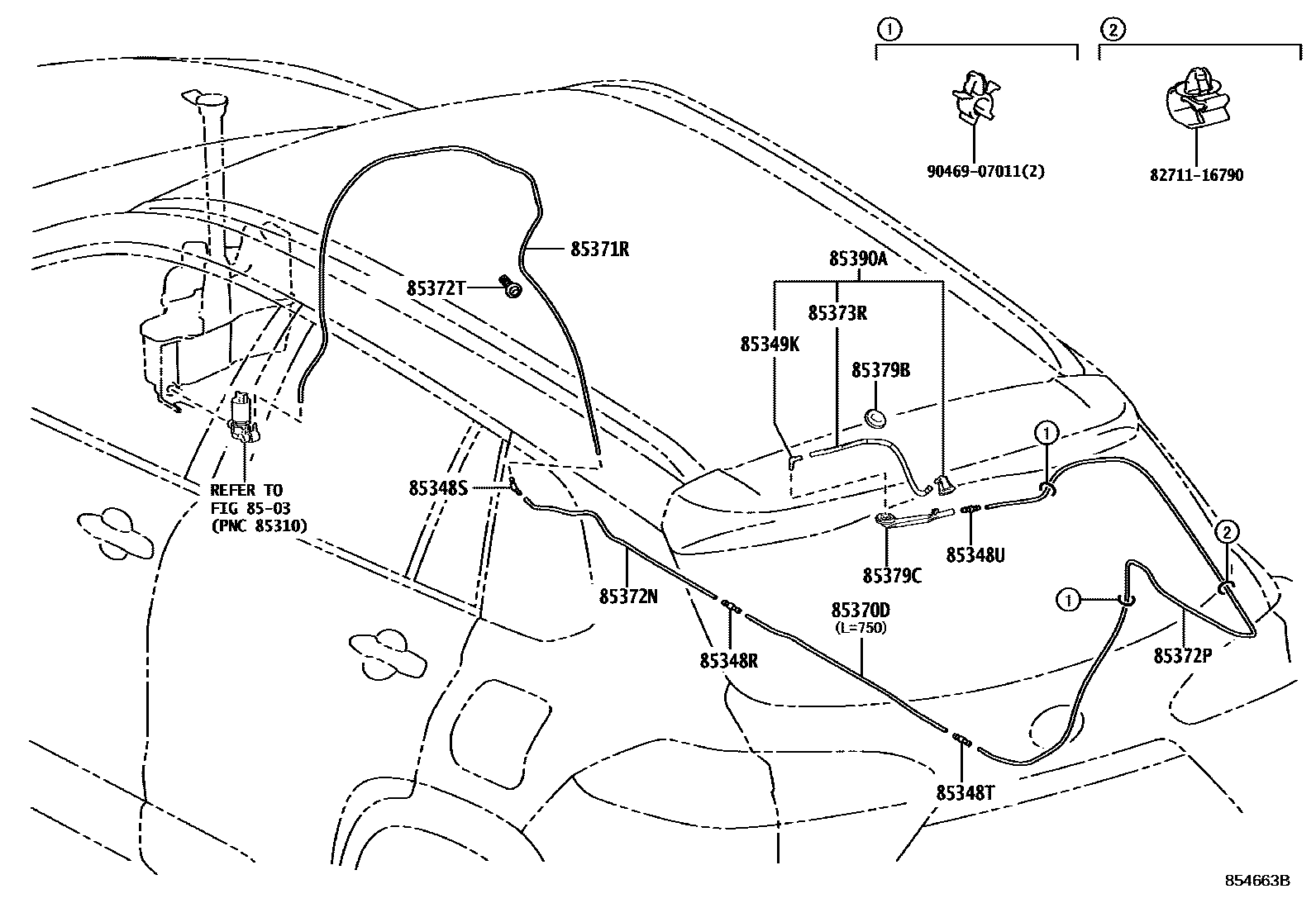

Toyota COROLLA 后清洗器 — Figure 8504
Toyota COROLLA EPC diagram 8504, 后清洗器, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85348R | No. 1 rear washer hose connector | 85375-16370 |
| 85348S | No. 1 rear cleaner elbow joint | 85376-16370 |
| 85348T | No. 2 rear washer hose connector | 85375-16370 |
| 85348U | No. 3 rear washer hose connector | 85375-16370 |
| 85349K | No. 2 rear cleaner elbow joint | 85395-16030 |
| 85370D | No. 1 rear washer hose assembly | 85370-16380 |
| 85372T | Cleaner seal | 85379-16370 |
| 85379B | Cleaner seal A | 85372-20020 |
| 85379C | No. 1 rear washer hose seal | 85372-20040 |
| 85390A | Rear washer nozzle and hose assembly | 85390-16030 |
