Toyota COROLLA 测距雷达和倒车雷达 — Figure 8417

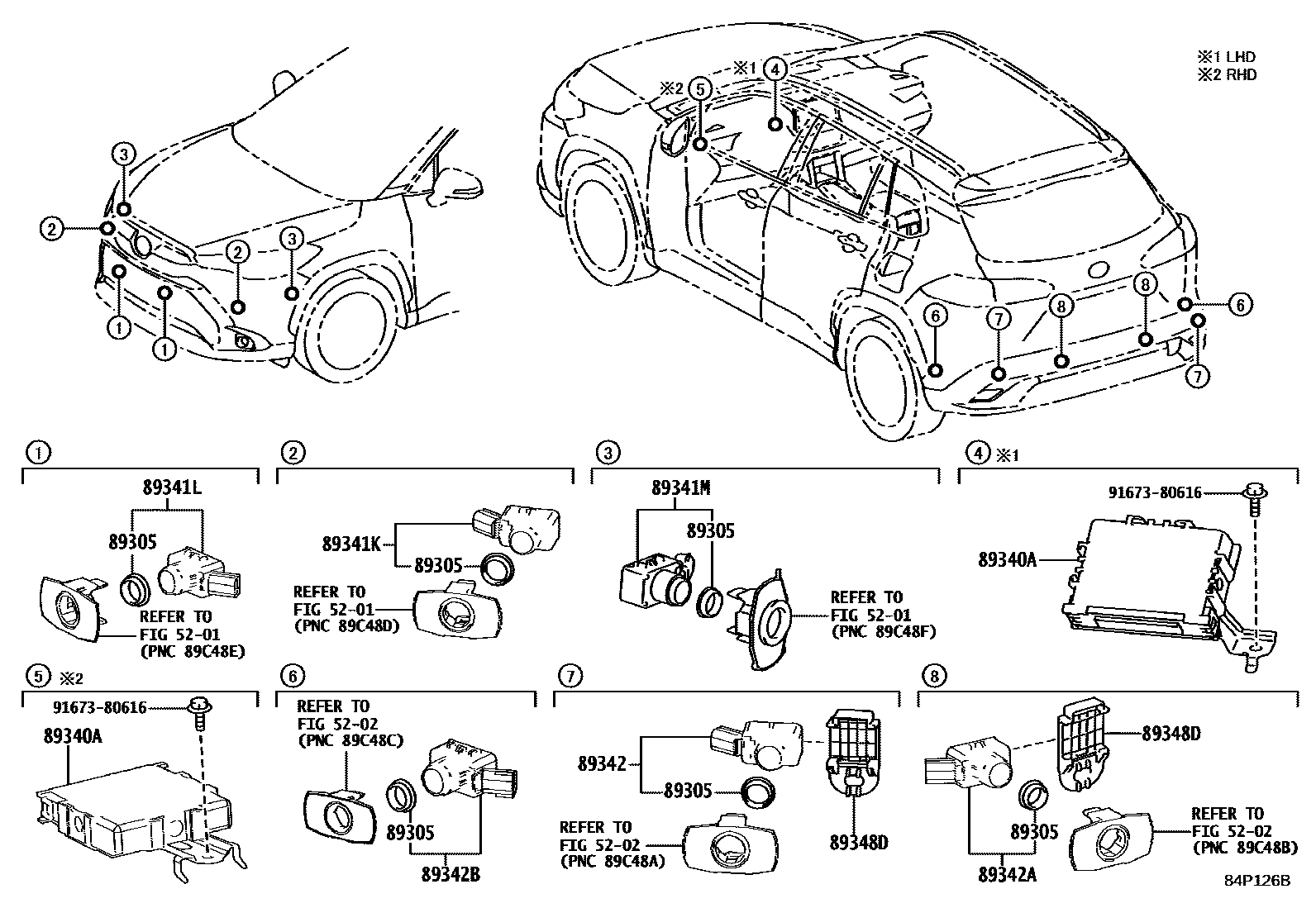

Toyota COROLLA EPC diagram 8417, 测距雷达和倒车雷达, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89305 | Ultrasonic sensor pad assembly | 89305-52010 |
| 89340A | Distance warning ECU assembly | 89340-16060 · 89340-16061 · 89340-16070 · 89340-16071 · 89340-16080 · 89340-16081 · 89340-16090 · 89340-16091 |
| 89348D | Ultrasonic sensor clip | 89348-50220 |
