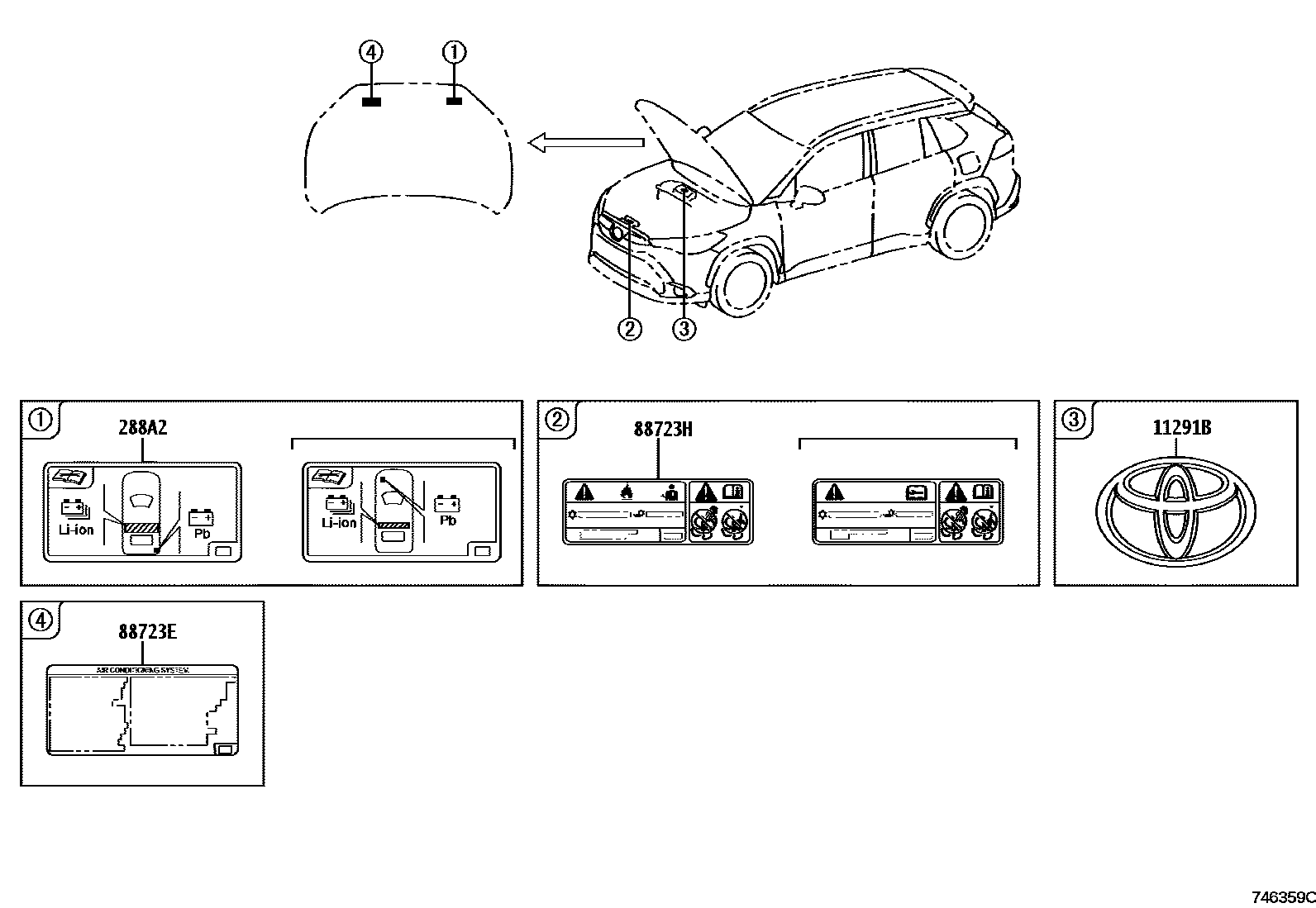

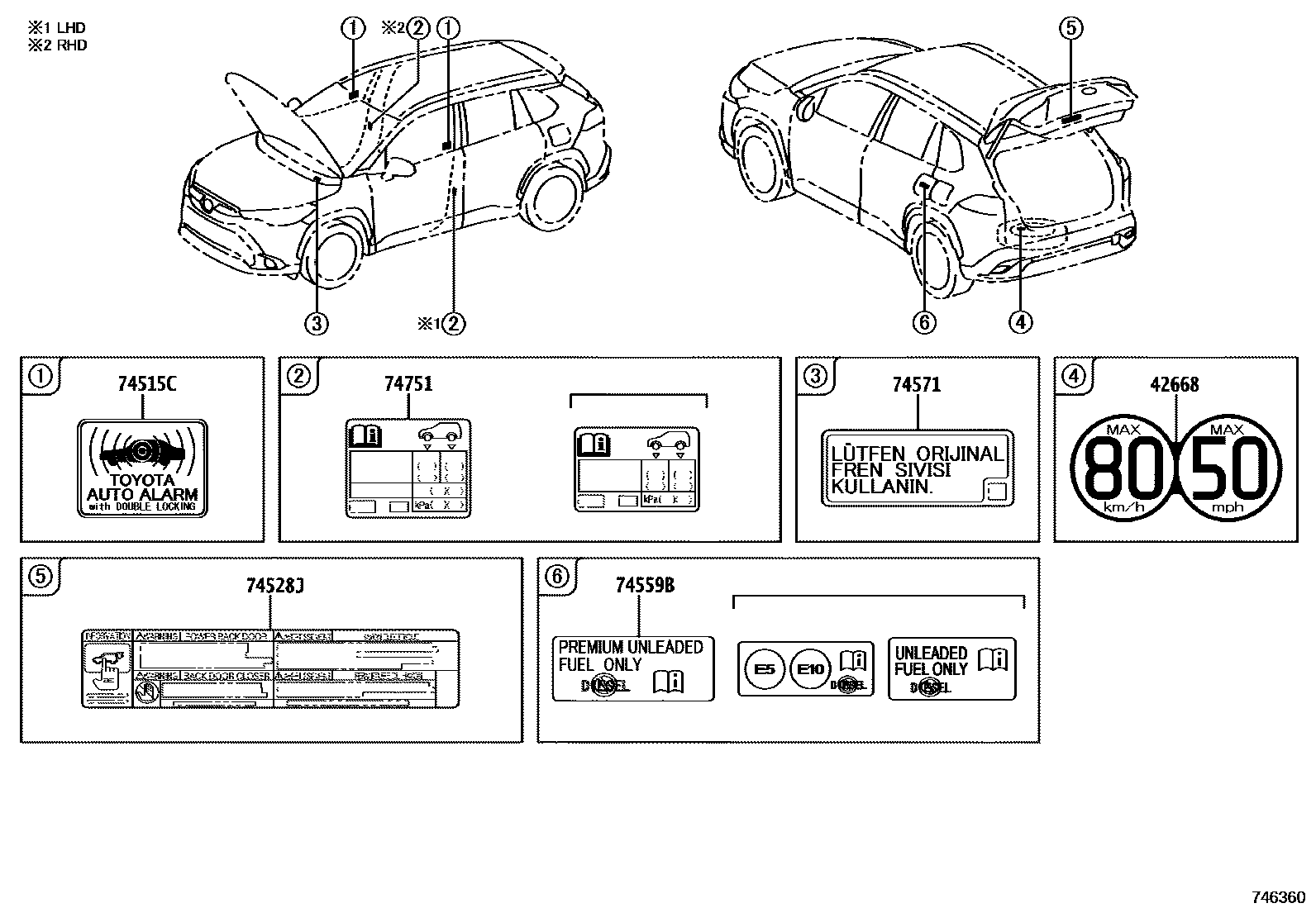

Toyota COROLLA 警示铭牌(车外和车内) — Figure 7403
Toyota COROLLA EPC diagram 7403, 警示铭牌(车外和车内), with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11291B | Engine name plate | 11291-37100 · 11291-37130 |
| 288A2 | Battery location label | 288A2-24020 · 288A2-37020 |
| 42668 | Small spare tire warning label | 42668-42010 |
| 74515C | Anti-theft warning information label | 74515-42010 |
| 74528J | Electric back door warning label | 74528-42011 |
| 74559B | fuel information label | 74559-11030 · 74559-20140 · 74559-60030 |
| 74571 | Brake fluid warning plate | 47288-64010 |
| 74751 | tire pressure information label | 42661-16810 · 42661-16820 · 42661-16830 · 42661-16840 · 42661-16890 · 42661-16A00 |
| 88723E | Cooler maintenance warning label | 88733-52160 |
| 88723H | Cooler maintenance warning label | 88723-16100 · 88723-16150 · 88723-16170 · 88723-16180 |
