Toyota COROLLA battery holder — Figure 7402

Toyota COROLLA EPC diagram 7402, battery holder, with 3 images and 5 PNC and OE references.

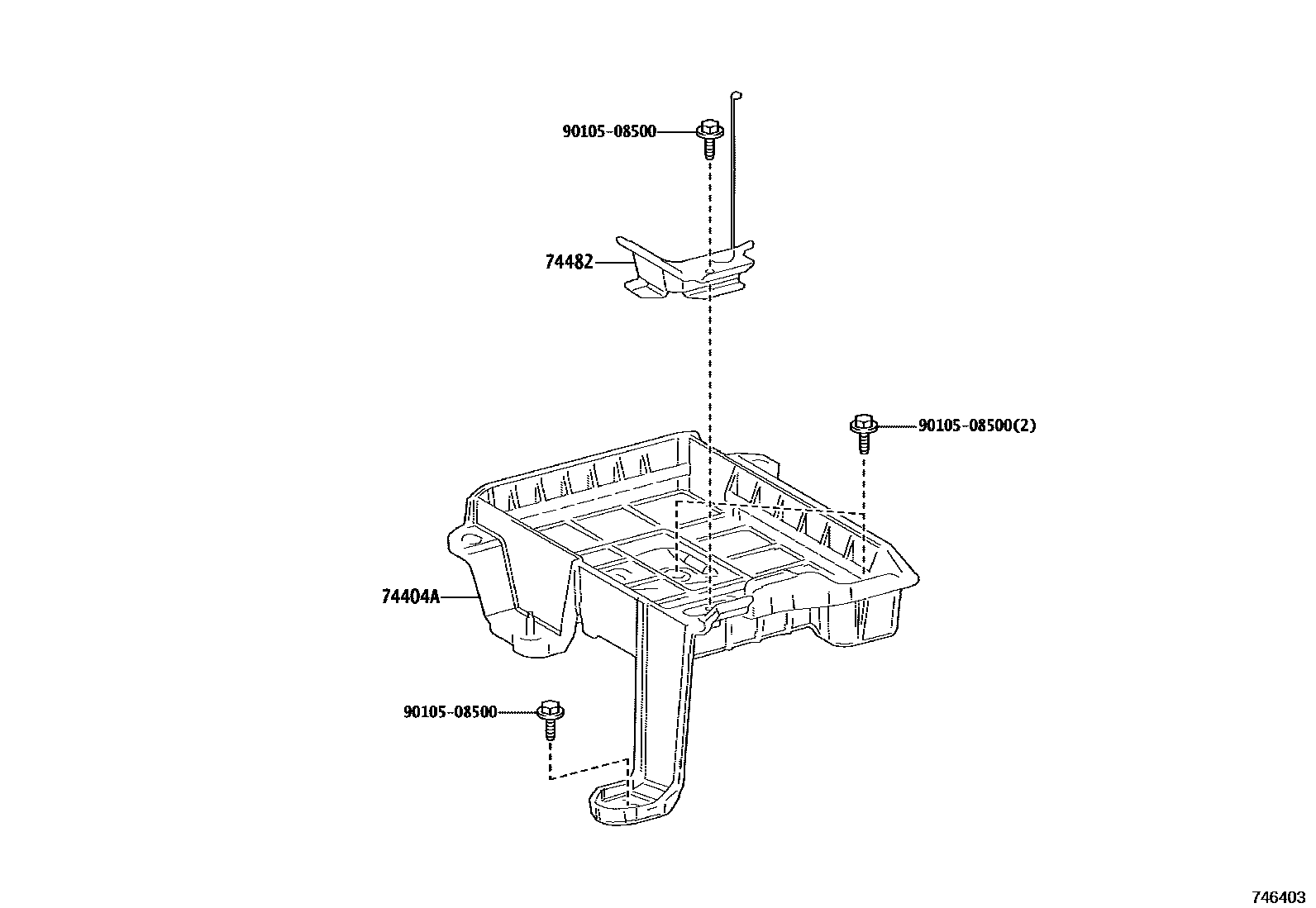

Toyota COROLLA battery holder EPC diagram — 746403
battery holder — 746403 (202207 – 999999)

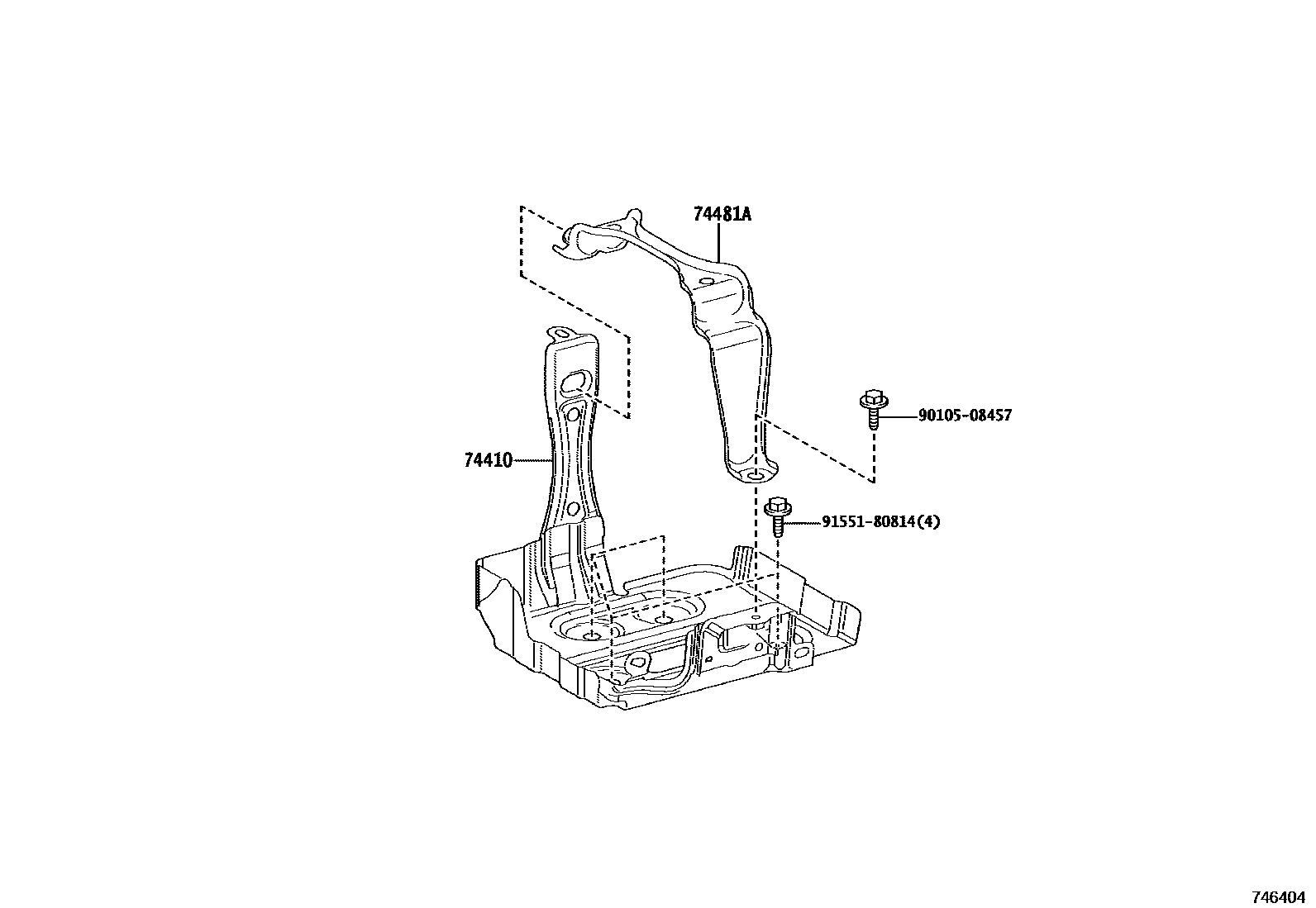

Toyota COROLLA battery holder EPC diagram — 746404
battery holder — 746404 (202207 – 999999)

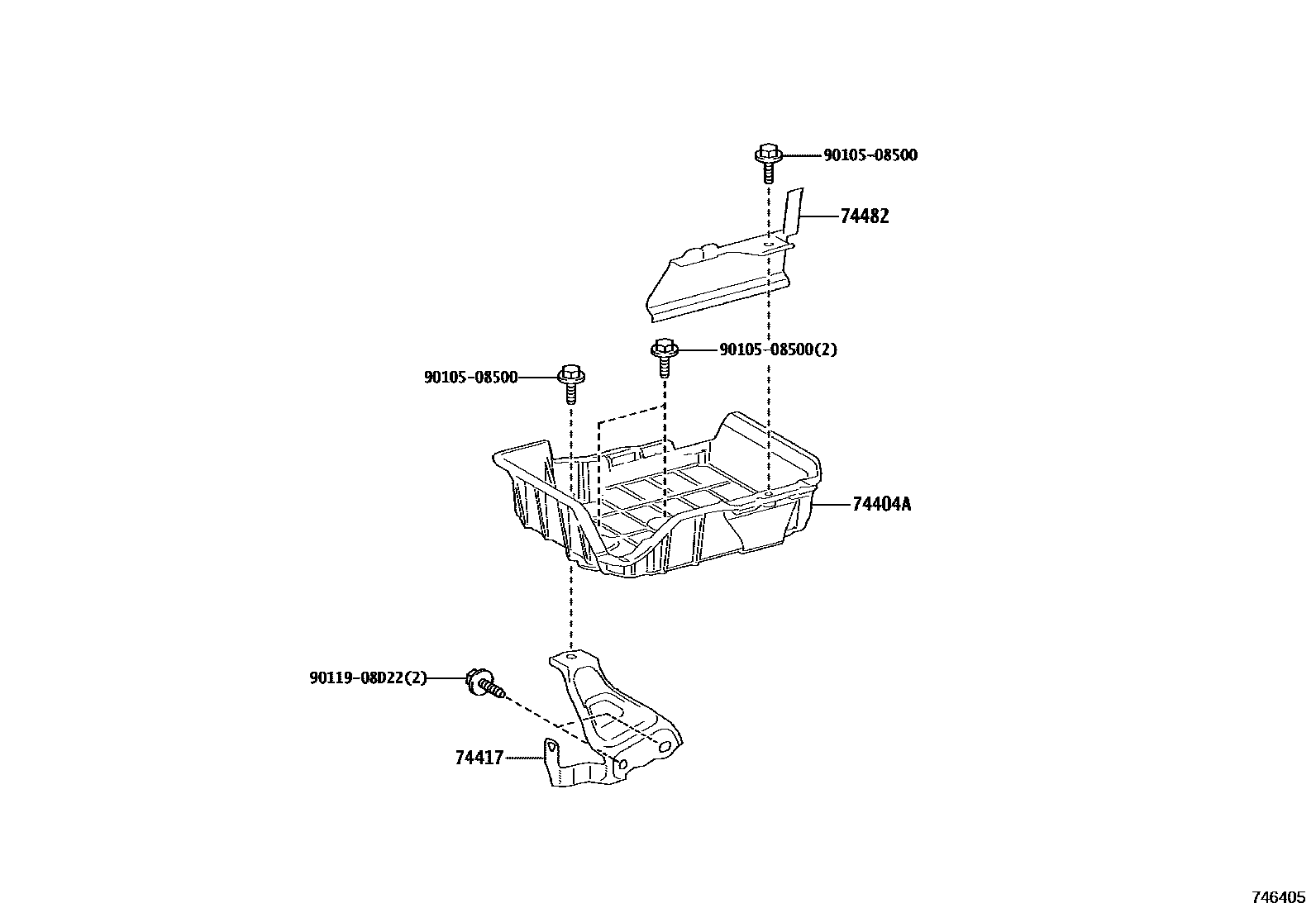

Toyota COROLLA battery holder EPC diagram — 746405
battery holder — 746405 (202207 – 999999)

PNC and OE references

PNCPart nameOE numbers
74404ABattery clip sub-assembly74404-12590 · 74404-12610
74410Battery bracket assembly74410-16010 · 74410-16011
74417battery holder bracket74417-12060
74481ABattery clip74481-16090 · 74481-16091
74482No. 2 battery clip74405-76021 · 74482-47010
