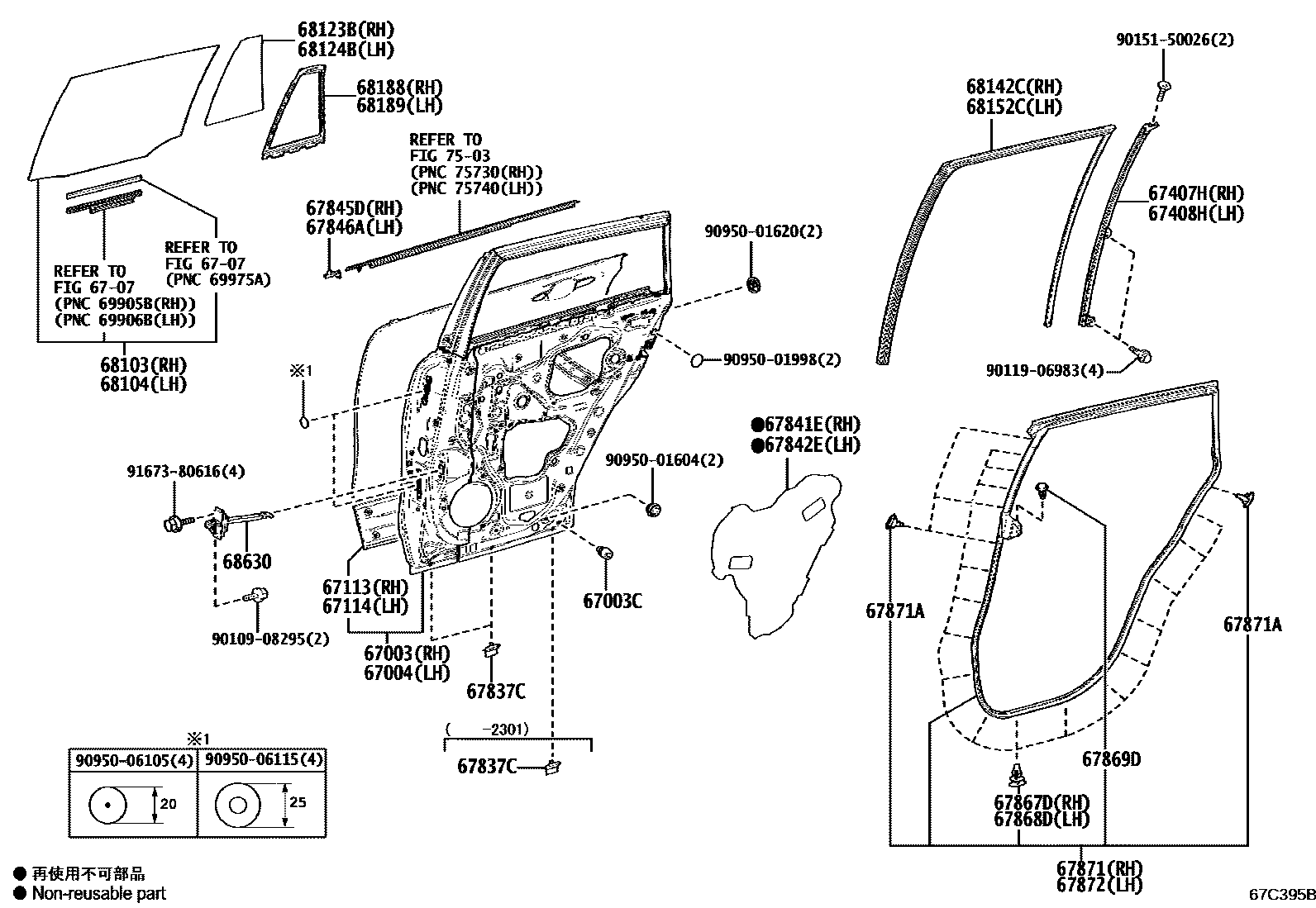

Toyota COROLLA 后门板和后门玻璃 — Figure 6705
Toyota COROLLA EPC diagram 6705, 后门板和后门玻璃, with 2 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-16280 |
| 67003C | Rear door panel cushion | 90541-09124 · 90541-09143 |
| 67004 | Left rear door panel sub-assembly | 67004-16280 |
| 67113 | Right rear door outer panel | 67113-16110 |
| 67114 | Left rear door outer panel | 67114-16110 |
| 67407H | Right sliding door window divider sub-assembly | 67407-16090 |
| 67408H | Left rear sliding door window divider sub-assembly | 67408-16090 |
| 67603B | Catch (for rear door trim panel) | 90467-09206 |
| 67673A | Right rear door frame decorative strip | 67673-16010 |
| 67674A | Left rear door frame decorative strip | 67674-16010 |
| 67837C | Rear door dust seal retainer | 67837-47060 |
| 67841E | Right rear door access hole cover | 67841-16201 · 67841-16202 |
| 67842E | Left rear door access hole cover | 67842-16131 · 67842-16132 |
| 67845D | Right rear door front outer seal | 67845-16020 |
| 67846A | Left rear door front outer seal | 67846-16010 |
| 67867D | Right rear door seal strip fixing | 67867-12150 |
| 67868D | Left rear door seal strip fixing | 67867-12150 |
| 67869D | Car door seal strip clip | 67869-20030 |
| 67871 | Right rear door sealing strip | 67871-16220 |
| 67871A | Fixings (for rear door sealing strip) | 67867-12150 |
| 67872 | Left rear door sealing strip | 67872-16220 |
| 68103 | Right rear door glass sub-assembly | 68103-16080 · 68103-16090 |
| 68104 | Left rear door glass sub-assembly | 68104-16080 · 68104-16090 |
| 68123B | Right rear door corner window glass | 68123-16190 · 68123-16200 |
| 68124B | Left rear door corner window glass | 68124-16190 · 68124-16200 |
| 68142C | Right rear door glass lift slot | 68142-16130 |
| 68152C | Left rear door glass lift slot | 68152-16050 |
| 68173B | Right rear door glass inner sealing strip | 68173-16100 |
| 68174A | Left rear door glass inner sealing strip | 68174-16100 |
| 68188 | Right rear door corner window seal | 68188-16090 |
| 68189 | Left rear door corner window seal | 68189-16090 |
| 68196B | Right rear door beltline front seal | 68196-16010 |
| 68197A | Left rear door beltline front seal | 68197-16010 |
| 68198 | Right rear door beltline rear seal | 68198-16010 |
| 68199 | Left rear door waistline rear seal | 68199-16010 |
| 68630 | Rear door opening limiter assembly | 68630-16070 |
