Toyota COROLLA 天窗板和背窗玻璃 — Figure 6104

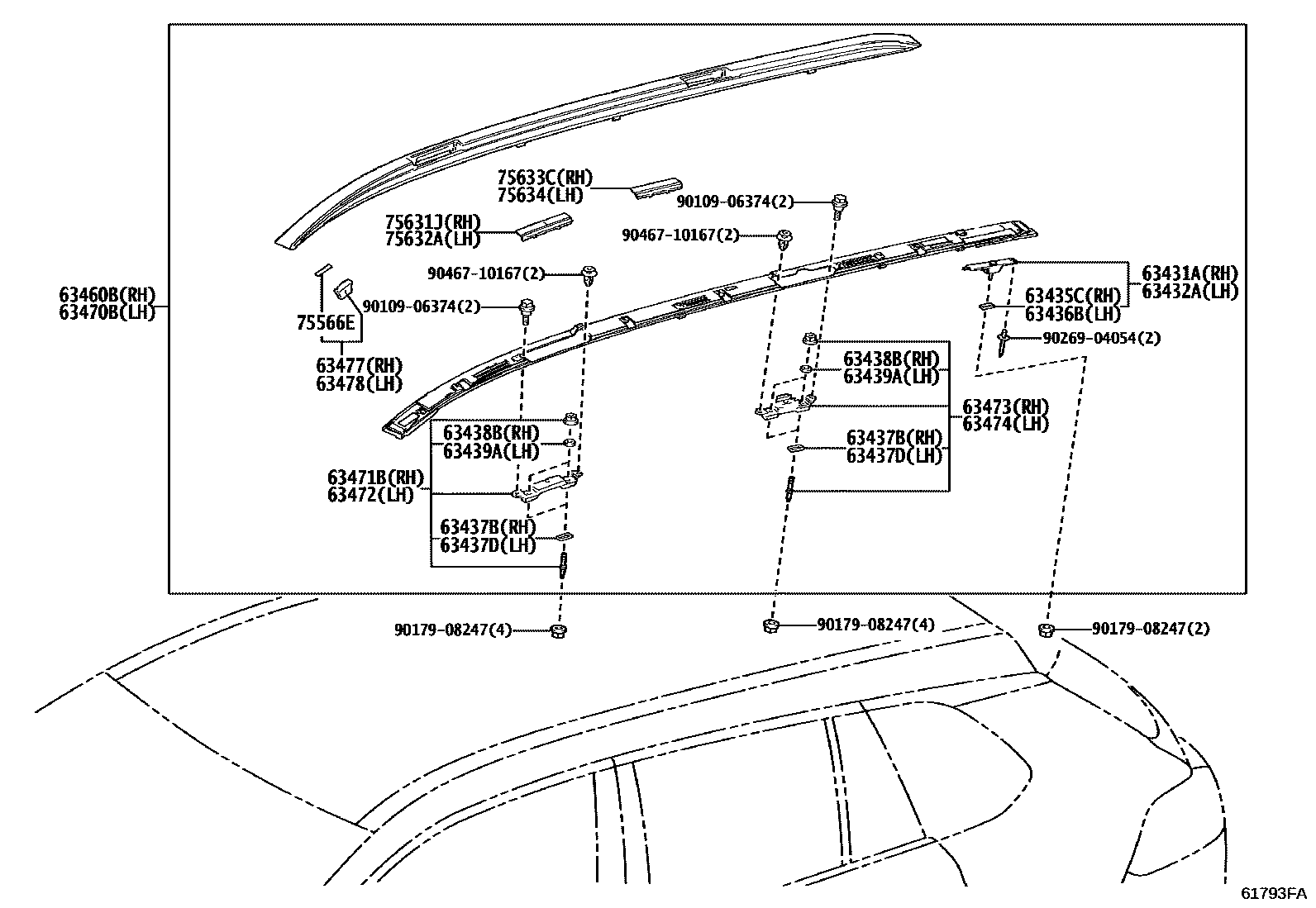

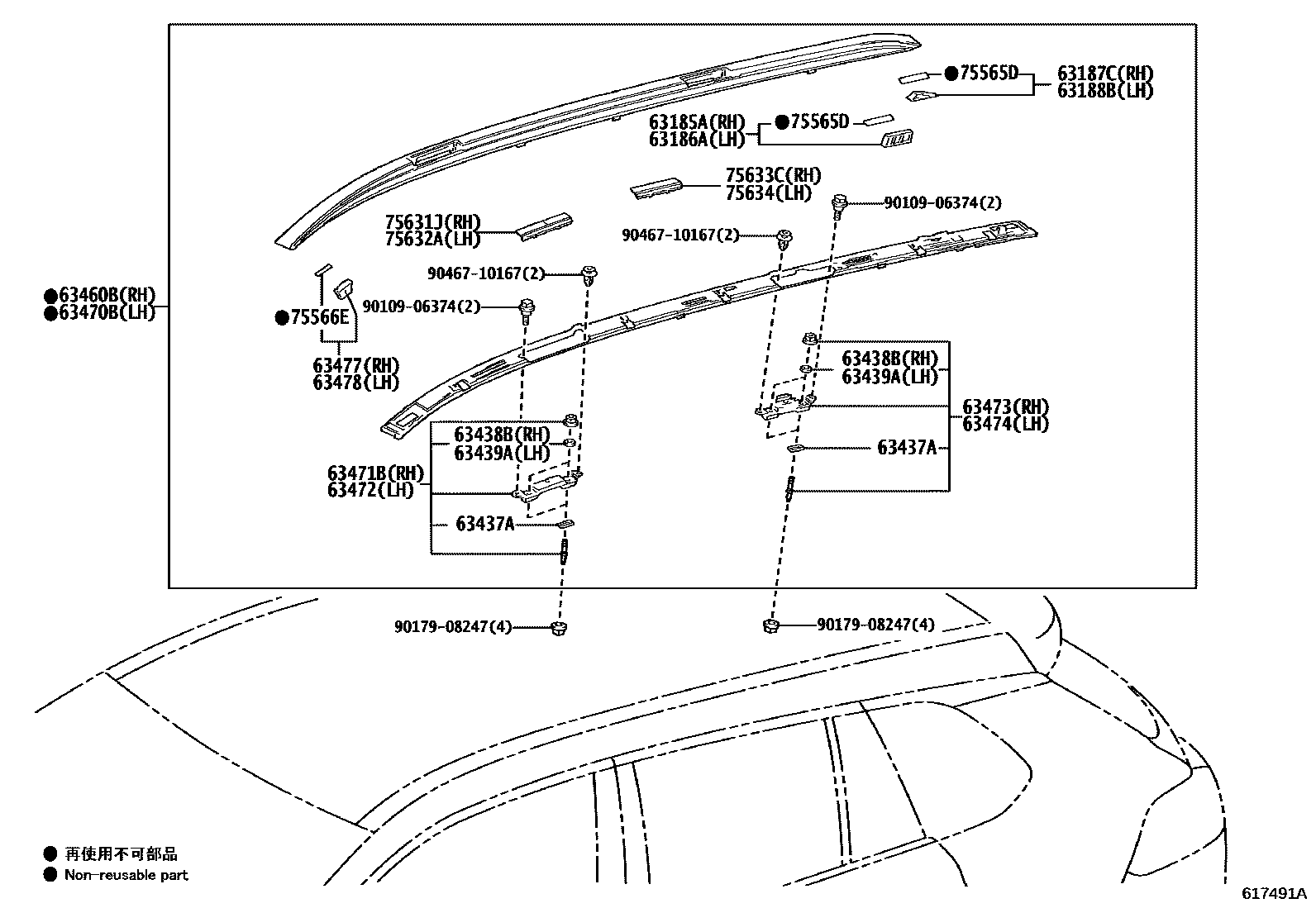

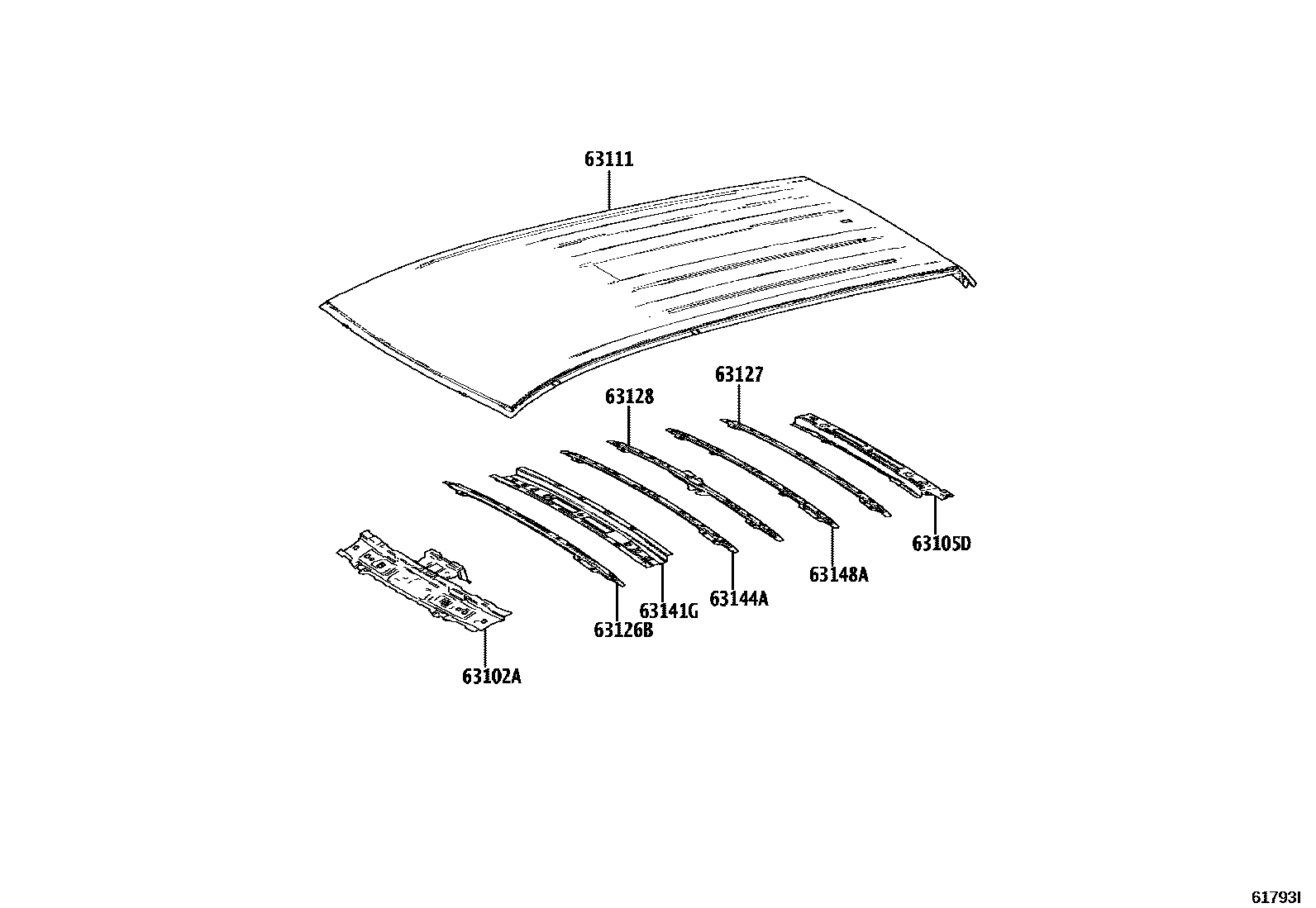

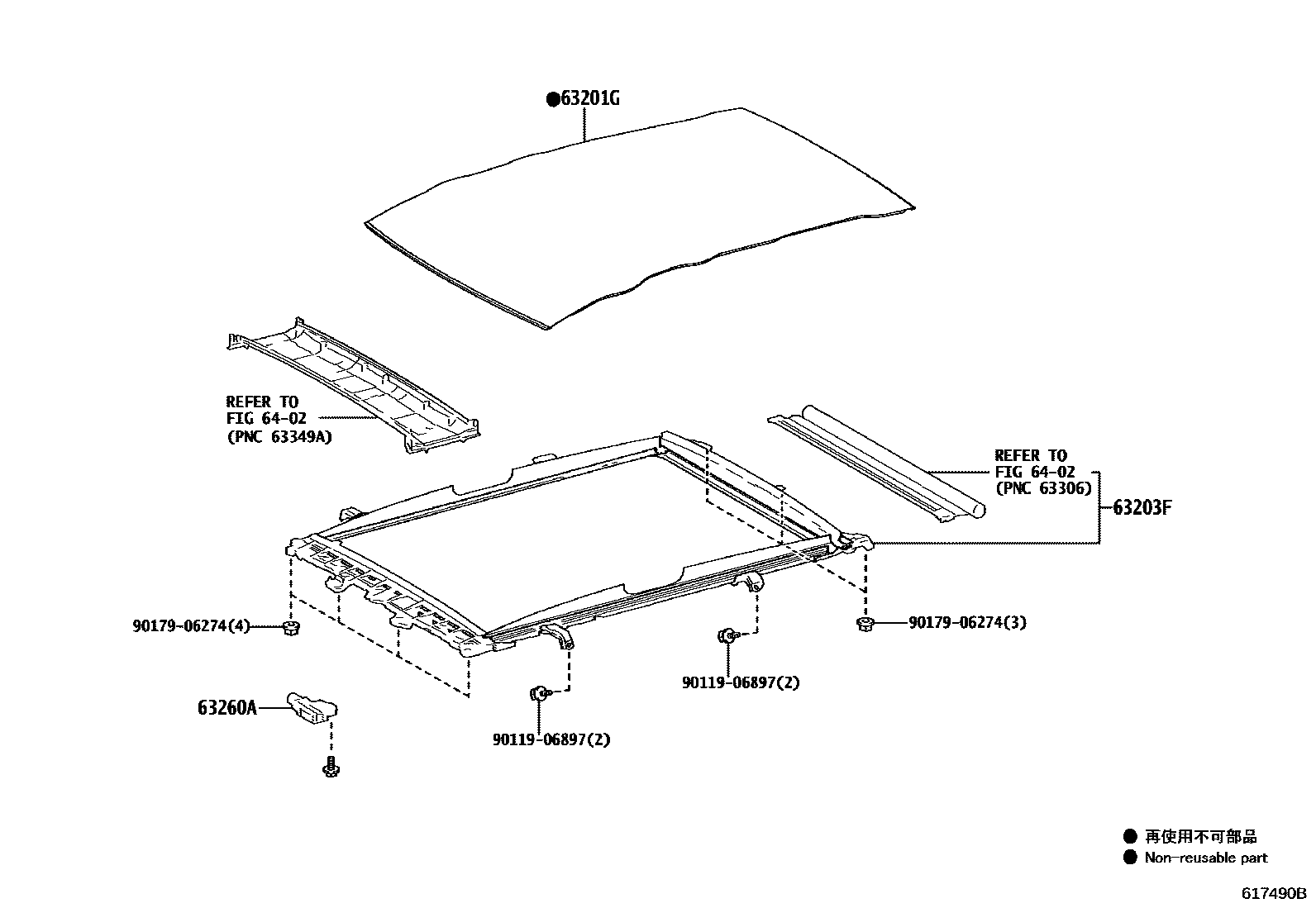

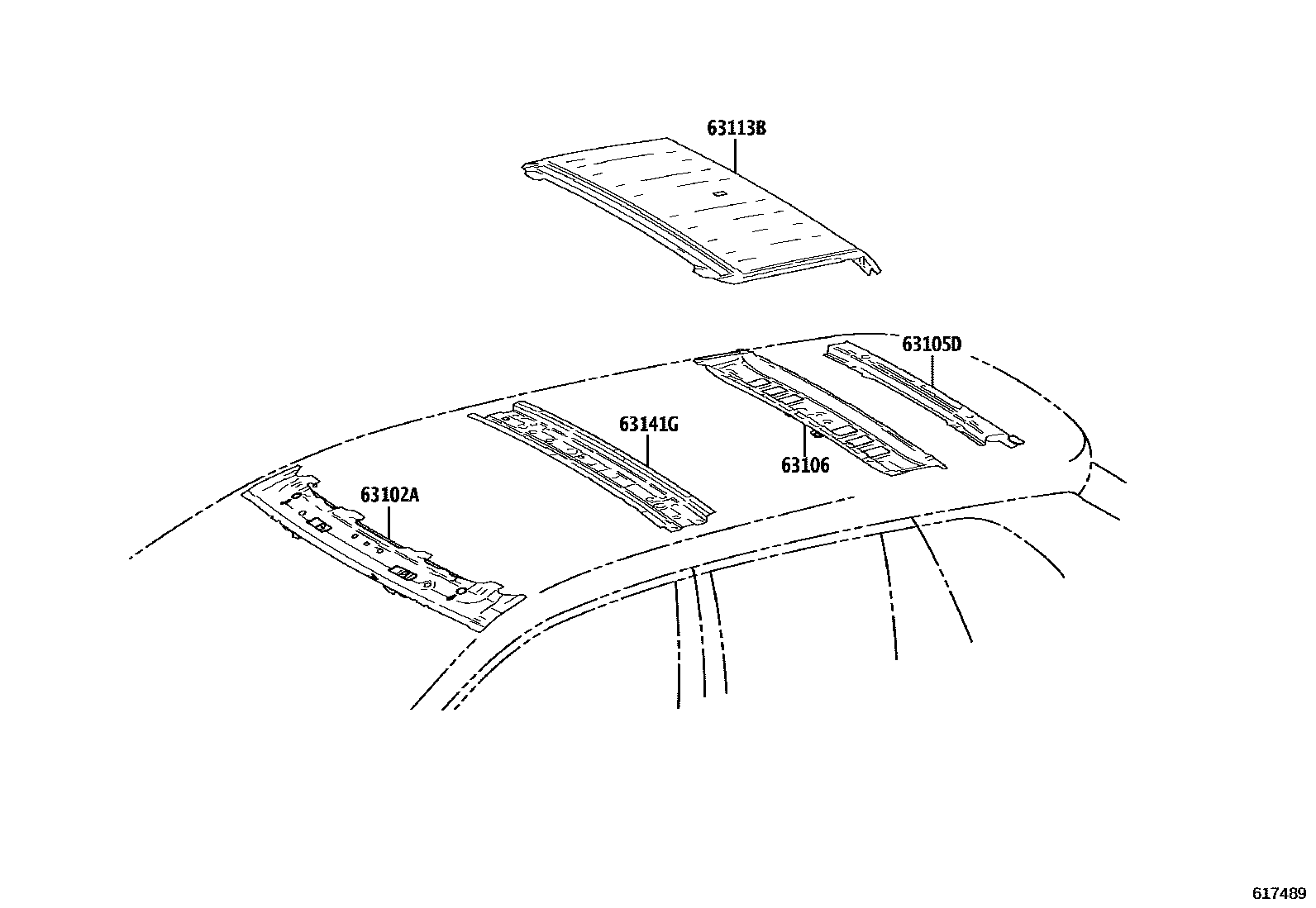

Toyota COROLLA EPC diagram 6104, 天窗板和背窗玻璃, with 5 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63102A | Windshield roof sub-assembly | 63102-16050 · 63102-16060 |
| 63105D | Rear window upper frame sub-assembly | 63105-16070 |
| 63106 | No. 4 roof panel reinforcement sub-assembly | 63106-16010 |
| 63111 | roof panel | 63111-16320 · 63111-16330 · 63111-16331 |
| 63113B | rear roof panel | 63113-16010 · 63113-16011 |
| 63126B | No. 2 rear roof panel reinforcement | 63126-16030 |
| 63127 | No. 5 roof panel reinforcement | 63127-16030 |
| 63128 | No. 6 roof panel reinforcement | 63128-16010 |
| 63141G | No. 1 roof panel reinforcement | 63141-16130 · 63141-16140 |
| 63144A | No. 4 roof panel reinforcement | 63144-16050 |
| 63148A | No. 7 roof panel reinforcement | 63148-16040 |
| 63185A | Right front roof rack bracket | 63185-16010 · 63185-16011 |
| 63186A | Left front roof rack bracket | 63186-16010 · 63186-16011 |
| 63187C | Right rear roof rack No. 1 bracket | 63187-16010 · 63187-16011 |
| 63188B | Left rear roof rack No. 1 bracket | 63188-16010 · 63188-16011 |
| 63201G | Sliding sunroof glass sub-assembly | 63201-16150 |
| 63260A | Sliding sunroof driving gear sub-assembly | 63260-16100 · 63260-16110 |
| 63431A | No. 1 roof right inner luggage rack bracket | 63435-16010 |
| 63432A | No. 1 roof left inner luggage rack bracket | 63436-16010 |
| 63435C | Roof right storage rack No. 1 seal | 63437-16020 |
| 63436B | Roof left storage rack No. 1 seal | 63437-16010 |
| 63437A | Roof rack No. 2 seal | 63437-16010 · 63437-16020 |
| 63437B | No. 2 seal for roof rack on right side | 63437-16010 · 63437-16020 |
| 63437D | Roof left storage rack No. 2 seal | 63437-16010 · 63437-16020 |
| 63438B | Roof right storage rack No. 3 seal | 63438-20010 |
| 63439A | Roof left storage rack No. 3 seal | 63438-20010 |
| 63460B | Roof right luggage rack assembly | 62403-16010 · 62403-16011 · 62403-16020 · 62403-16021 · 62403-16050 · 62403-16060 |
| 63470B | Roof left luggage rack assembly | 62404-16010 · 62404-16011 · 62404-16020 · 62404-16021 · 62404-16050 · 62404-16060 |
| 63471B | Right front roof rack support | 63471-16010 · 63471-16020 |
| 63472 | Left front roof rack support | 63472-16010 · 63472-16020 |
| 63473 | Right rear roof rack support | 63473-16010 · 63473-16020 |
| 63474 | Left rear roof rack support leg | 63474-16010 · 63474-16020 |
| 63477 | Right center roof rack bracket | 63477-16010 · 63477-16011 |
| 63478 | Left center roof rack bracket | 63478-16010 · 63478-16011 |
| 75565D | No. 1 roof side panel protector | 75567-16010 · 75569-16010 |
| 75566E | No. 2 roof side trim protector | 75566-16010 |
| 75631J | No. 1 roof right side trim panel cover | 75631-16010 |
| 75632A | No. 1 roof left trim panel cover | 75632-16010 |
| 75633C | No. 2 roof right trim panel cover | 75633-16010 |
| 75634 | No. 2 roof left trim panel cover | 75634-16010 |
