Toyota COROLLA 后保险杠及附件 — Figure 5202

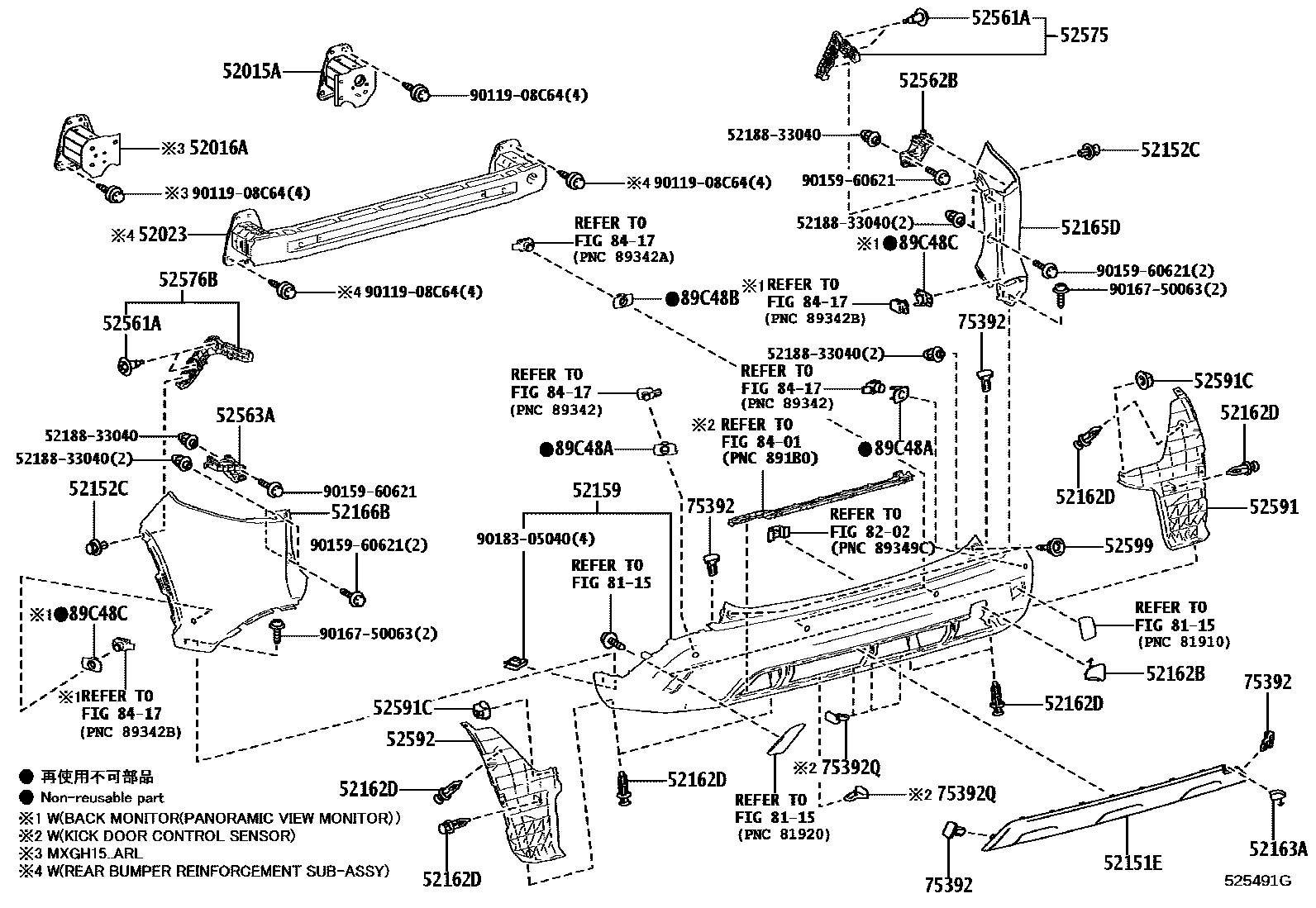

Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 1 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52015A | Rear bumper right arm sub-assembly | 52015-12440 |
| 52016A | Rear bumper left arm sub-assembly | 52016-16180 |
| 52023 | Rear bumper reinforcement sub-assembly | 52023-47070 |
| 52151E | rear bumper | 52151-16903 |
| 52152C | Rear bumper side clips | 90467-07220 |
| 52159 | rear bumper cover | 52159-16926 · 52159-16927 |
| 52162B | Rear bumper No. 1 fender | 52162-16040 |
| 52162D | Rear bumper insert | 52161-16010 |
| 52163A | Rear bumper right side fender | 52163-16900 |
| 52165D | Rear bumper right corner extension | 52165-16900 · 52165-16901 |
| 52166B | Rear bumper left corner extension | 52166-16900 · 52166-16901 |
| 52561A | Clip (for rear bumper mount) | 90467-09237 |
| 52562B | Rear bumper upper right fixing bracket | 52562-16030 |
| 52563A | Rear bumper upper left fixing bracket | 52563-16020 |
| 52575 | Rear bumper right side fixing bracket | 52575-16010 |
| 52576B | Rear bumper left side fixing bracket | 52576-16010 |
| 52591 | Rear bumper right seal | 52591-16110 |
| 52592 | Rear bumper left seal | 52592-16050 |
| 52599 | Rear bumper upper retainer | 52599-68030 |
| 75392 | External protective strip fixings | 75392-35220 |
| 75392Q | No. 2 outer protective strip fixings | 75392-35220 |
| 89C48A | Ultrasonic sensor rear corner fixing bracket | 89348-16091 |
| 89C48B | Ultrasonic sensor rear central fixing bracket | 89348-48311 |
| 89C48C | Ultrasonic sensor rear mounting bracket | 89348-48311 |
