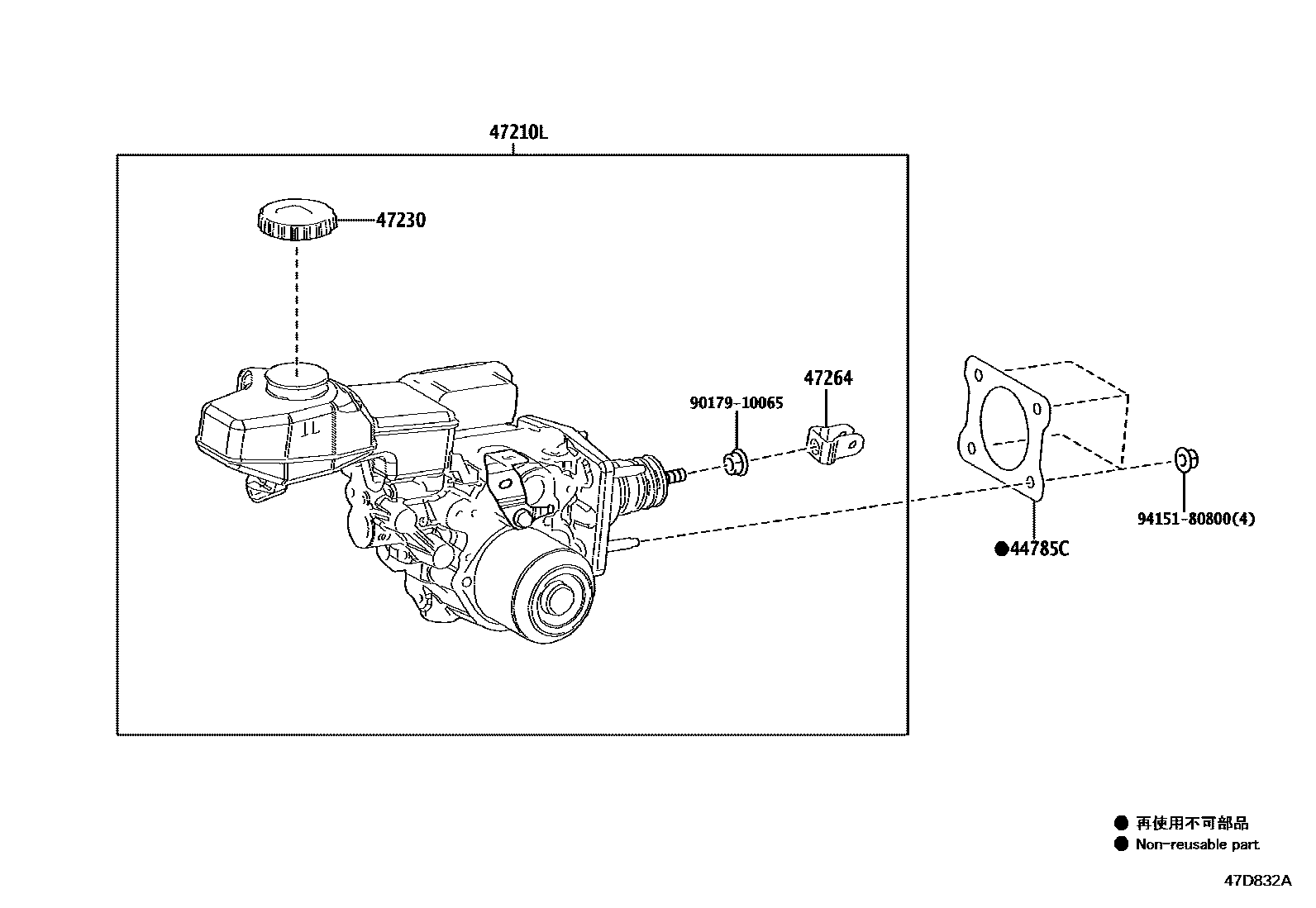

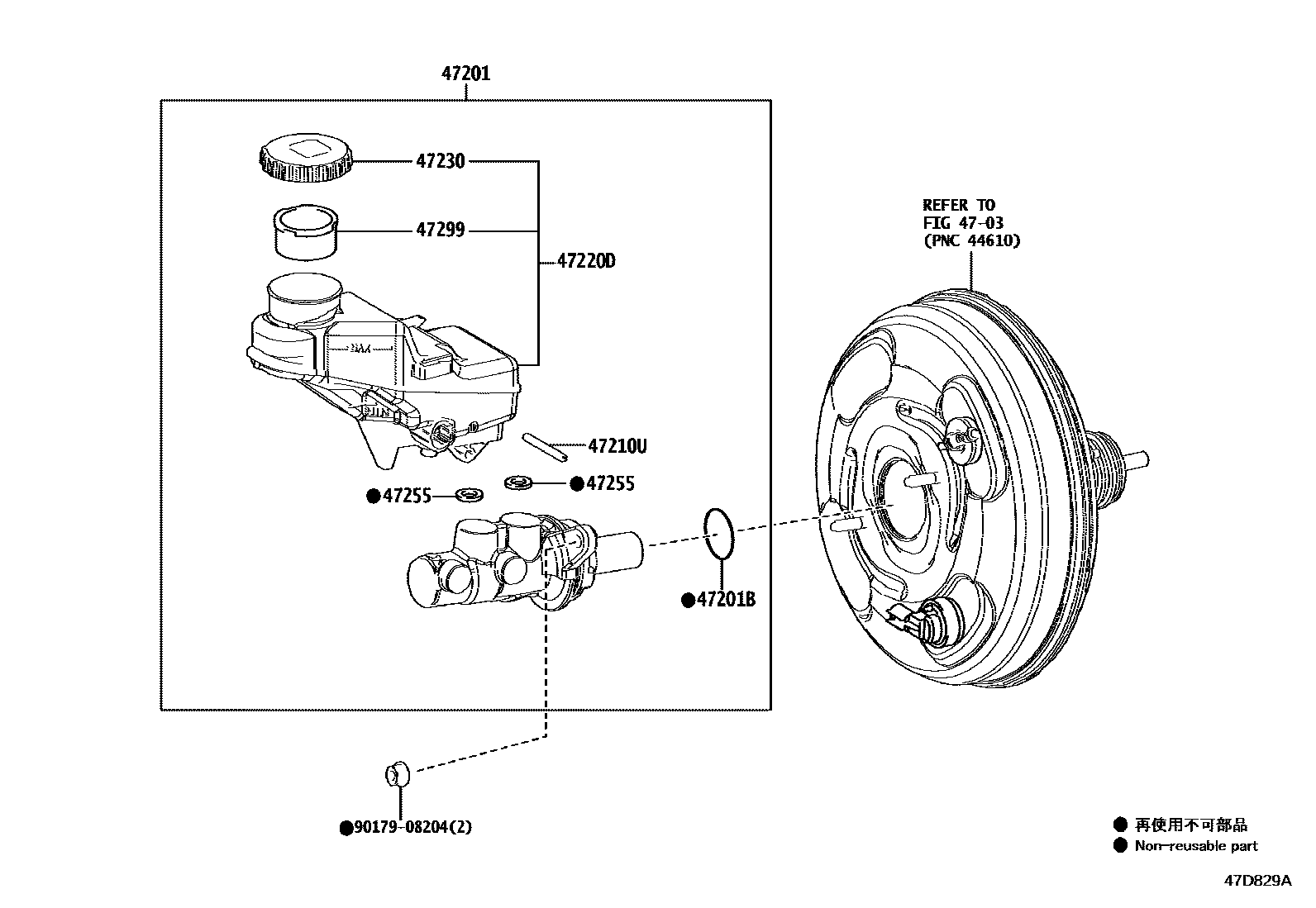

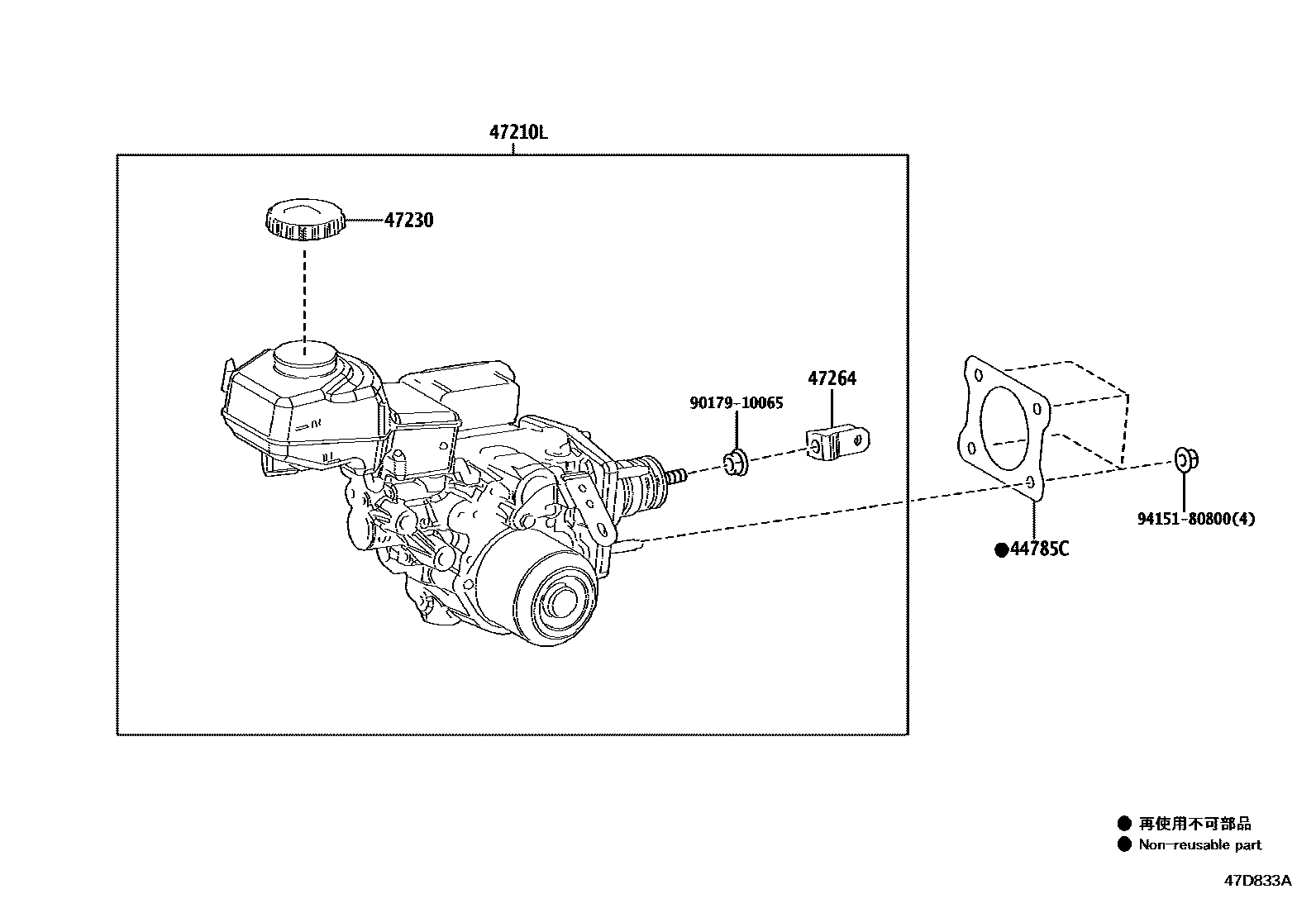

Toyota COROLLA 制动总泵 — Figure 4702
Toyota COROLLA EPC diagram 4702, 制动总泵, with 3 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44785C | brake booster pad | 44785-12040 |
| 47201 | Brake master cylinder sub-assembly | 47201-16530 |
| 47201B | O-ring (for brake master cylinder) | 90015-AH002 |
| 47210L | Brake booster assembly with master cylinder | 47050-16090 · 47050-16100 · 47050-16180 · 47050-16190 |
| 47210U | Direct sales (for brake master cylinder) | 90029-15803 |
| 47220D | Brake master cylinder fluid reservoir assembly | 47220-12350 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-47090 |
| 47255 | Master pump reservoir seal | 90029-48001 |
| 47264 | Master cylinder push rod U-shaped clamp | 47264-12060 |
| 47299 | Brake master cylinder reservoir filter | 47299-20060 |
