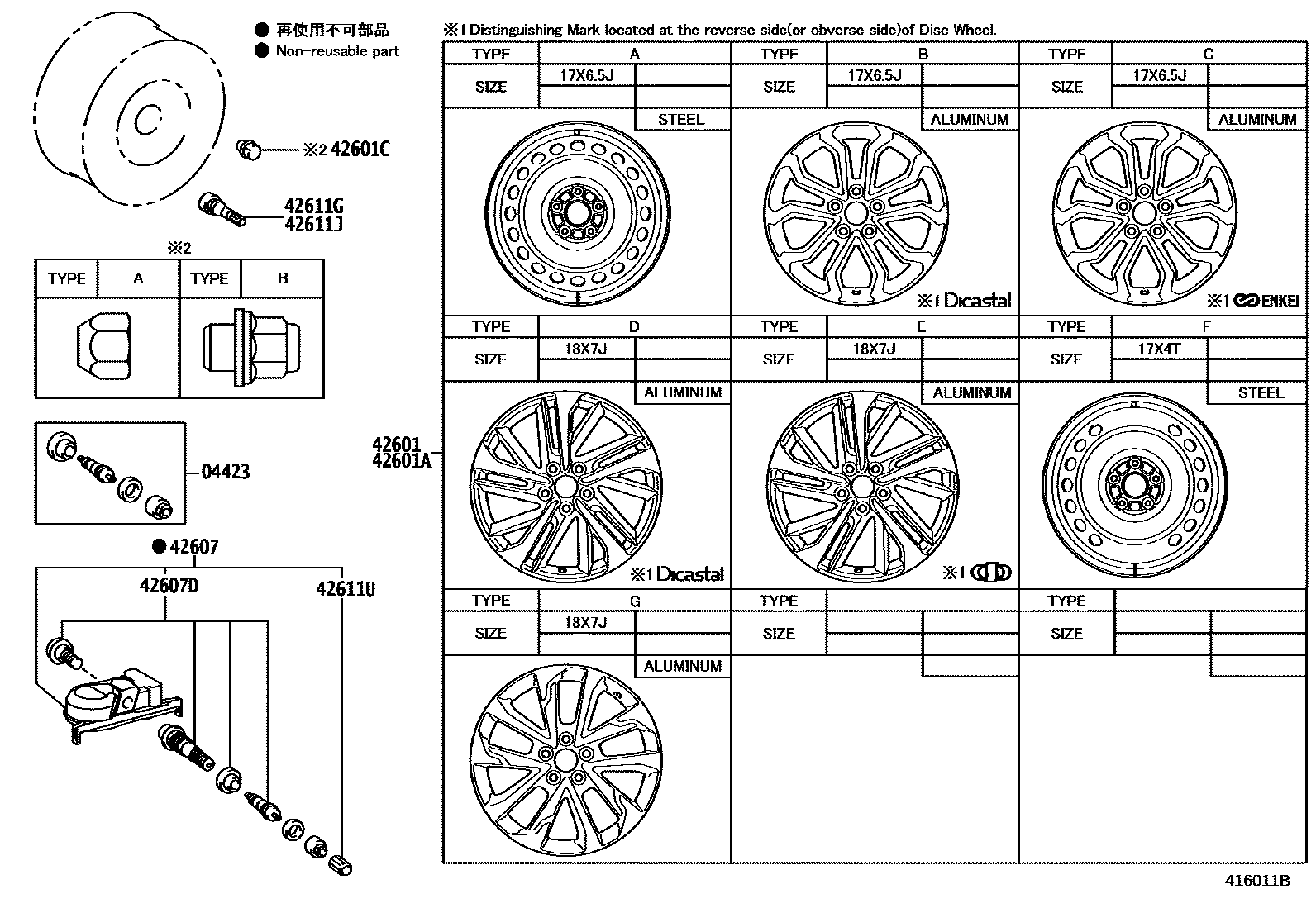

Toyota COROLLA 车轮和车轮盖 — Figure 4103
Toyota COROLLA EPC diagram 4103, 车轮和车轮盖, with 3 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04423 | Tire pressure monitoring valve or balancer valve mounting assembly | 04423-33060 |
| 42601 | spoke wheel | 42611-0W120 · 42611-0W130 · 42611-10440 · 42611-16530 · 42611-16540 · 42611-16550 · 42611-16560 |
| 42601A | Spoke wheel (for spare tire) | 4261B-42010 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01033 |

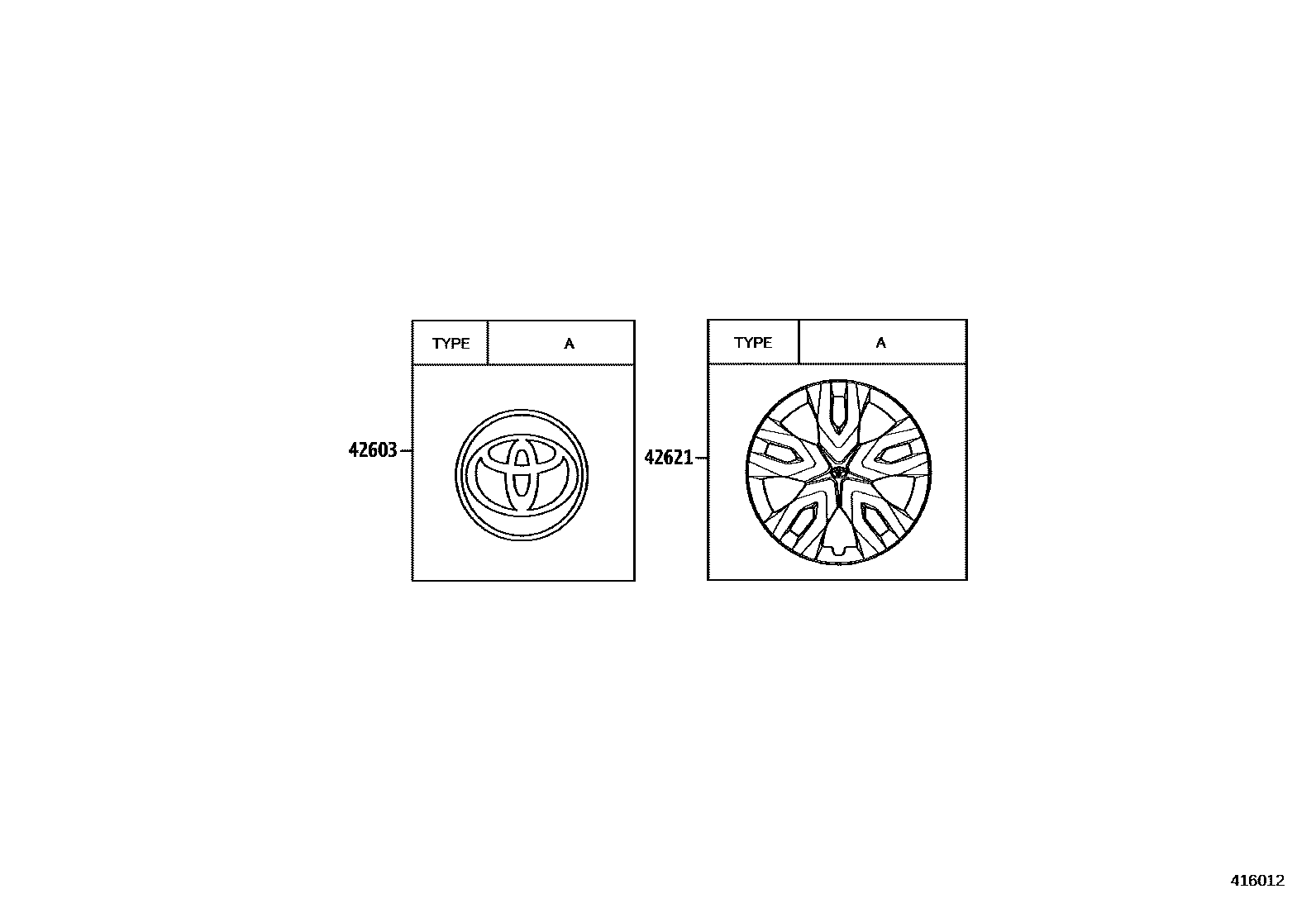

| 42603 | Wheel hub decorative parts sub-assembly | 42603-42170 |
| 42607 | Tire pressure monitoring valve sub-assembly | 42607-12020 |
| 42607D | tire pressure monitoring valve | 90942-05044 |
| 42611G | Valve (for tubeless tires) | 90942-05009 |
| 42611J | Valve (for tubeless spare tire) | 90942-05009 |
| 42611U | tire valve cover | 90942-05039 |
| 42621 | wheel cover | 42602-10180 |
