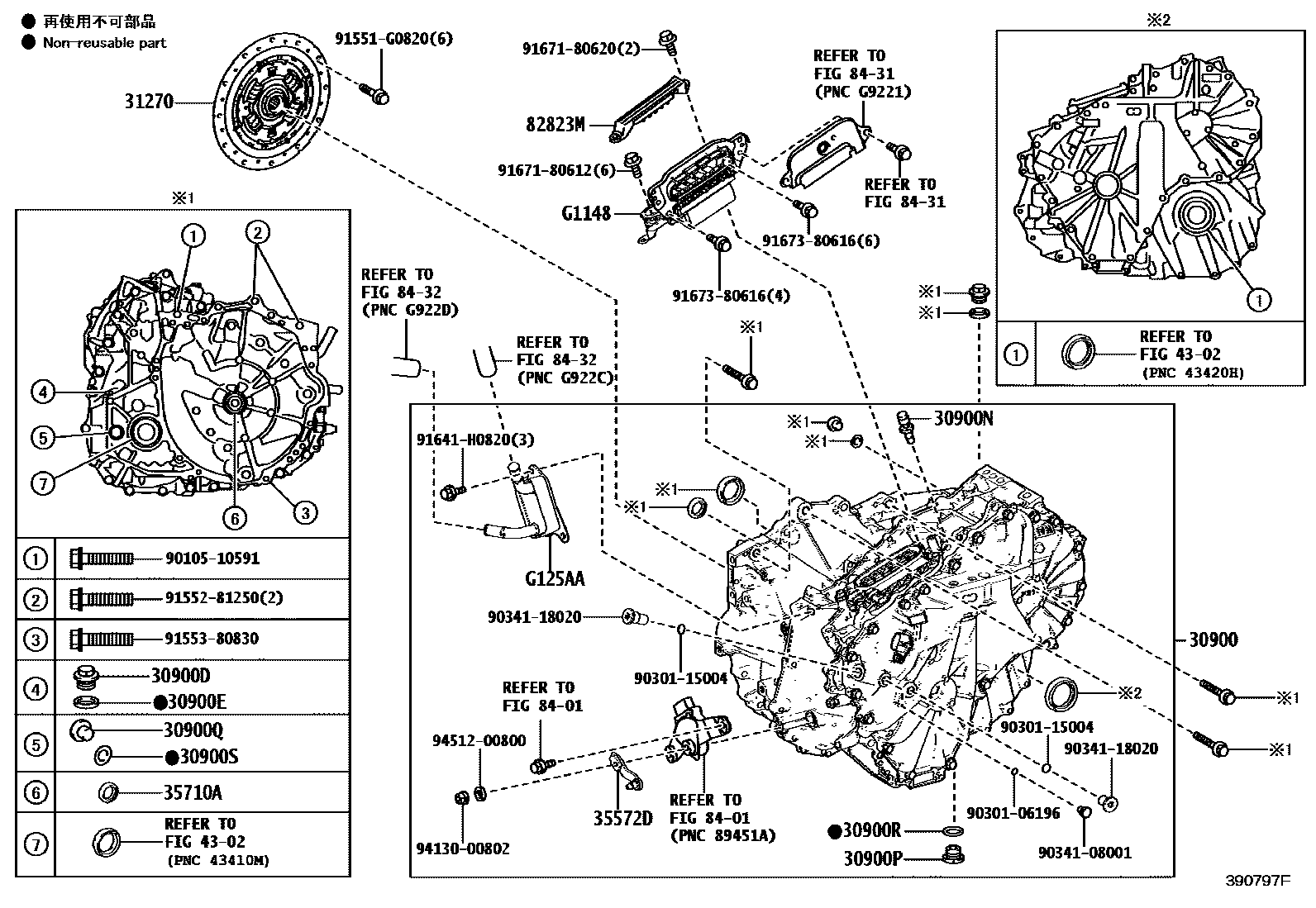

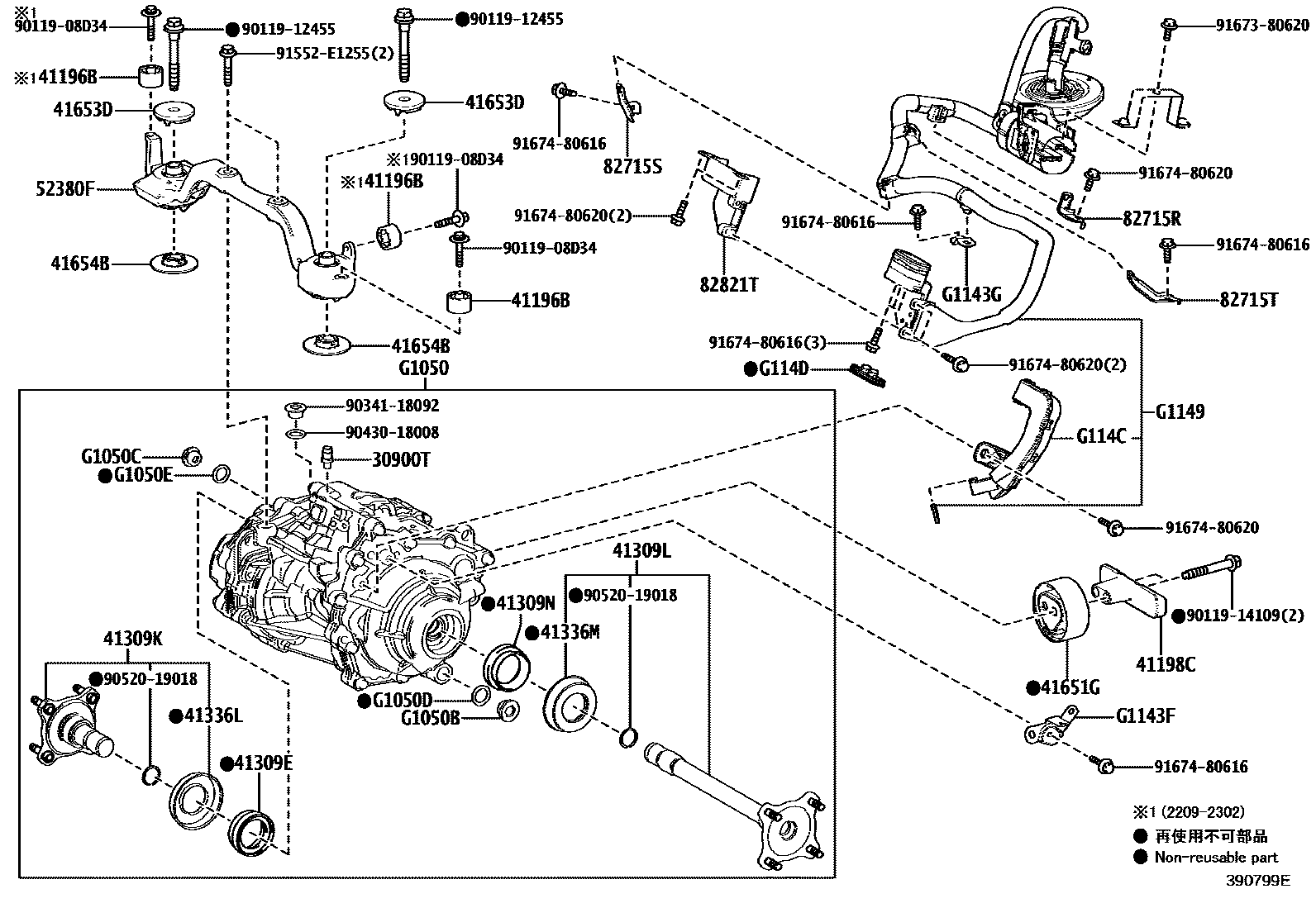

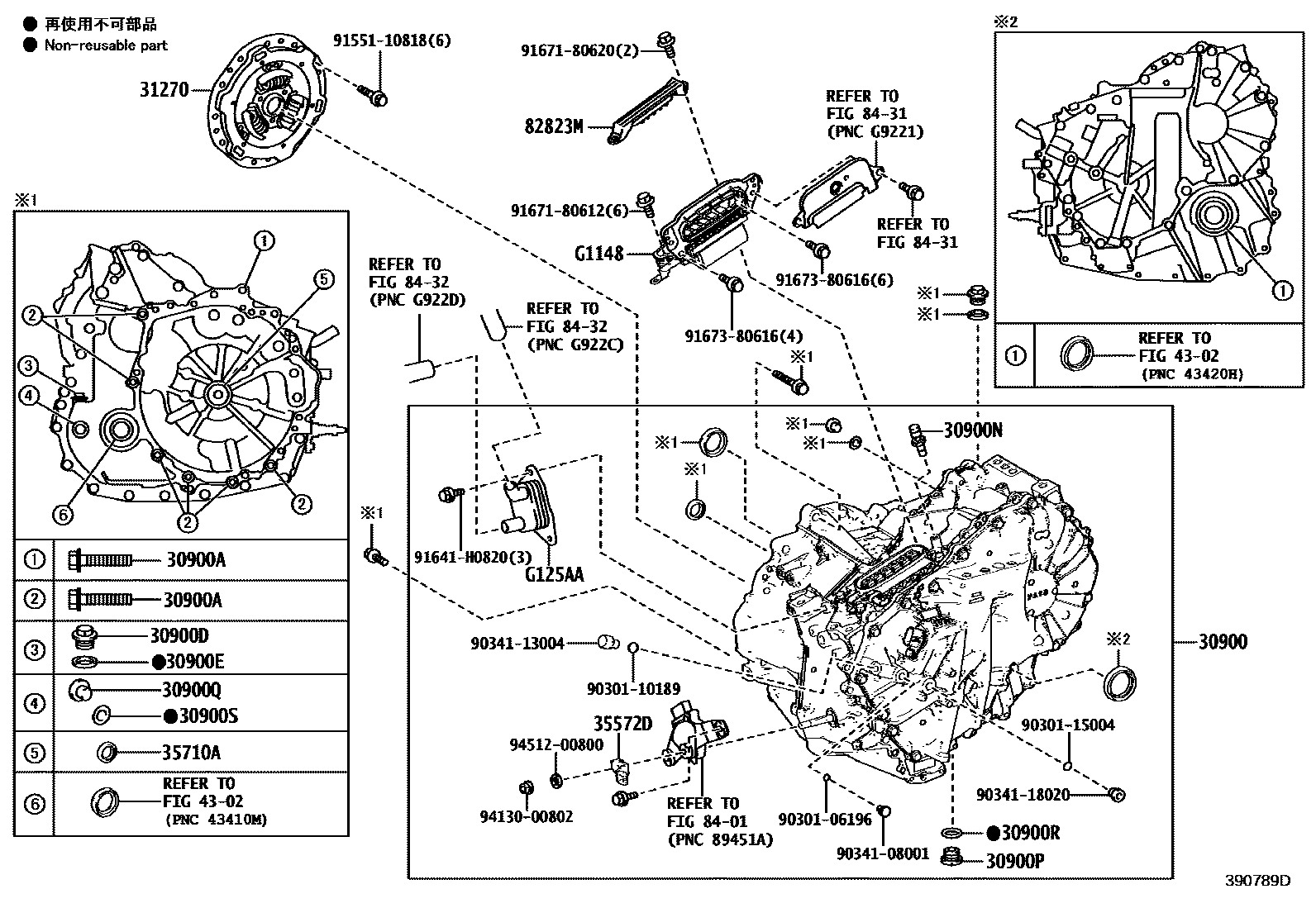

Toyota COROLLA 传动桥总成(HEV 或 BEV 或 FCEV) — Figure 3901
Toyota COROLLA EPC diagram 3901, 传动桥总成(HEV 或 BEV 或 FCEV), with 3 images and 42 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 30900 | Hybrid vehicle transmission axle assembly | 30900-16010 · 30900-16030 · 30900-16040 |
| 30900A | Bolts (used to secure the transaxle and engine of hybrid vehicles) | 91612-61045 |
| 30900D | Headed straight thread plug (for transaxle housing and transaxle housing) | 90341-18060 |
| 30900E | Gasket (for transaxle housing and transaxle housing) | 90430-18008 |
| 30900N | Breather plug (for transaxle) | 90930-03201 |
| 30900P | Drain plug (HEV) | 90341-18016 |
| 30900Q | Oil filling plug (HEV) | 90341-18090 |
| 30900R | Drain plug gasket (HEV) | 90430-18008 |
| 30900S | Oil filling plug gasket (HEV) | 90430-18008 |
| 30900T | Breather plug (for rear traction motor) | 90930-03247 |
| 31270 | Transmission input damper assembly | 31270-28020 · 31270-63010 |
| 35572D | transmission control lever | 35572-28140 · 35572-63020 |
| 35710A | T-type oil seal (for input shaft) | 90311-25035 · 90311-27012 |
| 41196B | Differential dynamic damper | 41196-16010 |
| 41198C | Differential mass damper | 41198-16010 |
| 41309E | T-type oil seal (for right differential side gear shaft) | 90311-38103 |
| 41309K | Right differential side gear shaft sub-assembly | 41309-28080 |
| 41309L | Left differential side gear shaft sub-assembly | 41309-28071 |
| 41309N | T-type oil seal (for left differential side gear shaft) | 90311-37008 |
| 41336L | Right differential side gear shaft dust cover | 41336-47020 |
| 41336M | Left differential side gear shaft dust cover | 41336-28070 |
| 41651G | Differential fixed cushion | 41651-16020 |
| 41653D | Differential fixed part upper stop | 41653-16010 |
| 41654B | Differential fixed part lower block | 41654-16010 |
| 52380F | Front differential bracket assembly | 52380-16010 · 52380-16020 |
| 82715R | No. 1 wire harness clamp bracket | G1143-47070 |
| 82715S | No. 2 wire harness clip bracket | G1143-47110 |
| 82715T | No. 3 wire harness clip bracket | G1143-47120 |
| 82821T | Connector cover | 82821-47510 |
| 82823M | Terminal cover | 82823-28110 |
| G1050 | Rear traction motor assembly with transmission axle | G1050-28040 · G1050-28041 |
| G1050B | Drain plug (for rear traction motor) | 90341-18092 |
| G1050C | Oil filling plug (for rear traction motor) | 90341-18092 |
| G1050D | Drain plug gasket (for rear traction motor) | 90430-18008 |
| G1050E | Oil filling plug gasket (for rear traction motor) | 90430-18008 |
| G1143F | No. 2 motor cable bracket | G1143-47090 |
| G1143G | No. 3 motor cable bracket | G1143-47100 |
| G1148 | Motor cable | G1148-28040 · G1148-28041 · G1148-63010 · G1148-63011 |
| G1149 | Cable (for rear traction motor) | G1149-12020 |
| G114C | Motor cable protection device | G114C-47020 |
| G114D | Motor cable terminal cover | G114D-30010 |
| G125AA | Motor cooler | G125A-28010 · G125A-63010 |
