Toyota COROLLA vacuum tube — Figure 1708

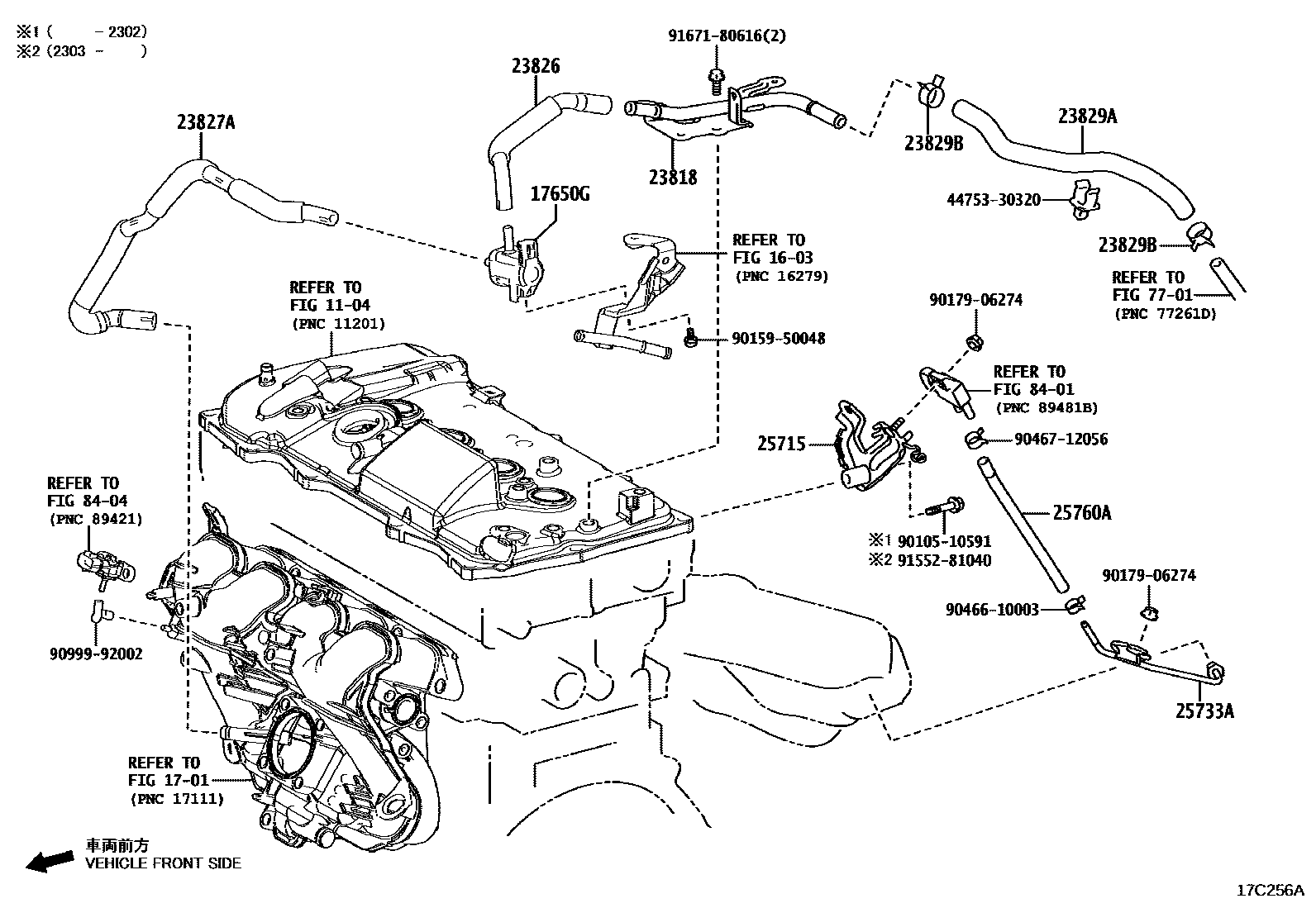

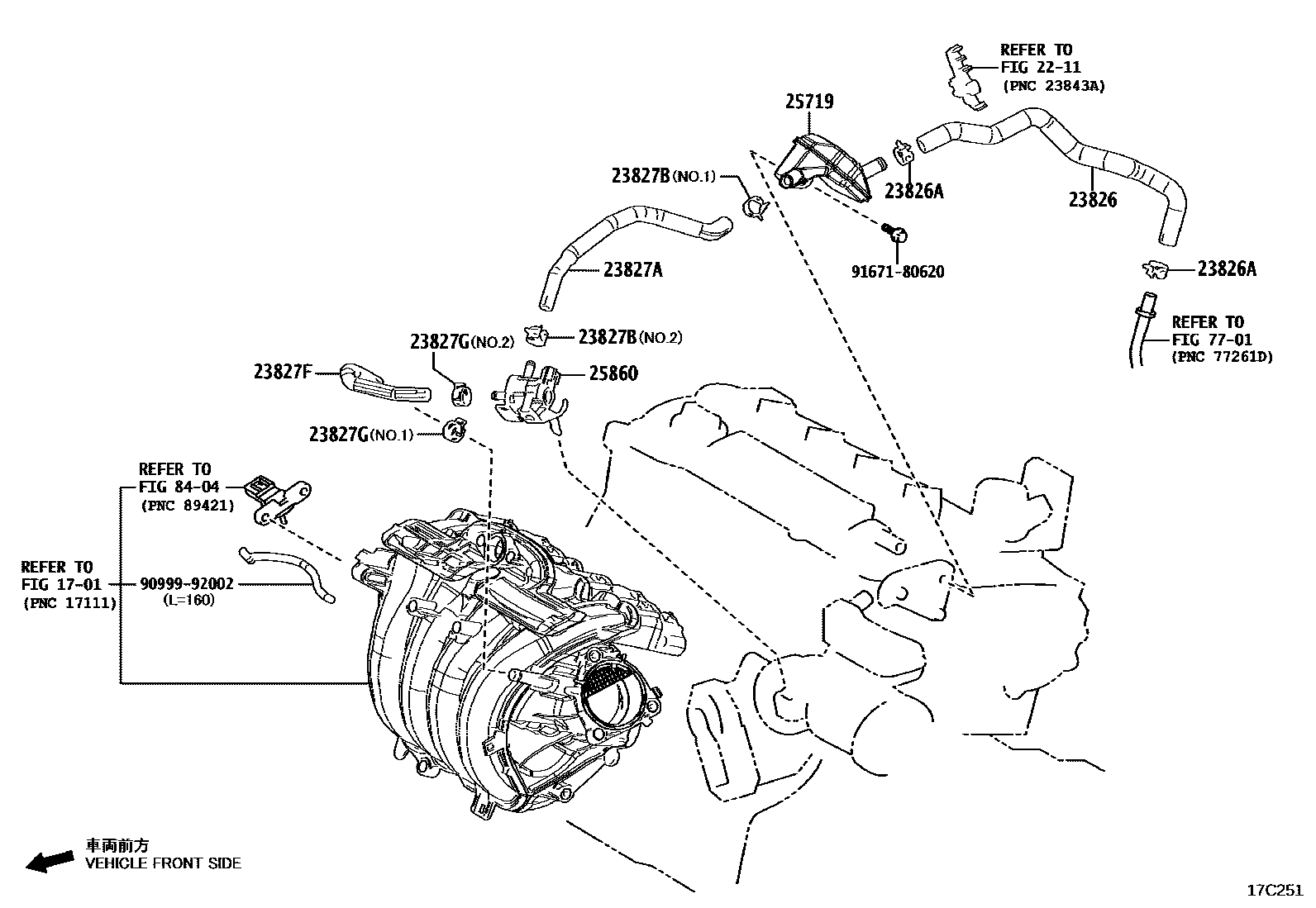

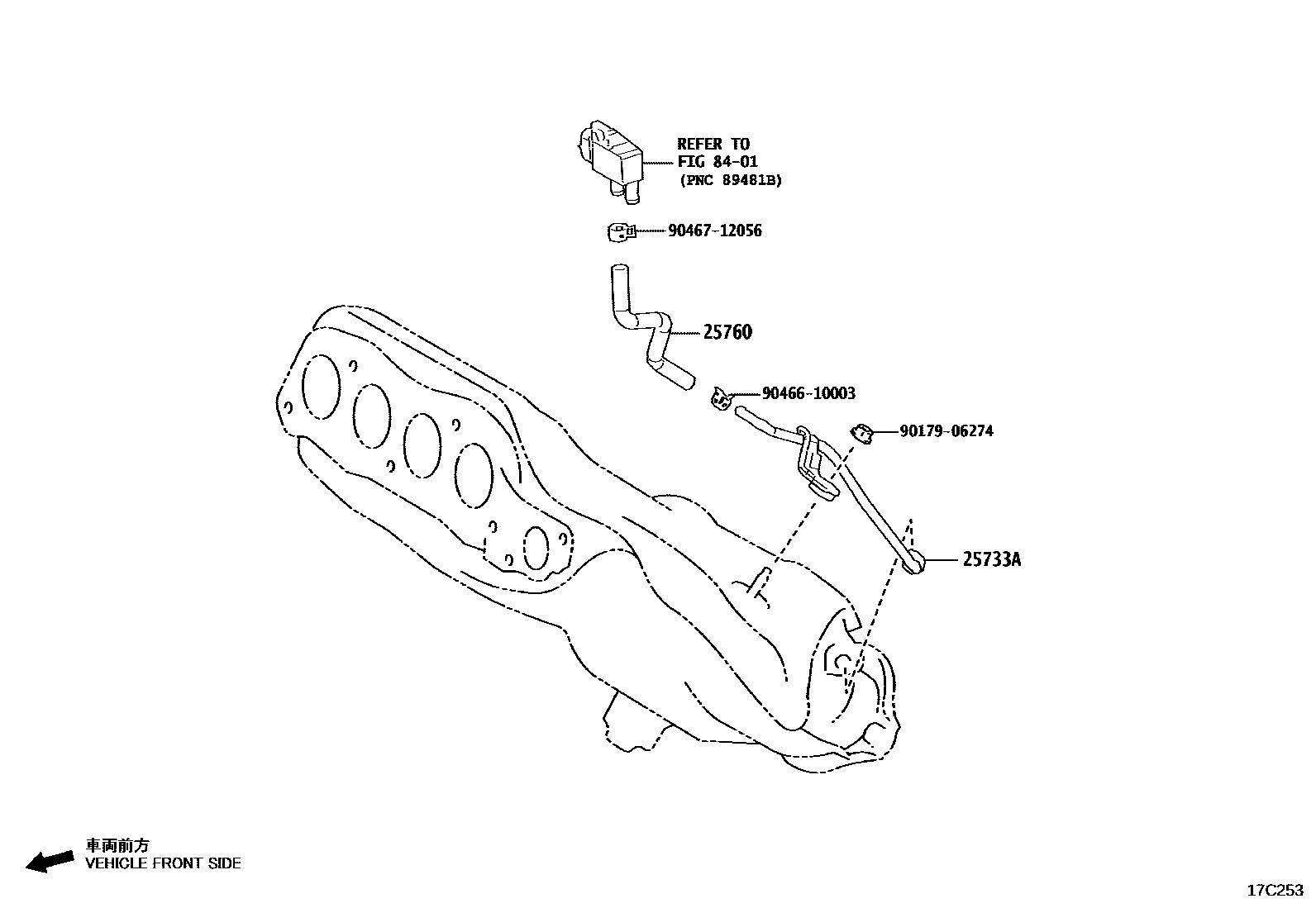

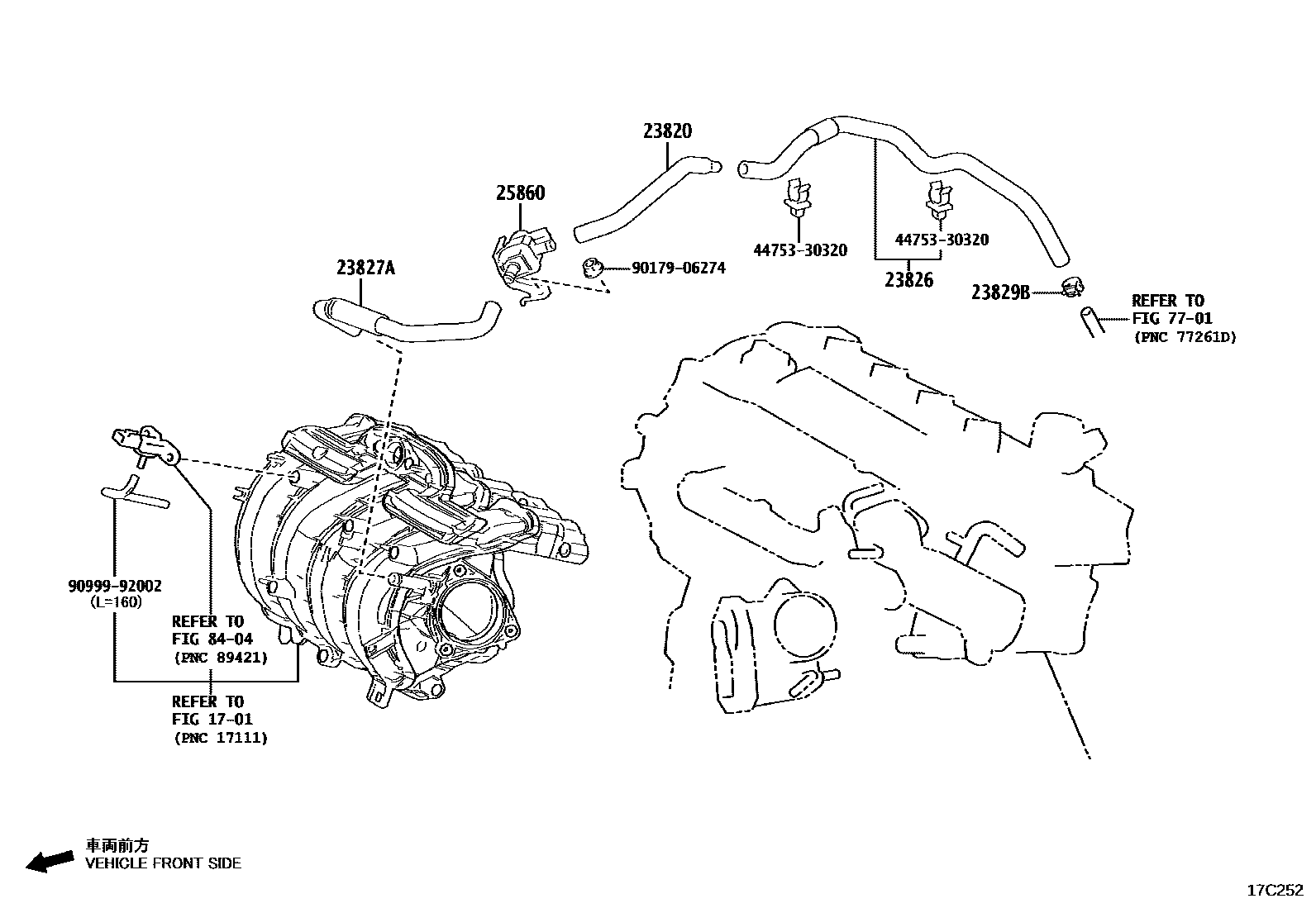

Toyota COROLLA EPC diagram 1708, vacuum tube, with 4 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17650G | Duty cycle controlled vacuum switching valve | 90910-12276 |
| 23818 | Fuel vapor supply pipe | 23818-37040 |
| 23820 | Fuel vapor supply hose assembly | 23820-24020 |
| 23826 | No. 1 fuel vapor supply hose | 23826-24030 · 23826-24190 · 23826-37250 · 23826-37340 |
| 23826A | Clamp (for No. 1 fuel vapor supply hose) | 96136-41901 |
| 23827A | No. 2 fuel vapor supply hose | 23826-24100 · 23826-24200 · 23827-37070 |
| 23827B | Clamp (for No. 2 fuel vapor supply hose) | 96138-41501 · 96138-41801 |
| 23827F | No. 3 fuel vapor supply hose | 23826-24110 |
| 23827G | Clamp (for No. 3 fuel vapor supply hose) | 96138-41501 · 96138-41801 |
| 23829A | Fuel vapor supply hose | 23826-37420 |
| 23829B | Clamp (for fuel vapor supply hose) | 96136-41901 |
| 25715 | Emission control valve bracket | 25715-37041 |
| 25719 | Vacuum pressure tank | 25719-24020 |
| 25733A | No. 1 vacuum tube | 25733-24050 · 25733-37020 |
| 25760 | Vacuum transfer hose assembly | 25760-24010 |
| 25760A | Vacuum transfer hose assembly | 25760-37030 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-24050 · 25860-24110 |
