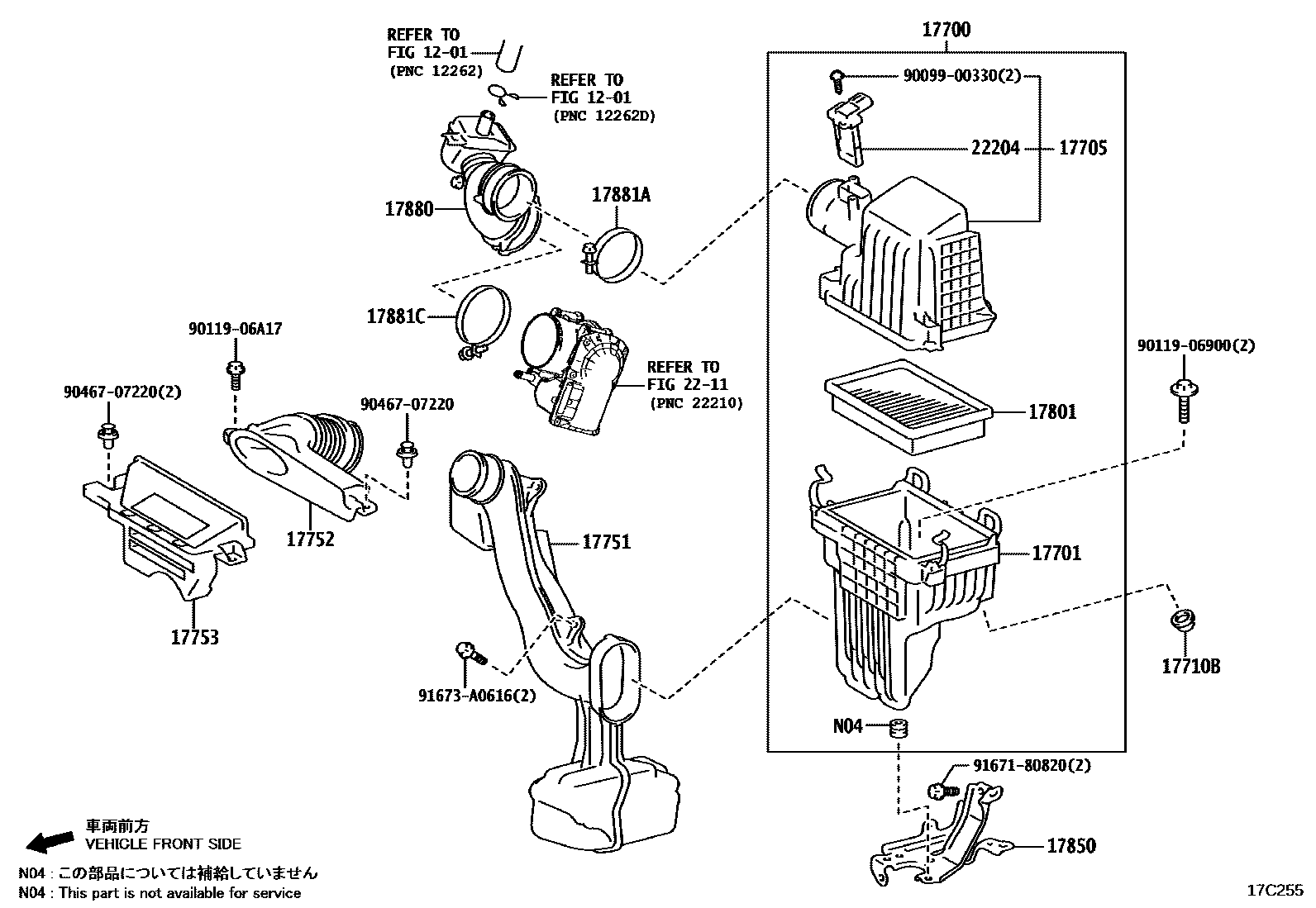

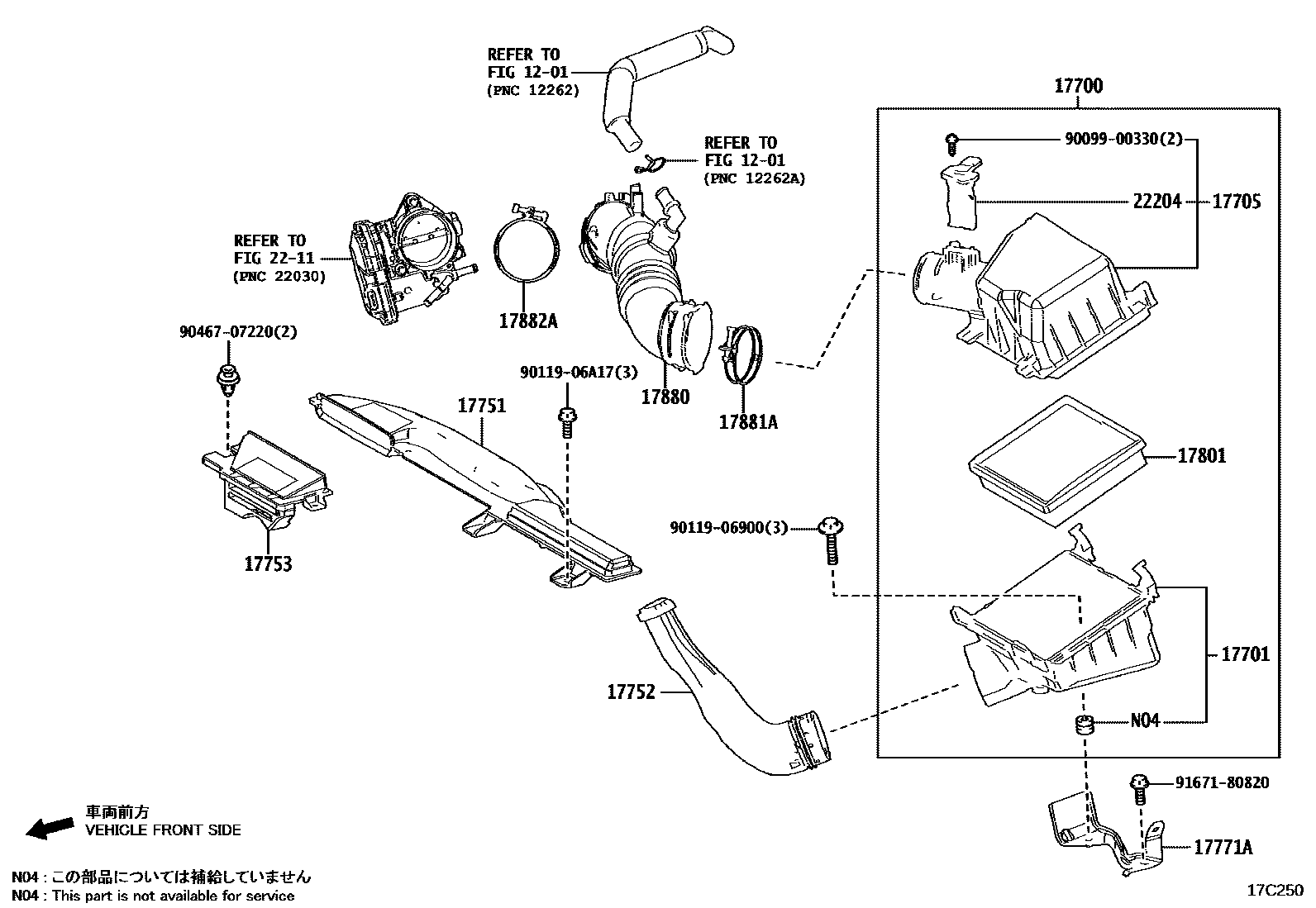

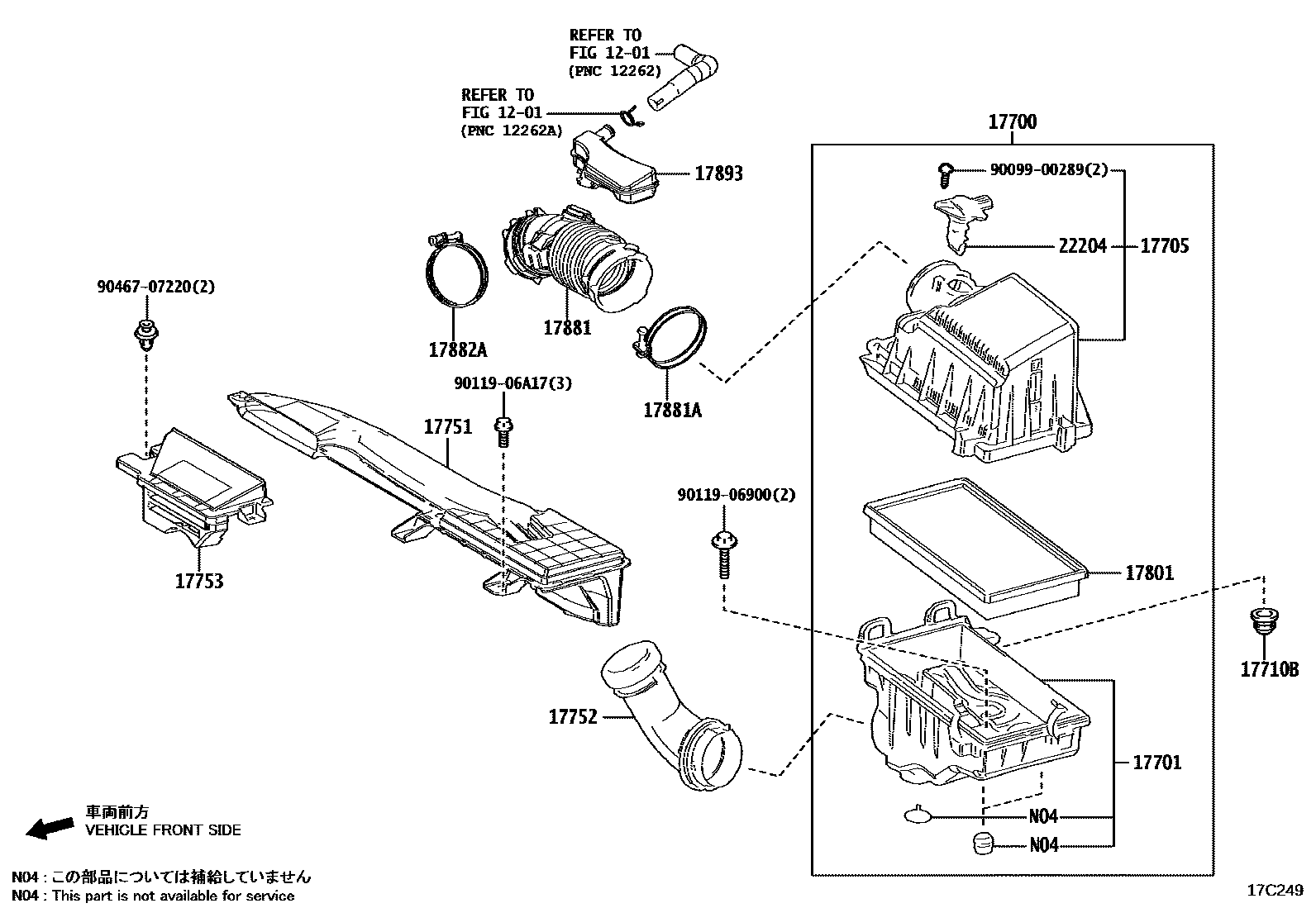

Toyota COROLLA Air Cleaner — Figure 1703
Toyota COROLLA EPC diagram 1703, Air Cleaner, with 3 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17700 | air filter assembly | 17700-24630 · 17700-24640 · 17700-37410 |
| 17701 | Air filter housing sub-assembly | 17701-24440 · 17701-24460 · 17701-V1010 |
| 17705 | Air filter cover sub-assembly | 17705-24340 · 17705-24360 · 17705-V1010 |
| 17710B | gasket | 90480-18006 |
| 17751 | No. 1 air filter air inlet | 17751-24040 · 17751-24050 · 17751-37170 |
| 17752 | No. 2 air filter air inlet | 17752-24050 · 17752-24070 · 17752-37190 |
| 17753 | No. 3 air filter air inlet | 17753-24030 |
| 17771A | air filter bracket | 17771-24020 |
| 17801 | Air filter element sub-assembly | 17801-21060 · 17801-24040 · 17801-77050 |
| 17850 | Air filter bracket sub-assembly | 17850-37010 |
| 17880 | Air cleaner hose assembly | 17880-24050 · 17880-V1010 |
| 17881 | No. 1 air cleaner hose | 17881-24050 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10650 · 96111-10730 · 96111-10850 |
| 17881C | Clamp (for No. 1 air cleaner hose) | 96111-10750 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 96111-10800 |
| 17893 | Intake resonator | 17893-24020 |
| 22204 | Intake air flow meter assembly | 22204-24010 · 22204-75040 |
