Toyota COROLLA Manifold — Figure 1701

Toyota COROLLA EPC diagram 1701, Manifold, with 3 images and 11 PNC and OE references.

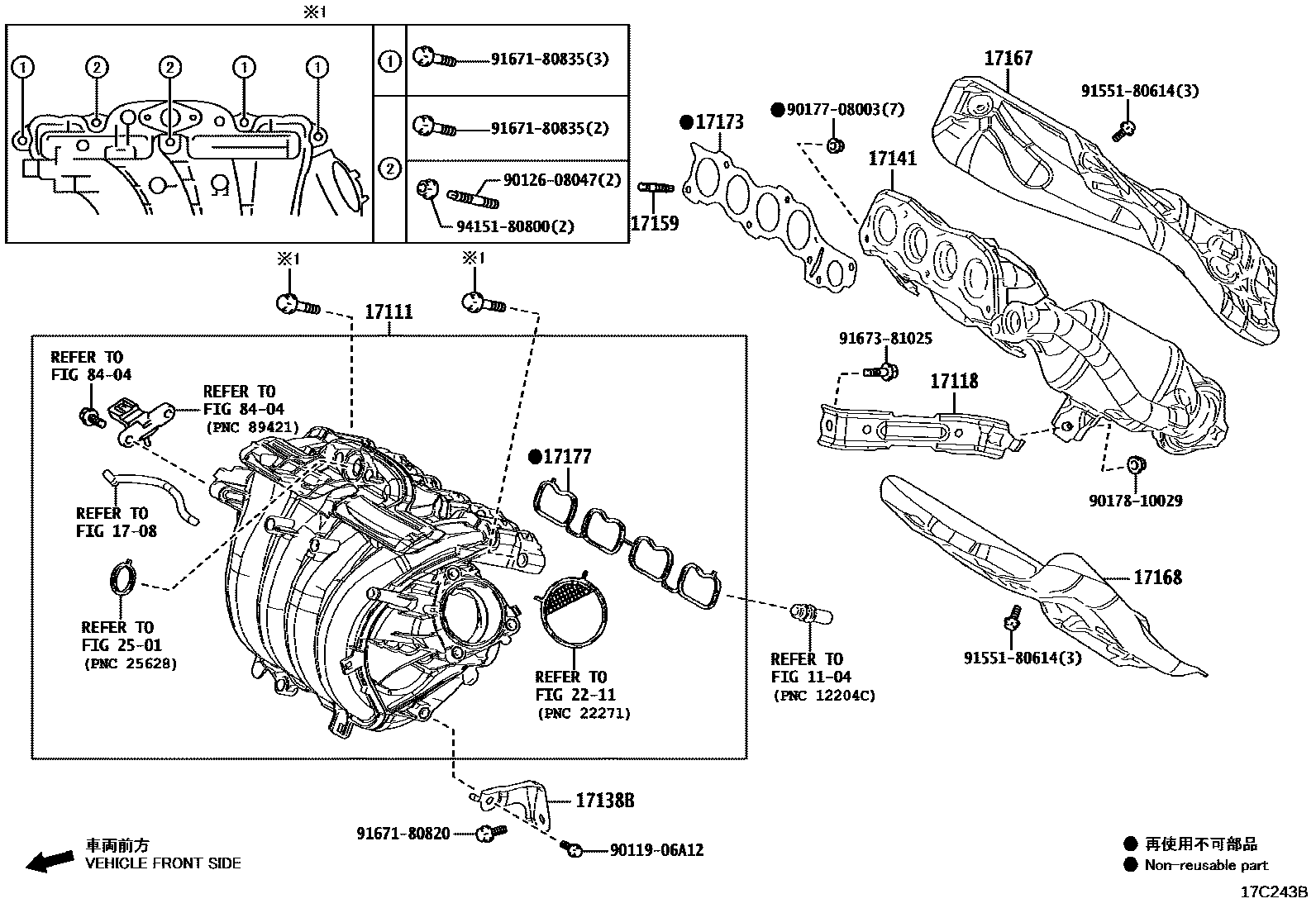

Toyota COROLLA Manifold EPC diagram — 17C243B
Manifold — 17C243B (202207 – 999999)

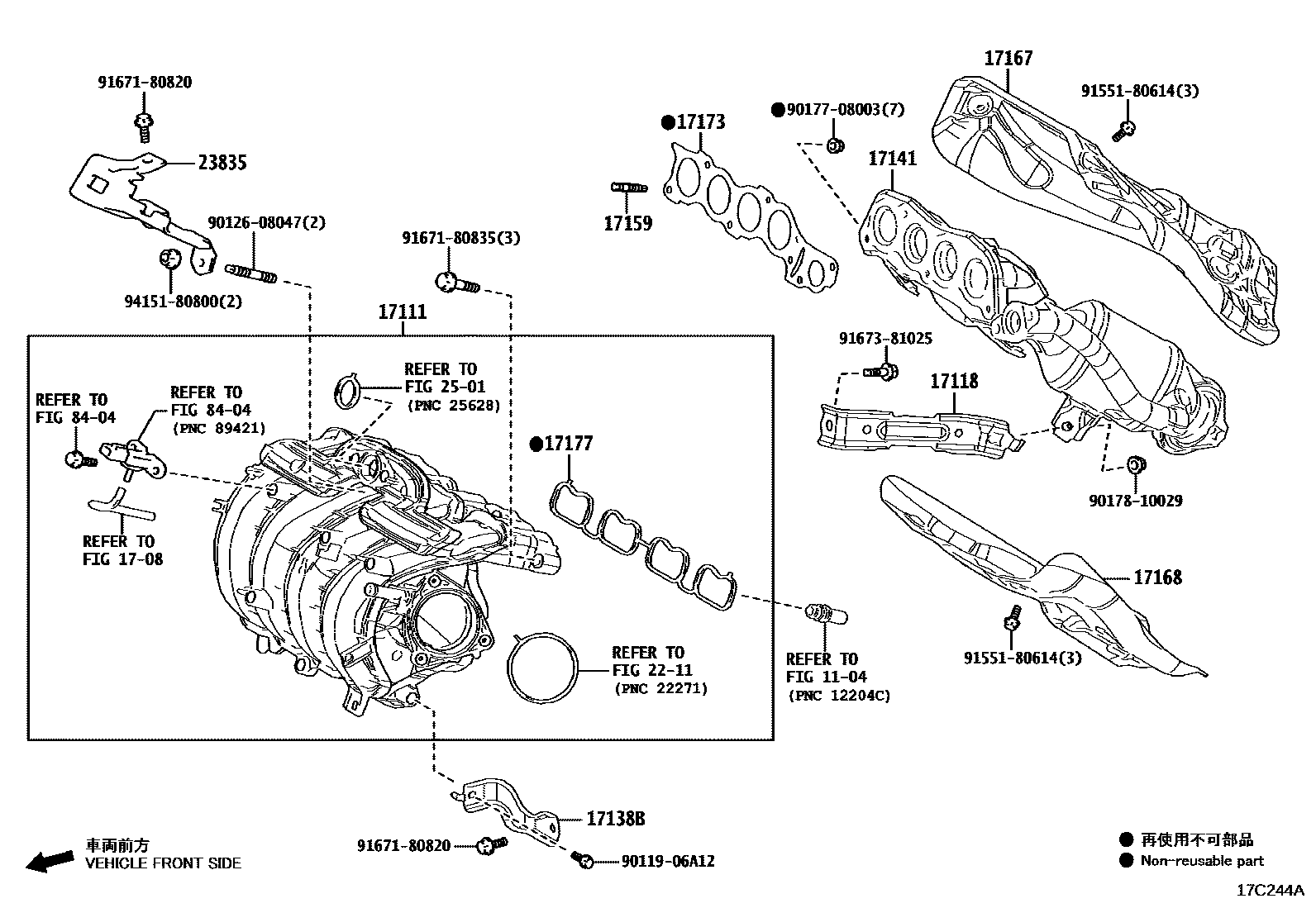

Toyota COROLLA Manifold EPC diagram — 17C244A
Manifold — 17C244A (202207 – 999999)

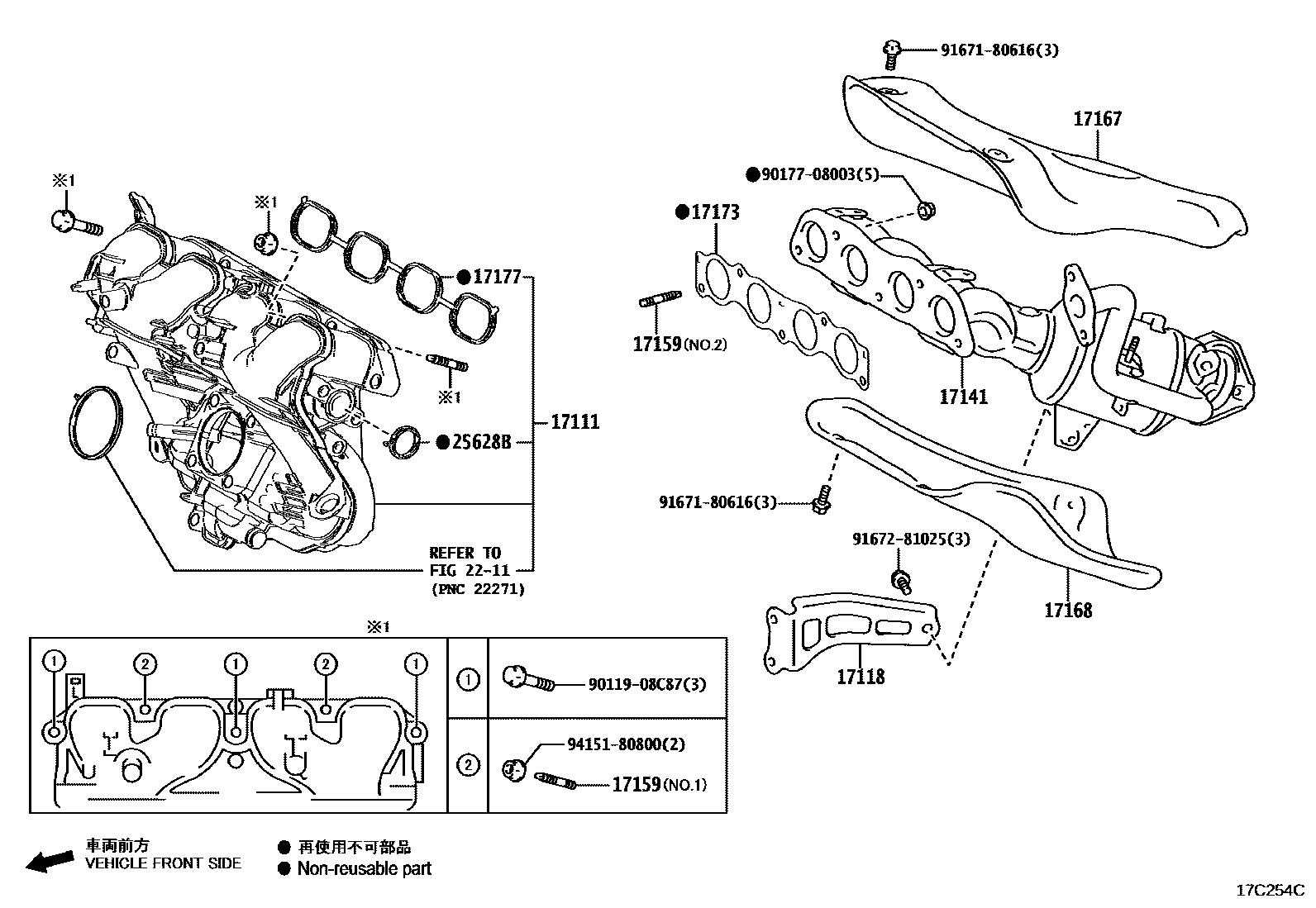

Toyota COROLLA Manifold EPC diagram — 17C254C
Manifold — 17C254C (202207 – 999999)

PNC and OE references

PNCPart nameOE numbers
17111Intake Manifold17120-24010 · 17120-24020 · 17120-37110
17118Manifold stays17118-24010 · 17118-37100
17138BIntake manifold stay17138-24010 · 17138-24020
17141exhaust manifold17141-24120 · 17141-24300 · 17141-24310 · 17141-24320 · 17141-24510 · 17141-37310 · 17141-37370
17159Studs (for manifold to cylinder head)90126-08026 · 90126-08052
17167Exhaust manifold No. 1 heat shield17167-24030 · 17167-24060 · 17167-24061 · 17167-37120
17168Exhaust manifold No.2 insulation pad17168-24030 · 17168-37150 · 17168-F2050
17173Gasket (exhaust manifold to cylinder head)17173-24010 · 17173-37010
17177No. 1 gasket (intake manifold to cylinder head)17171-24020 · 17177-37030
23835No. 2 oil pipeline anti-collision parts23835-24010
25628BEGR air intake gasket25628-36020
