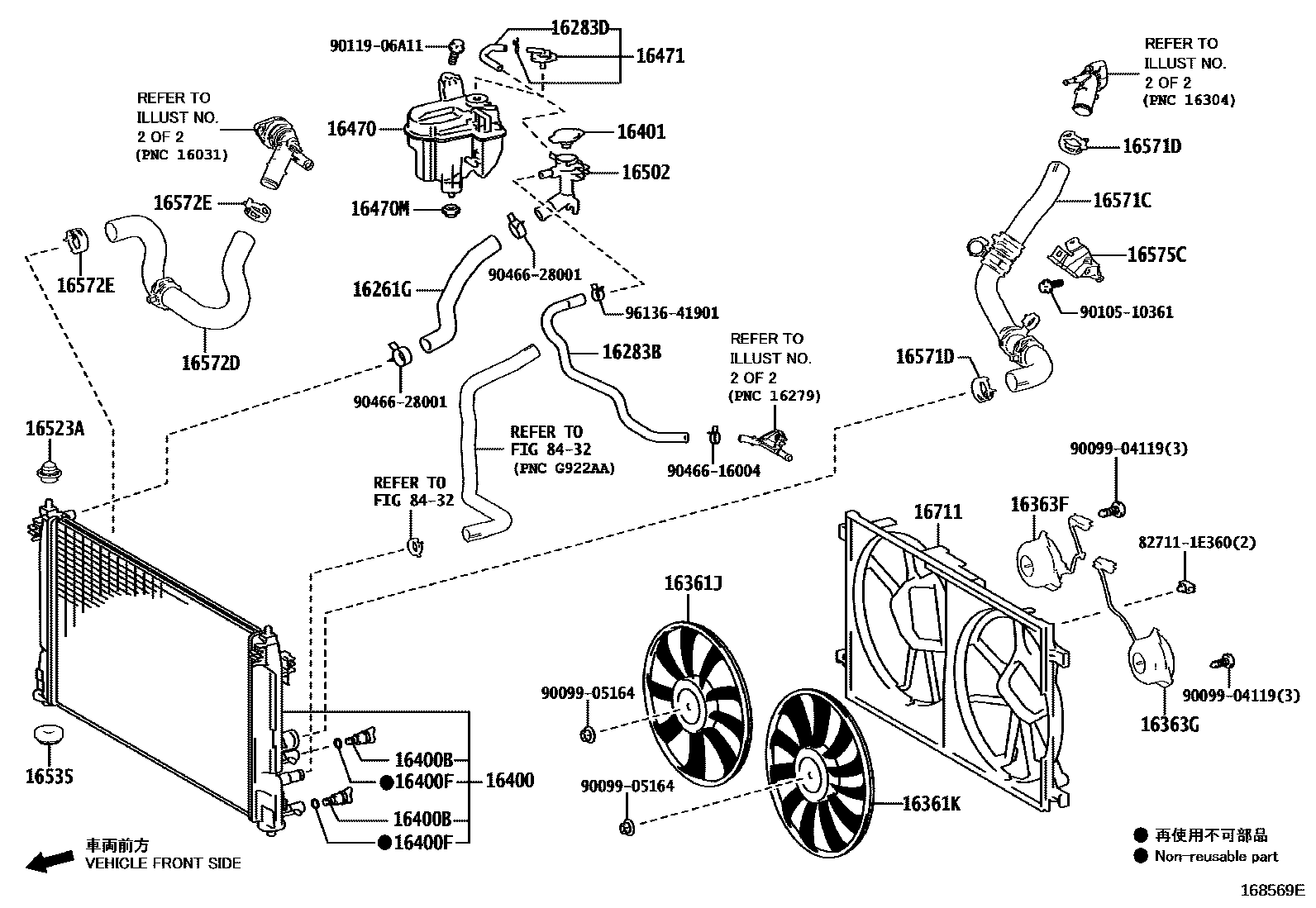

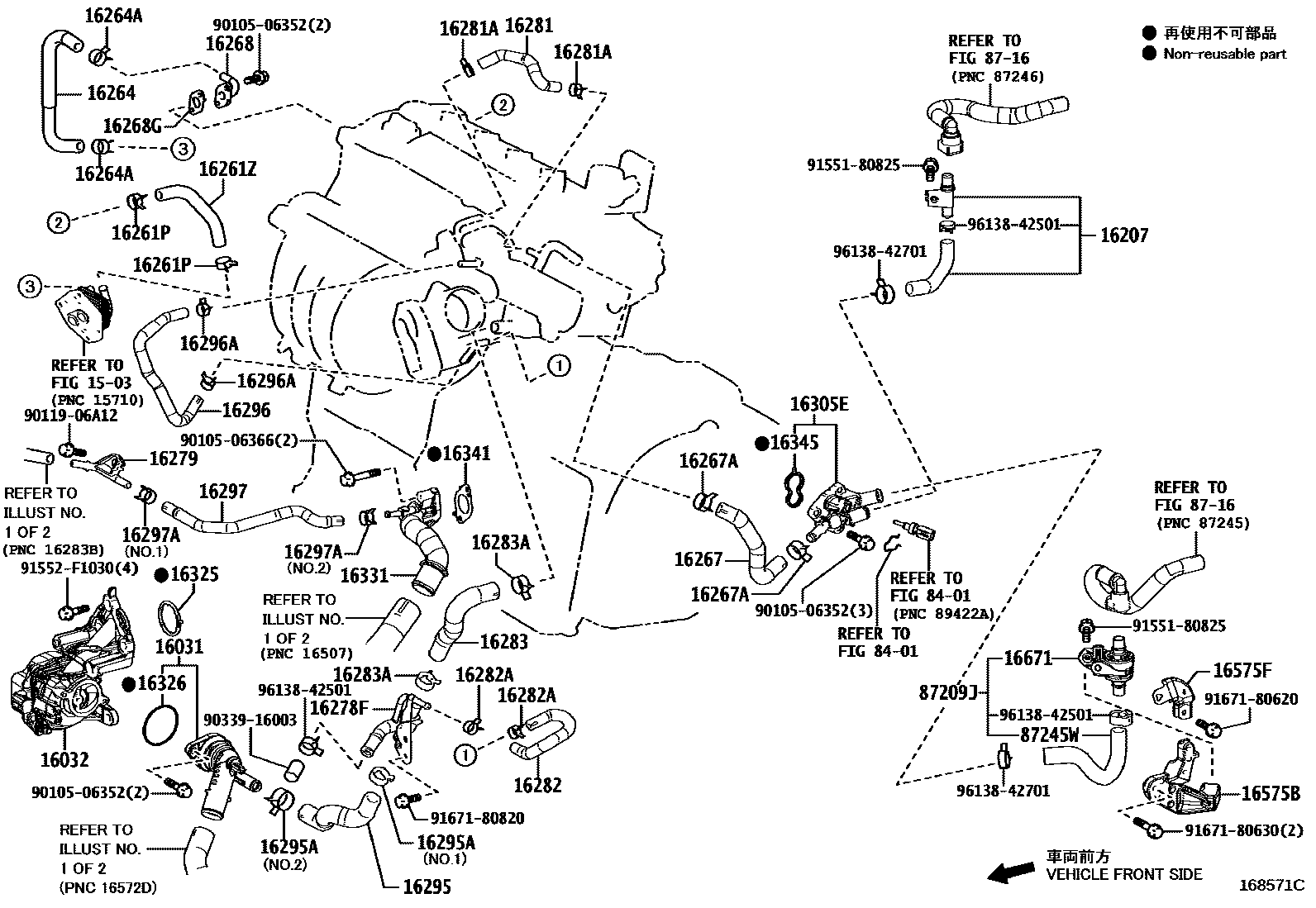

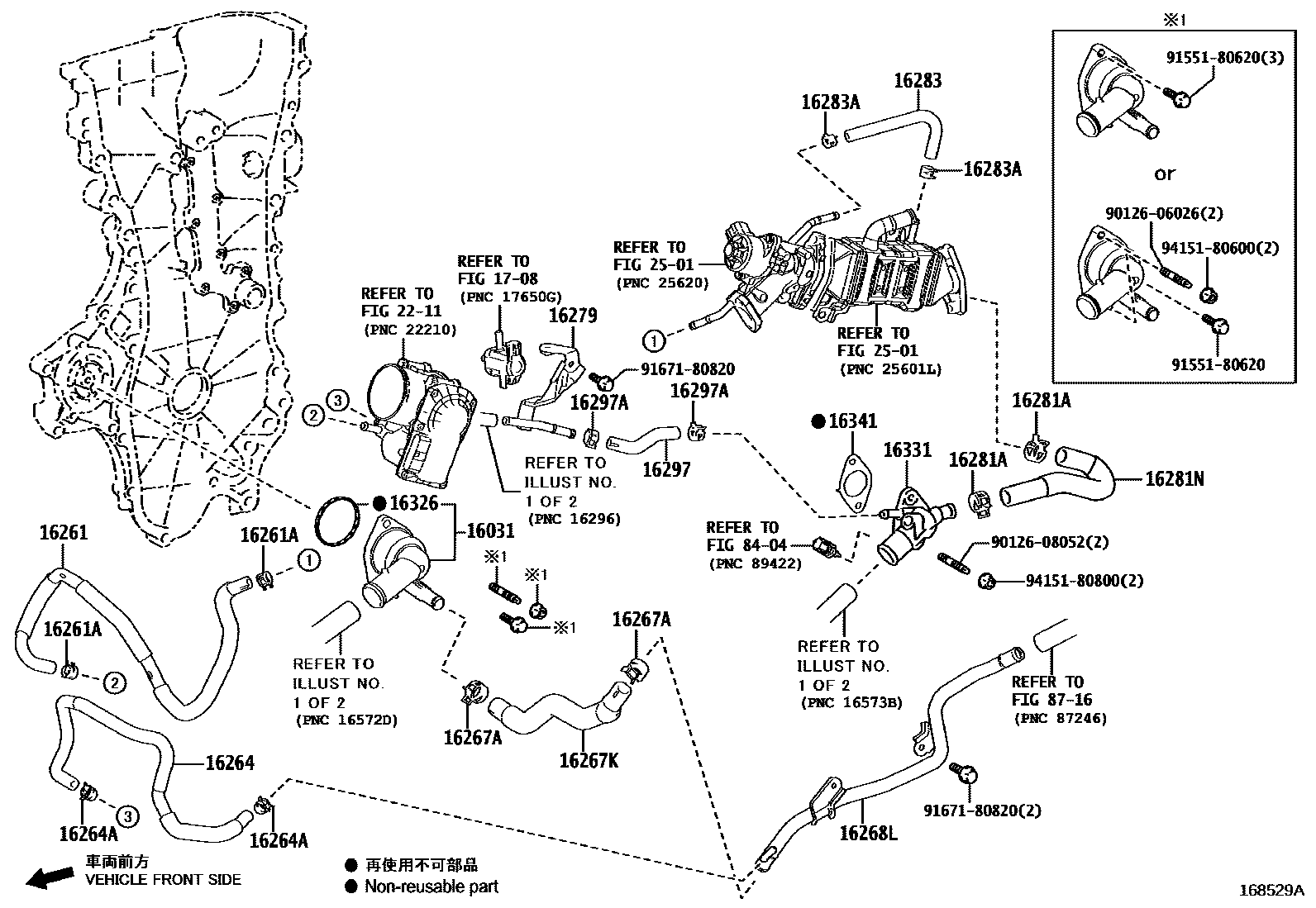

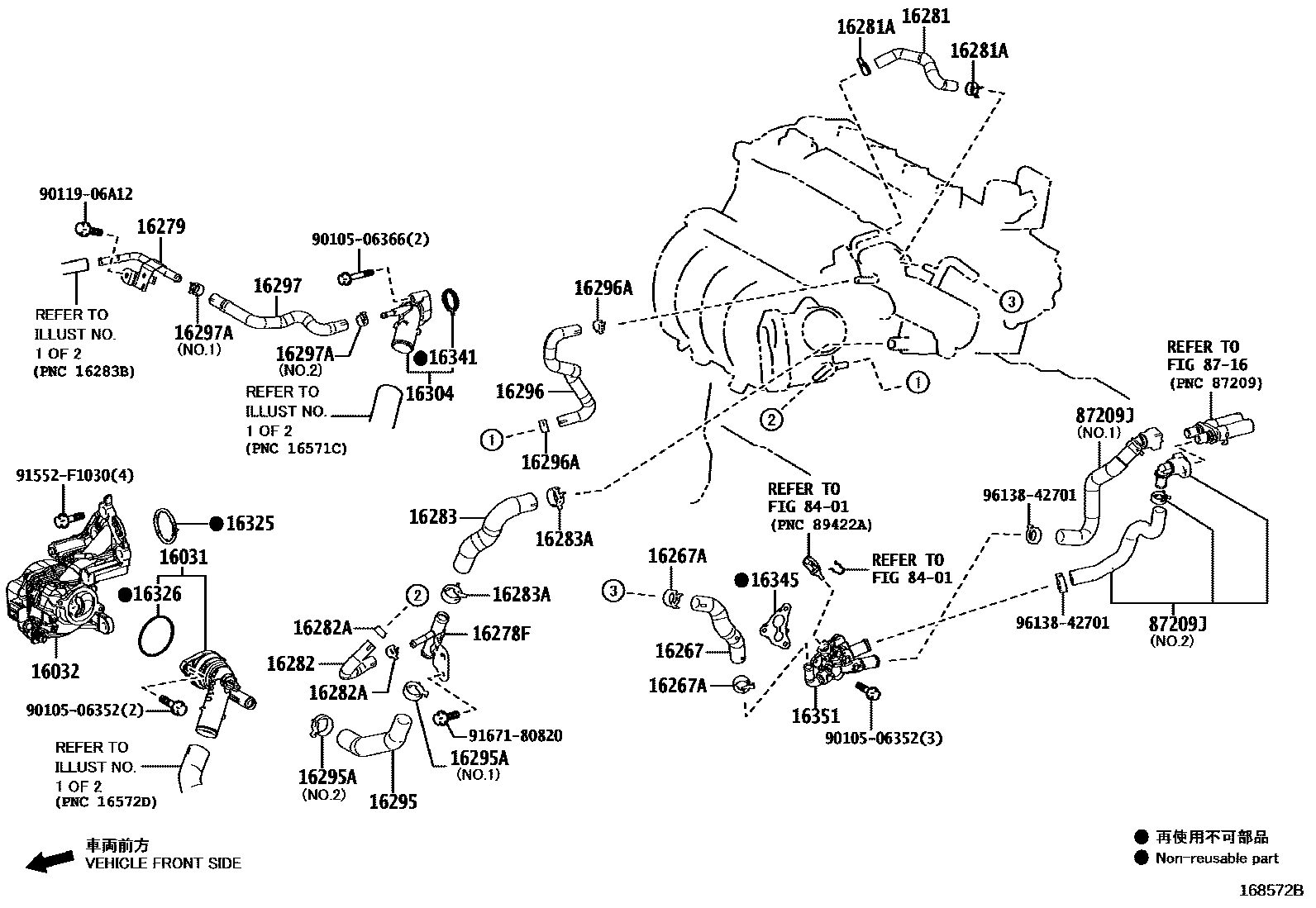

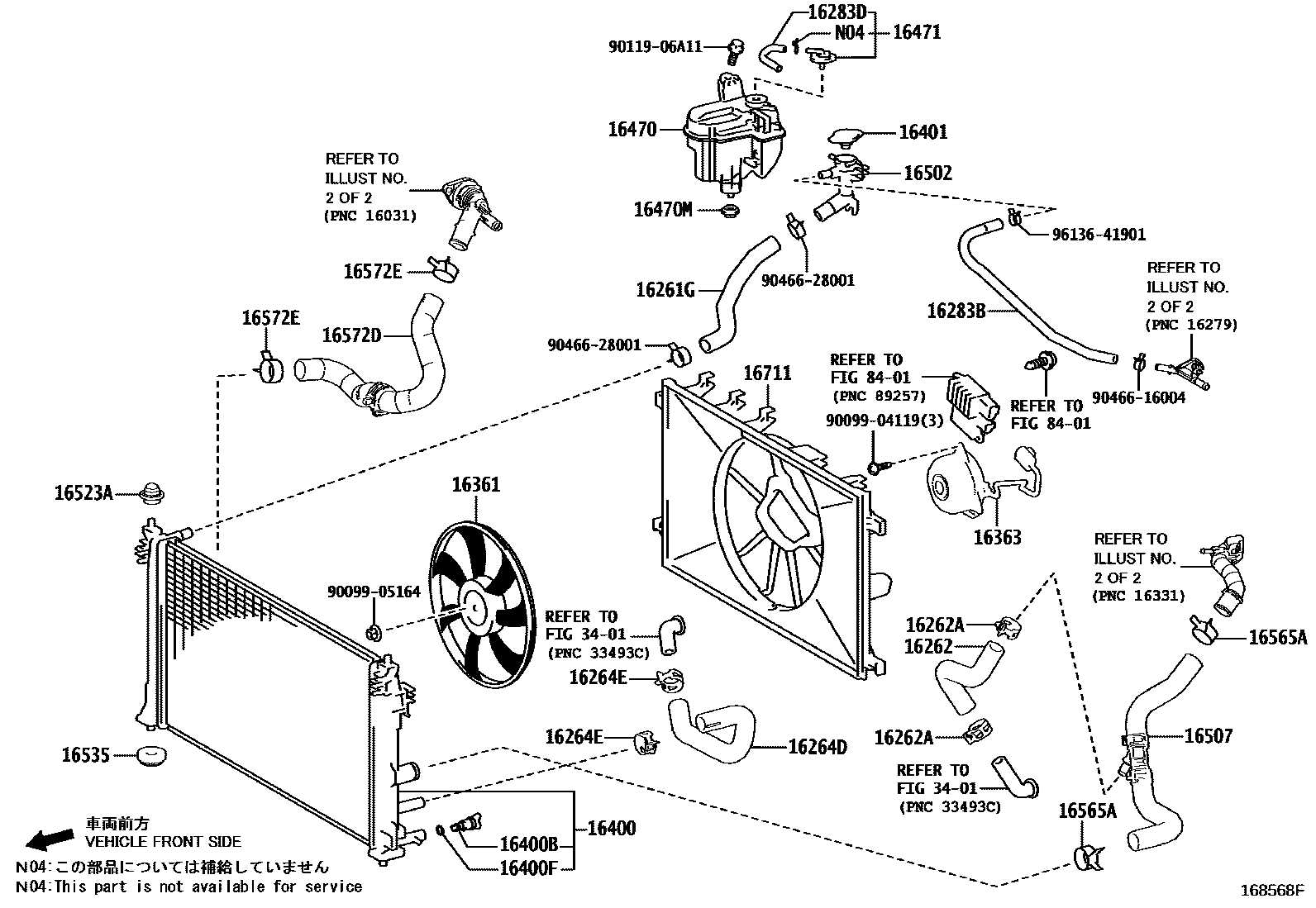

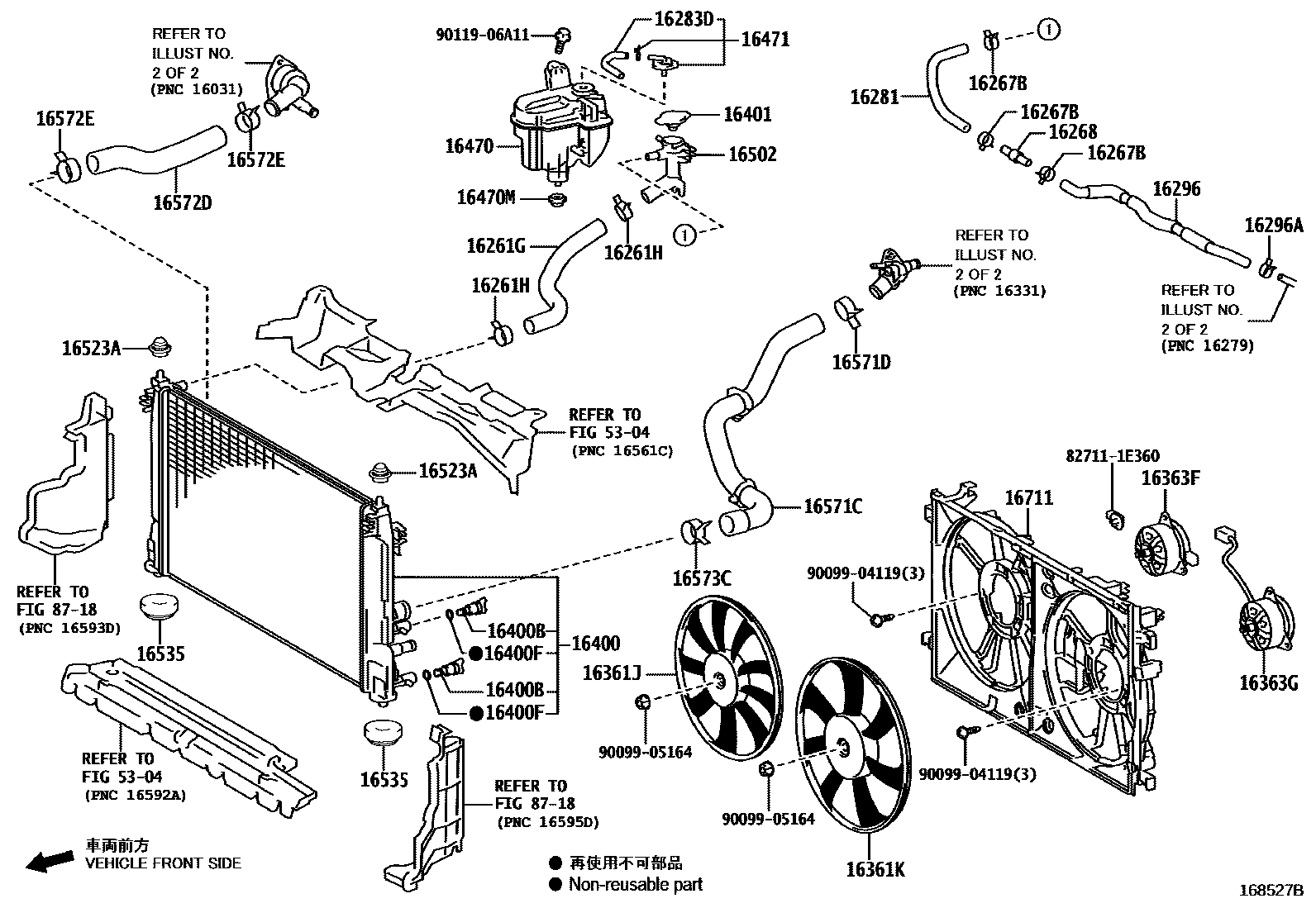

Toyota COROLLA RADIATOR & WATER OUTLET — Figure 1603
Toyota COROLLA EPC diagram 1603, RADIATOR & WATER OUTLET, with 6 images and 77 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16031 | INLET SUB-ASSY, WATER W/THERMOSTAT | 16031-24040 · 16031-37010 |
| 16032 | Water inlet housing sub-assembly with water pump | 16032-24020 |
| 16207 | No. 2 water bypass pipe sub-assembly | 16207-24020 |
| 16261 | HOSE, WATER BY-PASS | 16261-37160 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 96137-41501 |
| 16261G | HOSE, WATER BY-PASS, NO.1 | 16261-37190 |
| 16261H | CLIP, WATER BY-PASS HOSE NO.1 | 90466-28001 |
| 16261P | CLIP, WATER BY-PASS HOSE NO.2 | 96138-42101 |
| 16261Z | HOSE, WATER BY-PASS, NO.1 | 16261-24080 |
| 16262 | water inlet hose | 16262-24020 |
| 16262A | Clamp (for water inlet hose) | 96138-42501 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-24060 · 16264-37130 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 96137-41501 · 96138-42101 |
| 16264D | HOSE, WATER BY-PASS, NO.2 | 16264-24070 |
| 16264E | CLIP, WATER BY-PASS HOSE NO.2 | 96138-42501 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-24040 · 16267-25020 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 96136-42501 · 96138-42101 |
| 16267B | Clip (for water bypass hose) | 96136-41901 |
| 16267K | HOSE, WATER BY-PASS, NO.3 | 16267-37100 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-24010 · 16268-37120 |
| 16268G | Gasket (for water bypass pipe) | 16258-24010 |
| 16268L | PIPE, WATER BY-PASS | 16268-37150 |
| 16278F | HOSE, WATER BY-PASS, NO.2 | 16278-24010 · 16278-24021 |
| 16279 | No. 3 water bypass pipe | 16279-24010 · 16279-24020 · 16279-37020 |
| 16281 | HOSE, WATER BY-PASS, NO.4 | 16281-24030 · 16281-37180 |
| 16281A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.4 | 96136-42501 · 96138-41501 |
| 16281N | HOSE, WATER BY-PASS, NO.4 | 16281-37191 |
| 16282 | HOSE, WATER BY-PASS, NO.5 | 16282-24020 · 16282-24030 |
| 16282A | Clip or clip (for No. 5 water bypass hose) | 96138-41501 |
| 16283 | HOSE, WATER BY-PASS, NO.6 | 16283-24010 · 16283-24020 · 16283-37021 |
| 16283A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.6 | 96137-41501 · 96138-42501 |
| 16283B | HOSE, WATER BY-PASS | 16281-24060 · 16281-24070 |
| 16283D | HOSE, WATER BY-PASS, NO.6 | 16283-37030 |
| 16295 | HOSE, WATER BY-PASS, NO.7 | 16295-24010 · 16295-24020 |
| 16295A | CLIP, WATER BY-PASS HOSE NO.7 | 96138-42501 · 96138-42701 |
| 16296 | HOSE, WATER BY-PASS, NO.8 | 16296-24020 · 16296-24040 · 16296-37010 |
| 16296A | CLIP, WATER BY-PASS HOSE NO.8 | 90466-16004 · 96138-41501 |
| 16297 | No. 9 water bypass hose | 16297-24010 · 16297-24020 · 16297-37010 |
| 16297A | Clamp (for No. 9 water bypass hose) | 90467-15022 · 96137-51701 · 96138-41501 |
| 16304 | Water outlet sub-assembly | 16304-24010 |
| 16305E | Water bypass outlet sub-assembly | 16305-24010 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-25010 |
| 16326 | GASKET, WATER INLET HOUSING, NO.2 | 16326-37020 · 16326-47020 |
| 16331 | Water outlet | 16331-24030 · 16331-37100 |
| 16341 | GASKET, WATER OUTLET | 16341-24010 · 16341-24020 · 16341-37010 |
| 16345 | Outlet pipe gasket | 16345-24010 · 16345-24020 |
| 16351 | water bypass outlet | 16351-24020 |
| 16361 | Fan | 16361-24130 |
| 16361J | Right fan | 16361-37070 · 16361-37080 |
| 16361K | left fan | 16361-37060 · 16361-37090 |
| 16363 | cooling fan motor | 16363-24120 |
| 16363F | Right cooling fan motor | 16363-24130 · 16363-24160 |
| 16363G | Left cooling fan motor | 16363-24140 · 16363-24170 |
| 16400 | Radiator assembly | 16400-24380 · 16400-24390 |
| 16400B | Radiator drain switch screw plug | 16417-21280 |
| 16400F | Seal (for radiator drain switch) | 16492-21050 |
| 16401 | Radiator cover sub-assembly | 16401-36030 |
| 16470 | Radiator reservoir assembly | 16470-37040 |
| 16470M | gasket | 90480-18010 |
| 16471 | Liquid storage tank cover sub-assembly | 16405-37020 |
| 16502 | Water injection port sub-assembly | 16502-37040 |
| 16507 | Radiator pipe sub-assembly | 16570-24070 |
| 16523A | Radiator bracket cushion | 16523-37010 |
| 16535 | Radiator lower support | 16535-28030 · 90480-40021 |
| 16565A | clip | 90466-43002 |
| 16571C | Radiator hose No. 1 | 16571-24140 · 16571-37290 |
| 16571D | No. 1 radiator hose clip | 90466-40001 · 90466-43002 |
| 16572D | Radiator hose No. 2 | 16572-24030 · 16572-24090 · 16572-37250 |
| 16572E | No. 2 radiator hose clip | 90466-43002 |
| 16573C | No. 3 radiator hose clamp or clip | 90466-43002 |
| 16575B | No. 2 water hose clamp bracket | 16575-24050 |
| 16575C | No. 1 water hose clamp bracket | 16575-24140 |
| 16575F | No. 3 water hose clamp bracket | 16575-24060 |
| 16671 | water valve | 16671-25070 |
| 16711 | fan cover | 16711-24160 · 16711-24170 · 16711-37150 |
| 87209J | Water hose sub-assembly | 87209-12810 · 87209-16020 · 87209-16030 |
| 87245W | water hose | 87245-12J80 |
