Toyota COROLLA Engine Overhaul Gasket Kit — Figure 1103

Toyota COROLLA EPC diagram 1103, Engine Overhaul Gasket Kit, with 6 images and 2 PNC and OE references.

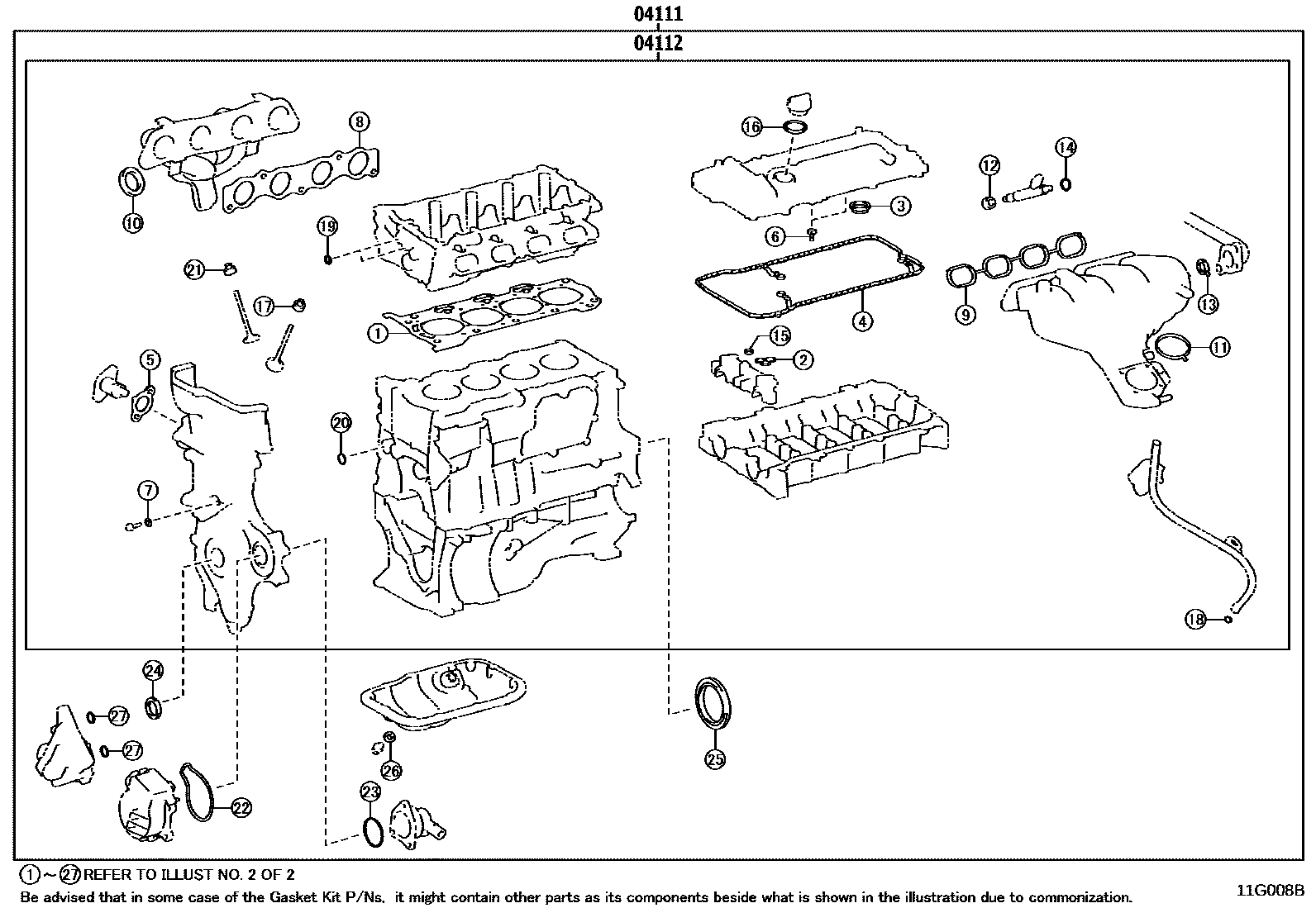

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11G008B
Engine Overhaul Gasket Kit — 11G008B (202207 – 999999)

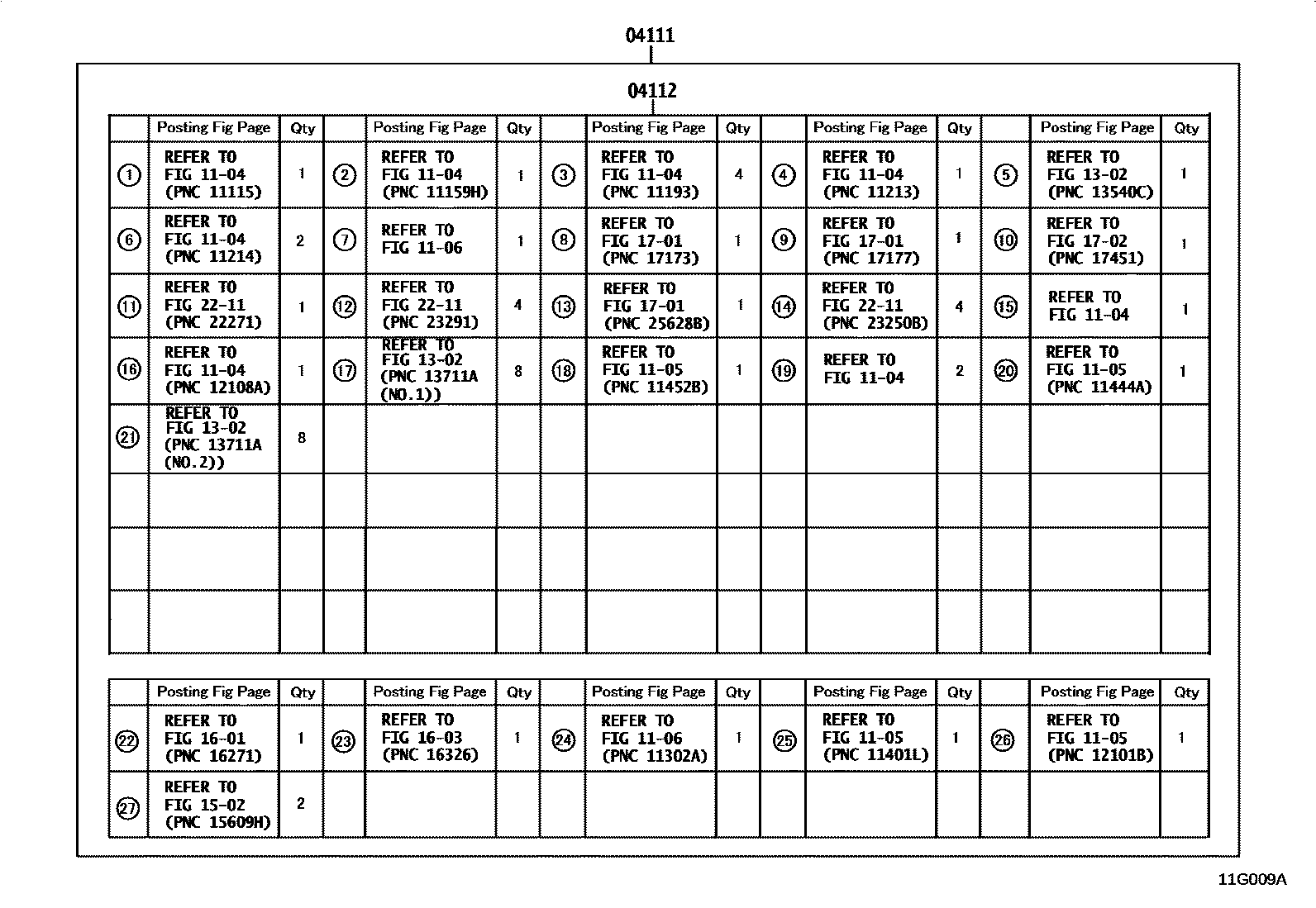

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11G009A
Engine Overhaul Gasket Kit — 11G009A (202207 – 999999)

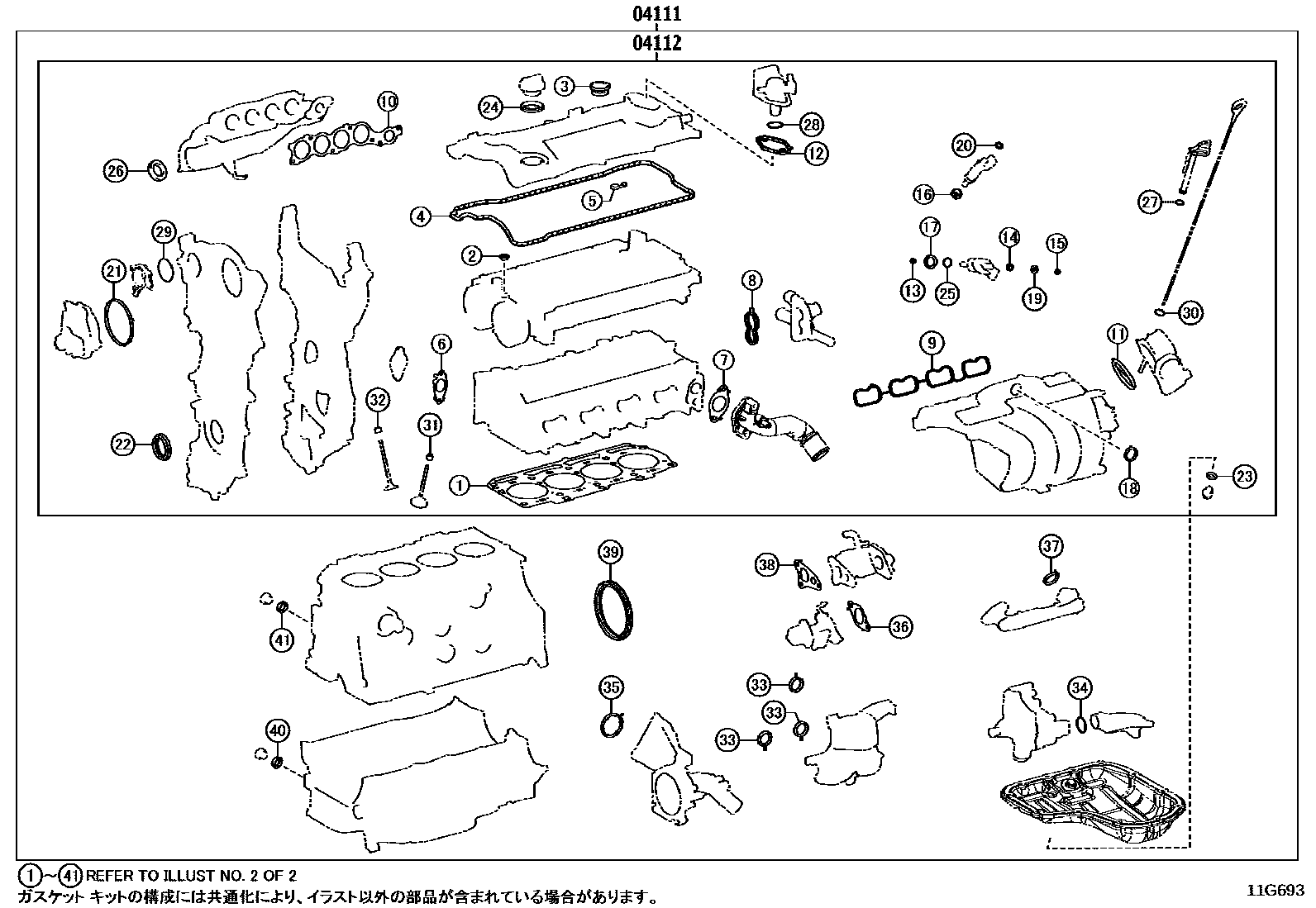

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11G693
Engine Overhaul Gasket Kit — 11G693 (202207 – 999999)

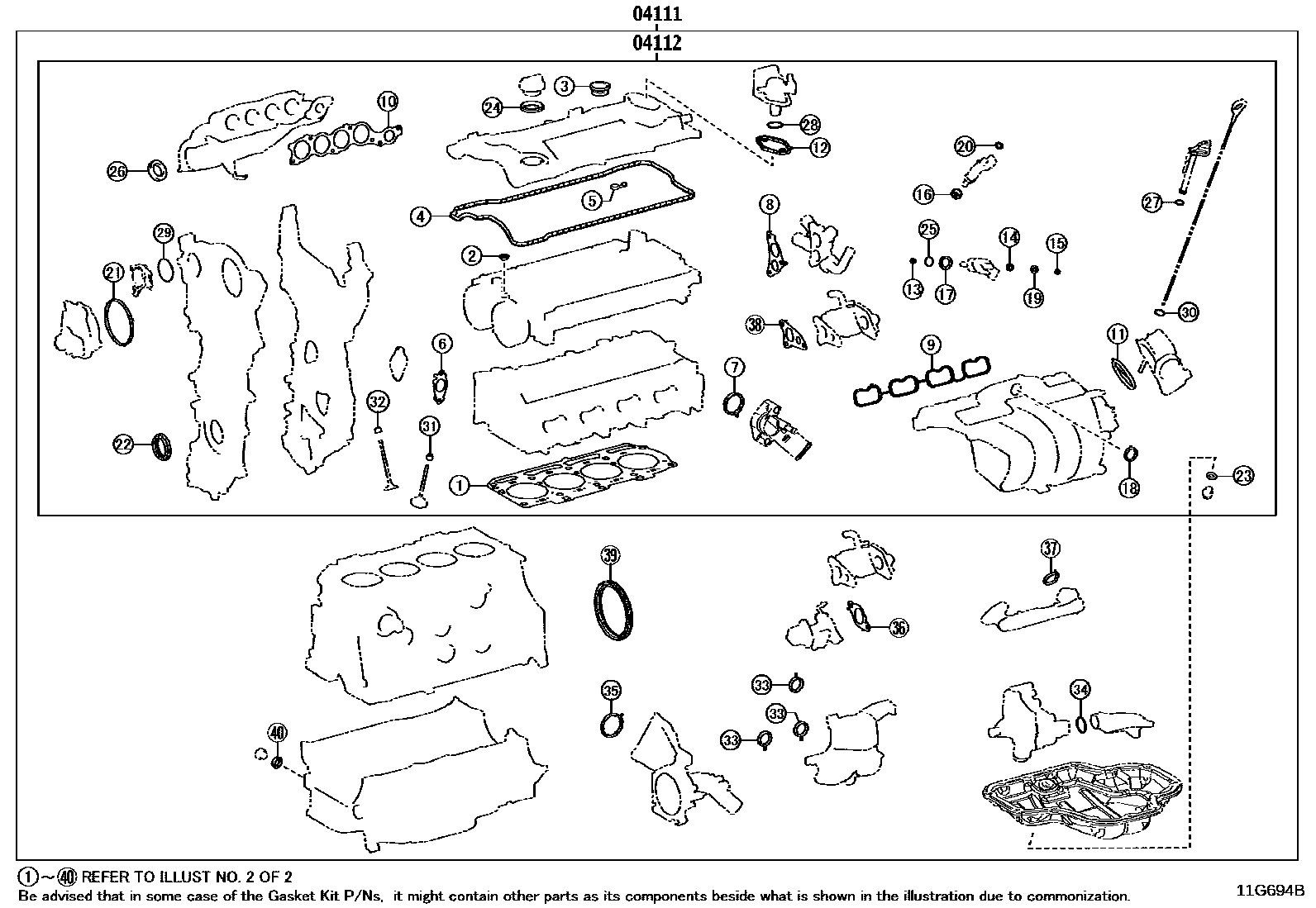

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11G694B
Engine Overhaul Gasket Kit — 11G694B (202207 – 999999)

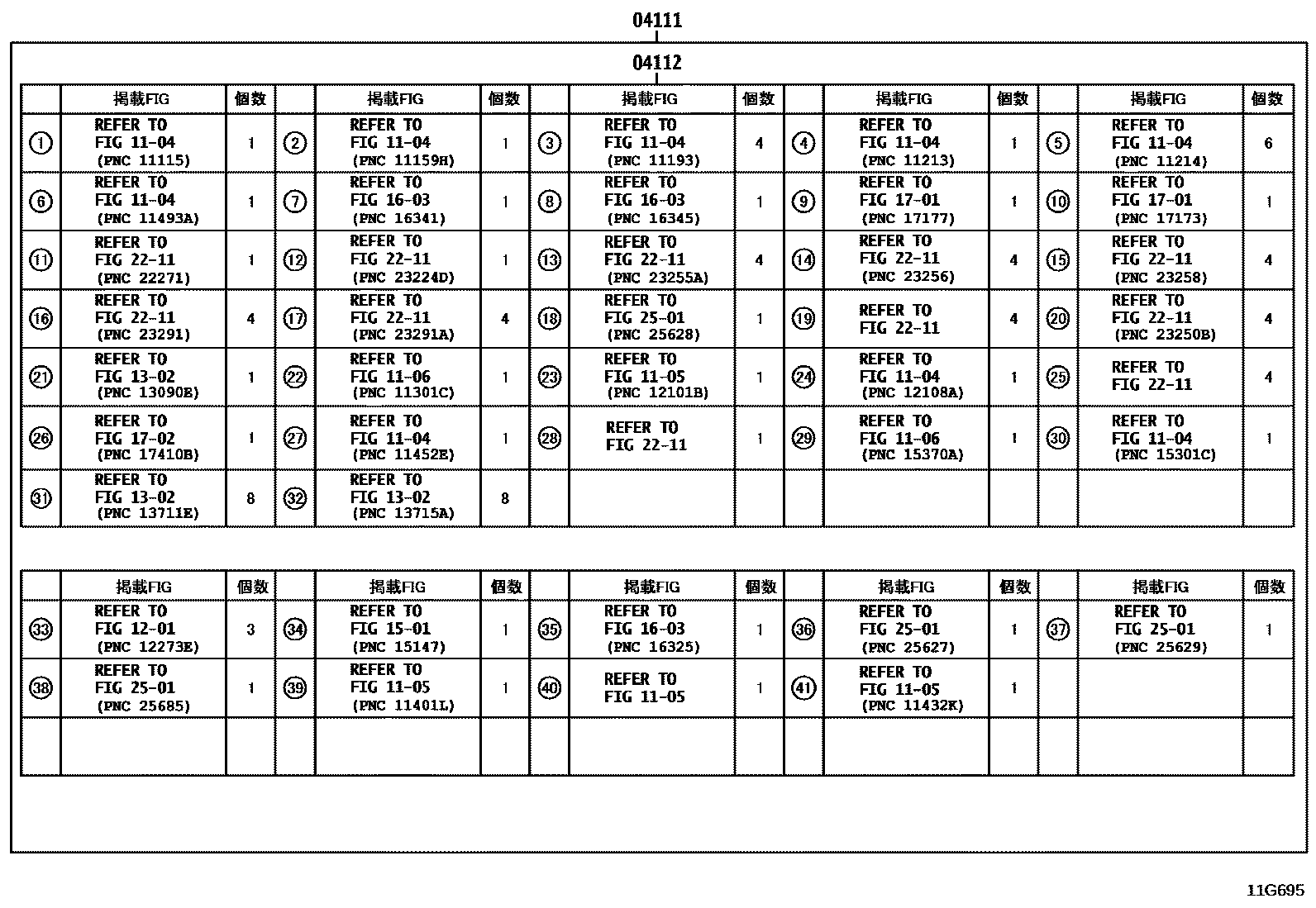

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11G695
Engine Overhaul Gasket Kit — 11G695 (202207 – 999999)

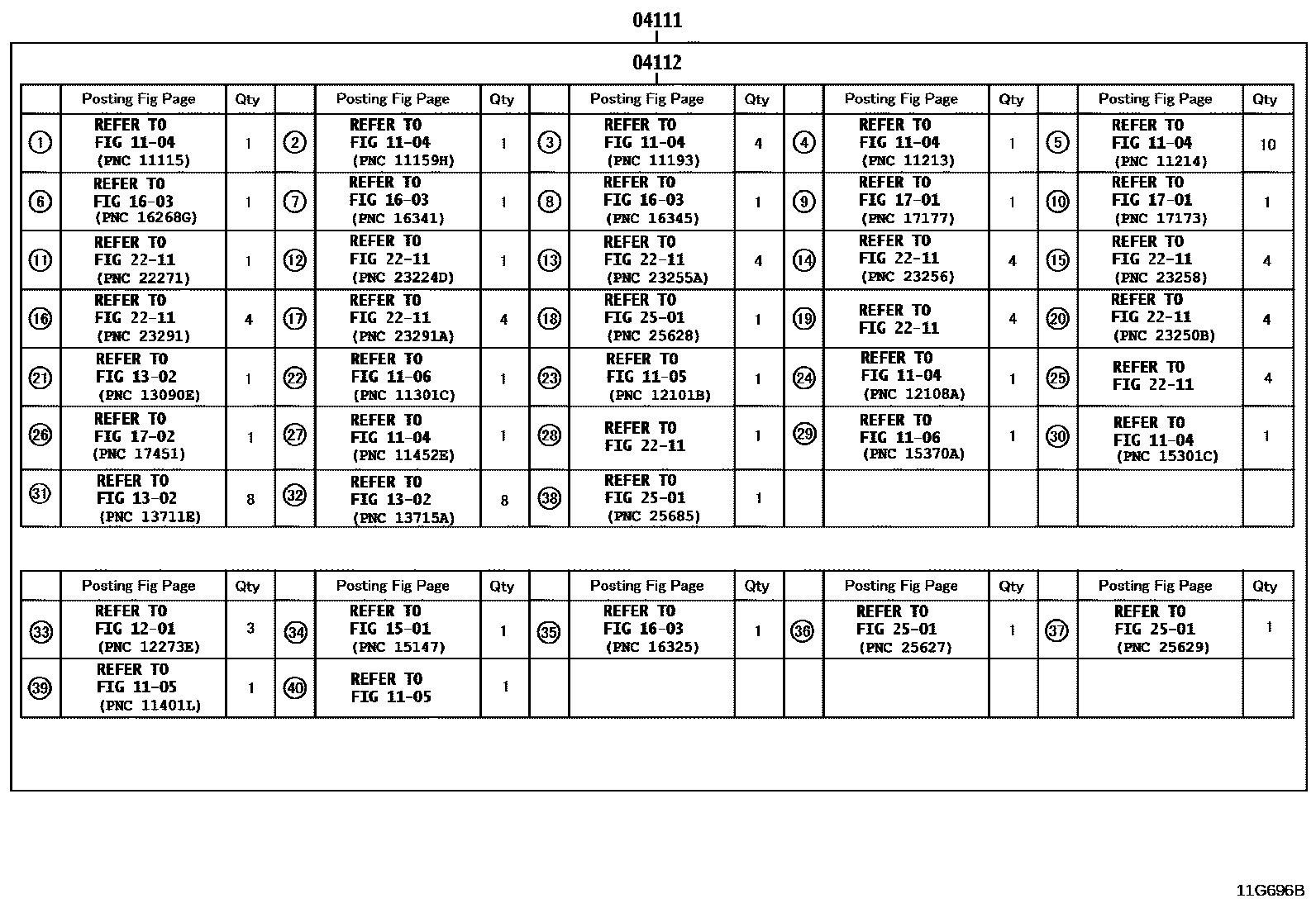

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11G696B
Engine Overhaul Gasket Kit — 11G696B (202207 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-24121 · 04111-24210 · 04111-24211 · 04111-37561
04112Engine valve grinding pad assembly04112-24061 · 04112-24130 · 04112-24131 · 04112-37401
