Toyota COROLLA Heating & Air Conditioning - Compressor — Figure 8719
Toyota COROLLA EPC diagram 8719, Heating & Air Conditioning - Compressor, with 4 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

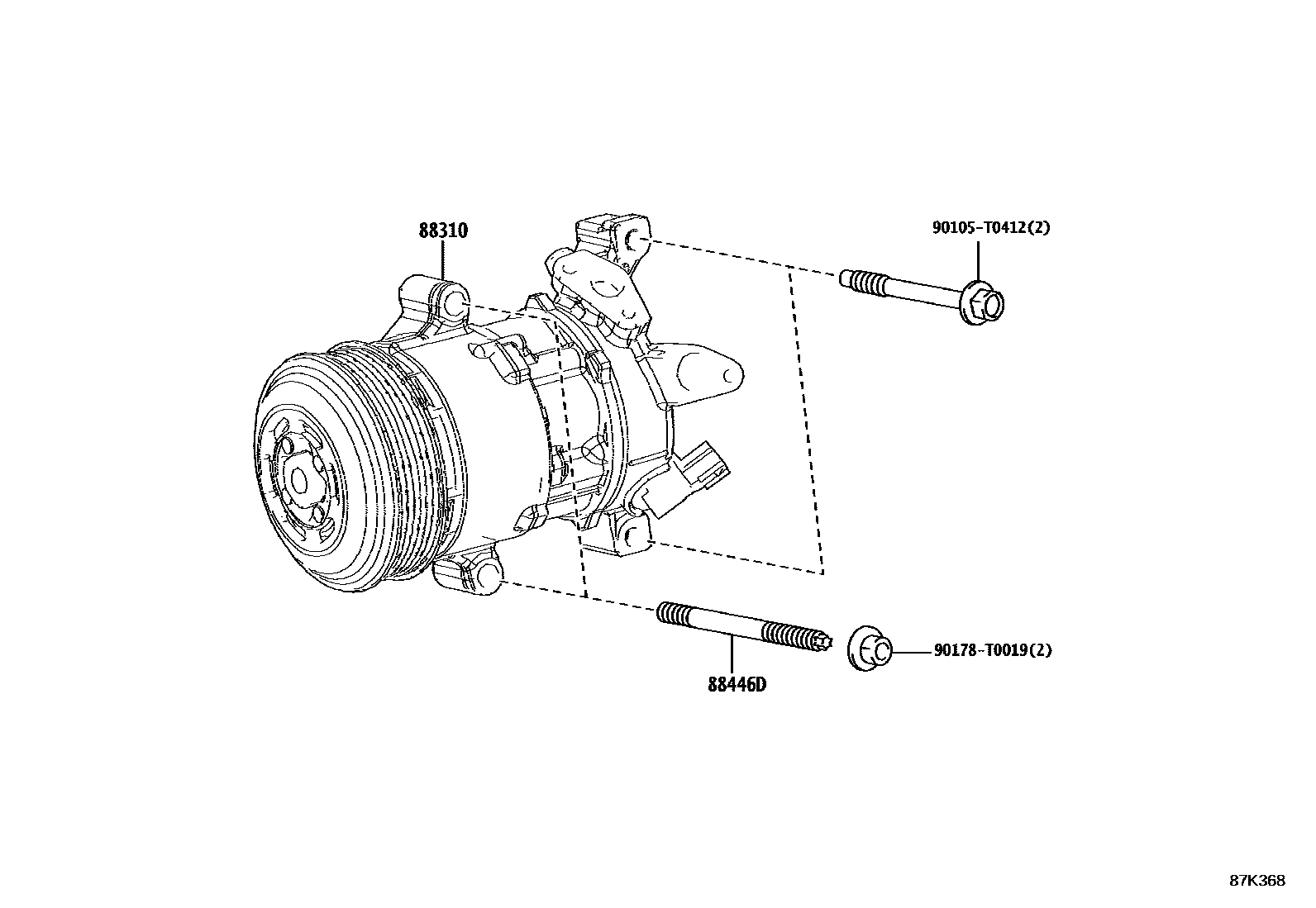

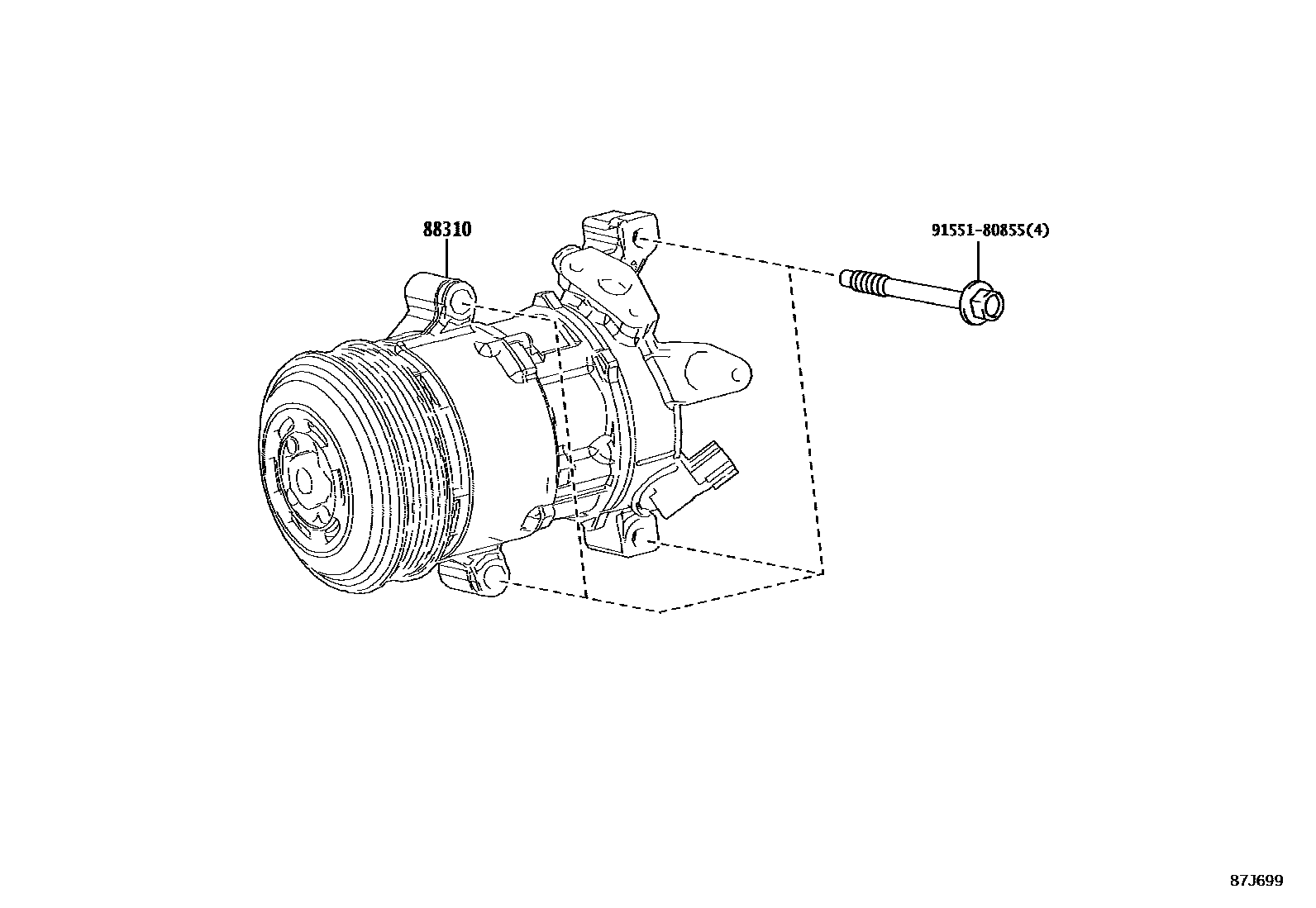

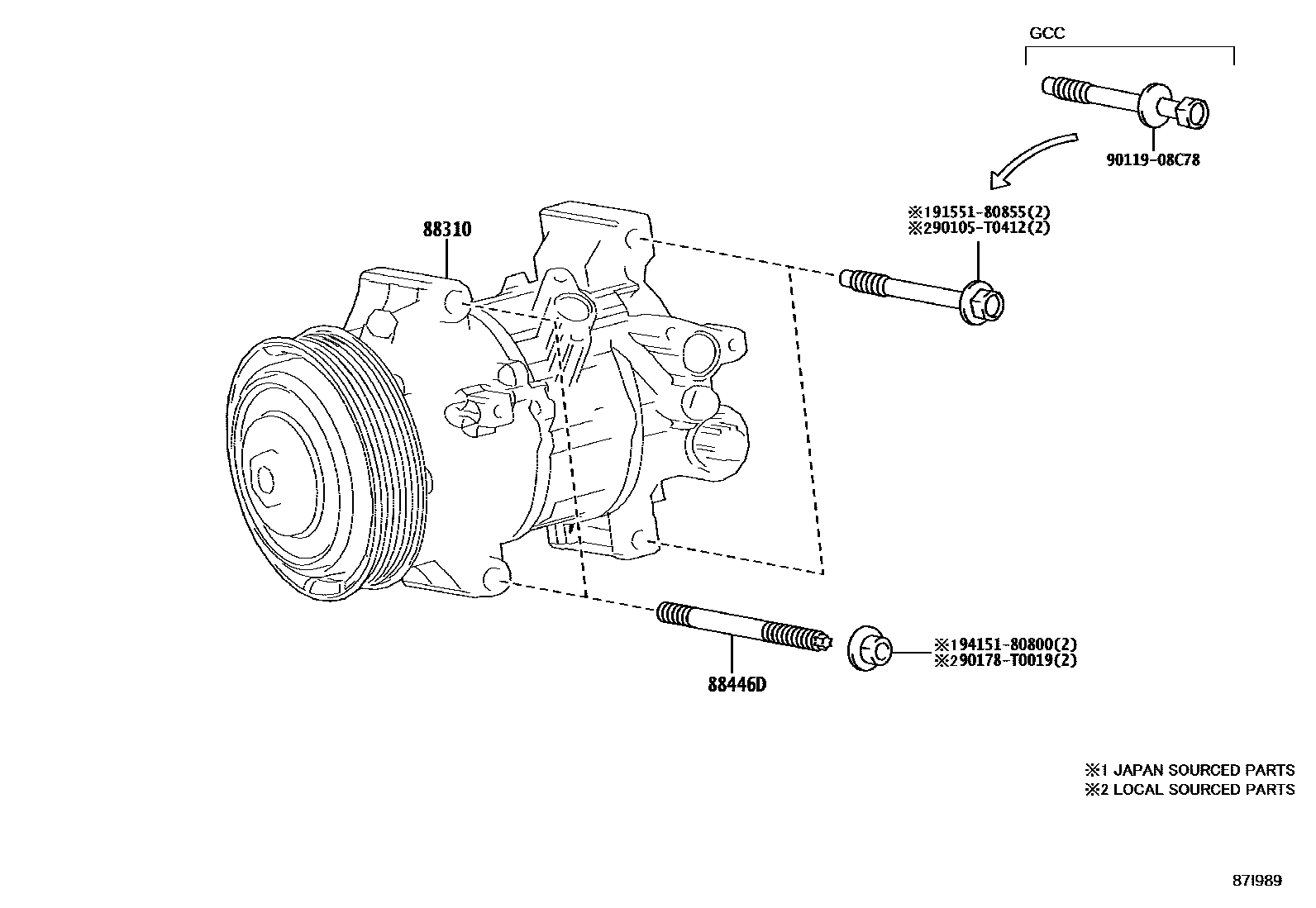

| 88310 | Compressor assembly with pulley | 88310-02A02 · 88310-0A040 · 88310-0A060 · 88310-0A070 · 88310-16690 |

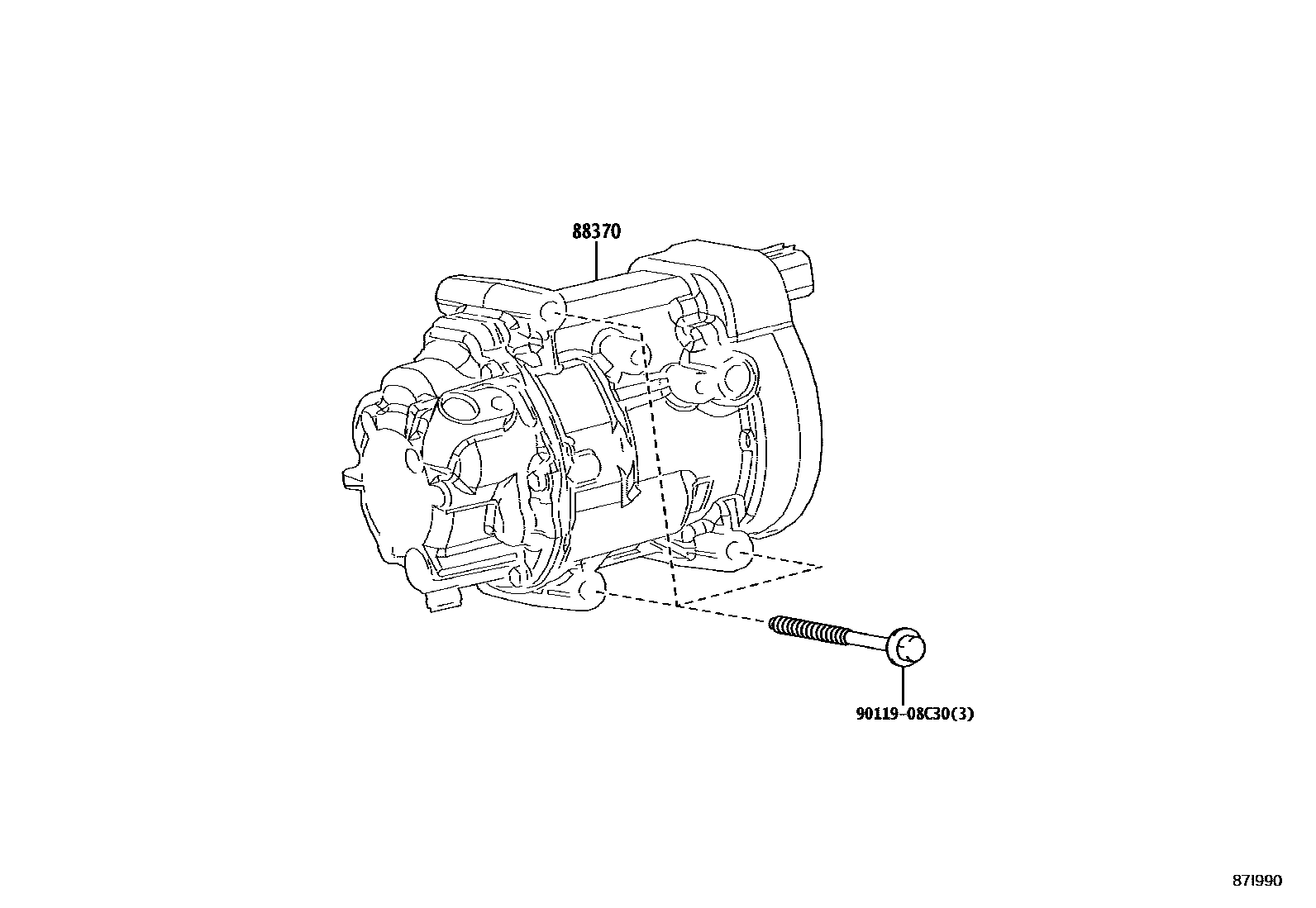

| 88370 | Compressor assembly with motor | 88370-0A010 · 88370-47092 |
| 88446D | cooler bolt | 88446-02100 · 90126-08072 |
