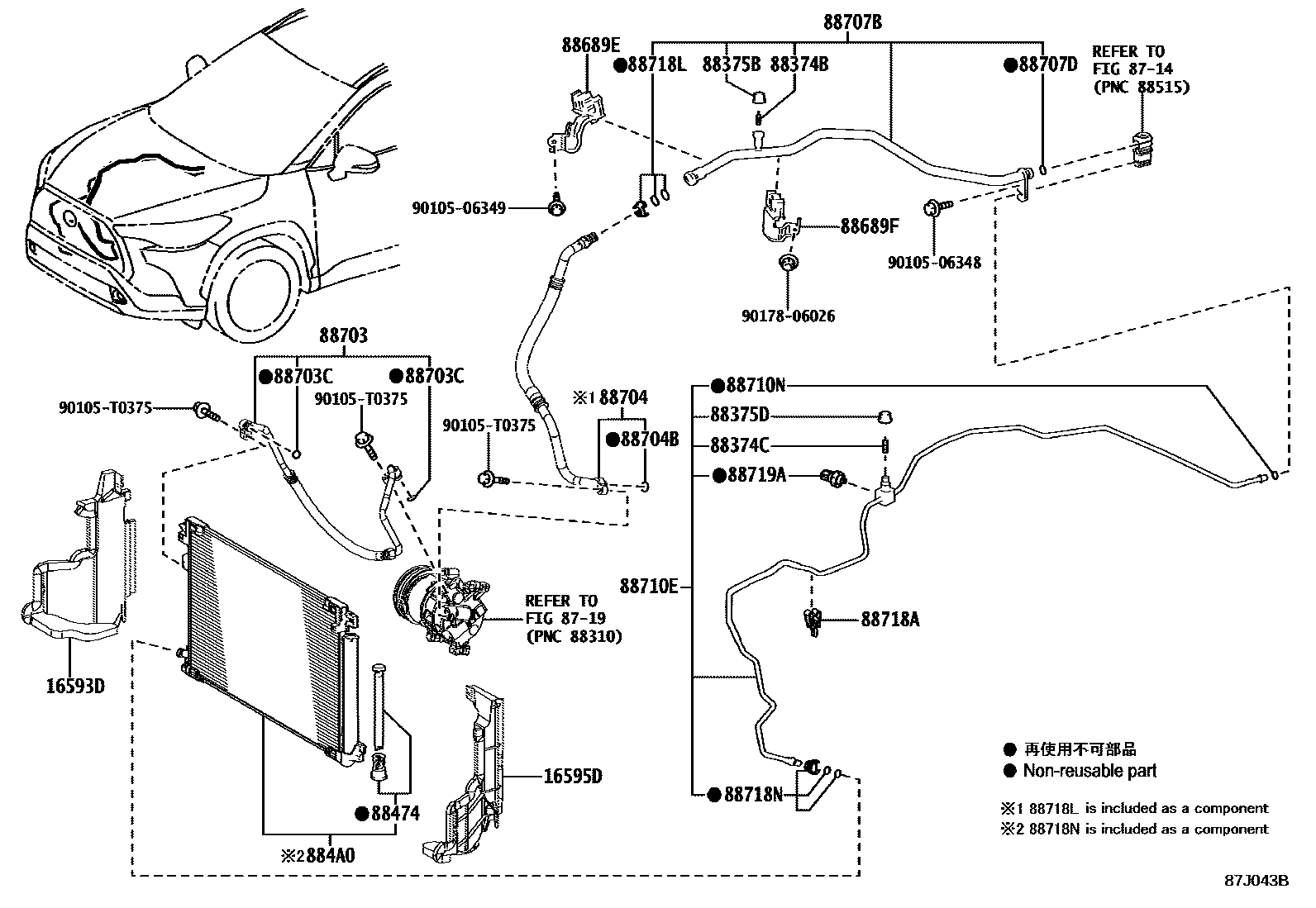

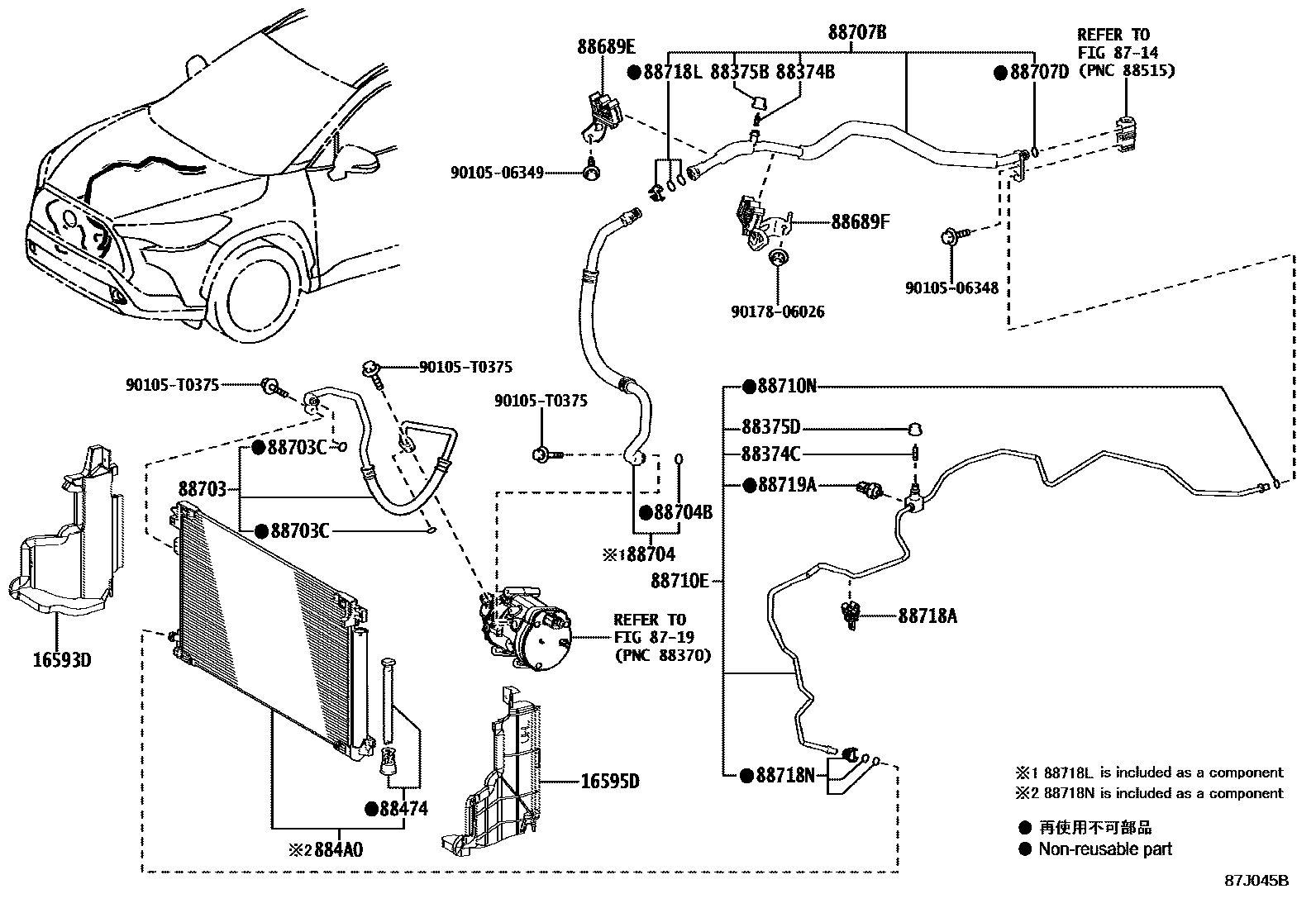

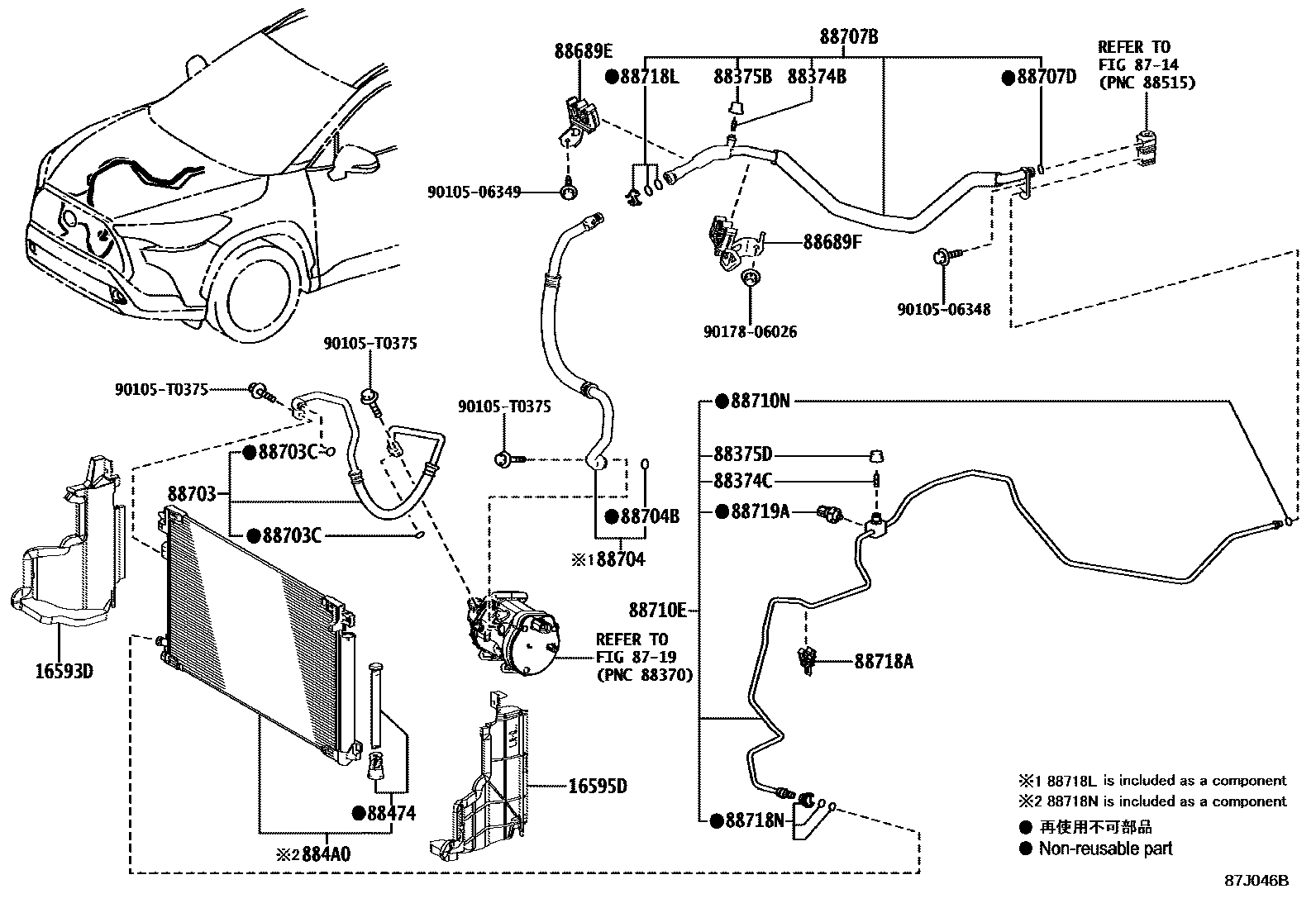

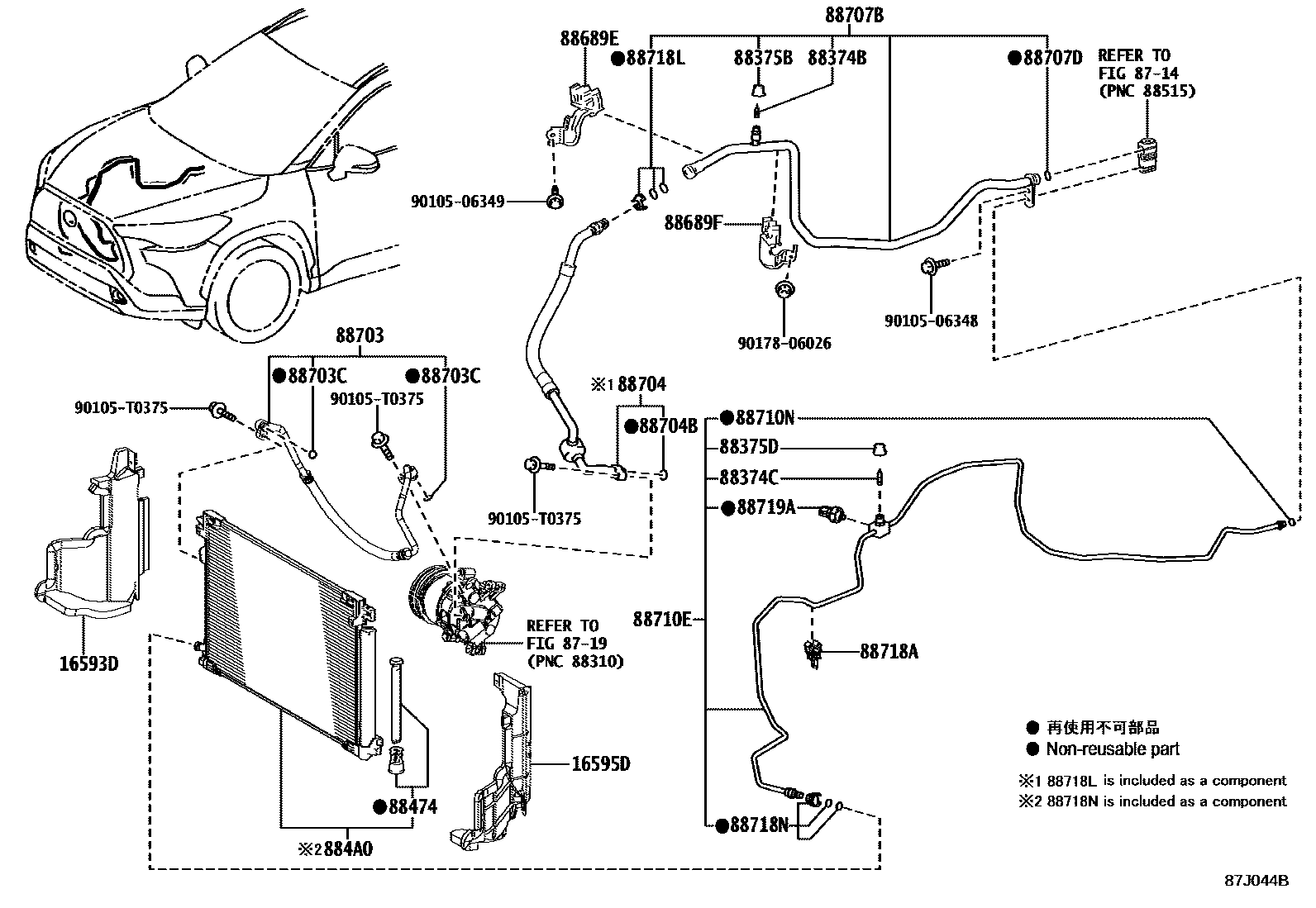

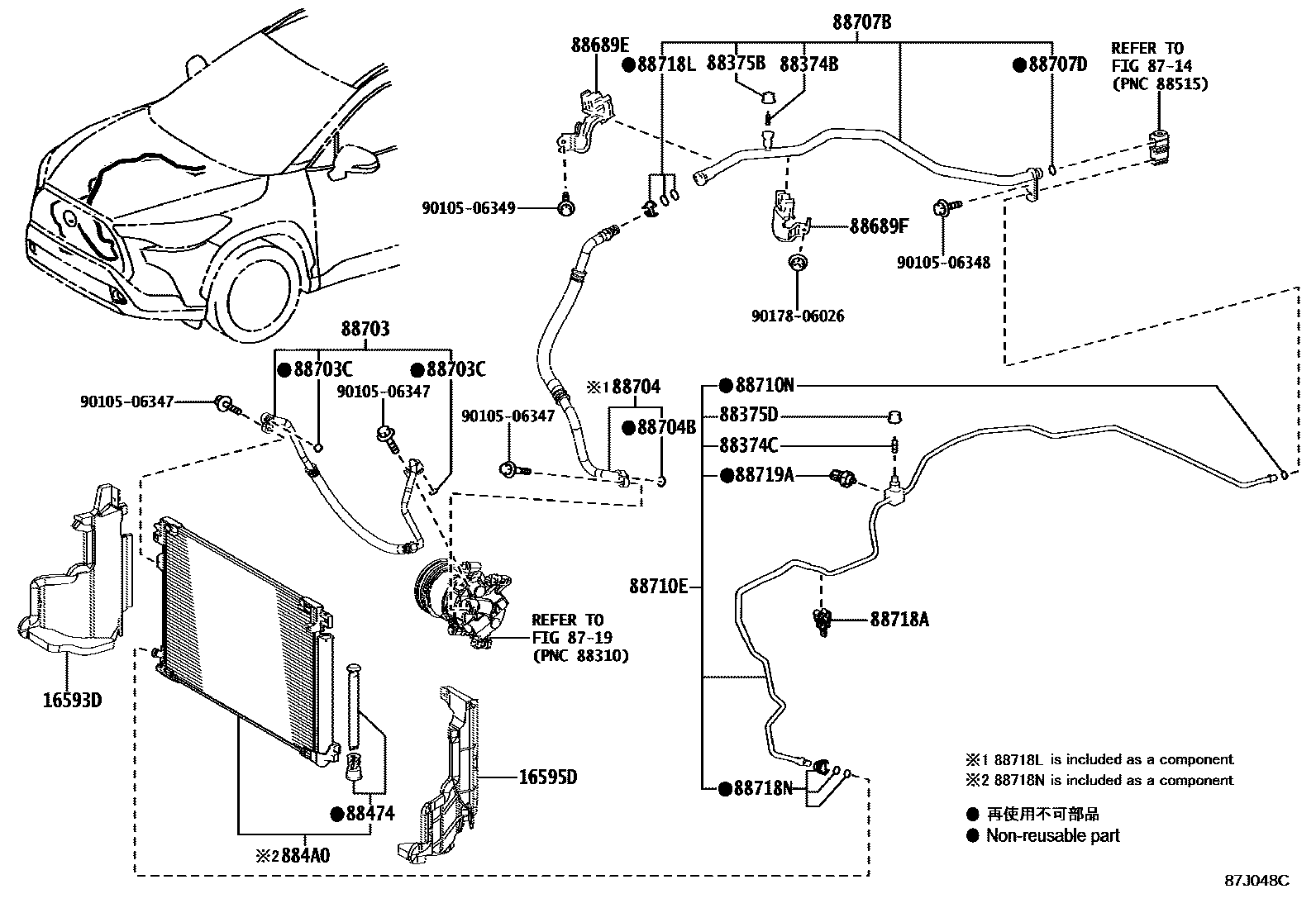

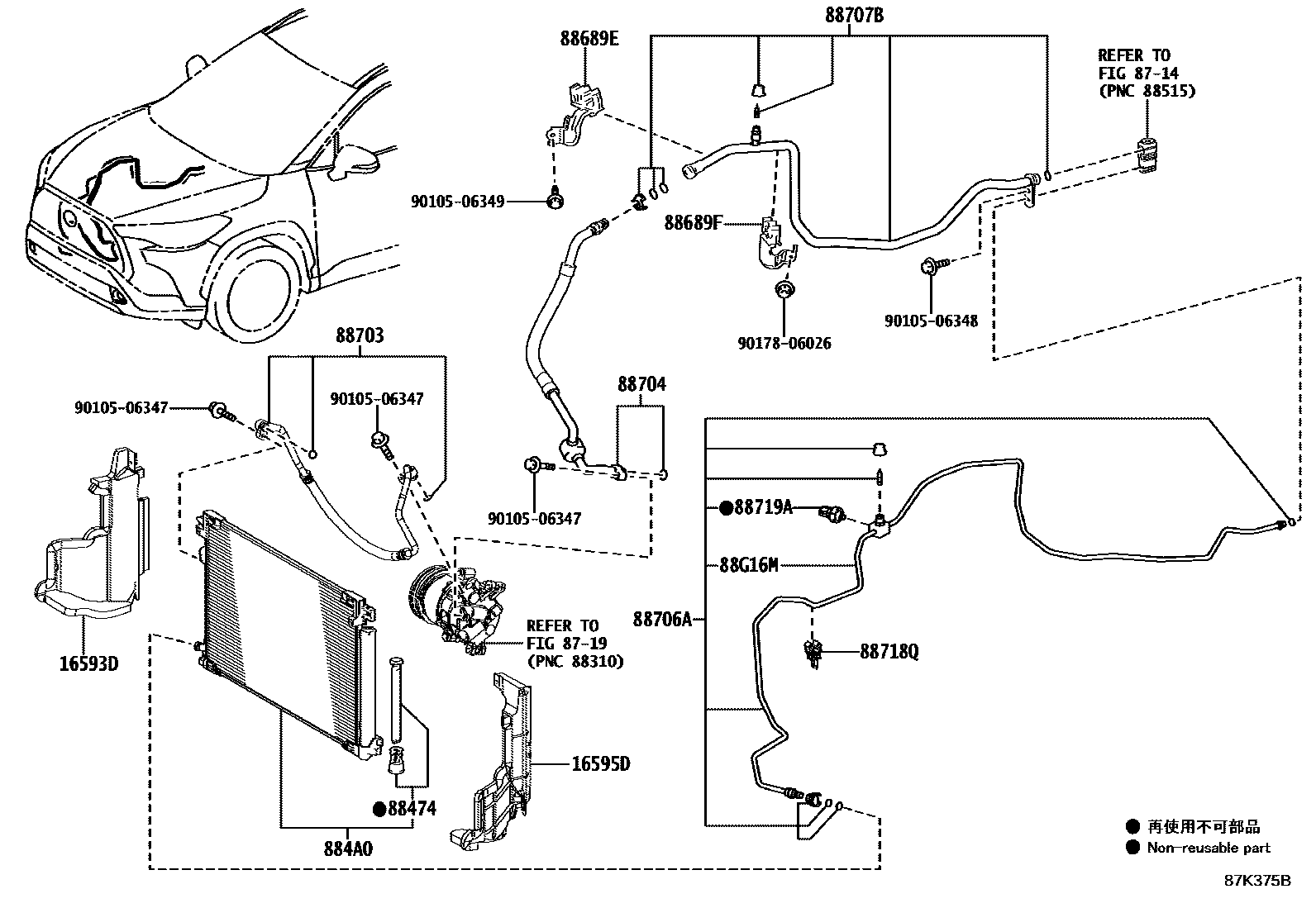

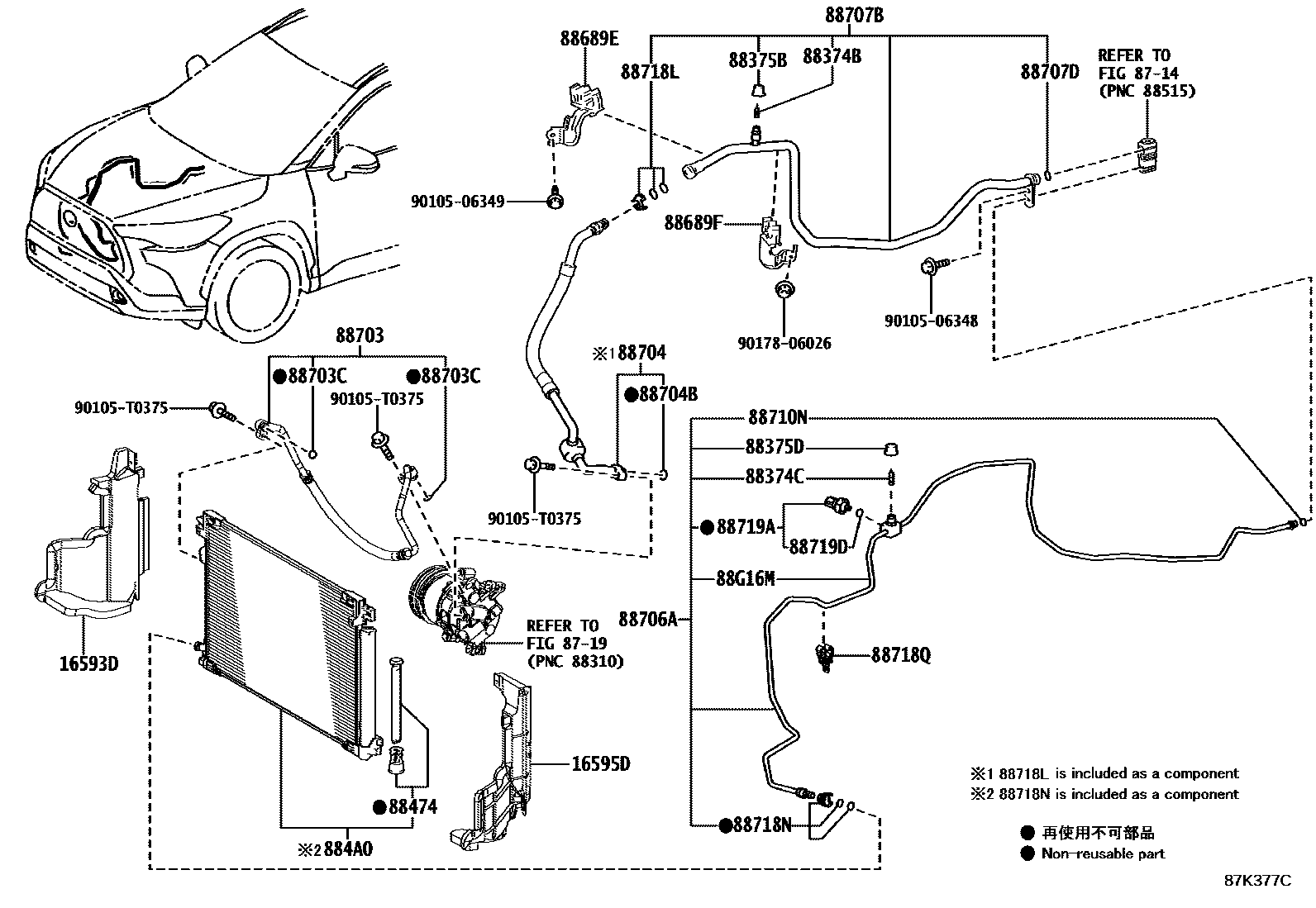

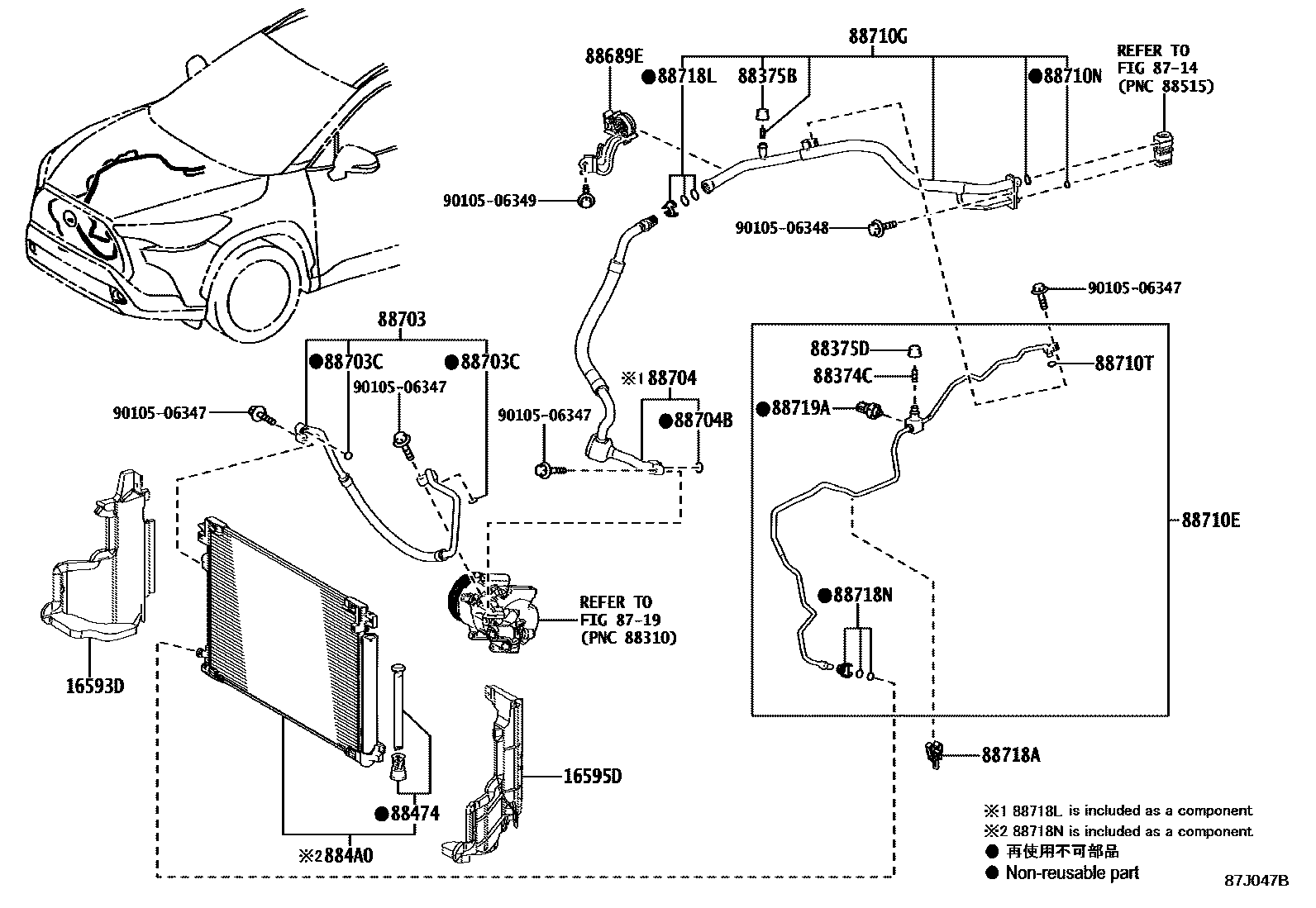

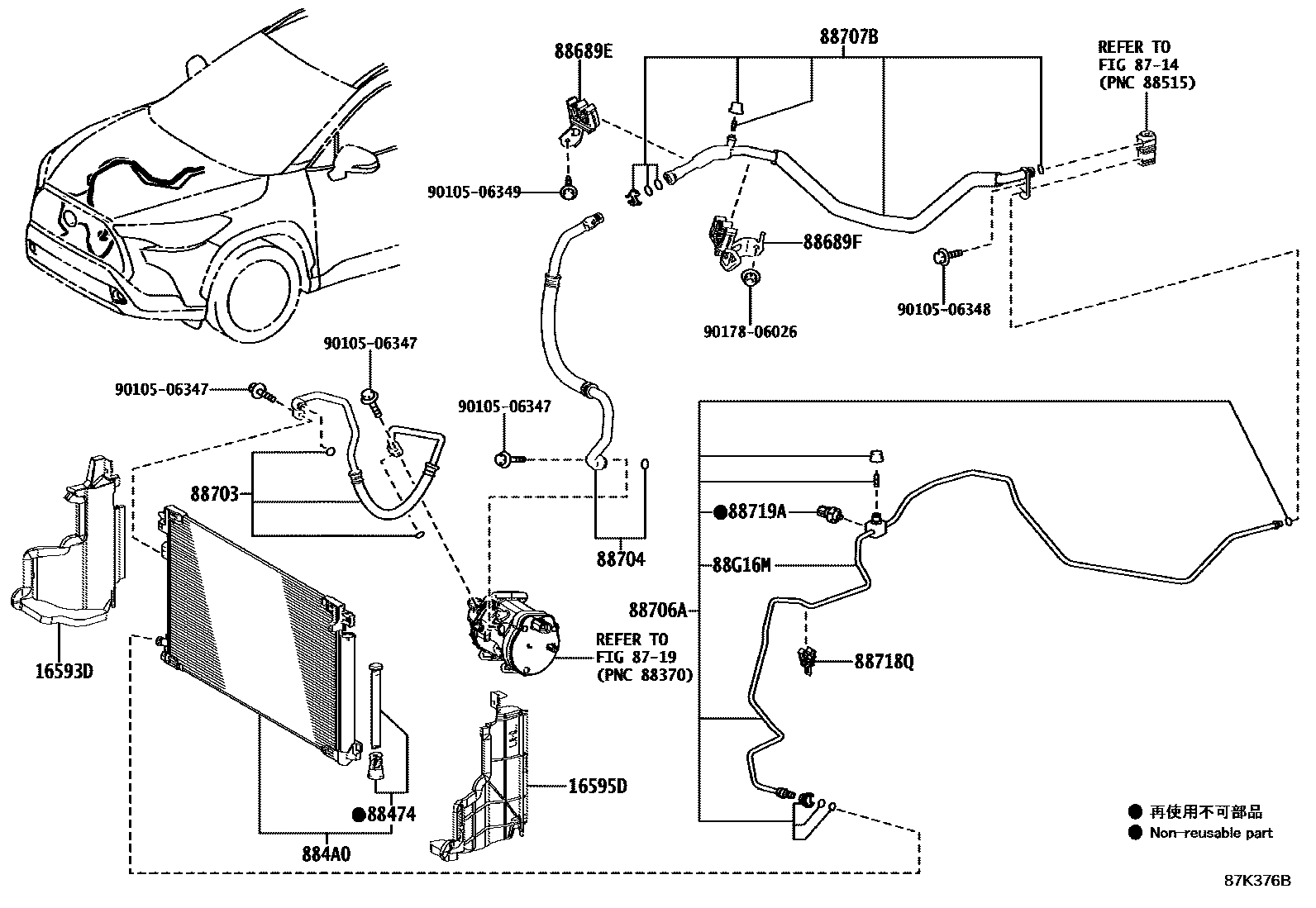

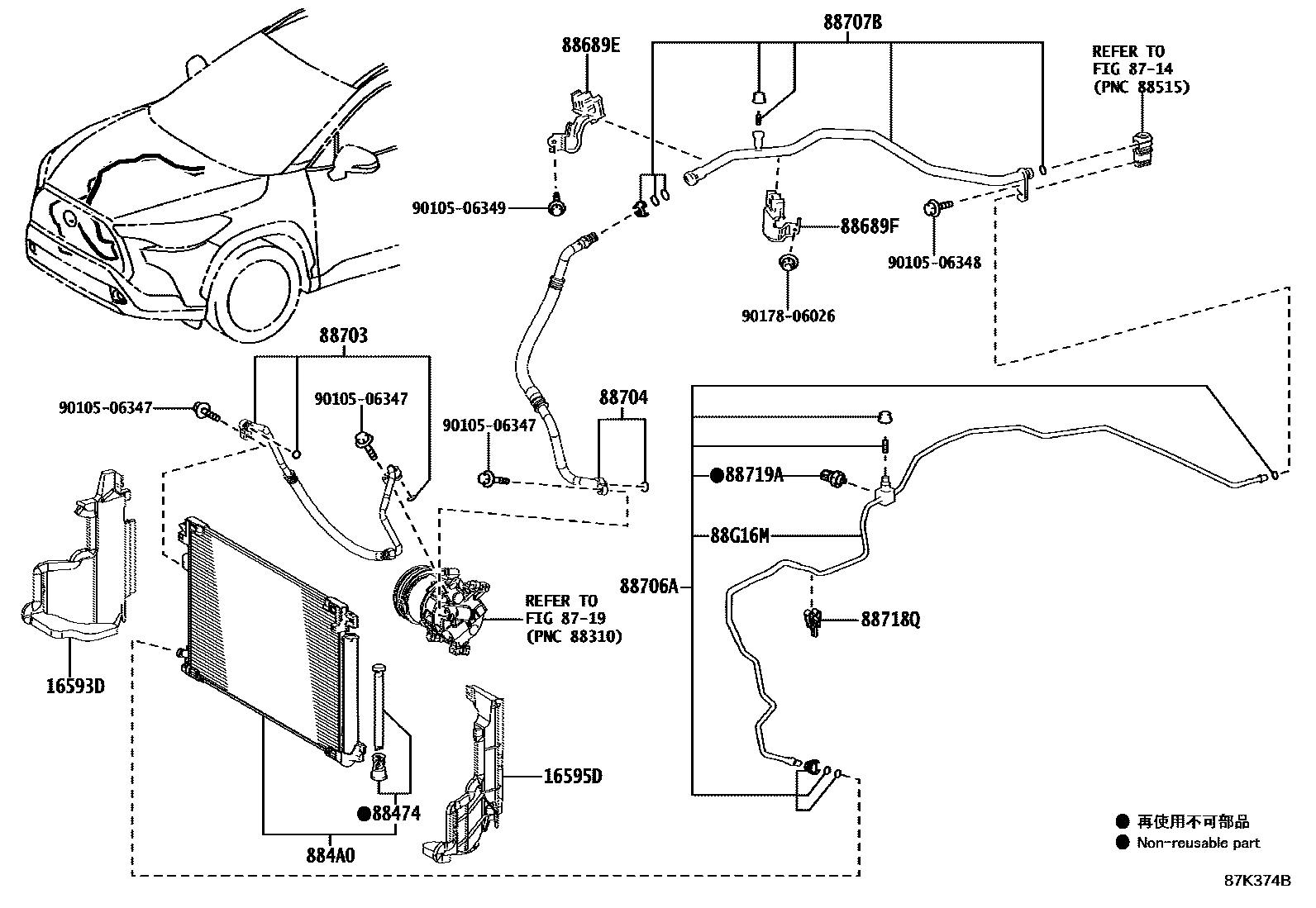

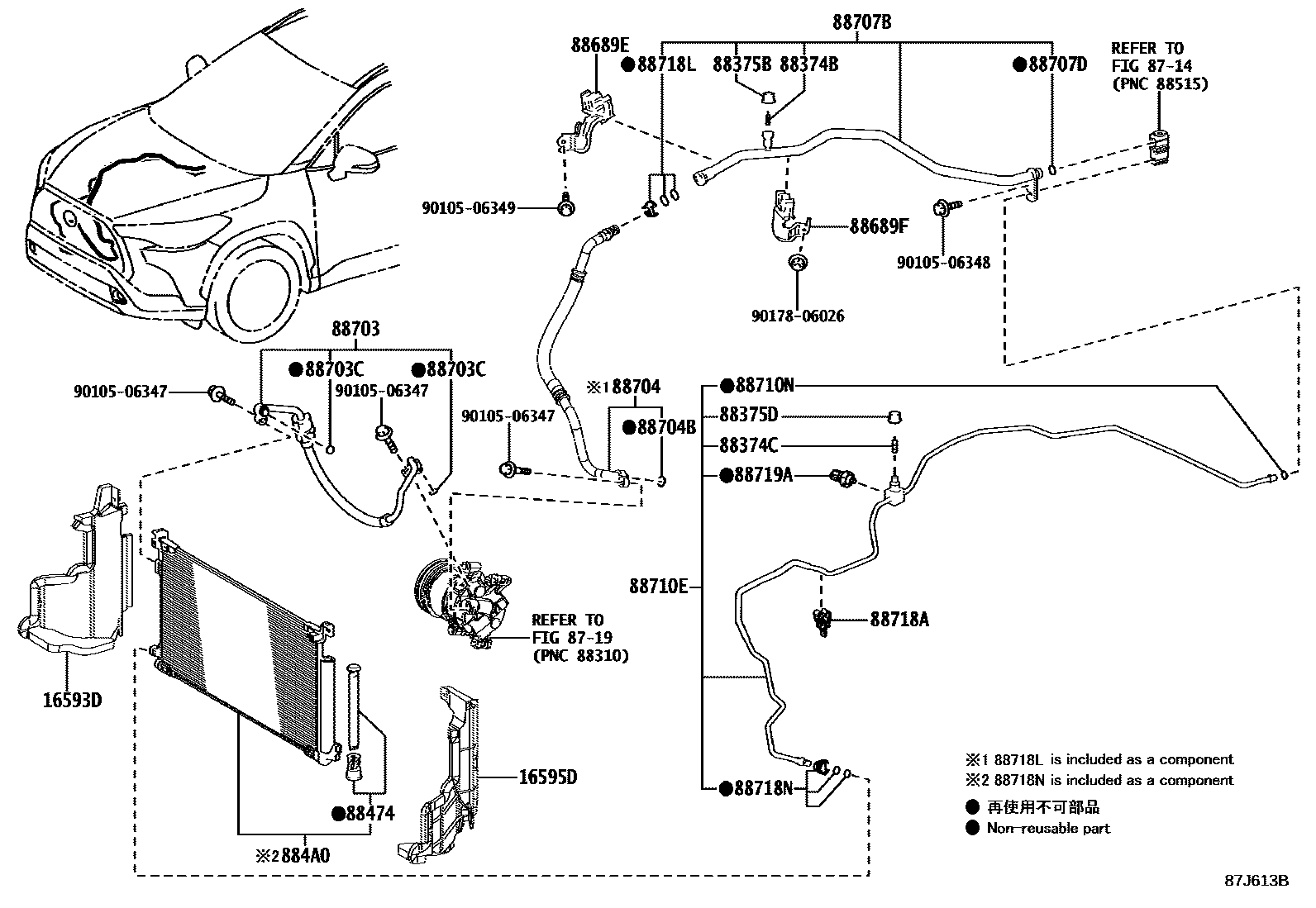

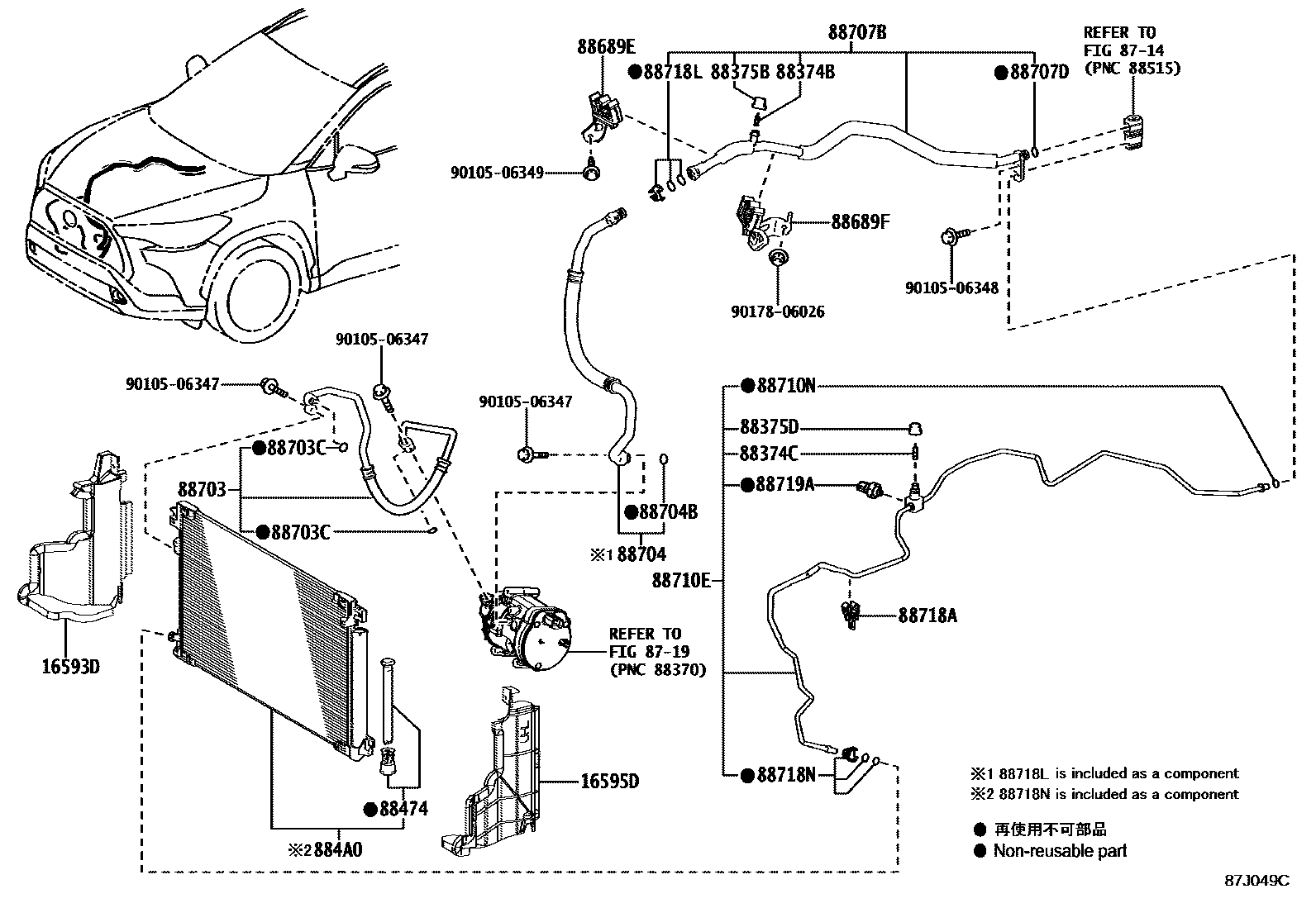

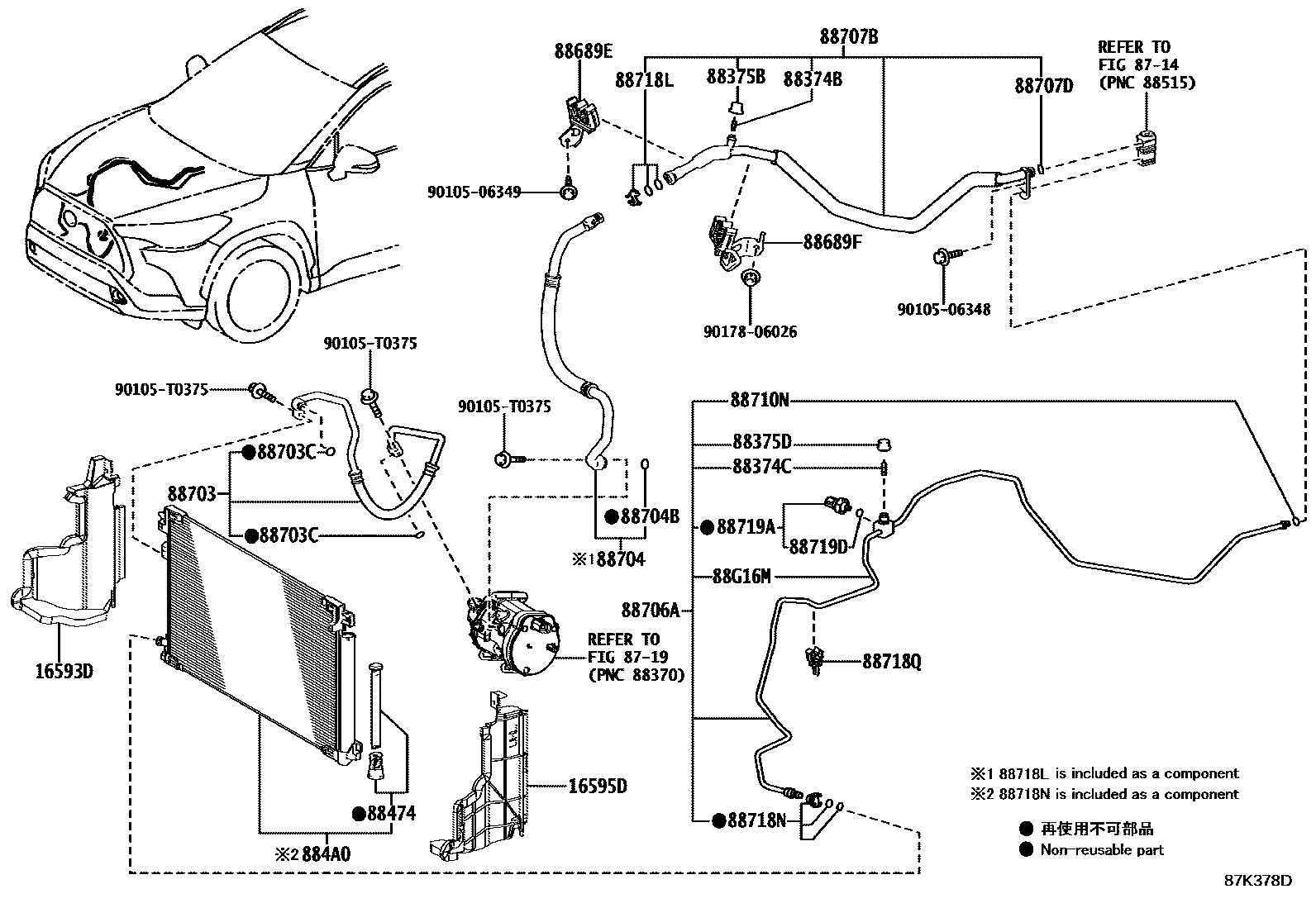

Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 13 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16593D | No. 1 radiator right deflector | 16593-0T270 · 16593-0T280 · 16593-0T310 · 16593-F2130 |
| 16595D | No. 1 radiator left deflector | 16595-0T330 · 16595-0T340 · 16595-0T350 · 16595-0T360 · 16595-0T390 · 16595-0T400 · 16595-F2150 |
| 88374B | Service valve No. 1 | 88374-02010 · 88374-30010 |
| 88374C | Service valve No. 2 | 88374-02010 · 88374-30010 · 88374-33070 |
| 88375B | No. 1 maintenance valve cover | 88375-02130 · 88375-30290 |
| 88375D | No. 2 maintenance valve cover | 88375-02120 · 88375-30280 |
| 88474 | cooler dryer | 88474-12010 · 88474-12020 |
| 884A0 | Air conditioning condenser assembly | 88460-0A030 · 88460-0A031 · 88460-0A040 · 88460-10320 · 884A0-02160 · 884A0-02170 · 884A0-02190 · 884A0-02210 · 884A0-02530 · 884A0-02550 · 884A0-02560 · 884A0-02590 · 884A0-02600 · 884A0-F4040 |
| 88689E | Cooler Bracket No. 1 | 88688-02D10 · 88688-02D40 · 88688-02D90 · 88688-02E10 · 88688-02F10 · 88688-0A070 · 88688-0A090 · 88688-0A110 · 88688-0A130 · 88688-F4060 · 88688-F4080 |
| 88689F | Cooler bracket No. 2 | 88688-02D30 · 88688-02D50 · 88688-02E00 · 88688-02E20 · 88688-0A080 · 88688-0A100 · 88688-0A120 · 88688-0A140 · 88688-F4070 · 88688-F4090 |
| 88703 | Discharge hose sub-assembly | 88703-02D40 · 88703-02D50 · 88703-02E00 · 88703-0A010 · 88703-0A030 · 88703-0A040 · 88703-0A090 · 88703-0A100 · 88703-0A120 · 88703-0A130 · 88703-F4050 |
| 88703C | O-ring (for drain hose) | 90068-14044 · 90099-14120 |
| 88704 | Oil suction hose sub-assembly | 88704-02D60 · 88704-02D70 · 88704-02E20 · 88704-0A050 · 88704-0A060 · 88704-0A070 · 88704-0A080 · 88704-0A120 · 88704-0A130 · 88704-0A140 · 88704-0A150 · 88704-0A160 · 88704-F4050 |
| 88704B | O-ring (for suction hose) | 90068-14043 · 90099-14121 |
| 88706A | Liquid pipe A sub-assembly | 88710-0A120 · 88710-0A130 · 88710-0A140 · 88710-0A150 · 88710-0A160 |
| 88707B | Suction pipe B sub-assembly | 88707-02600 · 88707-02620 · 88707-02630 · 88707-02640 · 88707-02690 · 88707-02700 · 88707-0A030 · 88707-0A040 · 88707-0A050 · 88707-0A060 · 88707-0A070 · 88707-F4040 · 88707-F4050 |
| 88707D | O-ring (for suction pipe) | 90068-14043 · 90099-14121 |
| 88710E | Air conditioning pipe and accessories assembly | 88710-02E70 · 88710-02E90 · 88710-02F10 · 88710-02F20 · 88710-02F30 · 88710-02F80 · 88710-02G00 · 88710-F4110 · 88710-F4150 |
| 88710G | No. 2 air conditioning pipe and accessories assembly | 88710-02E60 |
| 88710N | No. 1 O-ring (for air conditioning pipe and accessory assembly) | 90068-14042 · 90099-14119 |
| 88710T | No. 3 O-ring (for air conditioning pipe and accessory assembly) | 90099-14119 |
| 88718A | Clamp No. 1 (for cooler refrigerant pipe) | 88718-02B00 · 88718-47110 · 88718-F4100 |
| 88718L | Pipe clamp | 88718-52280 |
| 88718N | Pipe clamp | 88718-1E150 |
| 88718Q | Pipe clamp | 88718-0A100 · 88718-47110 |
| 88719A | Air conditioning pressure sensor | 88719-11010 |
| 88719D | O-ring (for air conditioning pressure sensor) | 90099-14122 |
| 88G16M | Liquid tube No. 1 | 88716-0A530 · 88716-0A540 · 88716-0A550 · 88716-0A570 · 88716-0A580 |
