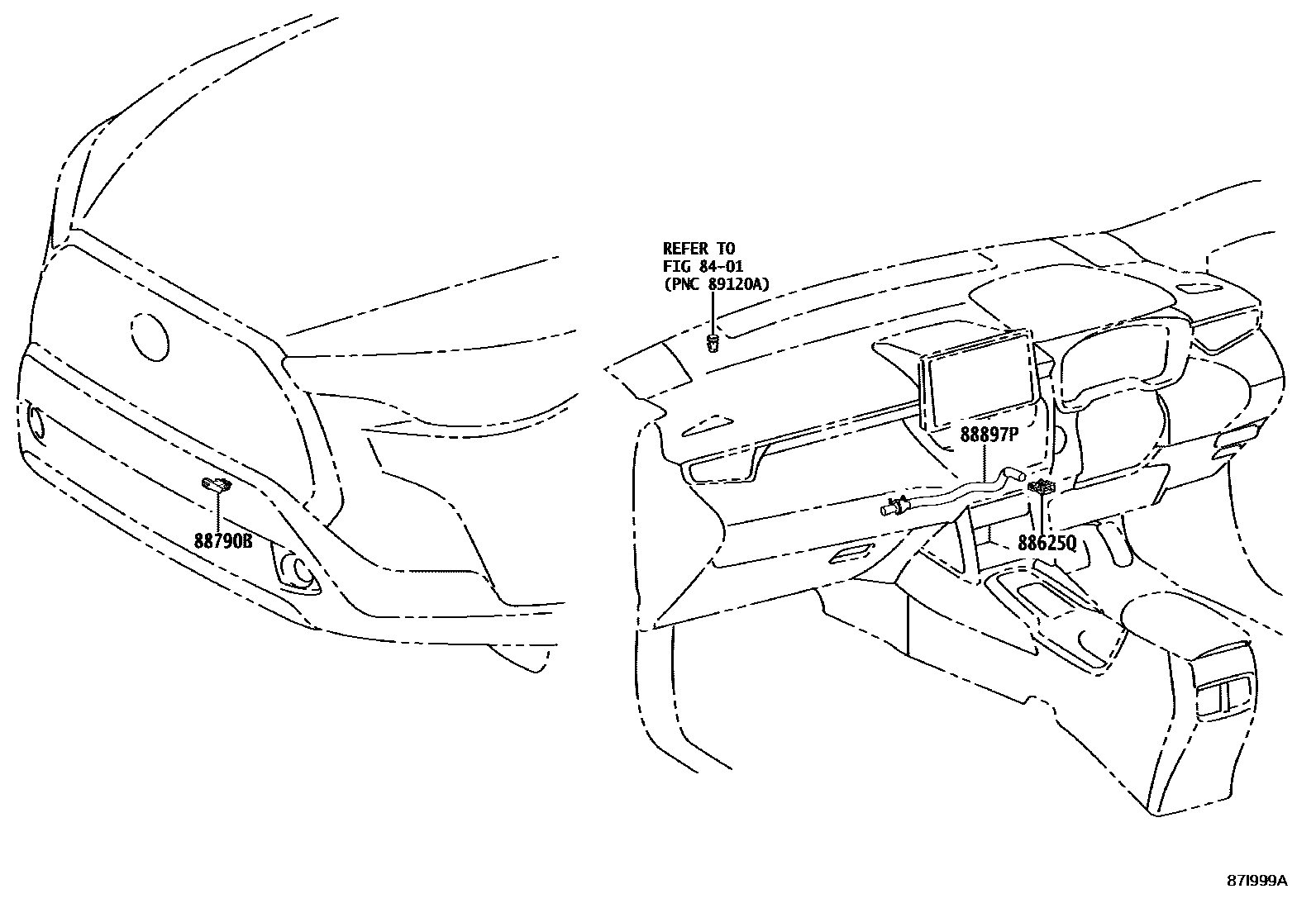

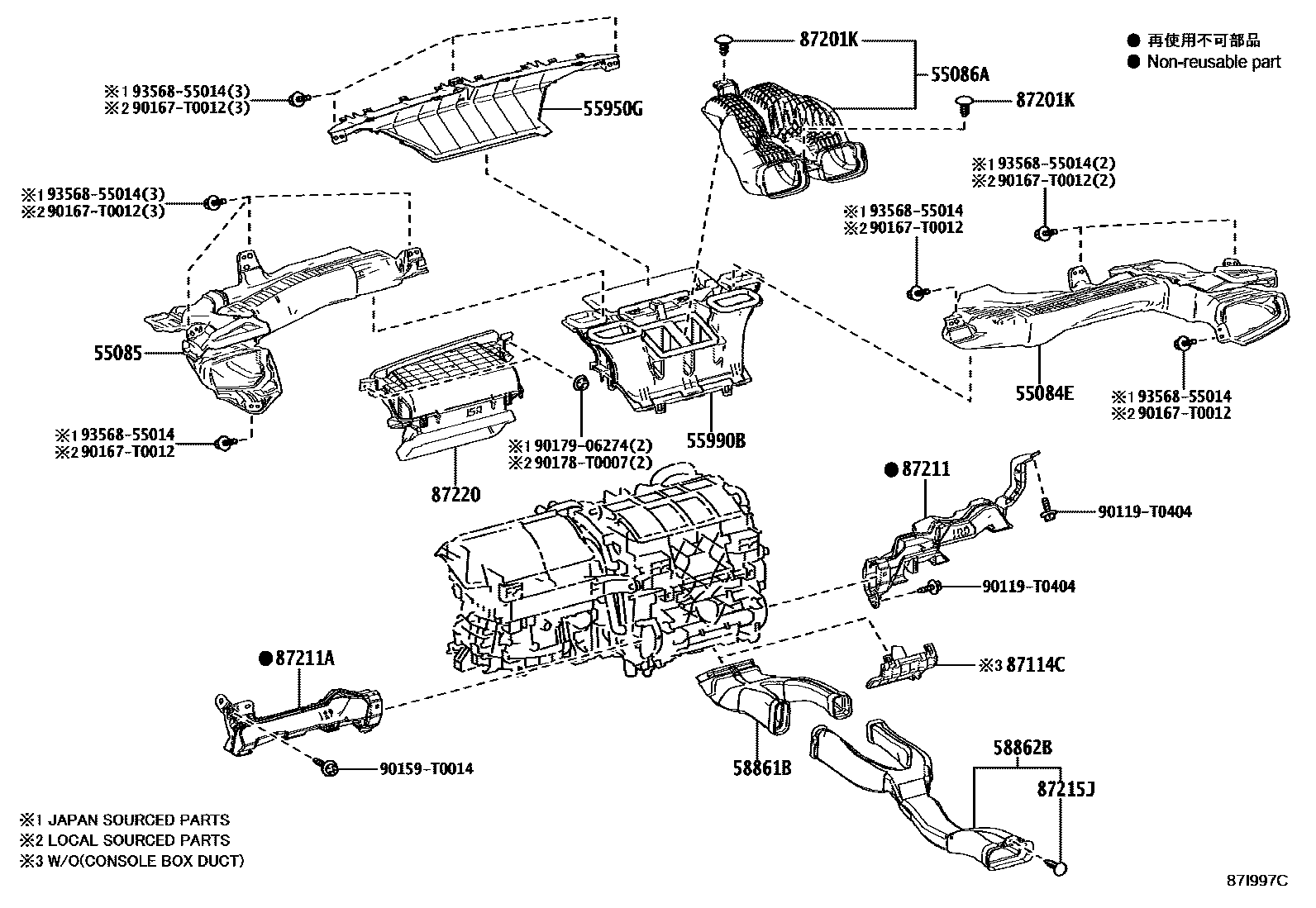

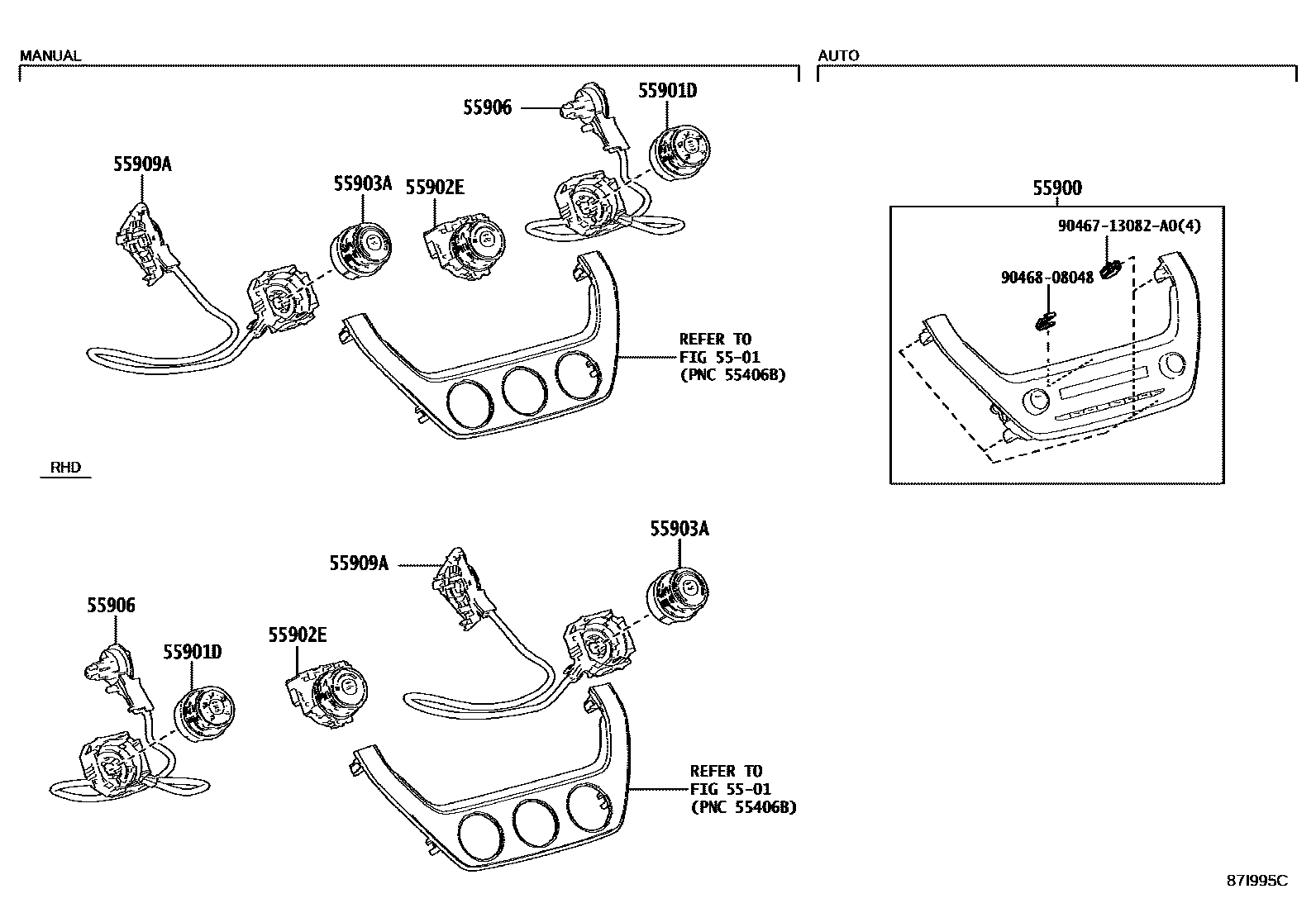

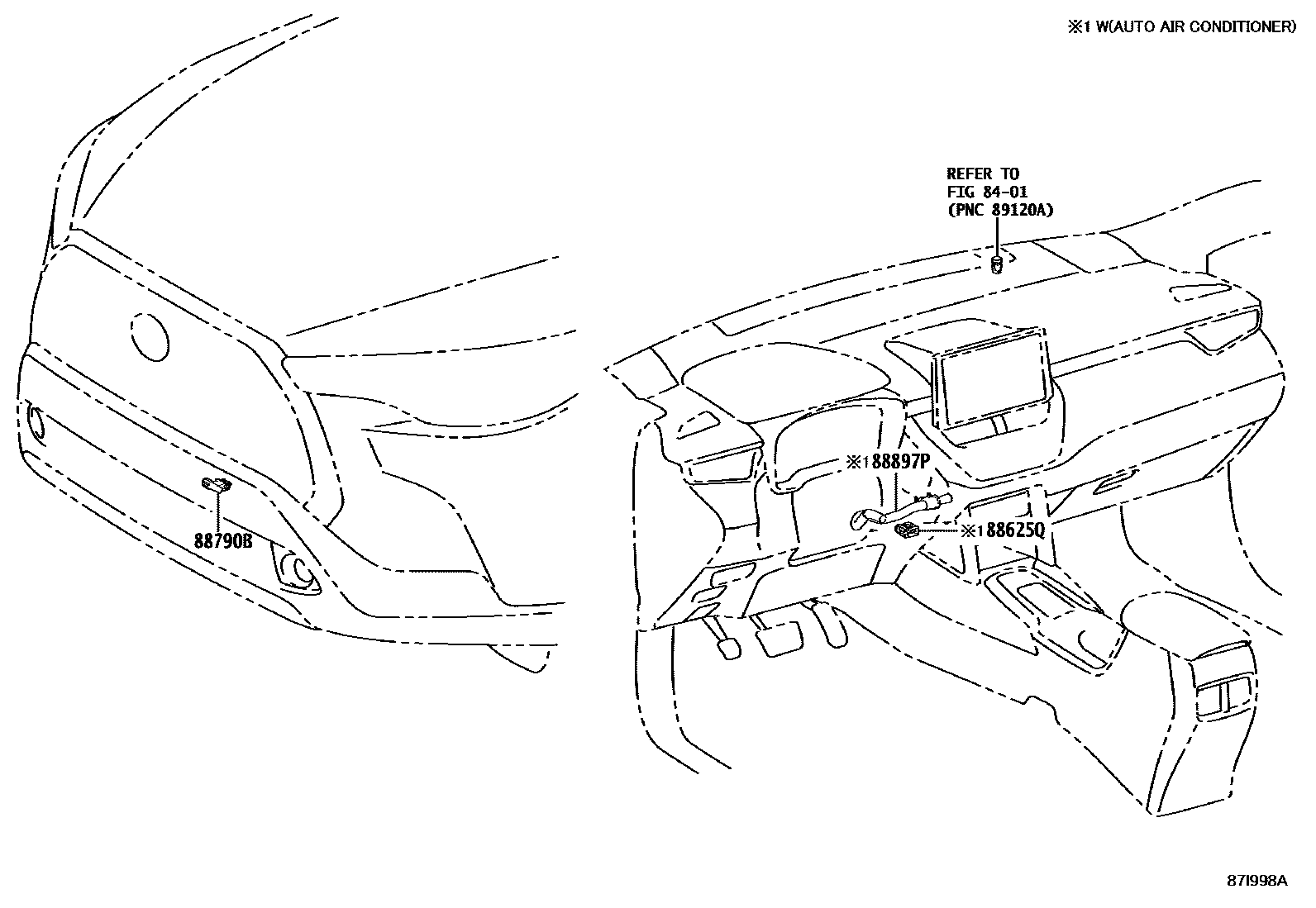

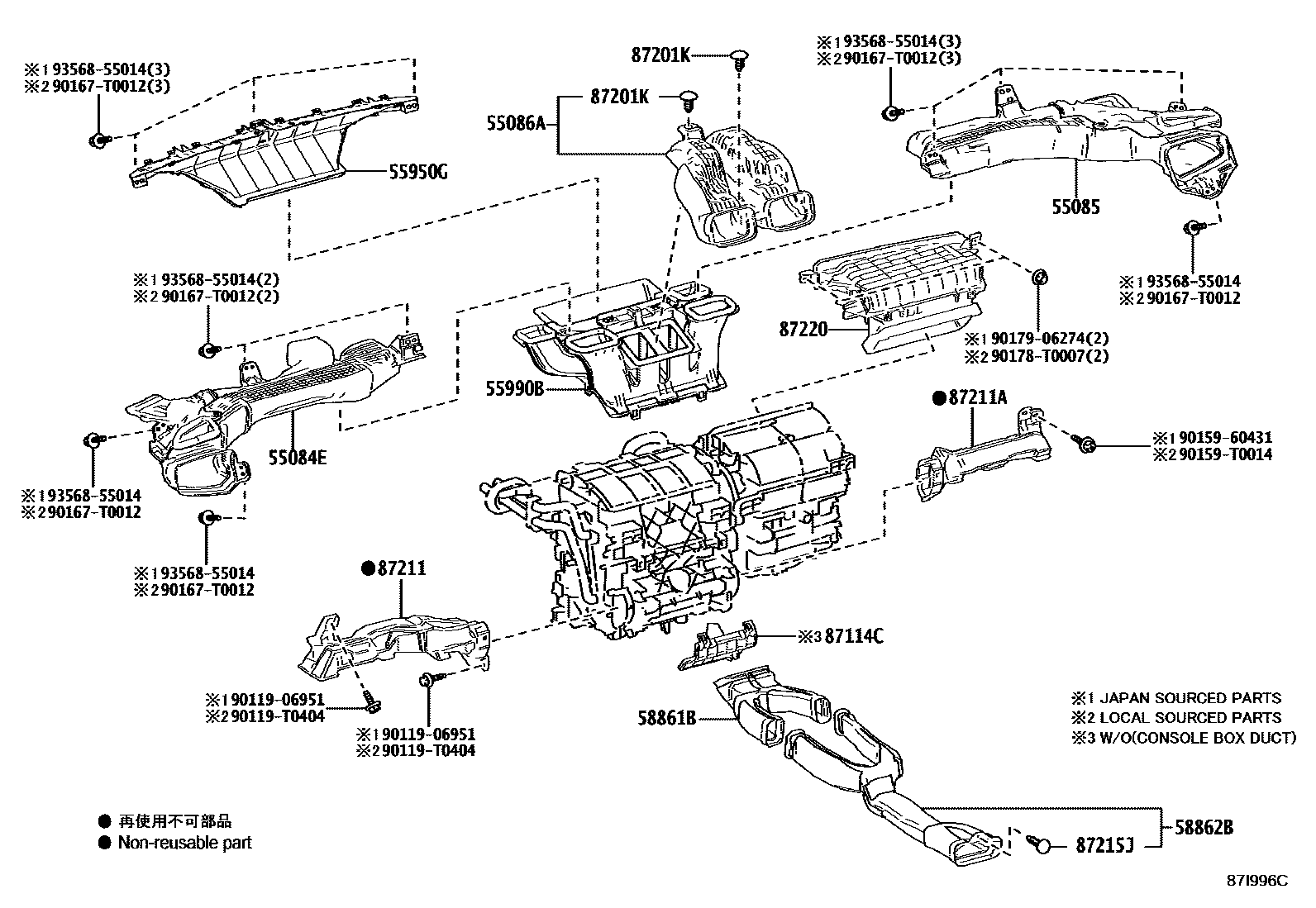

Toyota COROLLA 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota COROLLA EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 5 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55084E | Heater to air regulator No. 1 air duct sub-assembly | 55084-0A010 · 55084-0A020 · 55084-0A030 · 55084-0A040 · 55084-0A090 · 55084-0A100 |
| 55085 | Heater to air regulator No. 2 air duct sub-assembly | 55085-0A010 · 55085-0A020 · 55085-0A030 · 55085-0A040 · 55085-0A080 · 55085-0A090 |
| 55086A | Heater to central air register air duct sub-assembly | 55086-02630 · 55086-02640 · 55086-02650 · 55086-02660 · 55086-0A050 · 55086-0A060 |
| 55901D | No. 1 heater control sub-assembly | 55901-02230 · 55901-02250 · 55901-12280 · 55901-26230 |
| 55902E | No. 2 heater control sub-assembly | 55902-02280 · 55902-02320 · 55902-12410 · 55902-26150 |
| 55903A | No. 3 heater control sub-assembly | 55903-02450 · 55903-02470 · 55903-12380 · 55903-12390 |
| 55906 | Heater control cable sub-assembly | 55906-26081 · 55906-26091 |
| 55909A | Air mix damper control cable sub-assembly | 55909-26131 · 55909-26141 |
| 55950G | Defroster nozzle assembly | 55950-0A010 · 55950-0A020 · 55950-0A030 · 55950-0A040 · 55950-0A080 · 55950-0A090 |
| 55990B | Lower defroster nozzle assembly | 55990-0A020 · 55990-0A030 · 55990-0A040 · 55990-0A090 · 55990-0A100 |
| 58861B | Air duct No. 1 for armrest box | 58861-0A010 · 58861-0A020 · 58861-0A030 · 58861-0A040 · 58861-0A090 |
| 58862B | Air duct No. 2 for armrest box | 58862-0A010 · 58862-0A020 · 58862-0A030 · 58862-0A040 · 58862-0A090 · 58862-0A100 |
| 87114C | heater cover | 87114-02160 · 87114-0A020 · 87114-F4090 |
| 87211 | No. 1 air duct | 87211-02630 · 87211-02670 · 87211-02730 · 87211-0A010 · 87211-0A030 · 87211-0A050 · 87211-0A070 |
| 87211A | Duct No. 2 | 87211-02640 · 87211-02660 · 87211-02680 · 87211-02740 · 87211-0A040 · 87211-0A060 · 87211-0A080 |
| 87220 | Air duct assembly | 87220-0A010 · 87220-0A020 · 87220-0A040 · 87220-0A080 · 87220-0A090 · 87220-0A100 · 87220-0A110 |
| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-47021 |
| 88790B | Thermistor assembly | 88790-28100 |
| 88897P | aspirator | 88505-02240 · 88505-02250 · 88505-02260 · 88505-02280 · 88505-0A010 · 88505-0A020 · 88505-0A030 |
