Toyota COROLLA 车载电话和呼救装置 — Figure 8615

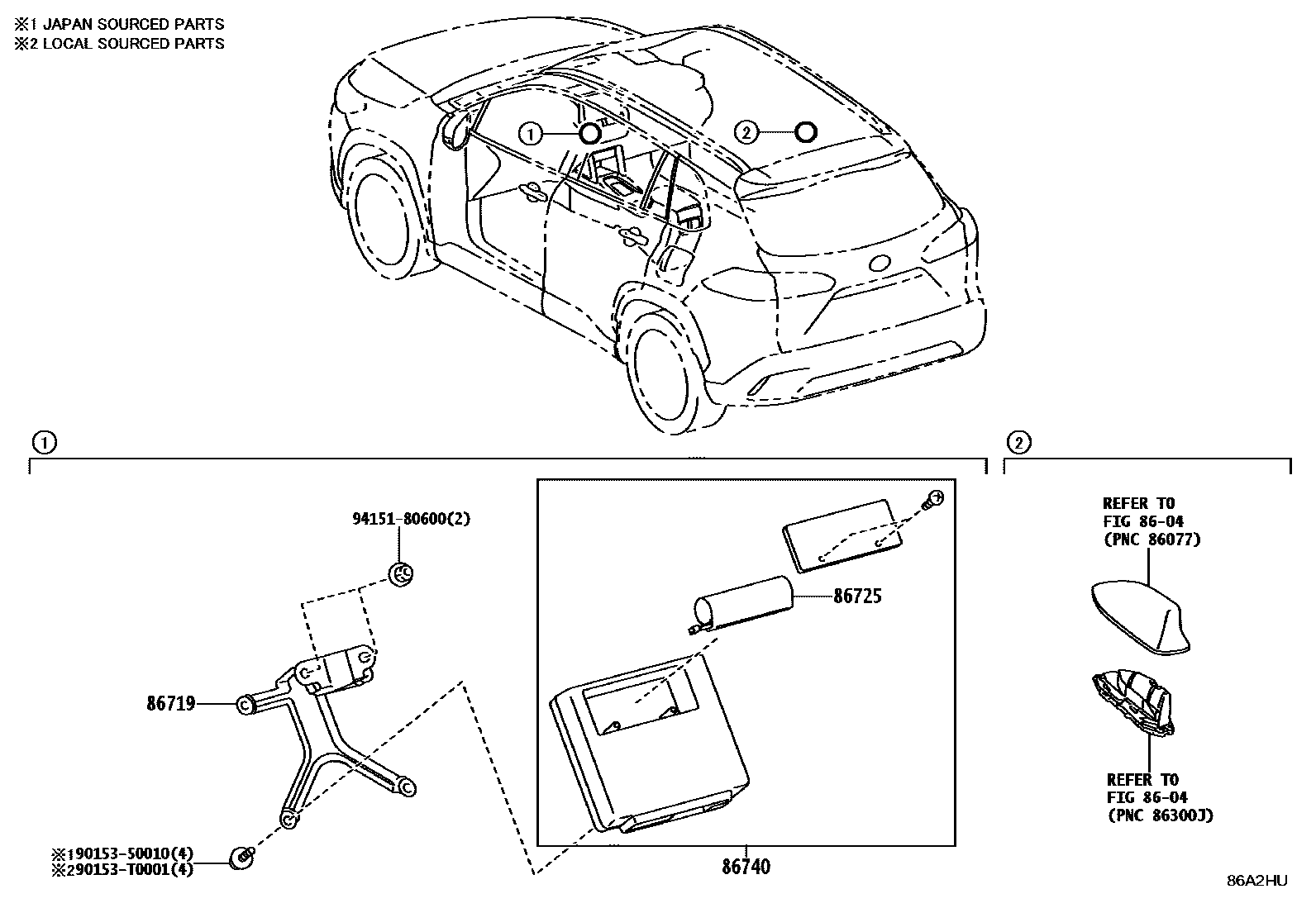

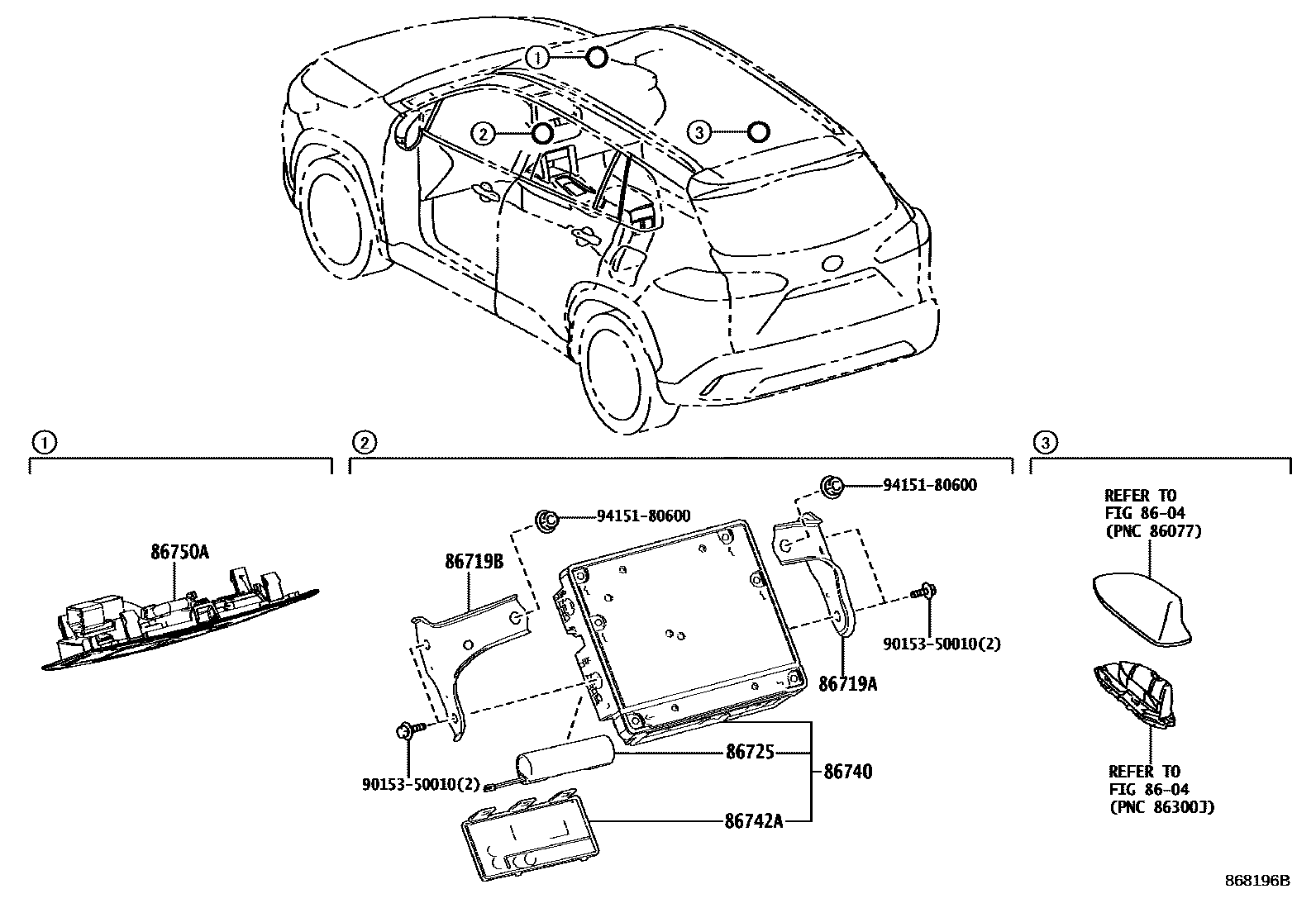

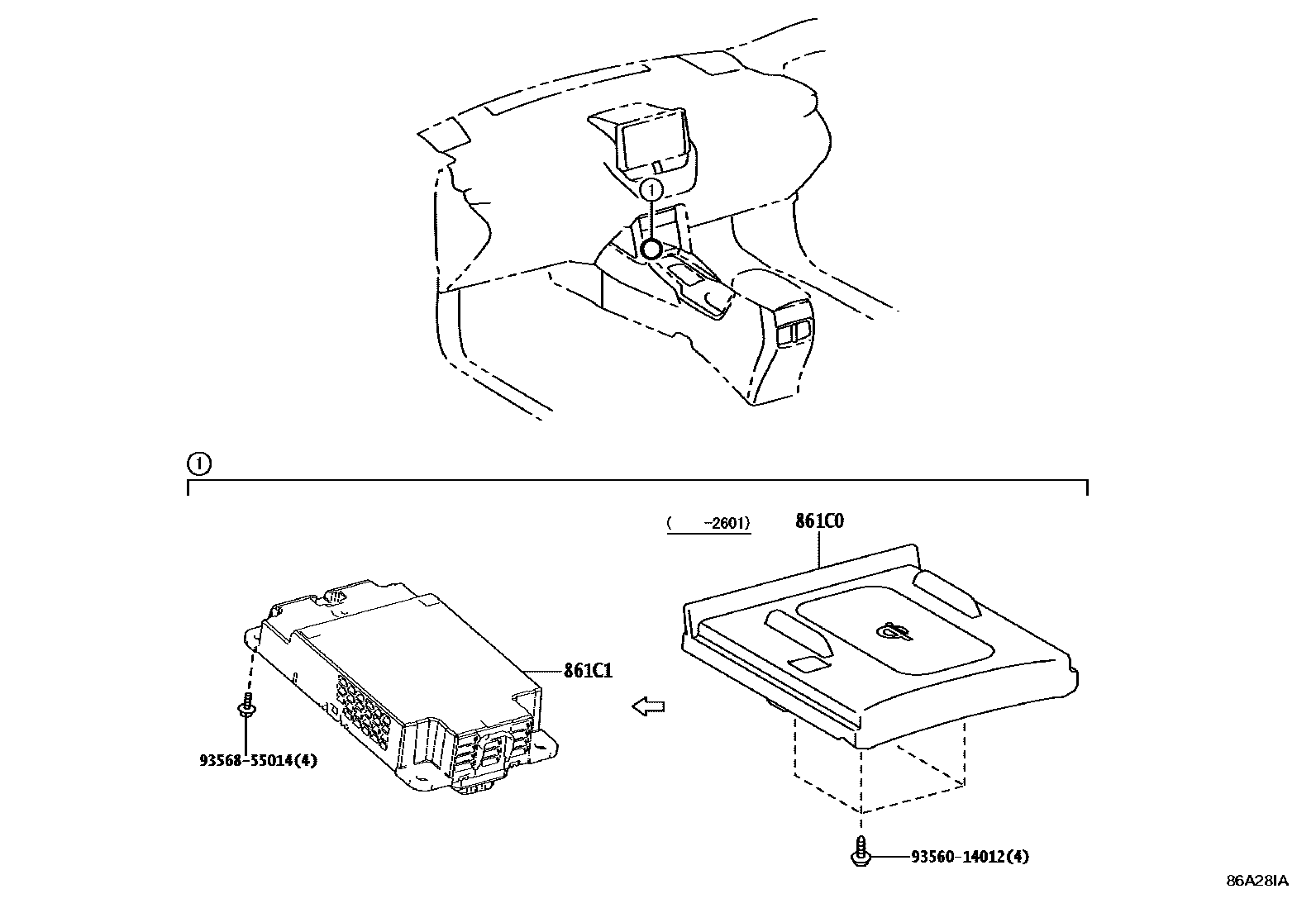

Toyota COROLLA EPC diagram 8615, 车载电话和呼救装置, with 3 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 861C0 | Mobile wireless charger bracket assembly | 861C0-YY170 · 861C0-YY220 |
| 86719 | phone holder | 86719-YY050 |
| 86719A | Phone holder No. 1 | 86719-0A030 |
| 86719B | Phone holder No. 2 | 86719-0A040 |
| 86725 | mobile phone battery | 86725-06020 · 86725-11020 · 86725-YY010 |
| 86740 | Telephone transceiver assembly | 86740-16010 · 86740-62100 · 86740-62120 · 86740-YY030 |
| 86742A | transceiver cover | 86742-11010 · 86742-78010 |
