Toyota COROLLA 喇叭 — Figure 8611

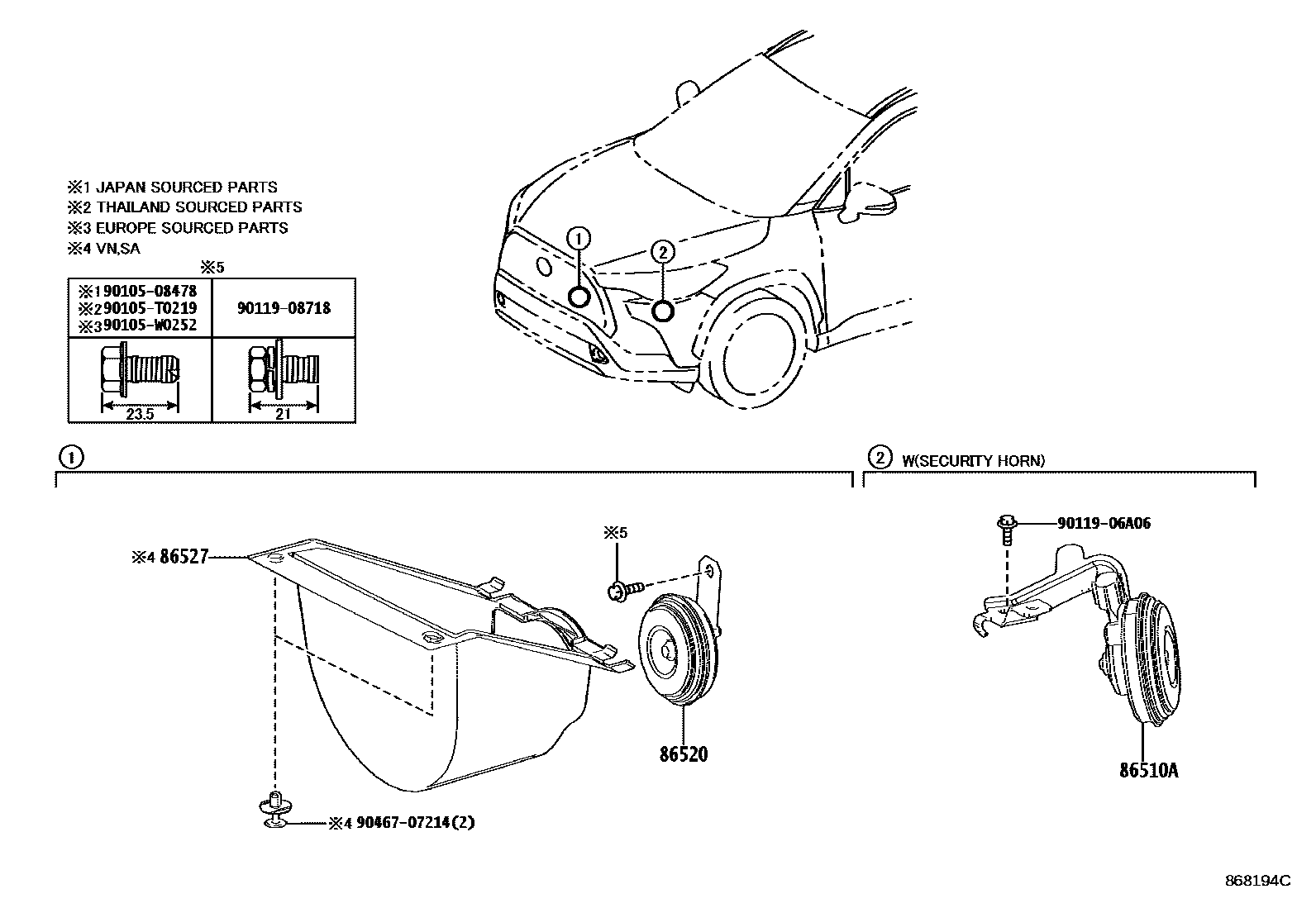

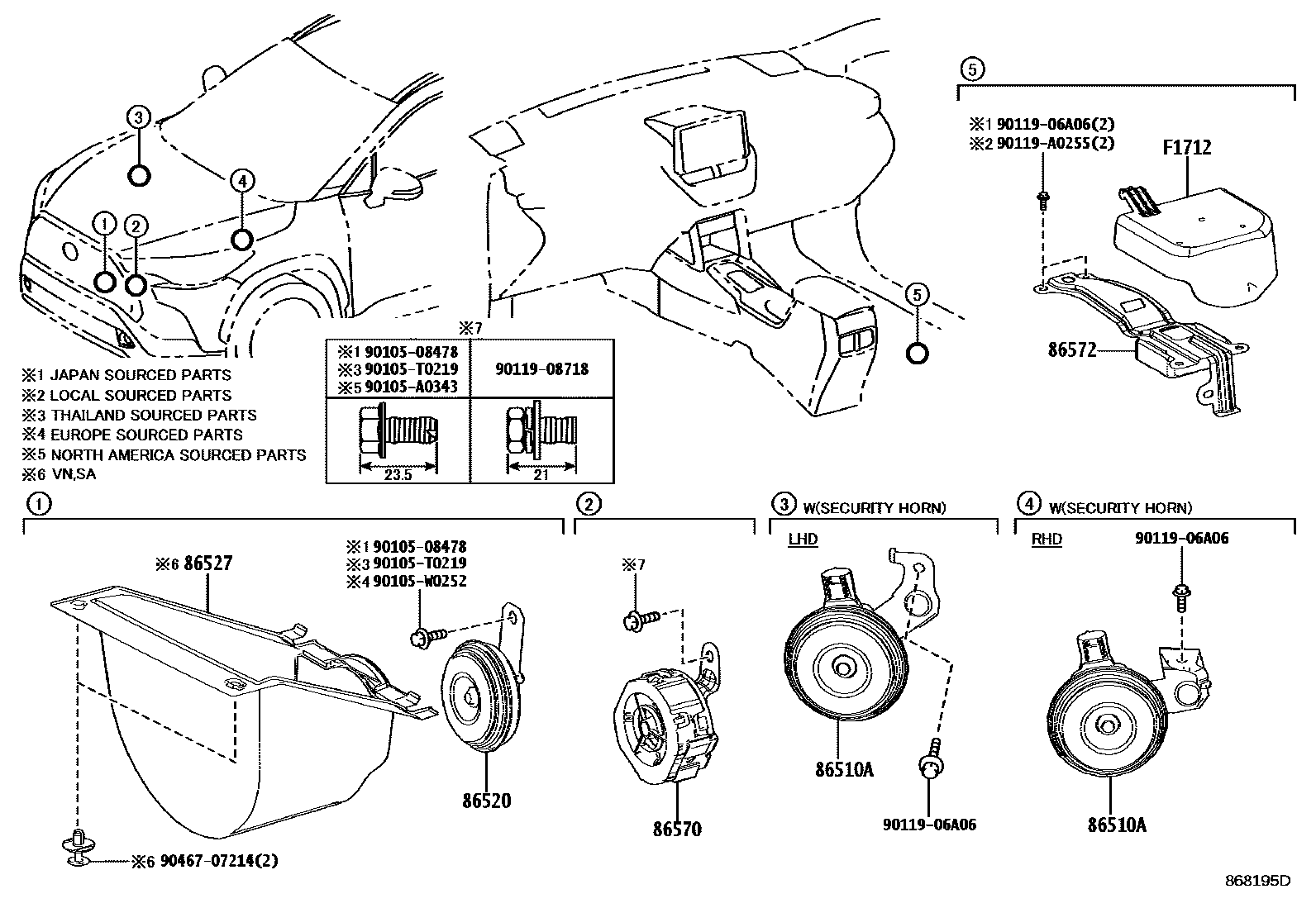

Toyota COROLLA EPC diagram 8611, 喇叭, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86510A | Alarm horn assembly | 86560-02160 · 86560-02230 · 86560-10020 · 86560-12090 · 86560-F4080 |
| 86520 | Subwoofer assembly | 86500-02040 · 86520-0K010 · 86520-0K060 · 86520-26201 · 86520-33140 |
| 86527 | woofer | 86527-0A010 · 86527-0A020 |
| 86570 | Vehicle intrusion speaker assembly | 86570-12030 |
| 86572 | vehicle hacking speaker controller | 86572-16010 · 86572-16020 · 86572-16040 · 86572-16170 |
| F1712 | Vehicle Intrusion Speaker Controller Cover | F1712-12090 |
