Toyota COROLLA 倒车影像和摄像头 — Figure 8606

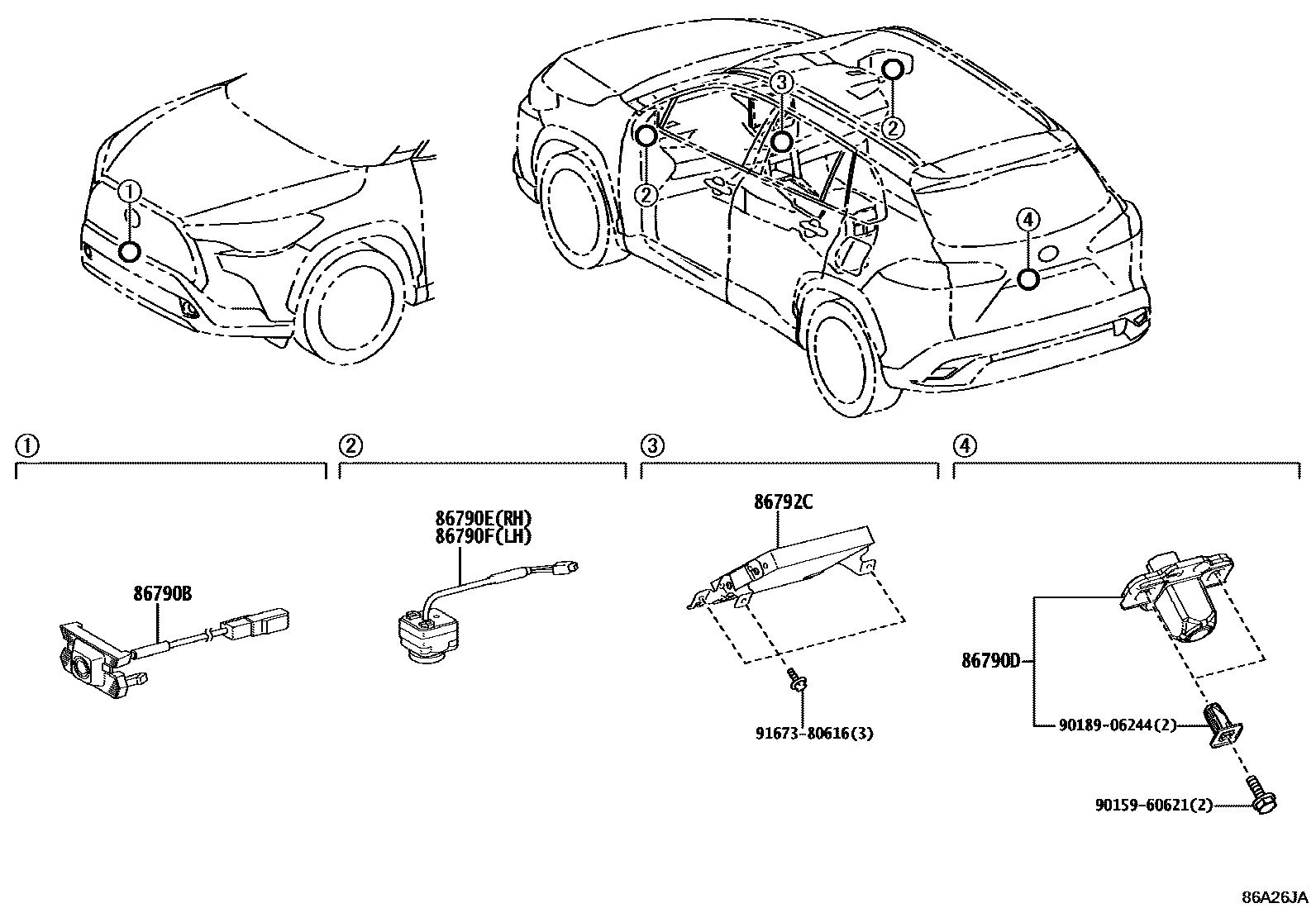

Toyota COROLLA EPC diagram 8606, 倒车影像和摄像头, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86790B | Front image camera assembly | 86790-16130 · 86790-16150 · 86790-YY010 · 86790-YY360 · 86790-YY460 · 86790-YY510 · 86790-YY520 · 86790-YY630 |
| 86790D | Rear reversing image camera assembly | 86790-0A100 · 86790-16010 · 86790-16070 · 86790-YY080 · 86790-YY390 · 86790-YY400 · 86790-YY500 · 867B0-0A020 · 867B0-16010 · 867B0-16080 |
| 86790E | Right image camera assembly | 86790-0K160 · 86790-YY030 · 86790-YY060 · 86790-YY370 |
| 86790F | Left image camera assembly | 86790-0K150 · 86790-YY040 · 86790-YY070 · 86790-YY370 |
| 86792C | Parking assist ECU | 86792-16220 · 86792-16250 · 86792-YY130 · 86792-YY150 · 86792-YY160 · 86792-YY170 · 86792-YY180 · 86792-YY190 |
| 86796 | Parking assist ECU cover | 86796-16020 |
| 86799D | CABLE, CAMERA TELEVISION, AVANT | 86799-0A070 |
