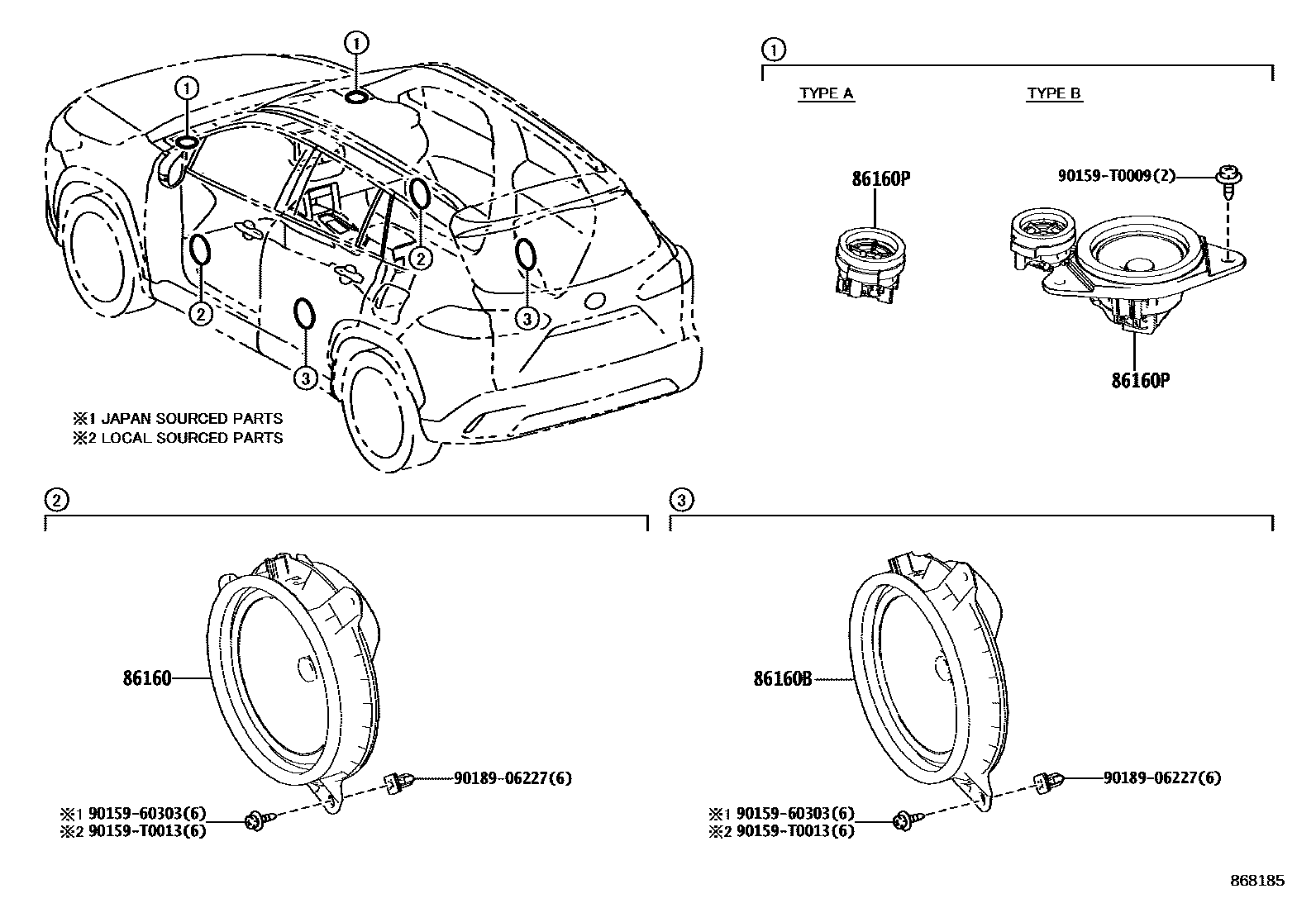

Toyota COROLLA 扬声器 — Figure 8602
Toyota COROLLA EPC diagram 8602, 扬声器, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86160 | No. 1 front speaker assembly | 86160-02D30 · 86160-02D31 · 86160-02D40 · 86160-02D41 · 86160-0K520 |
| 86160B | Rear speaker assembly | 86160-02D30 · 86160-02D31 · 86160-02D40 · 86160-02D41 · 86160-0K520 |
| 86160P | No. 2 front speaker assembly | 86150-02170 · 86160-02A80 · 86160-02A90 · 86160-0D420 · 86160-0K290 |
