Toyota COROLLA 后清洗器 — Figure 8504

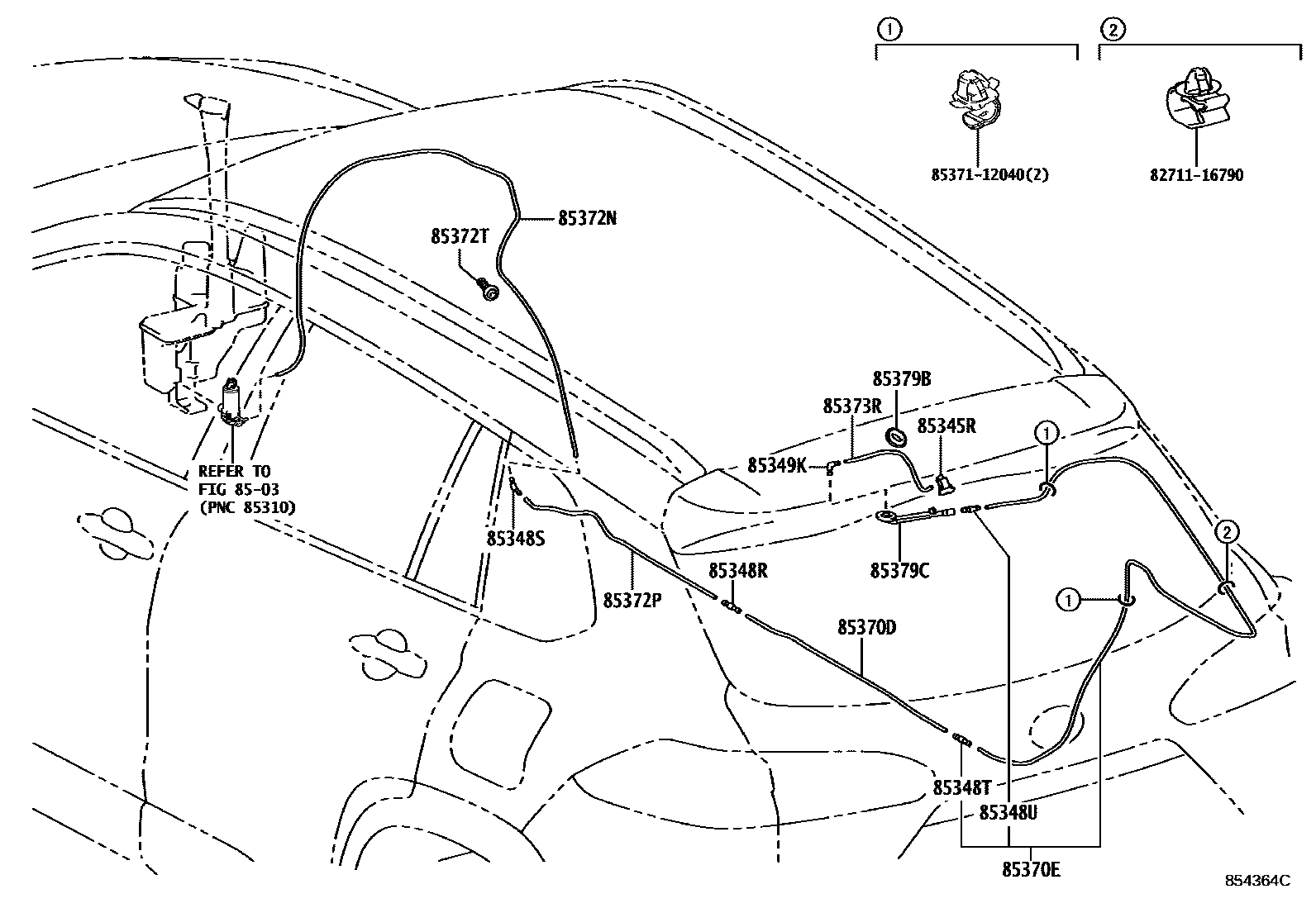

Toyota COROLLA EPC diagram 8504, 后清洗器, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85345R | Rear washer nozzle | 85391-0A010 |
| 85348R | No. 1 rear washer hose connector | 85349-89122 · 85375-02330 |
| 85348S | No. 1 rear cleaner elbow joint | 85355-20200 · 85377-0D040 |
| 85348T | No. 2 rear washer hose connector | 85375-02330 |
| 85348U | No. 3 rear washer hose connector | 85375-02330 |
| 85349K | No. 2 rear cleaner elbow joint | 85355-20200 · 85377-0D040 |
| 85370D | No. 1 rear washer hose assembly | 85370-0A170 · 85370-0A290 · 90068-33391 |
| 85370E | No. 2 rear washer hose assembly | 85370-0A160 |
| 85372N | No. 1 rear washer hose (from connector to connector) | 90099-62225 |
| 85372P | No. 2 rear washer hose (from connector to connector) | 90068-33409 |
| 85372T | Cleaner seal | 85379-12850 |
| 85373R | Rear washer hose (from connector to nozzle) | 90068-33355 |
| 85379B | Cleaner seal A | 85372-20020 |
| 85379C | No. 1 rear washer hose seal | 85372-20040 |
