Toyota COROLLA 挡风玻璃清洗器 — Figure 8503

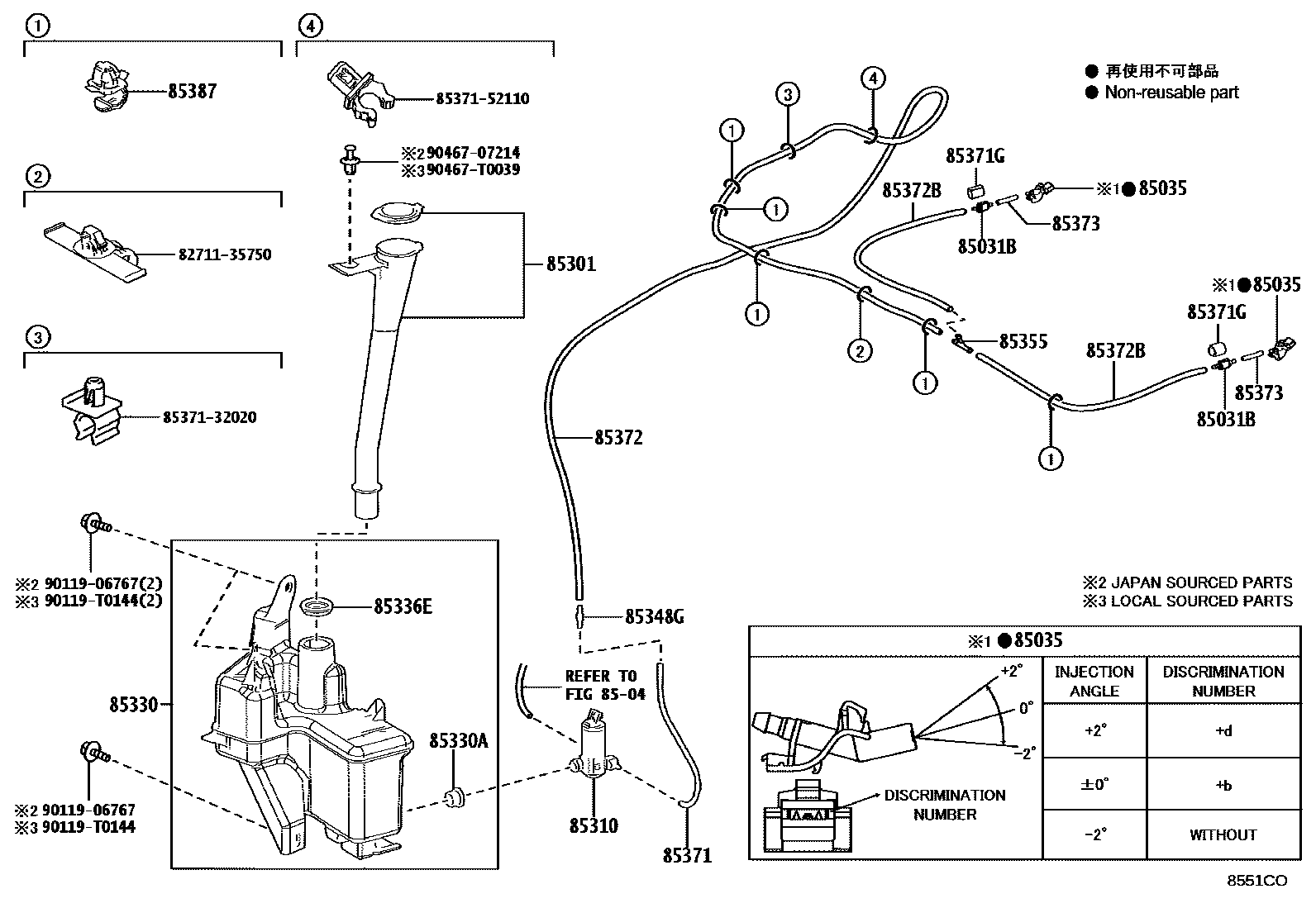

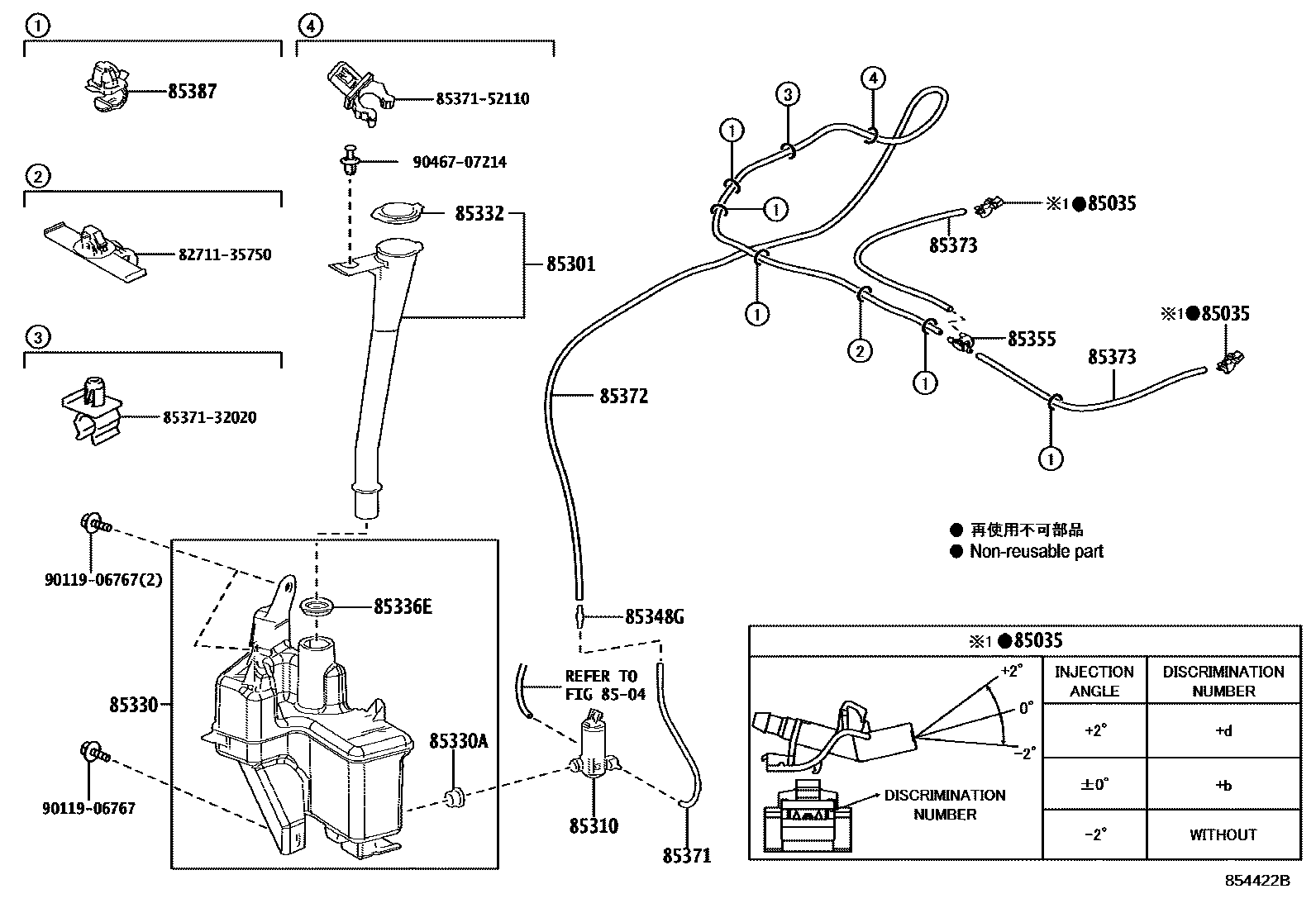

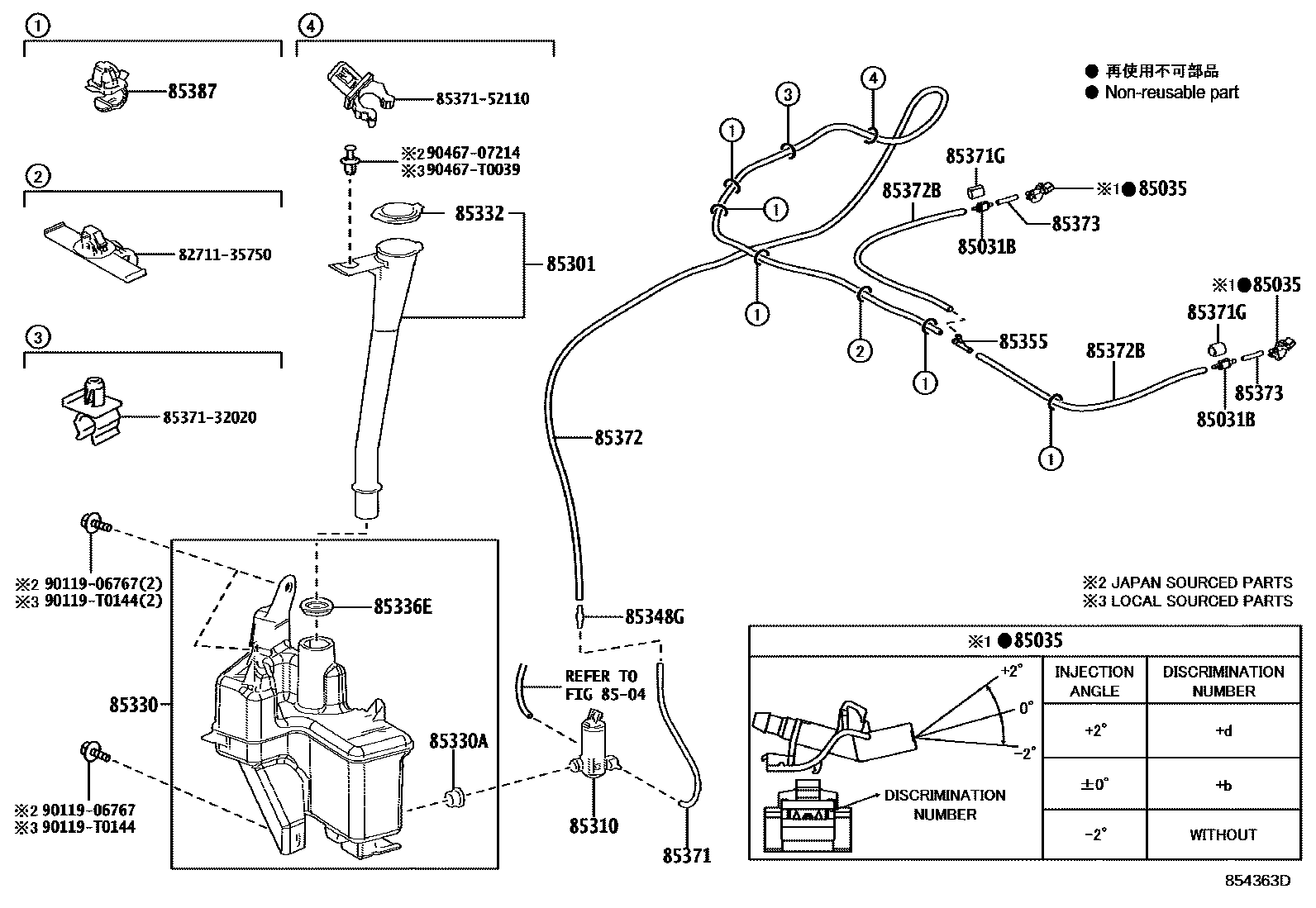

Toyota COROLLA EPC diagram 8503, 挡风玻璃清洗器, with 3 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85031B | Cleaner valve sub-assembly | 85321-26020 |
| 85035 | Cleaner nozzle sub-assembly | 85381-30220 · 85381-30230 · 85381-30240 |
| 85301 | Cleaner water inlet sub-assembly | 85301-0A020 · 85301-0A040 · 85301-0A100 |
| 85310 | Windshield washer motor and pump assembly | 85330-0A030 · 85330-0A040 |
| 85330 | Windshield washer fluid tank assembly | 85315-0A040 · 85315-0A050 · 85315-0A060 · 85315-0A130 |
| 85330A | Windshield washer fluid tank bushing | 90099-32089 |
| 85332 | Windshield washer fluid tank cap | 85316-0A020 · 85386-0A020 |
| 85336E | Windshield washer water inlet hose seal | 85336-30160 |
| 85348G | Windshield washer hose connector No. 2 | 85375-02330 |
| 85355 | Windshield washer hose valve | 85321-0A010 · 85321-28020 · 85348-14390 |
| 85371 | Windshield washer hose (from motor to connector) | 90068-33020 · 90068-33389 |
| 85371G | Front washer protection device | 85389-26080 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 90068-33393 |
| 85372B | Windshield washer hose No. 2 (from connector to connector) | 90068-33360 |
| 85373 | Windshield washer hose (from connector to nozzle) | 90068-33019 · 90068-33258 |
| 85387 | Clip No. 1 (for windshield washer) | 85371-12040 |
