Toyota COROLLA 挡风玻璃刮水器 — Figure 8501

Toyota COROLLA EPC diagram 8501, 挡风玻璃刮水器, with 2 images and 13 PNC and OE references.

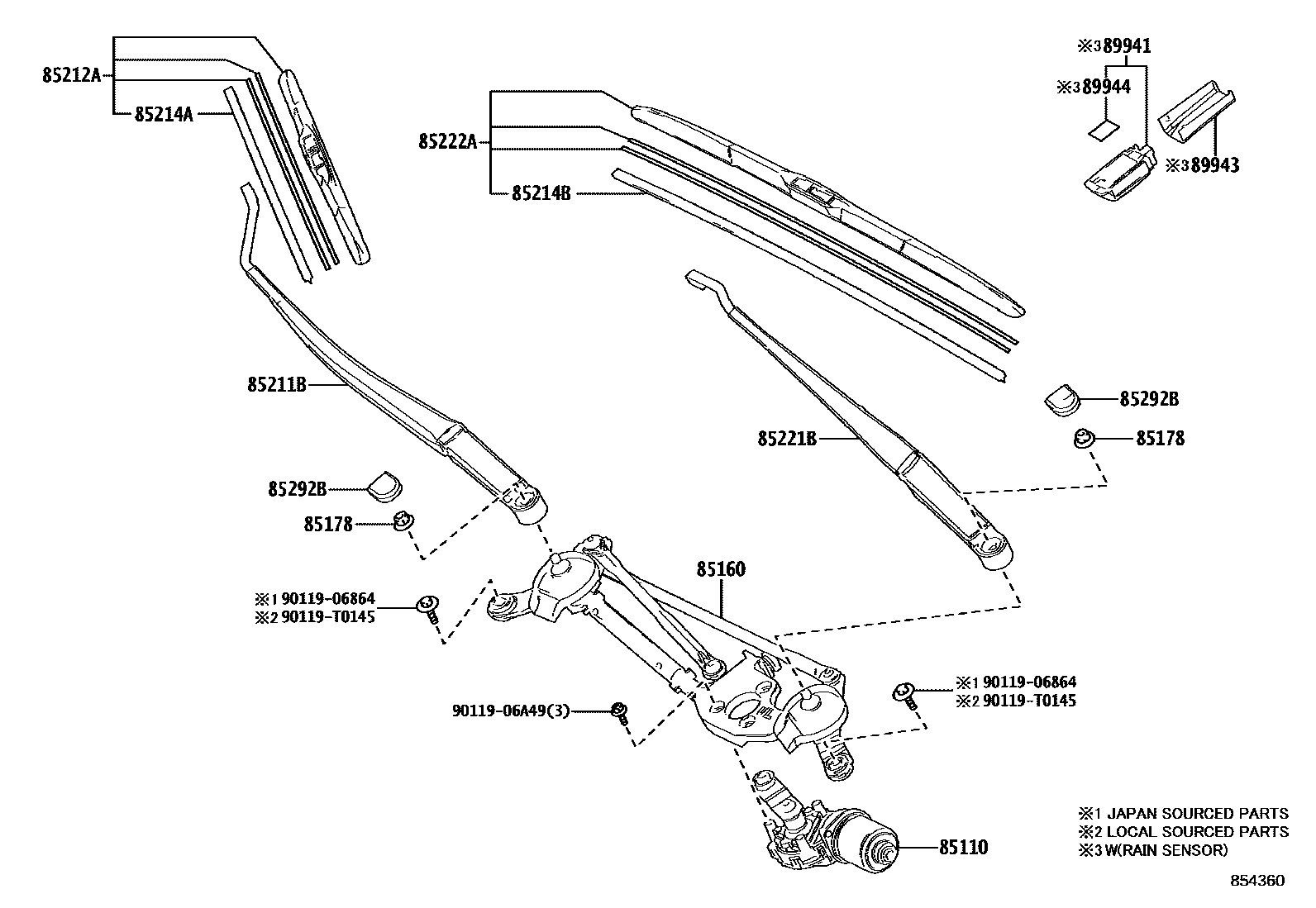

Toyota COROLLA 挡风玻璃刮水器 EPC diagram — 854360
挡风玻璃刮水器 — 854360 (202007 – 999999)

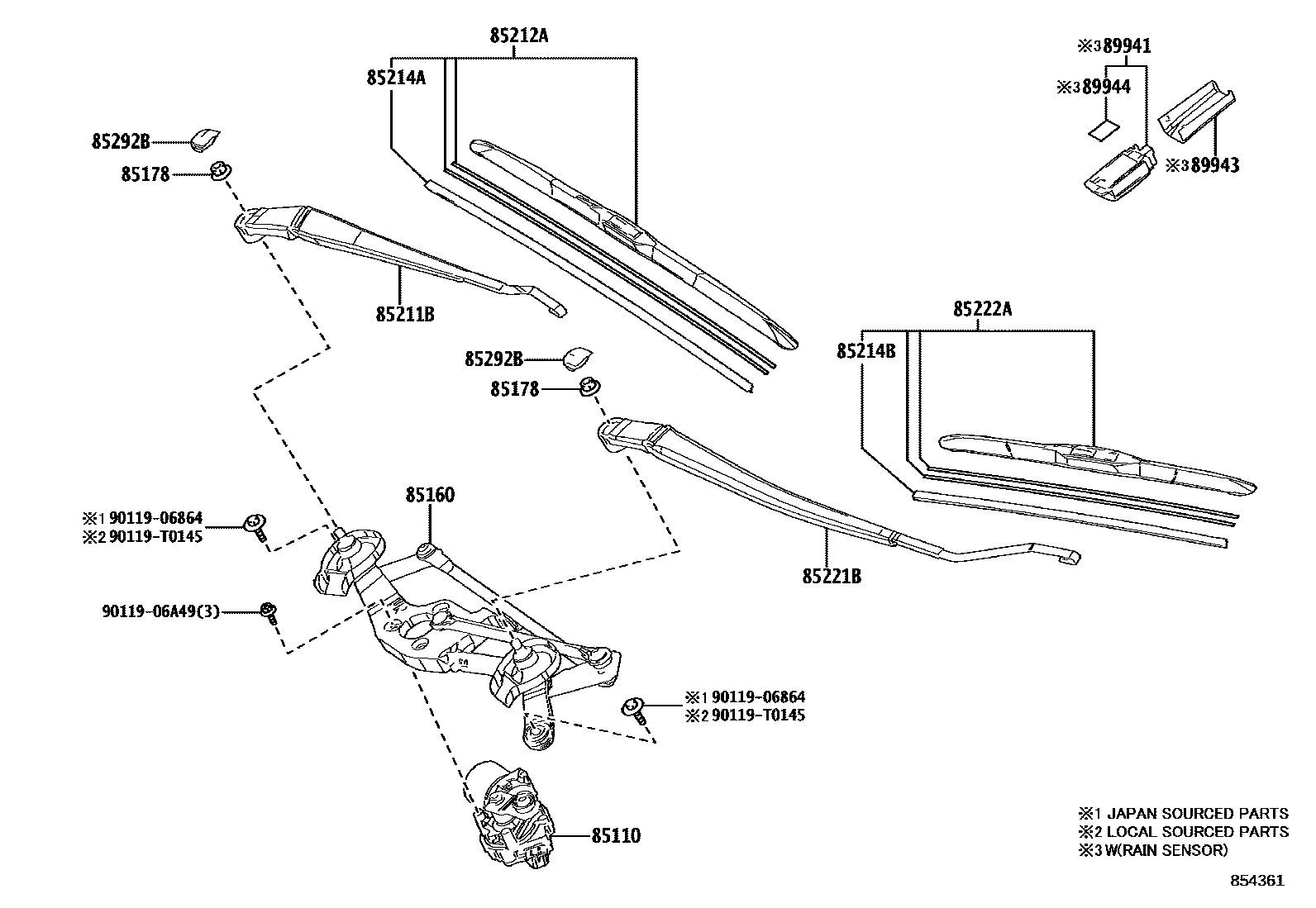

Toyota COROLLA 挡风玻璃刮水器 EPC diagram — 854361
挡风玻璃刮水器 — 854361 (202007 – 999999)

PNC and OE references

PNCPart nameOE numbers
85110Windshield wiper motor assembly85110-0A020 · 85110-0A030 · 85110-0A080
85160Windshield wiper connecting rod assembly85150-0A020 · 85150-0A030 · 85150-0A080 · 85150-0A090 · 85150-0A100
85178Nut (for securing front wiper arm)90182-10006 · 90182-T0029
85211BRight front wiper arm85211-0A020 · 85211-0A030
85212ARight front wiper blade85212-0A090 · 85212-30470 · 85212-76020
85214ARight wiper rubber strip85214-0A180 · 85214-28090 · 85214-52110
85214BLeft wiper rubber strip85214-0A190 · 85214-28090 · 85214-52110
85221BLeft front wiper arm85221-0A020 · 85221-0A030 · 85221-0A100
85222ALeft front wiper blade85222-0A090 · 85222-30650 · 85222-76030
85292BFront wiper arm cap85292-0D030
89941rain sensor89941-30040
89943Rain sensor cover89943-12040
89944Rain sensor tape89944-42020
