Toyota COROLLA HEV 控制ECU — Figure 8433

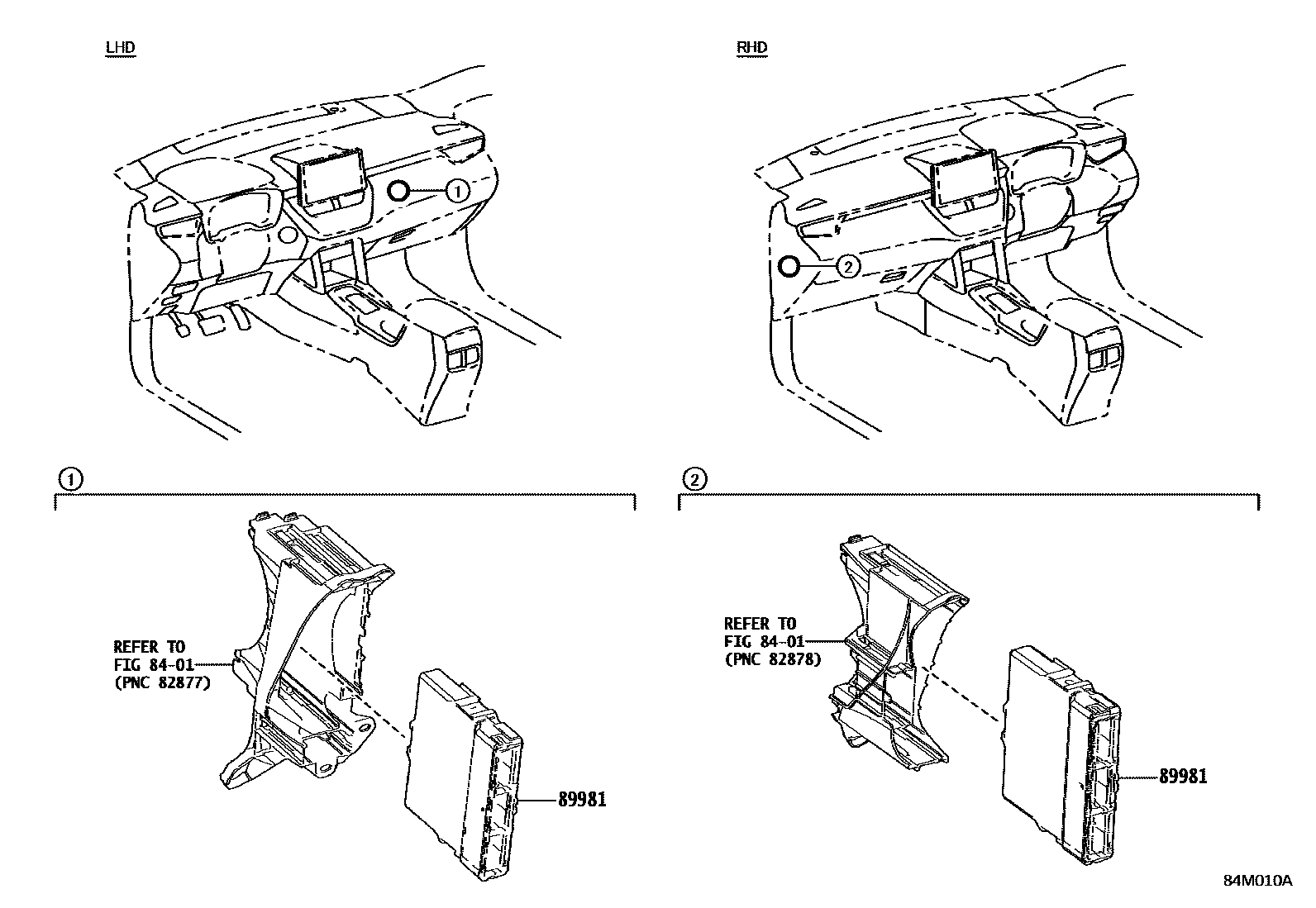

Toyota COROLLA EPC diagram 8433, HEV 控制ECU, with 1 images and 1 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89981 | Hybrid vehicle control ECU | 89981-16010 · 89981-16020 · 89981-16030 · 89981-16060 · 89981-16070 · 89981-16130 · 89981-16140 · 89981-16150 · 89981-16190 · 89981-16250 |
