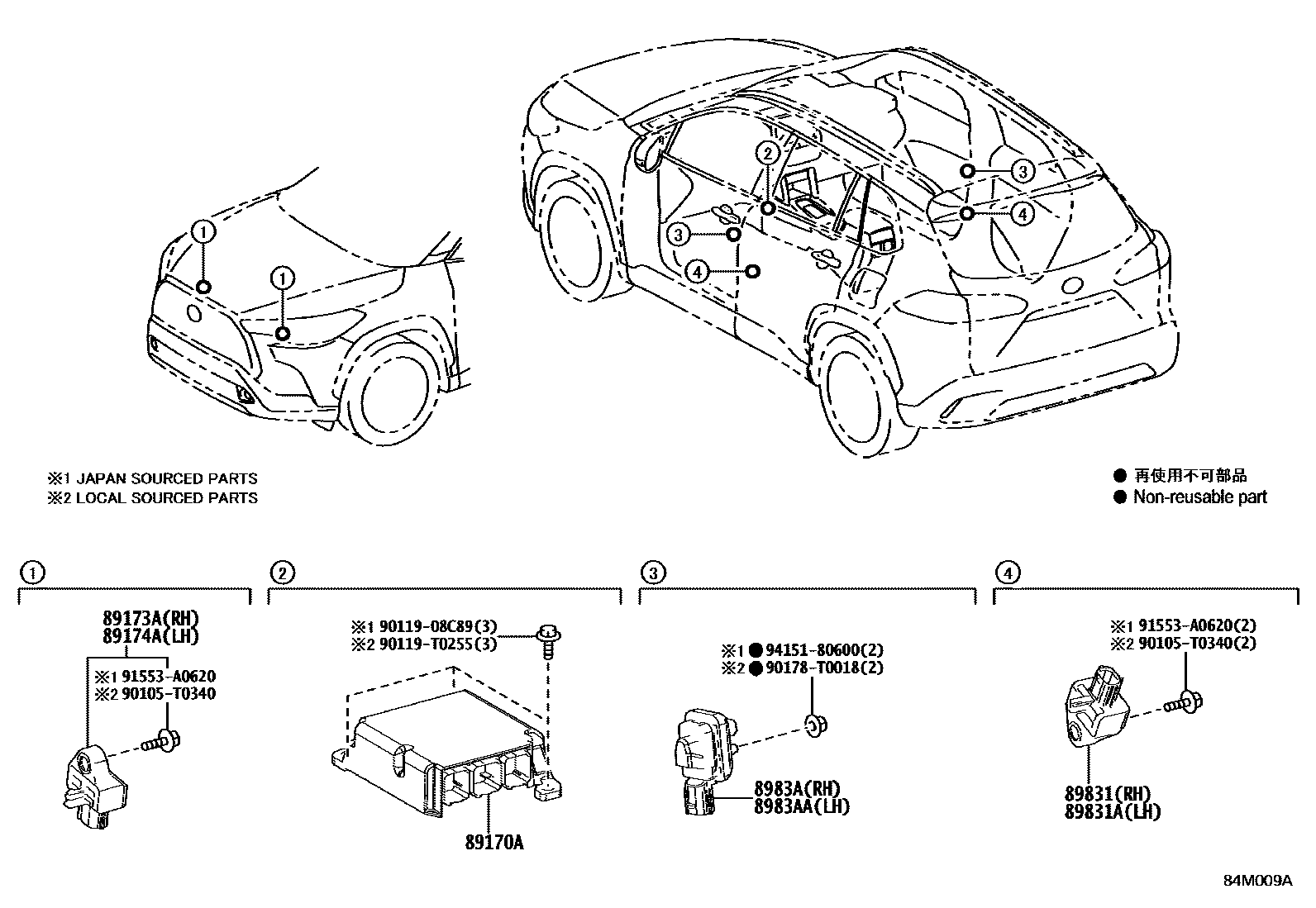

Toyota COROLLA 空气囊 — Figure 8421
Toyota COROLLA EPC diagram 8421, 空气囊, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89170A | Air bag ECU assembly | 89170-0A020 · 89170-0A030 · 89170-0A040 · 89170-0A050 · 89170-0A060 · 89170-0A070 · 89170-0A080 · 89170-0A081 · 89170-0A090 · 89170-0A091 · 89170-0A150 · 89170-0A160 |
| 89173A | Right front air bag sensor | 89173-09D00 · 89173-49495 |
| 89174A | Left front air bag sensor | 89173-09D00 · 89173-49495 |
| 89831 | Right side air bag sensor No. 1 | 89831-06190 · 89831-47050 |
| 89831A | Left No. 1 side airbag sensor | 89831-06190 · 89831-47050 |
| 8983A | Side airbag right pressure sensor | 8983A-33010 · 8983A-33011 |
| 8983AA | Side airbag left pressure sensor | 8983A-33010 · 8983A-33011 |
