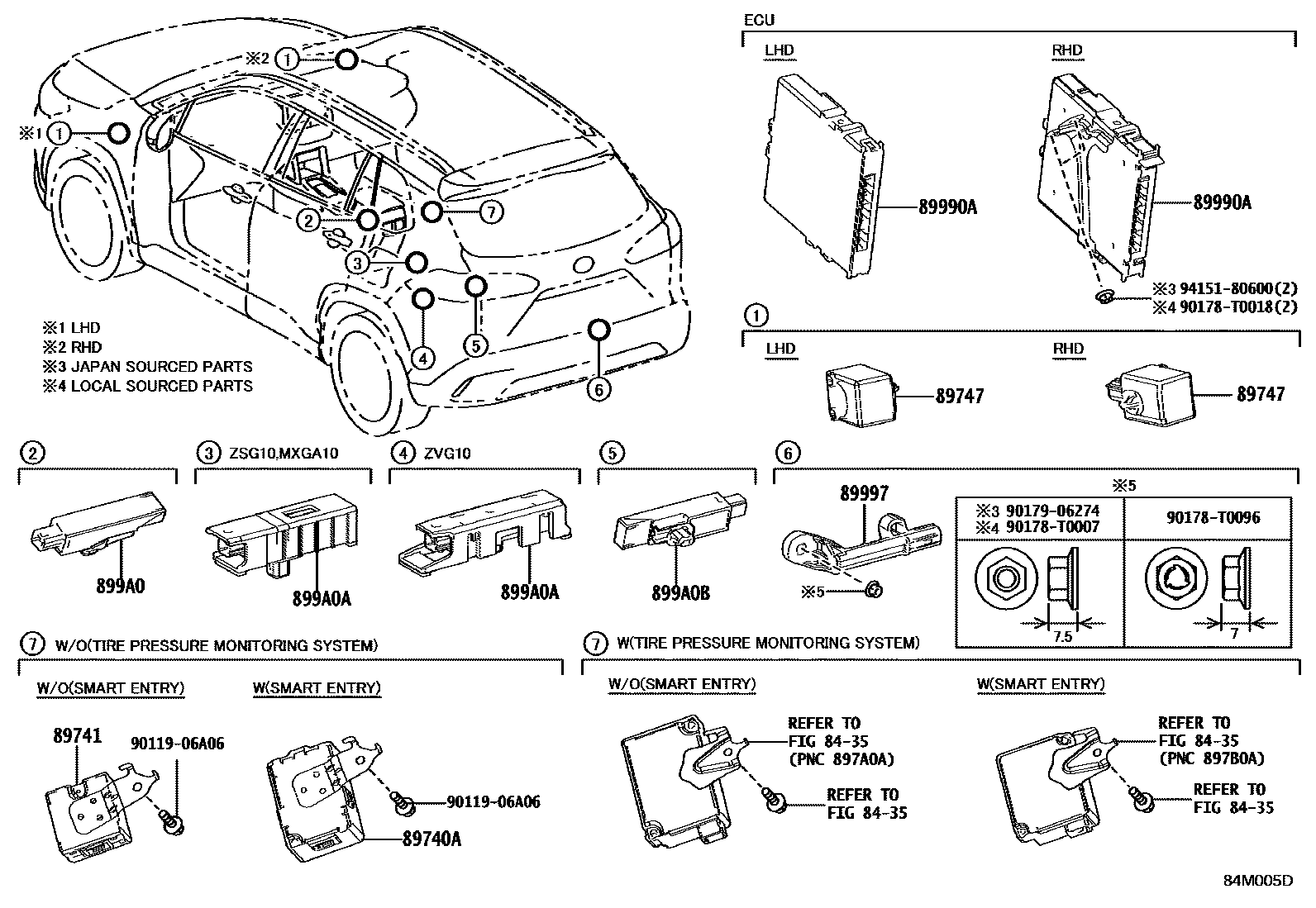

Toyota COROLLA 遥控门锁 — Figure 8420
Toyota COROLLA EPC diagram 8420, 遥控门锁, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89740A | Smart door control receiver assembly | 89740-0A010 · 89740-16010 |
| 89741 | door control receiver | 89741-0A010 · 89741-0A011 |
| 89747 | Remote door lock buzzer | 89747-30040 |
| 89990A | Smart key ECU assembly | 899H0-16010 · 899H0-16011 · 899H0-16020 · 899H0-16021 · 899H0-16030 · 899H0-16040 · 899H0-16050 · 899H0-16051 · 899H0-16060 · 899H0-16061 · 899H0-16062 · 899H0-16063 · 899H0-16090 · 899H0-16100 · 899H0-16280 · 899H0-16290 · 899H0-16300 |
| 89997 | electronic key antenna | 89997-30100 |
| 899A0 | No. 1 electronic key antenna assembly in car | 899A0-02220 · 899A0-02260 |
| 899A0A | Electronic key antenna assembly in car No. 2 | 899A0-02230 · 899A0-02240 · 899A0-02270 · 899A0-02290 |
| 899A0B | Electronic key antenna assembly in car No. 3 | 899A0-02410 · 899A0-0A010 |
