Toyota COROLLA 测距雷达和倒车雷达 — Figure 8417

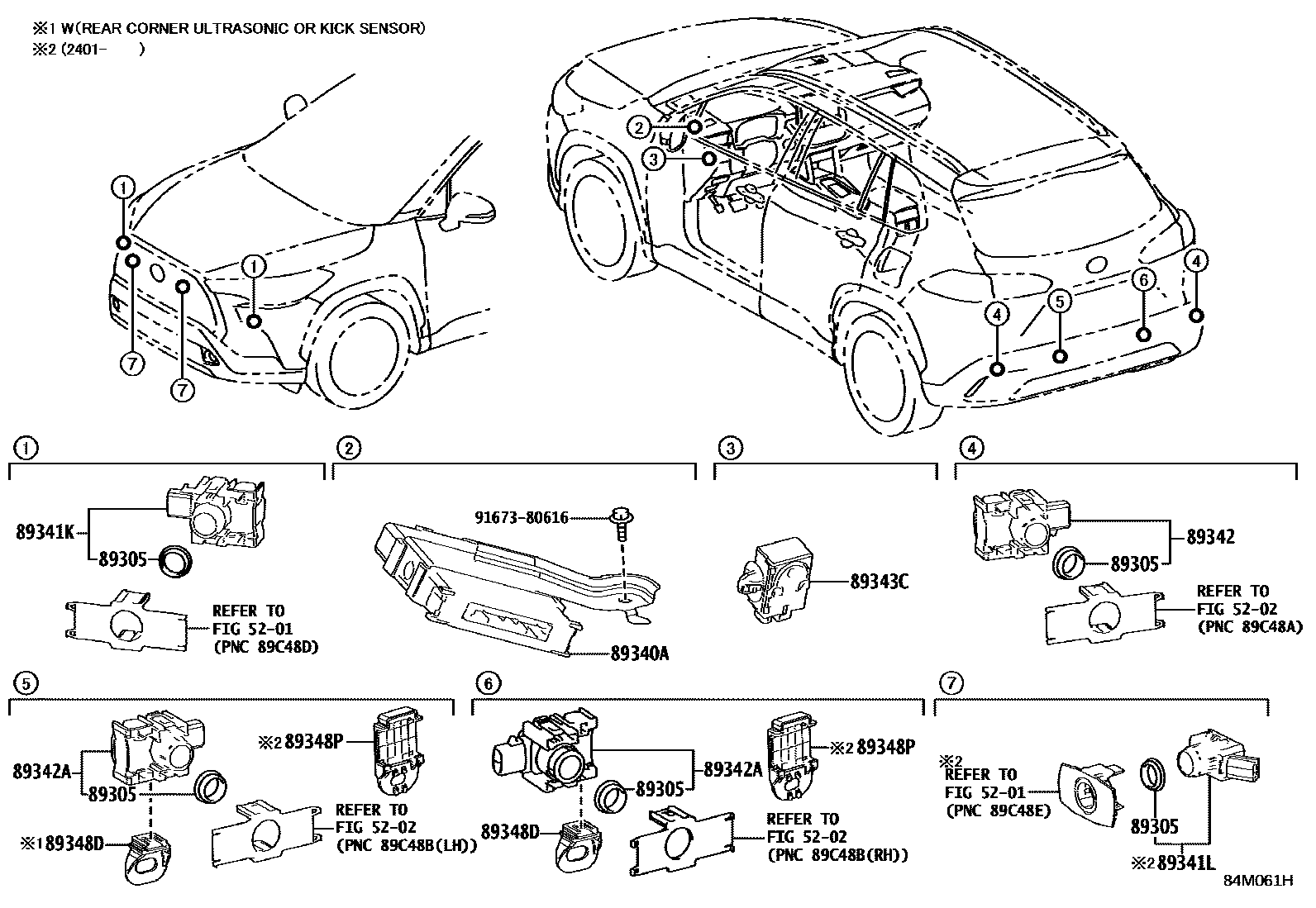

Toyota COROLLA EPC diagram 8417, 测距雷达和倒车雷达, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89305 | Ultrasonic sensor pad assembly | 89305-52010 |
| 89340A | Distance warning ECU assembly | 89340-02180 · 89340-02190 · 89340-02200 · 89340-02210 · 89340-02240 · 89340-02360 · 89340-16140 · 89340-16150 · 89340-16160 · 89340-16170 |
| 89342 | Back corner ultrasonic sensor | 89341-0A020 |
| 89342A | Rear center ultrasonic sensor | 89341-0A020 · 89341-0A030 |
| 89343C | No. 1 distance warning buzzer | 89343-48010 |
| 89348D | Ultrasonic sensor clip | 89348-35030 |
| 89348P | Ultrasonic sensor clip No. 2 | 89348-58130 |
