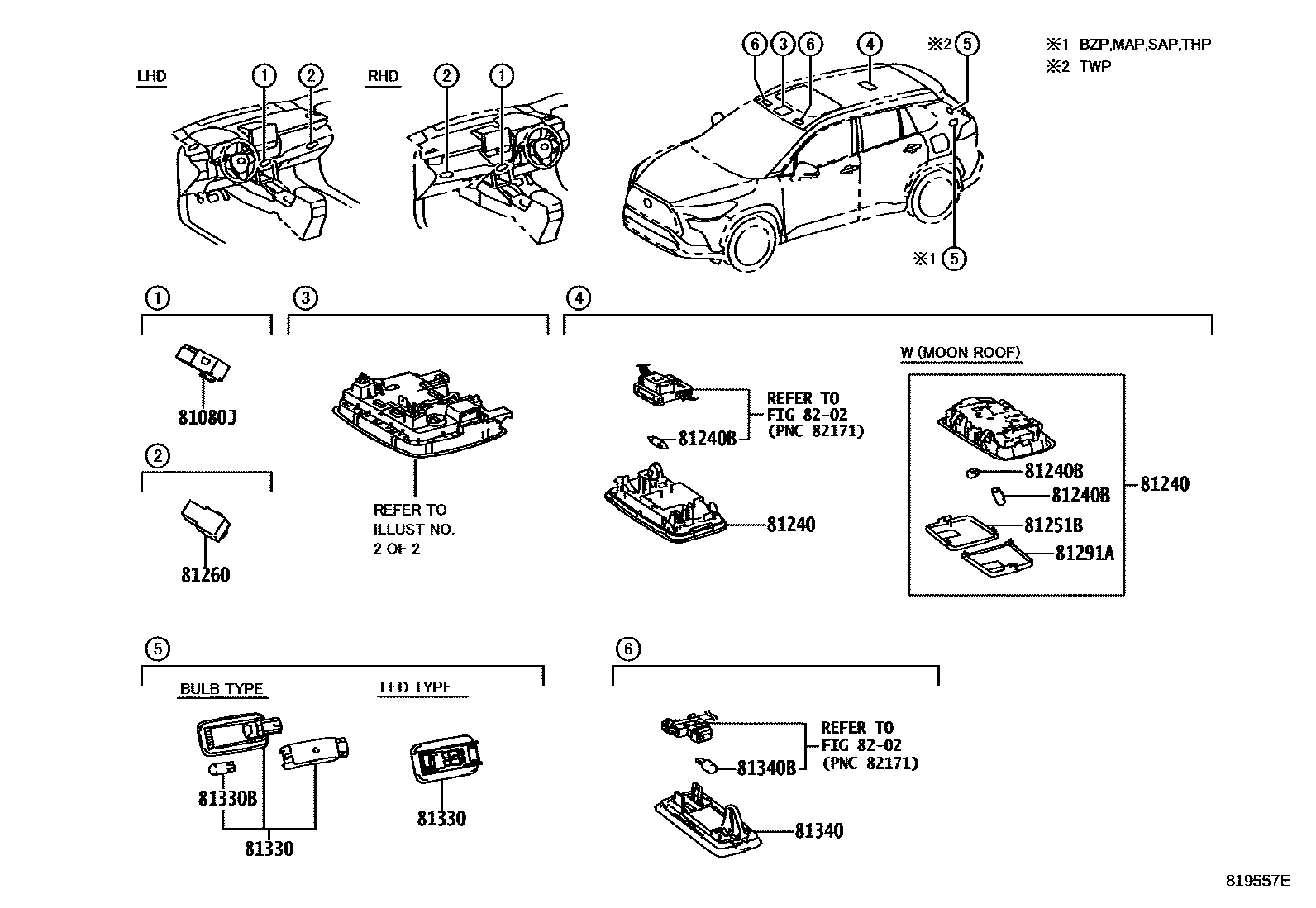

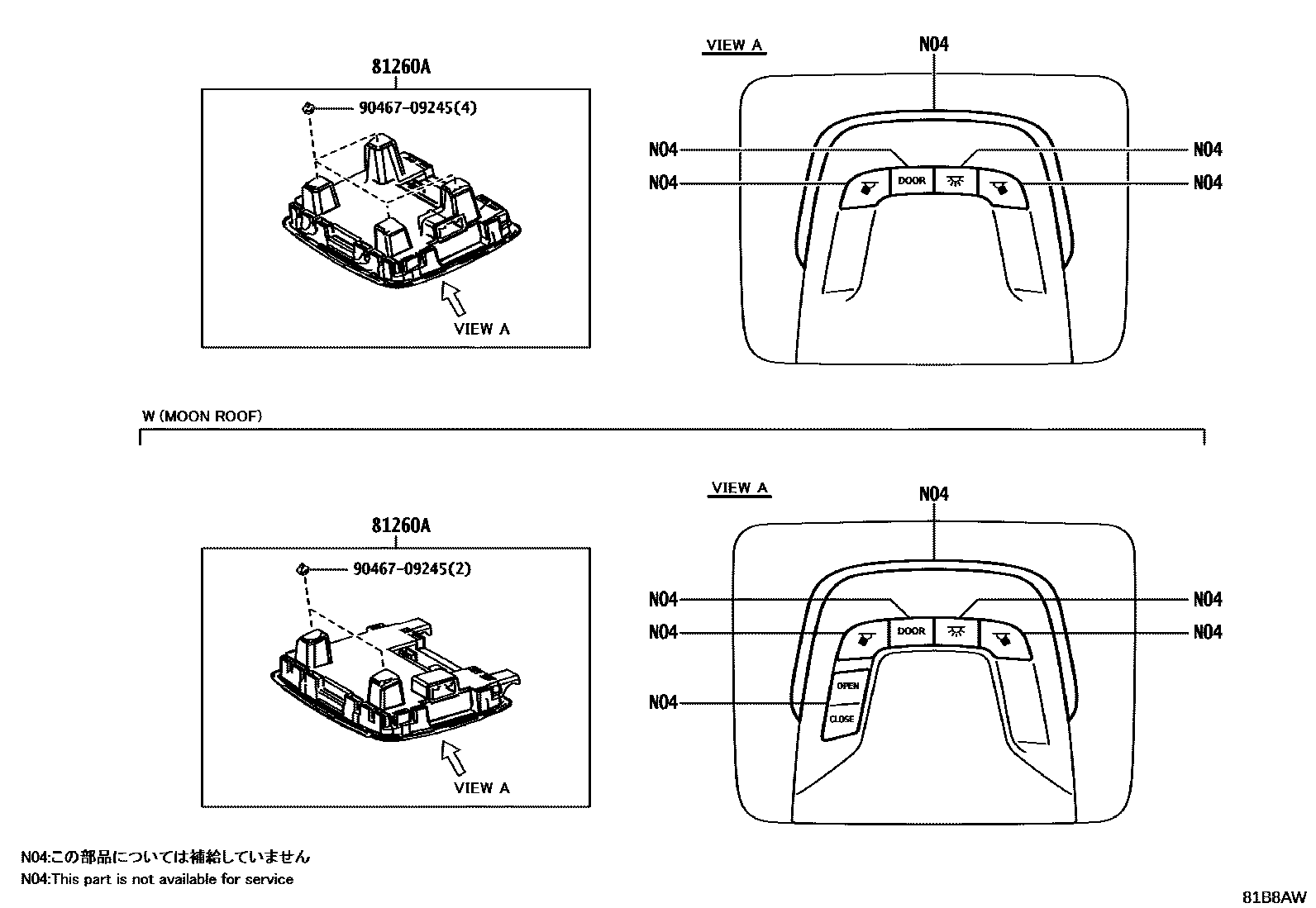

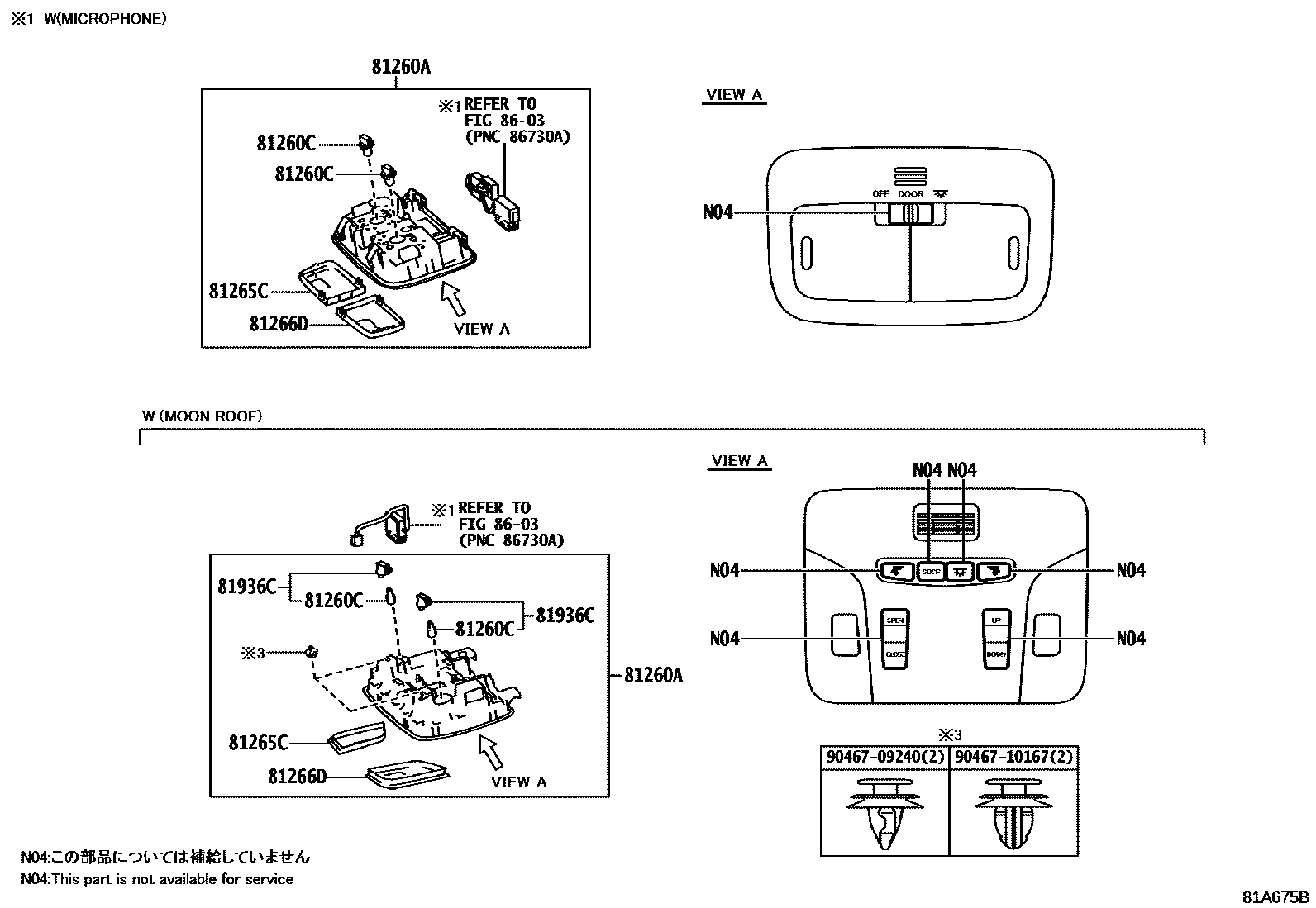

Toyota COROLLA 车内灯 — Figure 8121
Toyota COROLLA EPC diagram 8121, 车内灯, with 3 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81080J | No. 1 interior lighting assembly | 81080-33280 · 81080-42040 |
| 81240B | Interior light bulb No. 1 | 90981-11062 · 90981-14011 |
| 81251B | Right rear interior light cover | 81251-05030 |
| 81260 | Glove box light assembly | 81080-33290 |
| 81260C | Light bulb (for reading lamp) | 90981-11062 · 90981-11067 · 99132-12050 |
| 81265C | No. 1 reading lamp shade | 81265-12380 · 81265-52020 · 81265-8C000 |
| 81266D | Reading lamp shade No. 2 | 81266-12380 · 81266-52020 · 81266-8C000 |
| 81291A | Left rear interior light cover | 81291-05030 |
| 81330 | No. 1 trunk light assembly | 81250-30210 · 81330-0D090 · 81330-11010 |
| 81330B | trunk light bulb | 90981-11069 · 99132-12050 |
| 81340 | Vanity light assembly | 81340-0K030 · 81340-30110 · 81340-33170 |
| 81340B | Bulb (for vanity lights) | 90981-11062 |
| 81936C | Bulb assembly | 81936-12160 |
