Toyota COROLLA Headlamp — Figure 8101

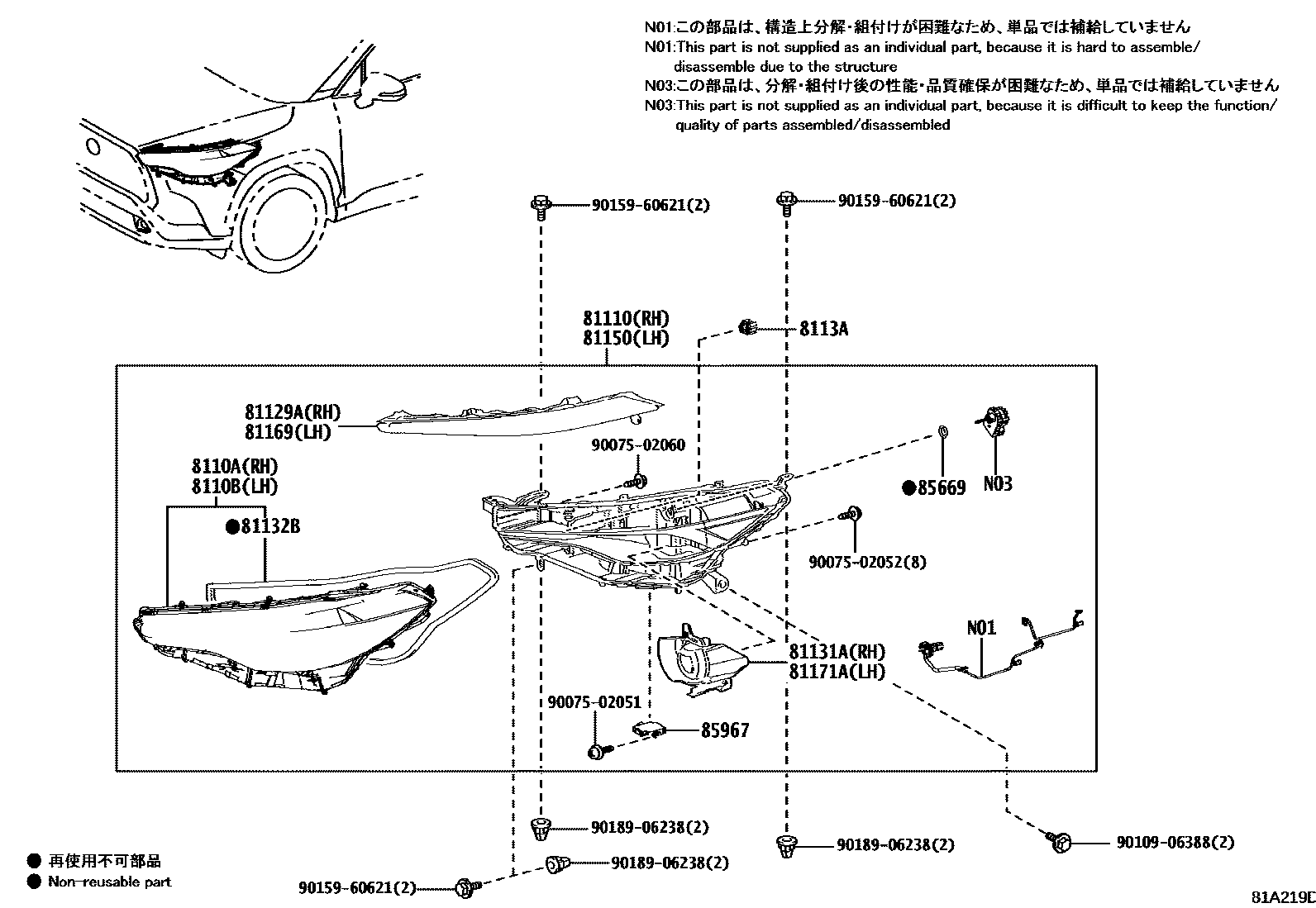

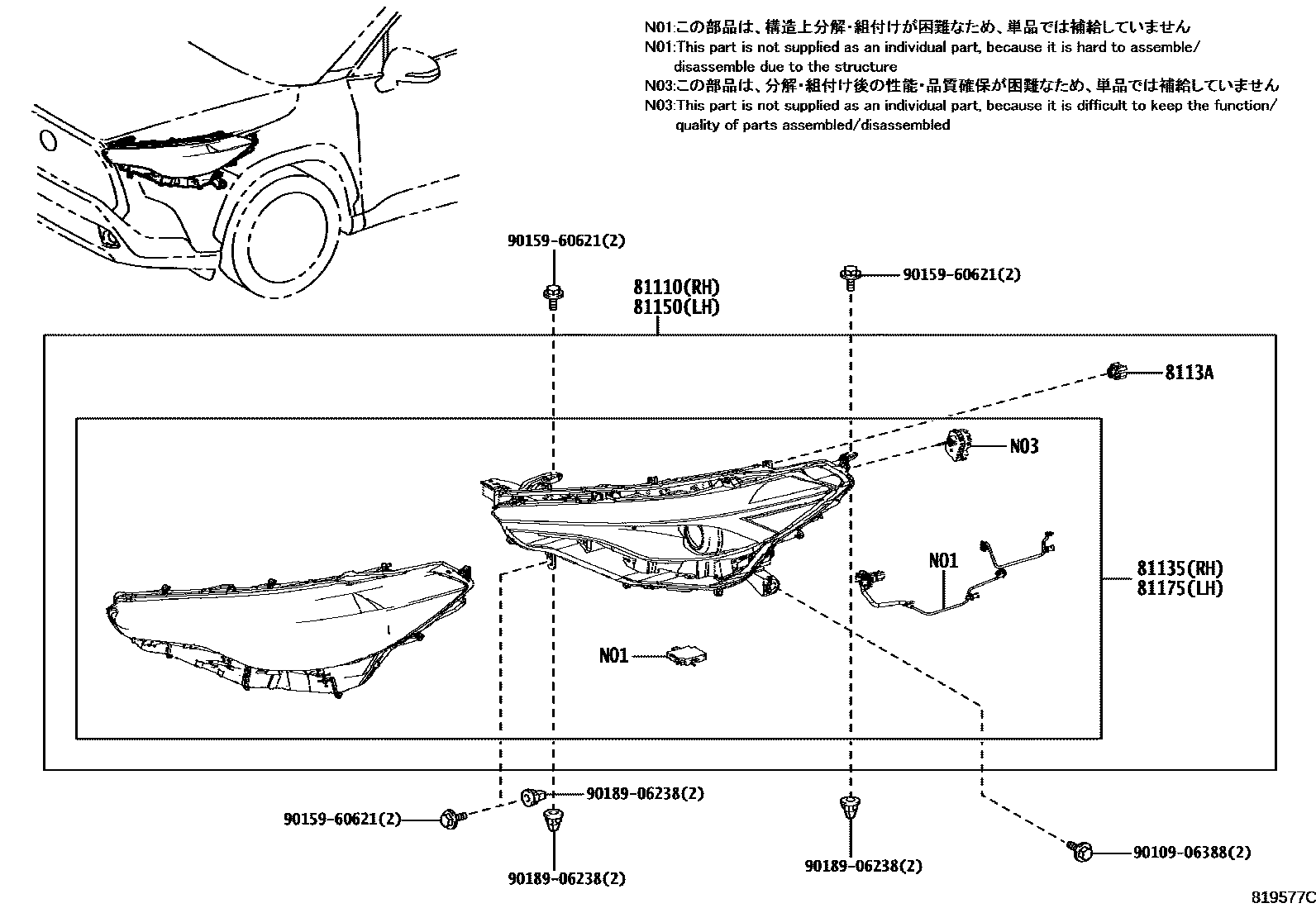

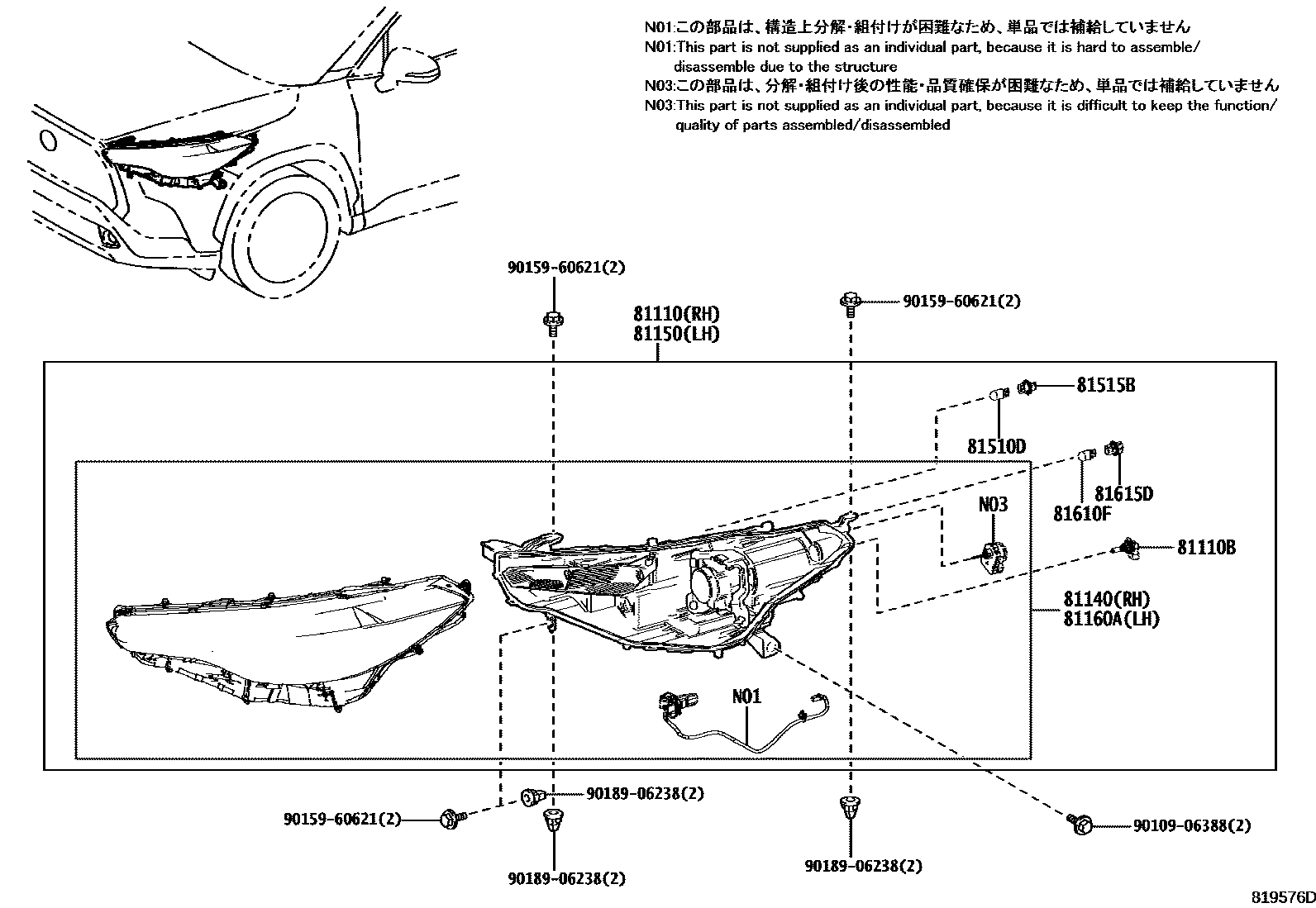

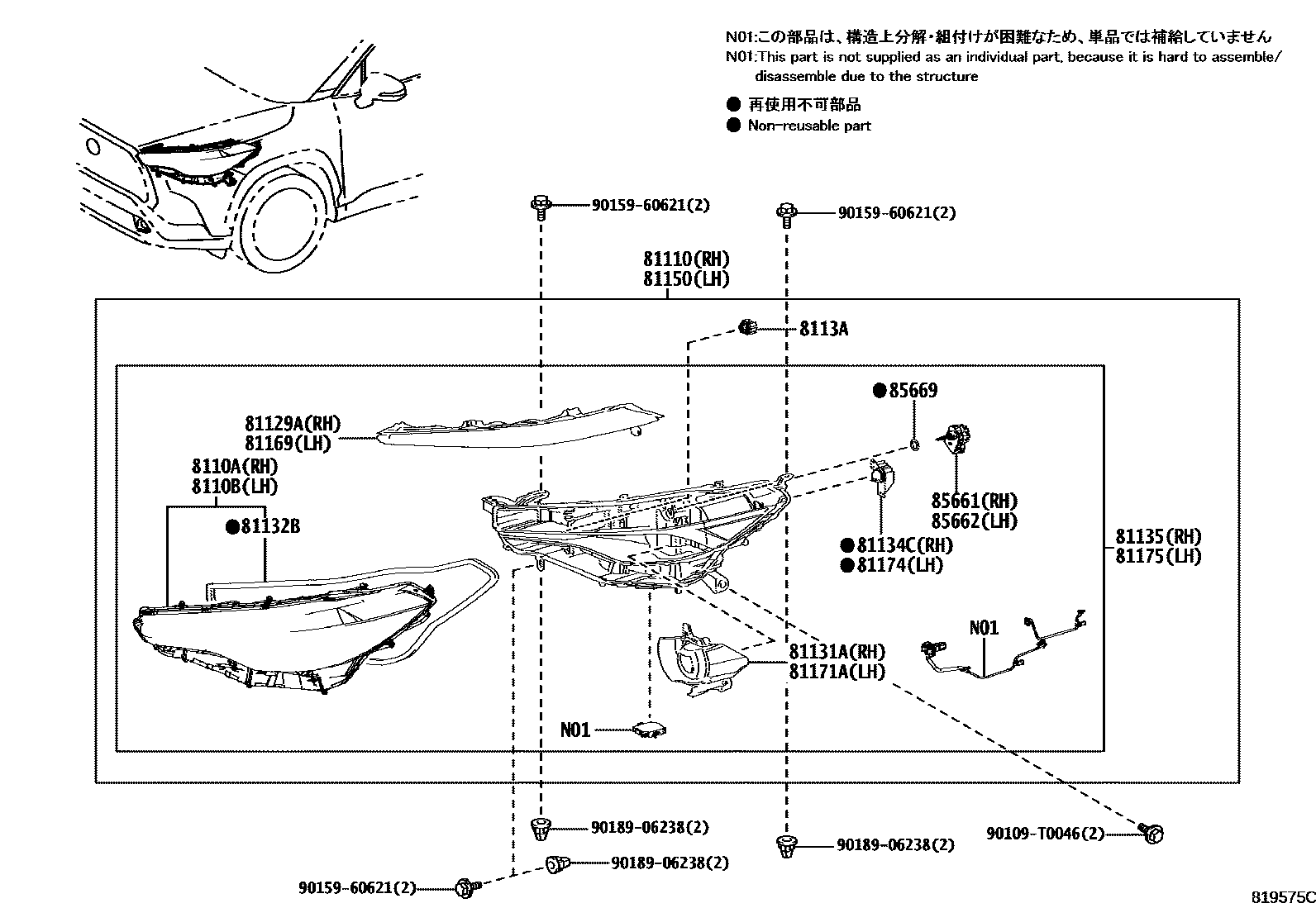

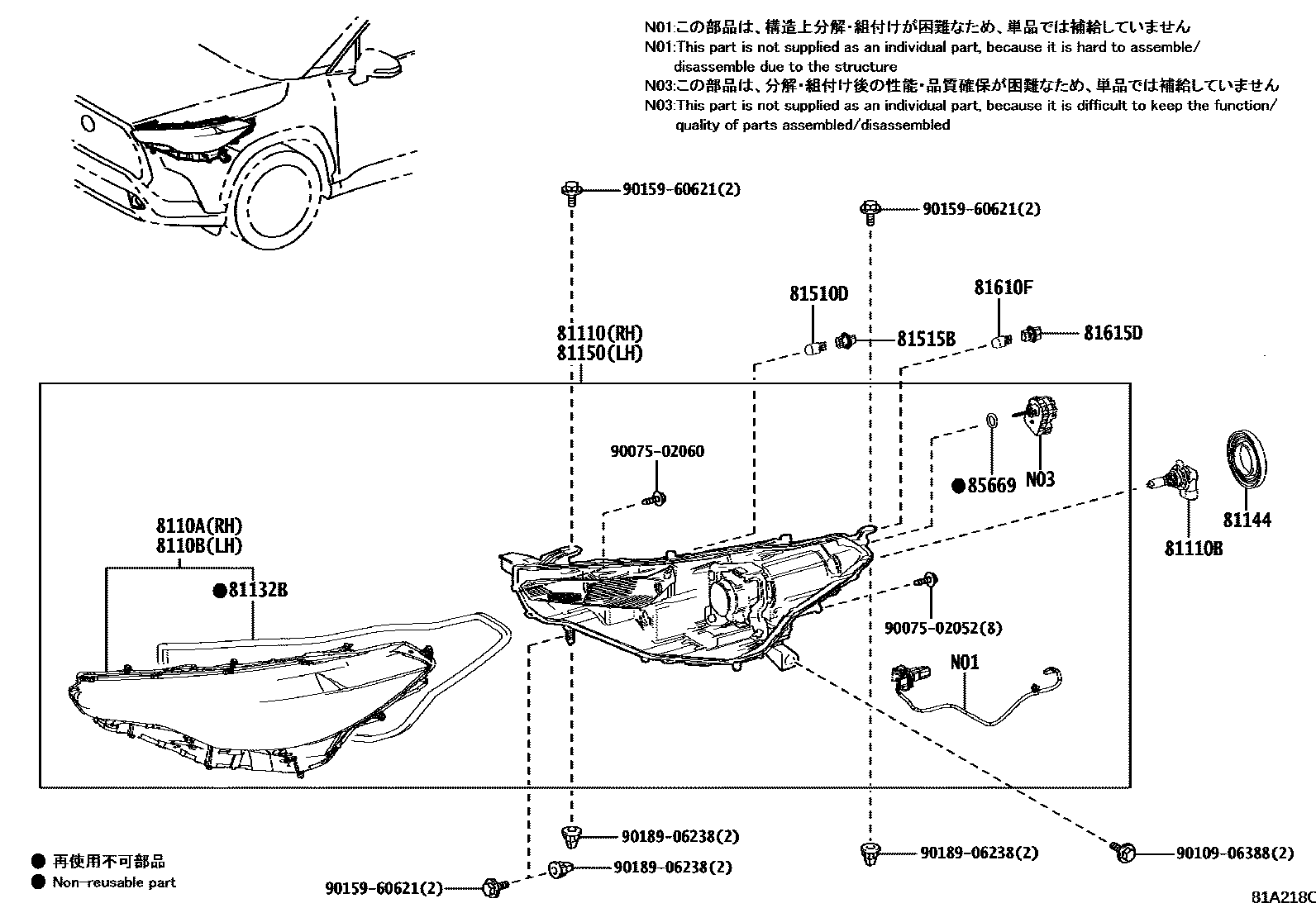

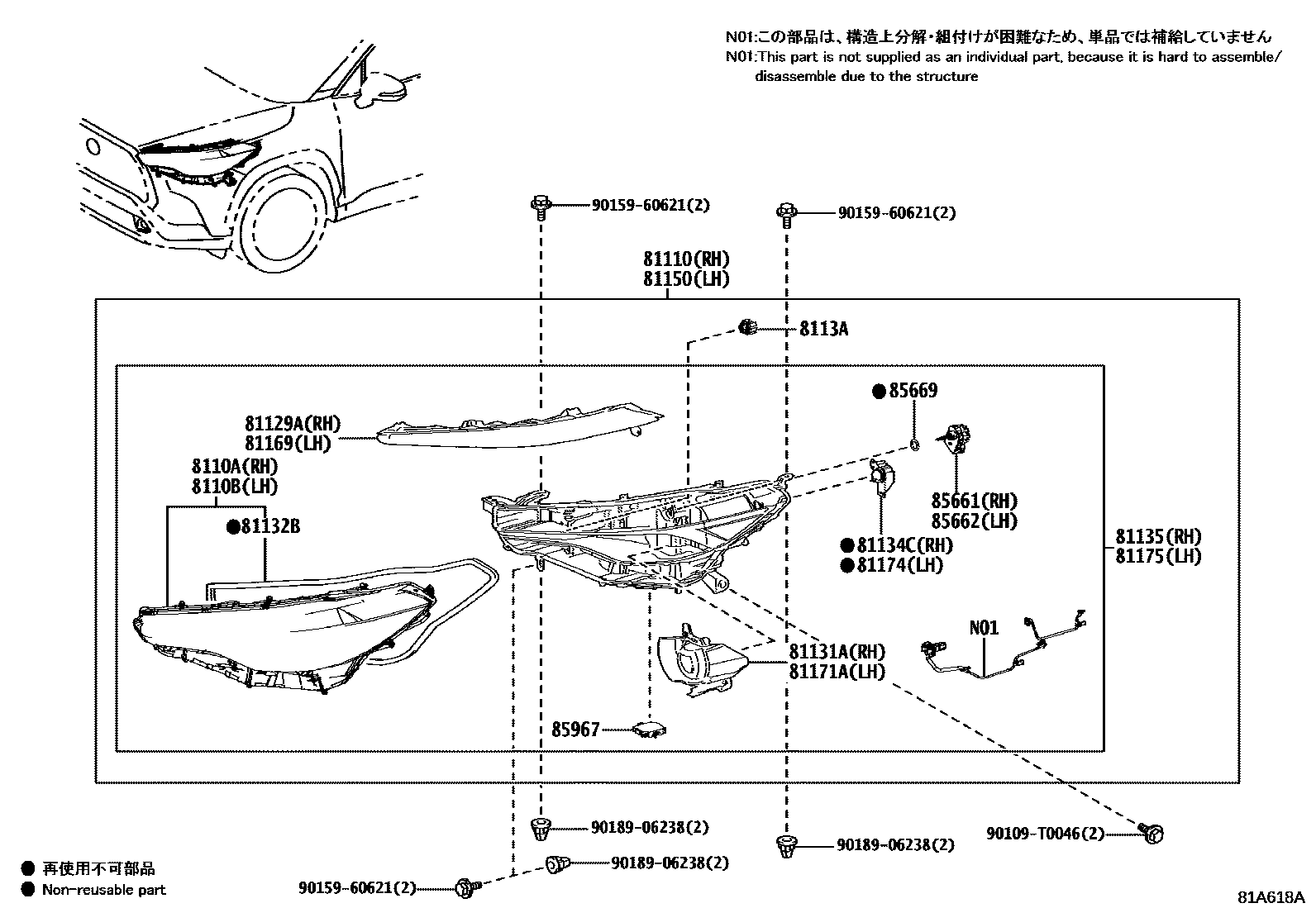

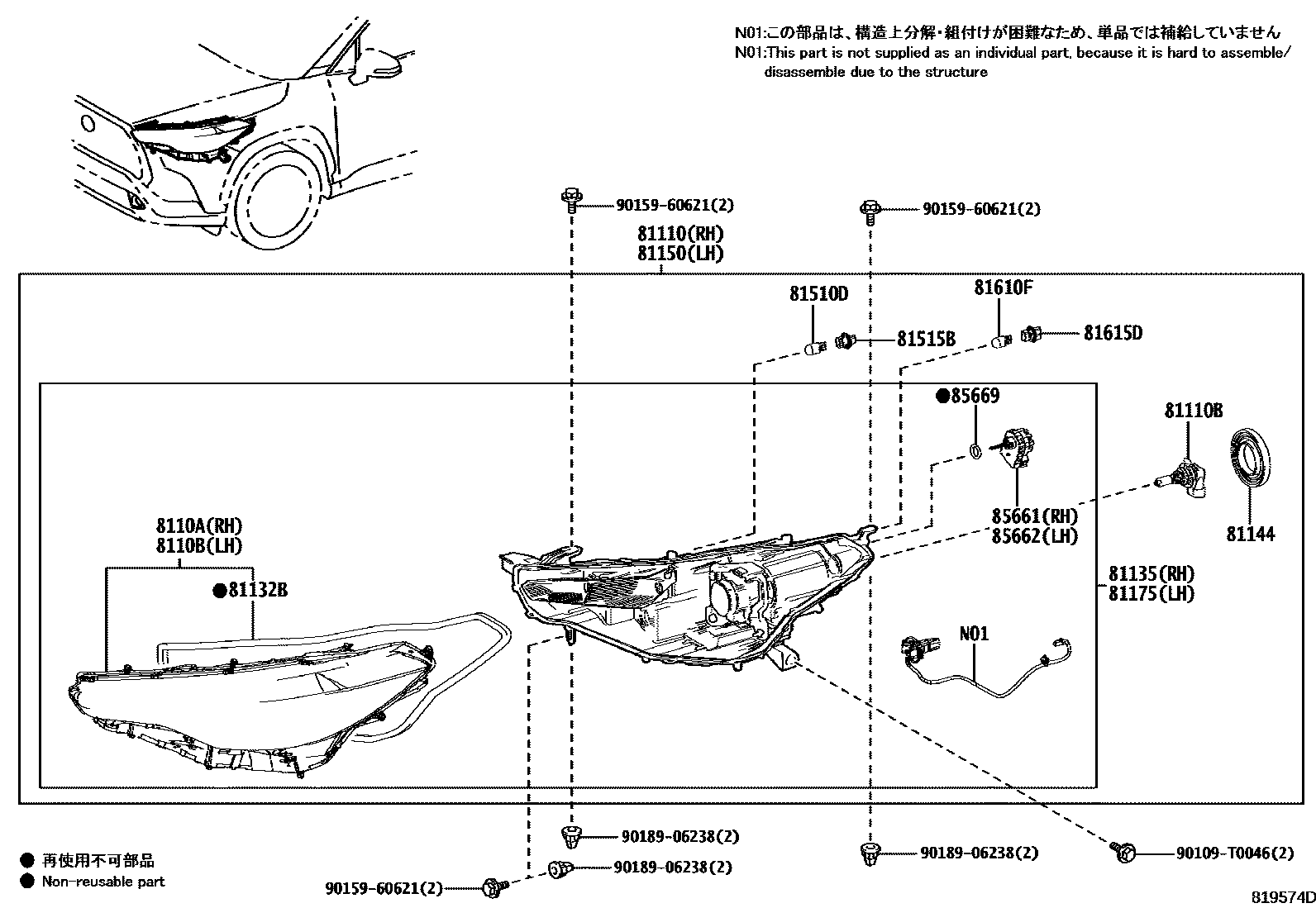

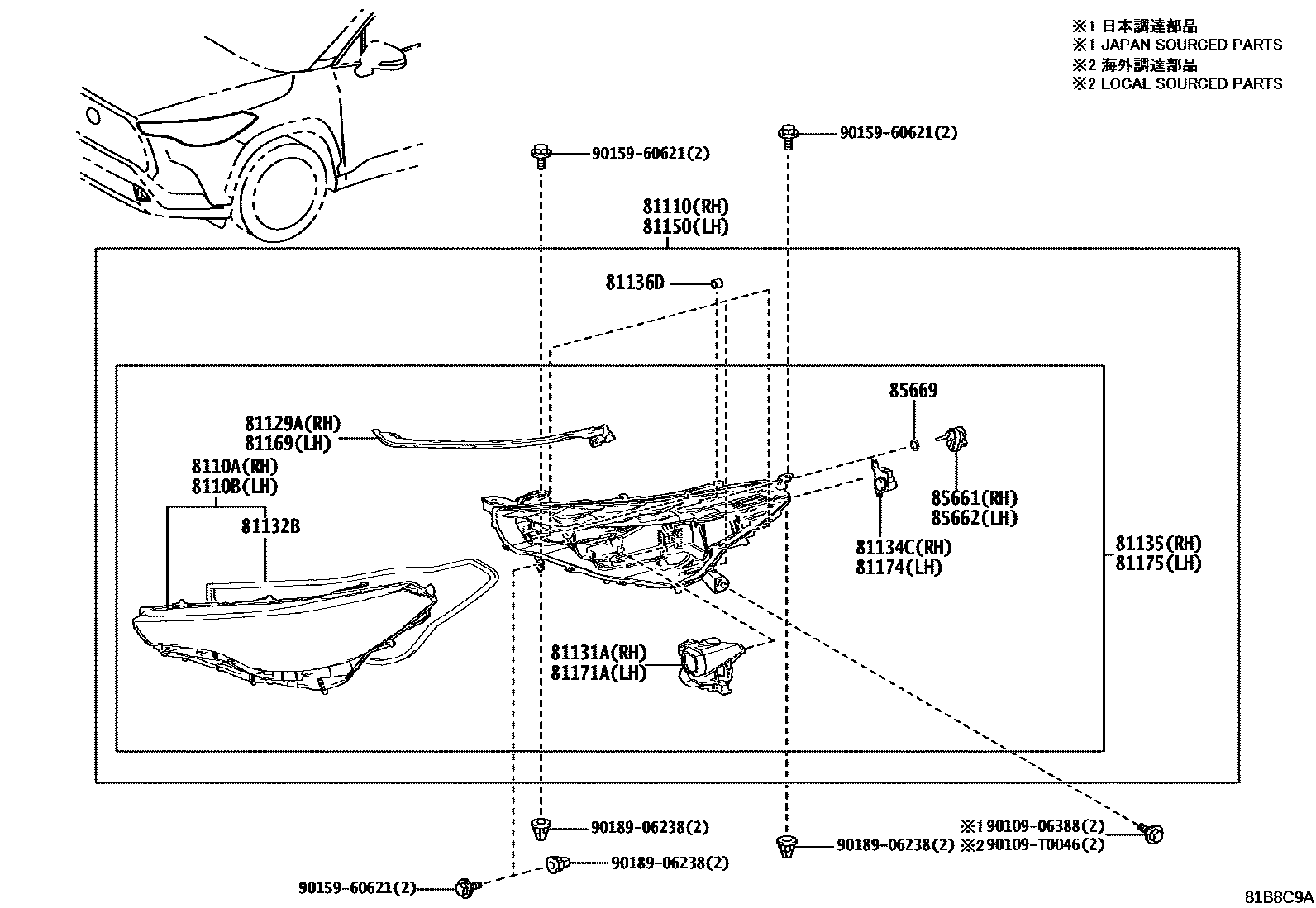

Toyota COROLLA EPC diagram 8101, Headlamp, with 8 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 8110A | Right headlight cover sub-assembly | 8110A-0A040 · 8110A-0A070 · 8110A-0A150 · 8110A-0A160 · 8110A-0A390 |
| 8110B | Left headlight cover sub-assembly | 8110B-0A040 · 8110B-0A070 · 8110B-0A150 · 8110B-0A160 · 8110B-0A390 |
| 81110 | Right headlight assembly | 81105-0A160 · 81105-0A170 · 81110-0A040 · 81110-0A050 · 81110-0A070 · 81110-0A080 · 81110-0A090 · 81110-0A100 · 81110-0A110 · 81110-0A130 · 81110-0A140 · 81110-0A270 · 81110-0A320 · 81110-0A330 · 81110-0A390 · 81110-0A400 · 81130-0A150 |
| 81110B | Bulb (for headlight No. 1) | 90981-13091 |
| 81129A | Right headlight reflector | 81129-0A070 · 81129-0A160 · 81129-0A390 |
| 81131A | Right headlight assembly | 81130-0A070 · 81130-0A080 · 81130-0A160 · 81130-0A390 · 81130-0A400 |
| 81132B | Headlight cover gasket | 81132-0KN10 · 81132-48C30 |
| 81134C | Right headlight body gasket | 81134-0A070 · 81134-0A390 |
| 81135 | Right headlight assembly assembly | 81105-0A070 · 81105-0A080 · 81105-0A090 · 81105-0A100 · 81105-0A130 · 81105-0A140 · 81105-0A390 · 81105-0A400 · 81130-0A040 · 81130-0A050 |
| 81136D | headlight cover | 90075-15505 |
| 8113A | Headlight turn signal LED | 81536-12D30 |
| 81140 | Right headlight LED assembly assembly | 81140-0A110 |
| 81144 | No. 1 headlight cover | 90075-65006 |
| 81150 | Left headlight assembly | 81106-0A160 · 81106-0A170 · 81150-0A040 · 81150-0A050 · 81150-0A070 · 81150-0A080 · 81150-0A090 · 81150-0A100 · 81150-0A110 · 81150-0A130 · 81150-0A140 · 81150-0A270 · 81150-0A320 · 81150-0A330 · 81150-0A390 · 81150-0A400 · 81170-0A150 |
| 81160A | Left headlight LED assembly assembly | 81070-0A110 |
| 81169 | Left headlight reflector | 81169-0A070 · 81169-0A160 · 81169-0A390 |
| 81171A | Left headlight assembly | 81170-0A070 · 81170-0A080 · 81170-0A160 · 81170-0A390 · 81170-0A400 |
| 81174 | Left headlight body gasket | 81174-0A070 · 81174-0A390 |
| 81175 | Left headlight assembly assembly | 81106-0A070 · 81106-0A080 · 81106-0A090 · 81106-0A100 · 81106-0A130 · 81106-0A140 · 81106-0A390 · 81106-0A400 · 81170-0A040 · 81170-0A050 |
| 81510D | Bulb (for front turn signal lamp) | 90981-15021 |
| 81515B | Front turn signal lamp holder | 90075-60028 |
| 81610F | Light bulb (for width indicator light) | 90981-13088 |
| 81615D | Width light lamp holder | 90075-60086 |
| 85661 | Right headlight beam height adjustment motor | 85661-0A010 · 85661-0D020 |
| 85662 | Left headlight beam height adjustment motor | 85661-0A010 · 85661-0D020 |
| 85669 | Headlight beam height adjustment motor base seal | 90075-99120 |
| 85967 | Light control ECU | 85967-12050 |
