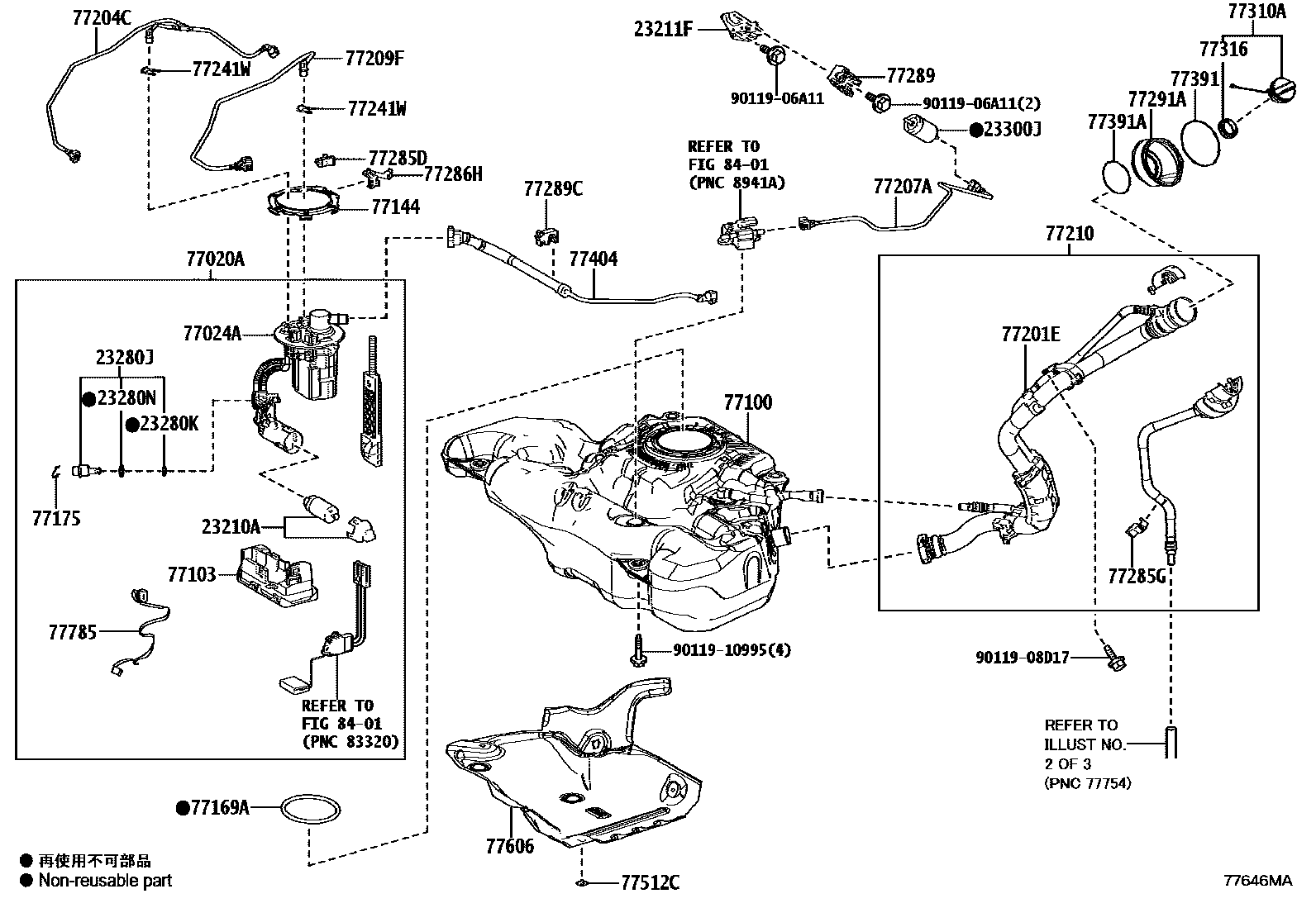

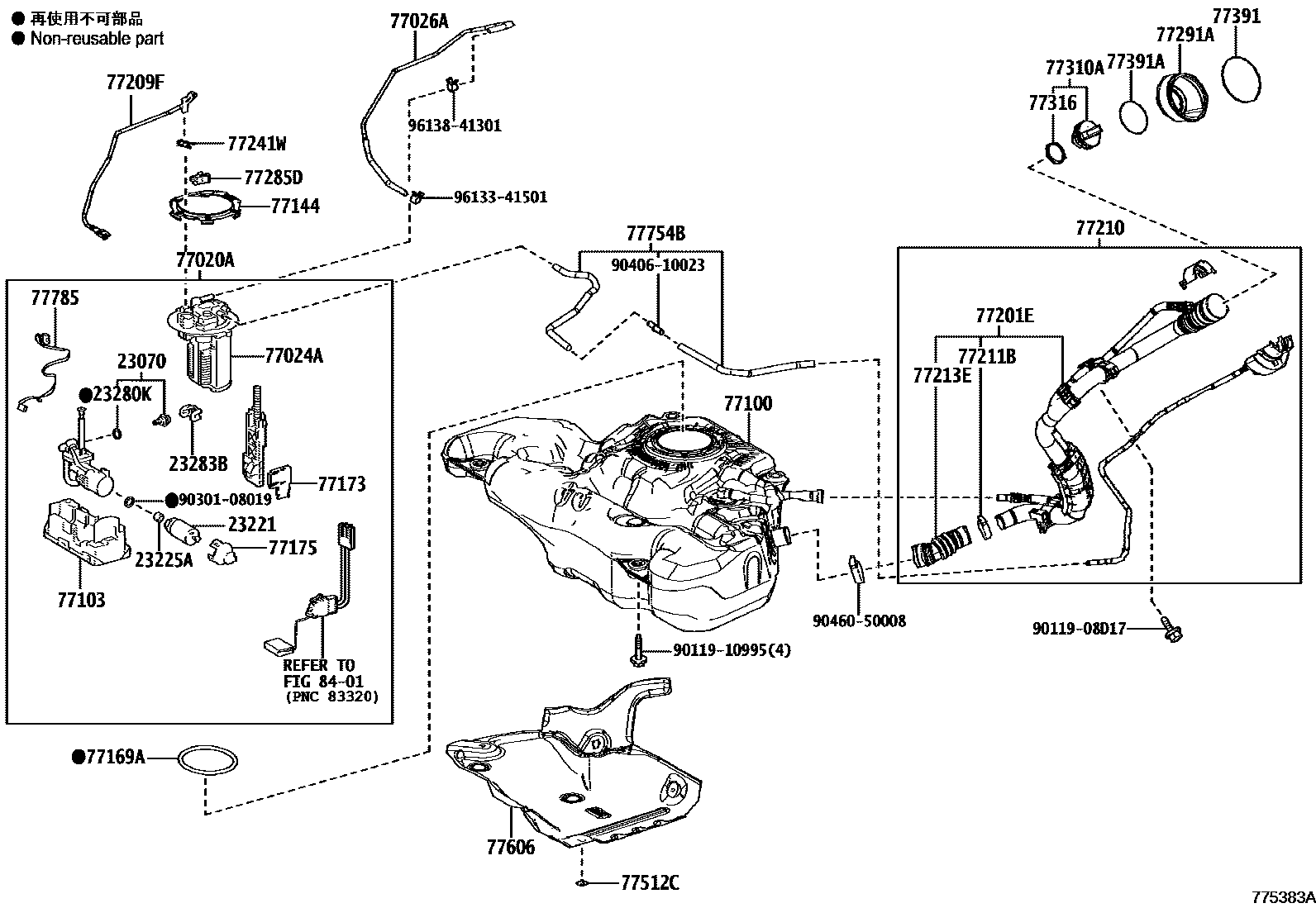

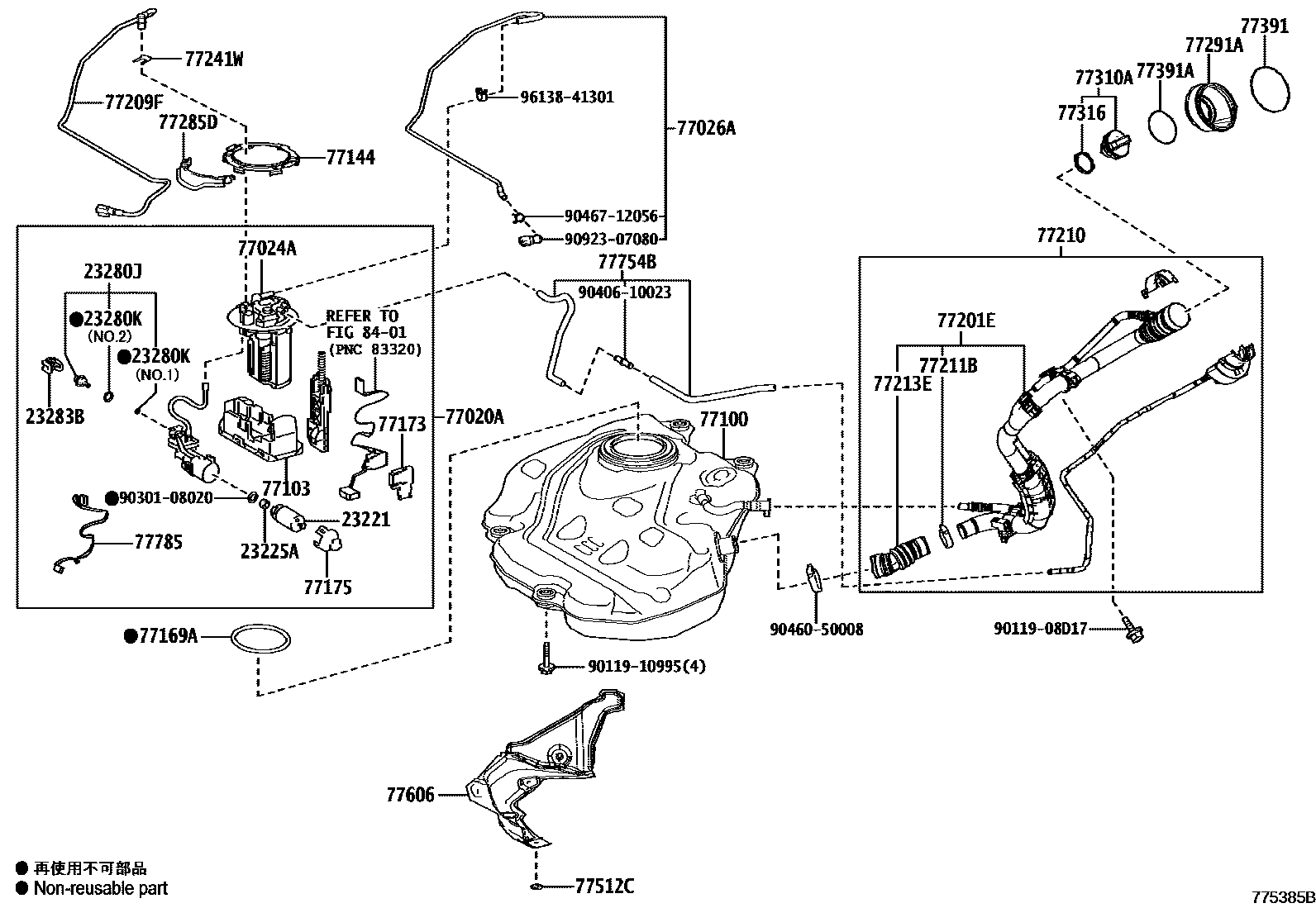

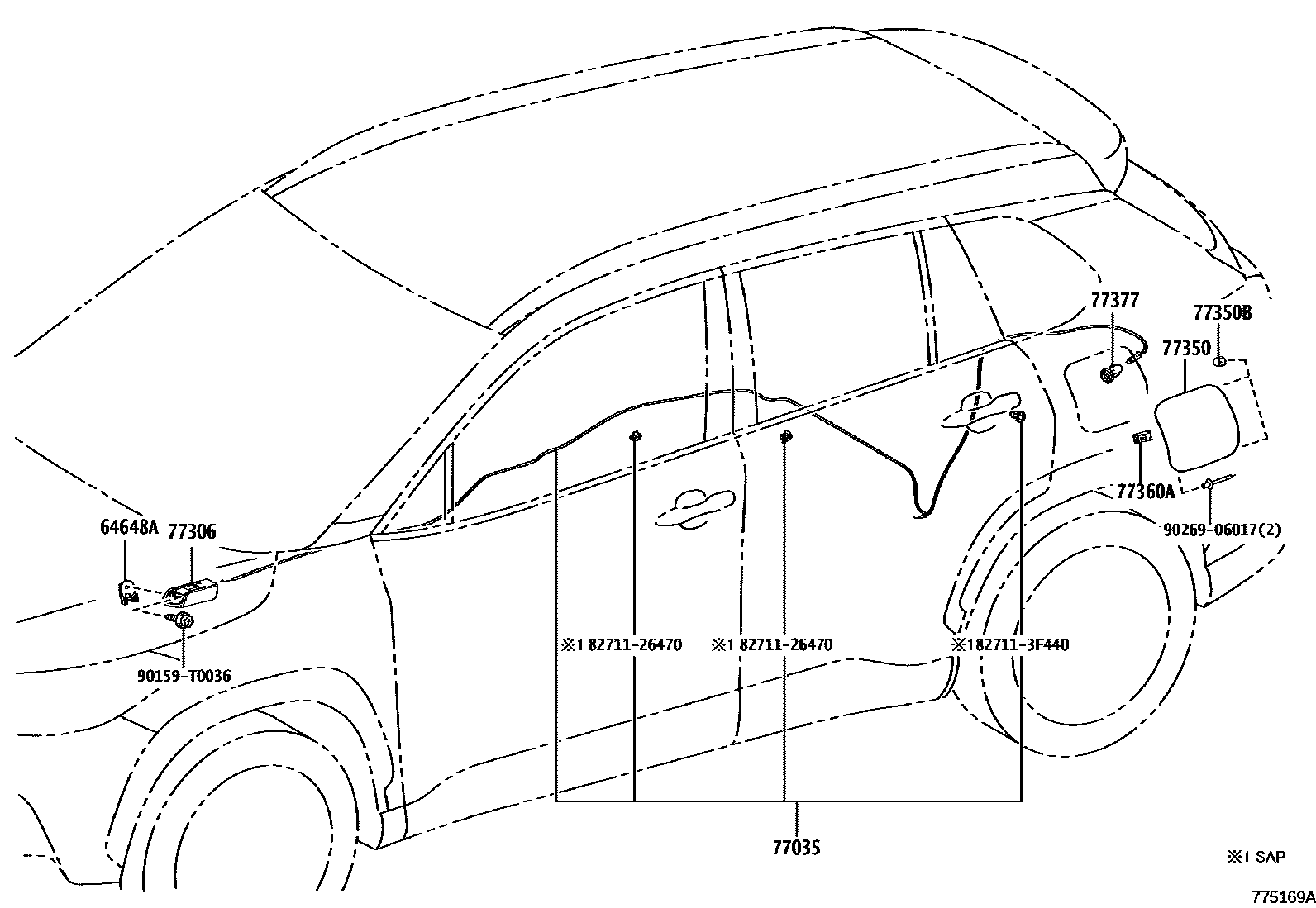

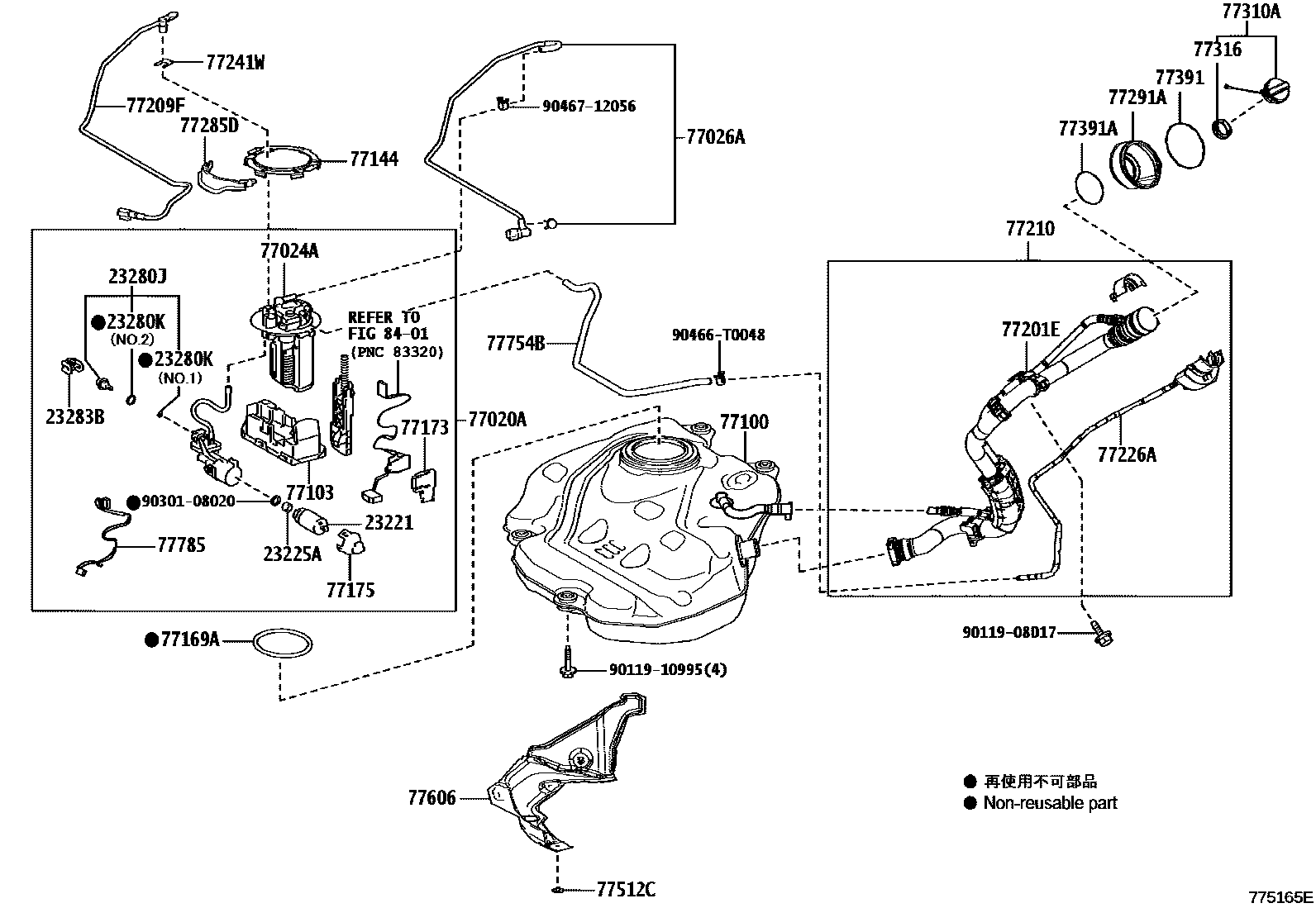

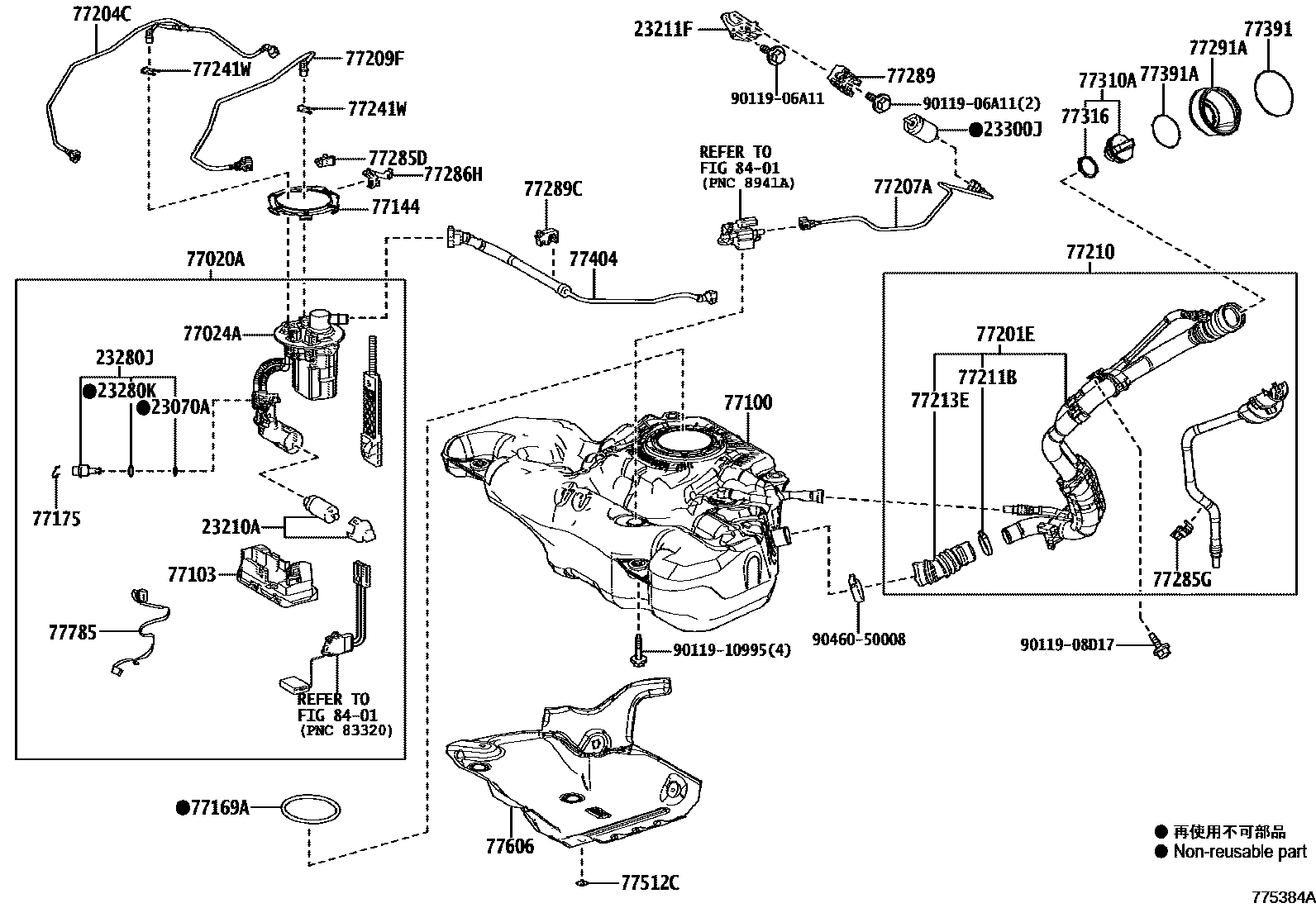

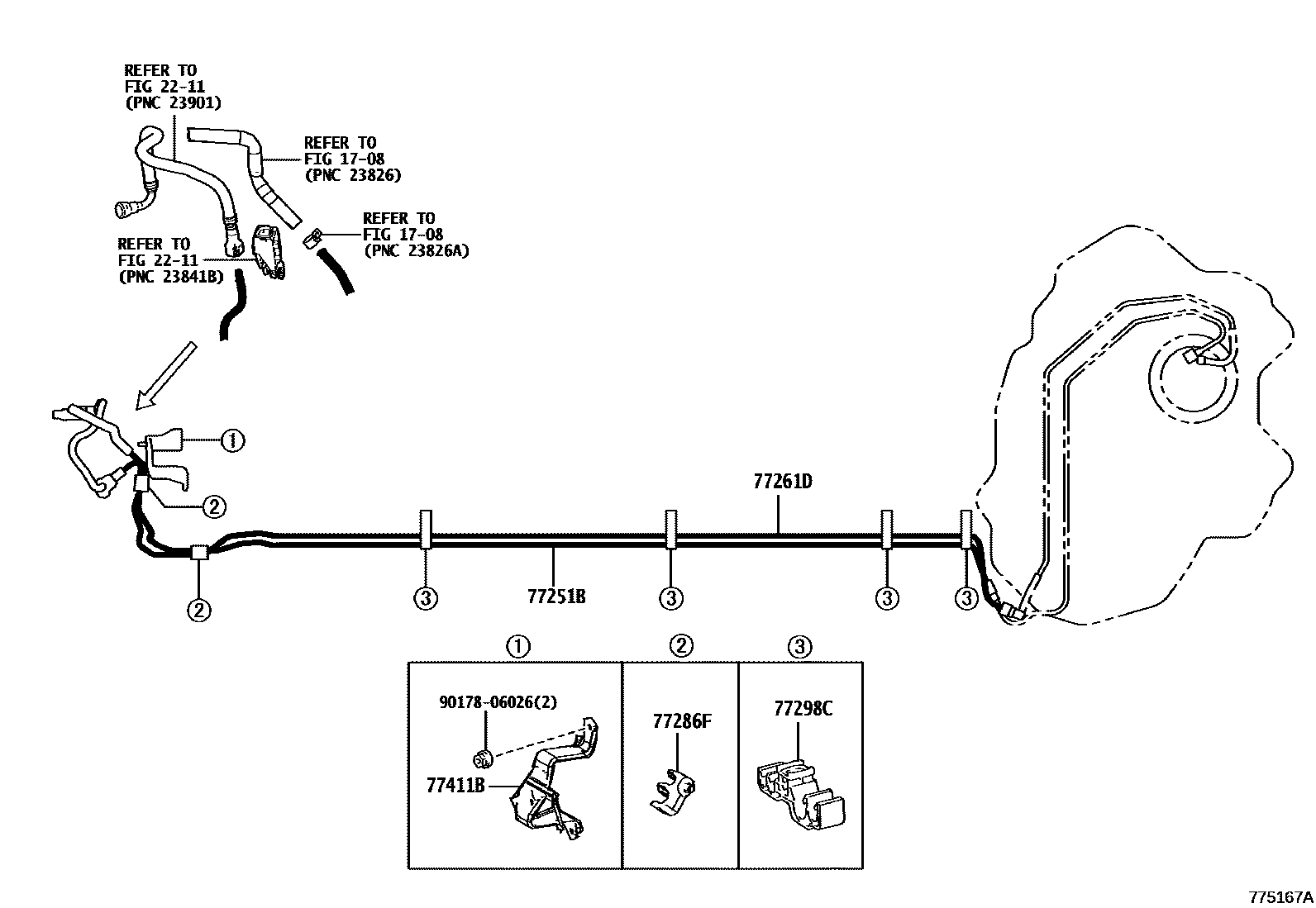

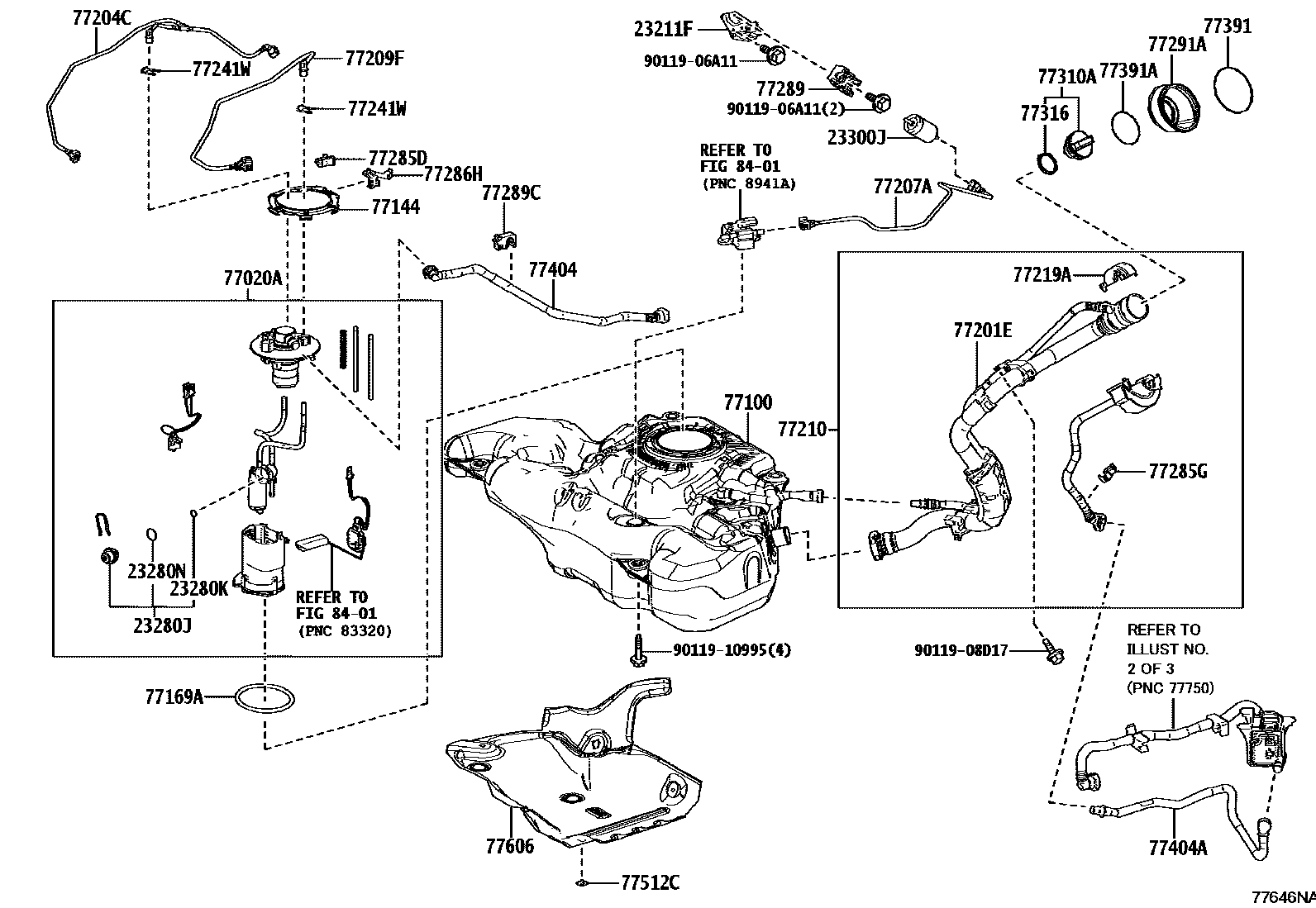

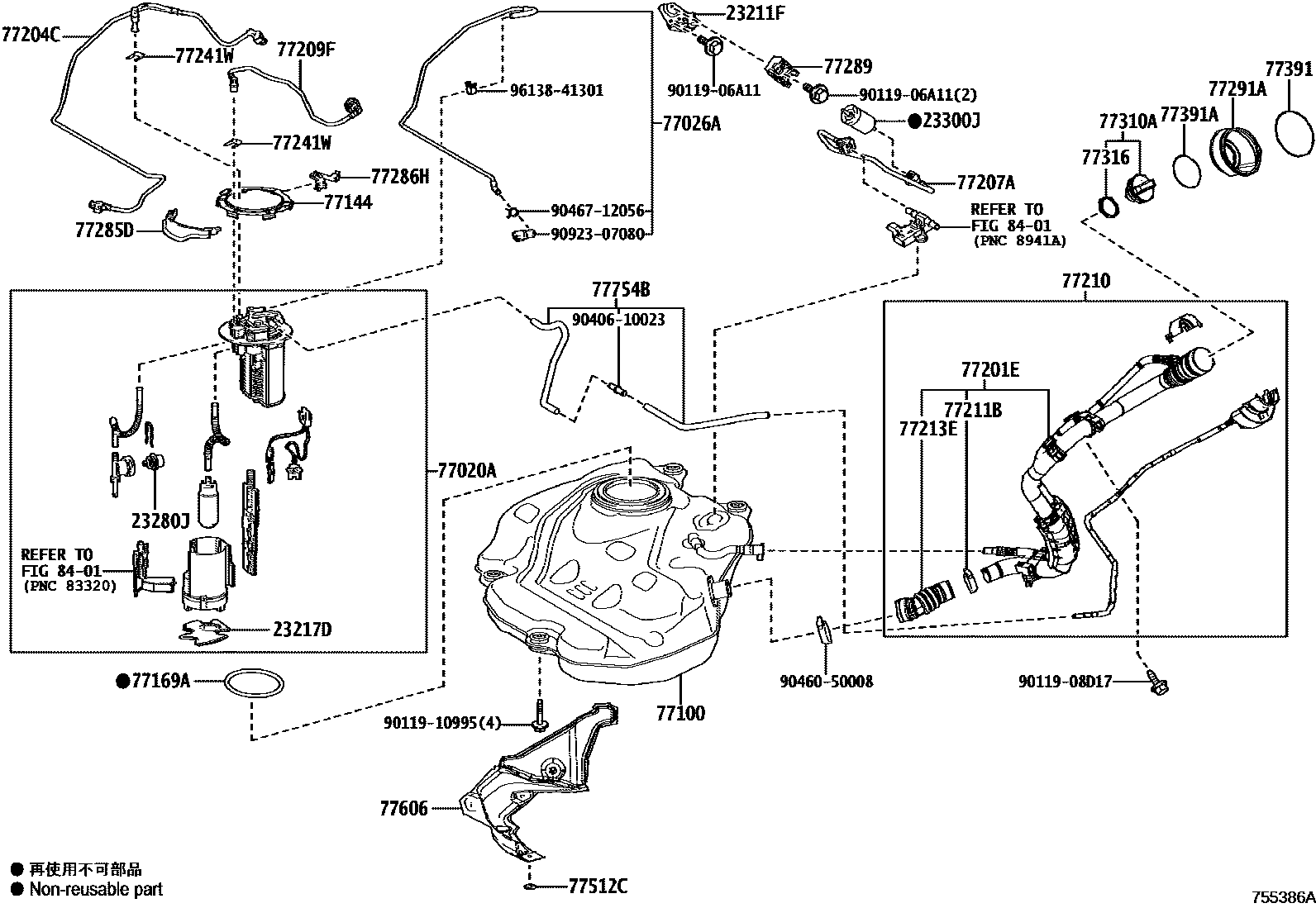

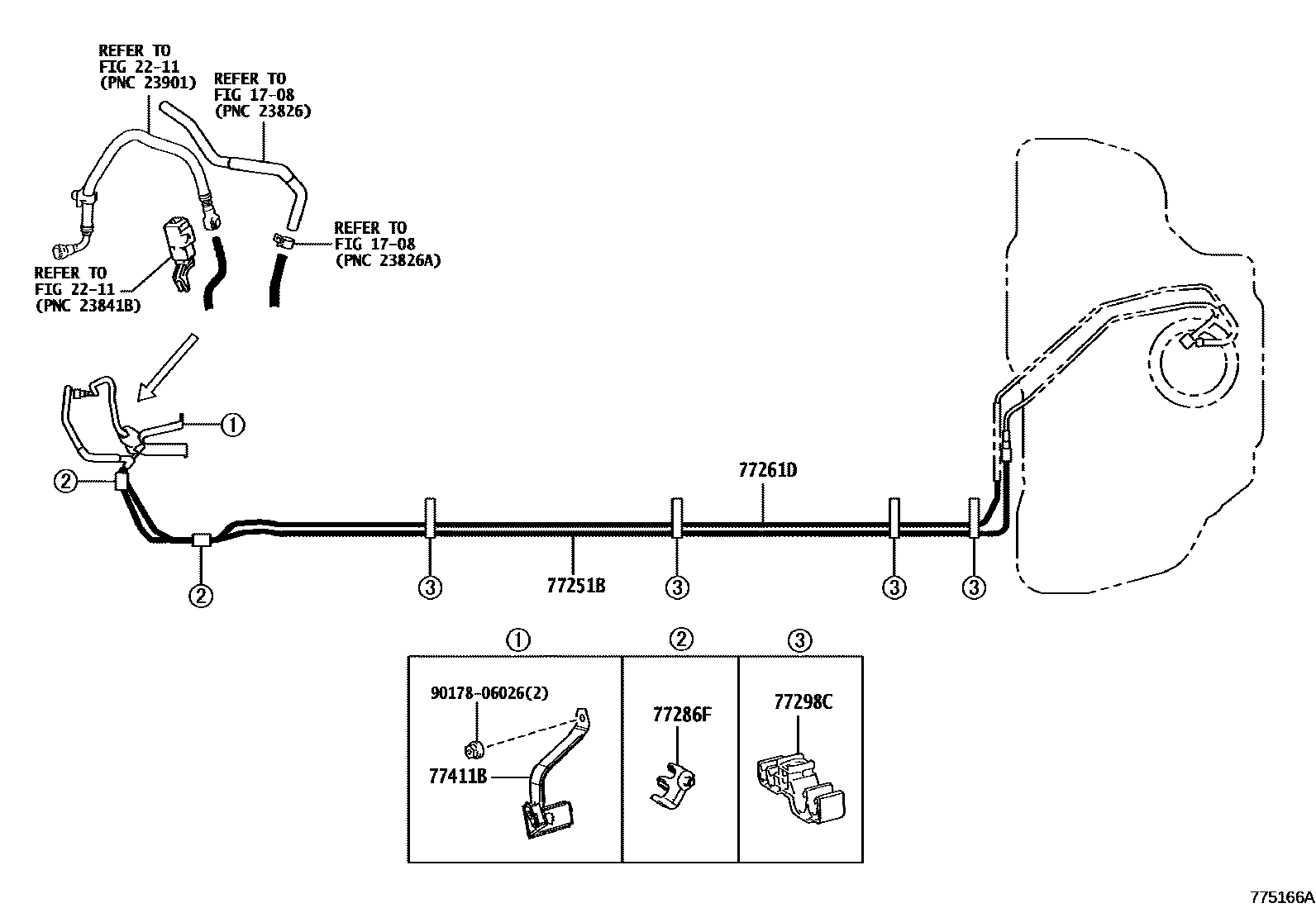

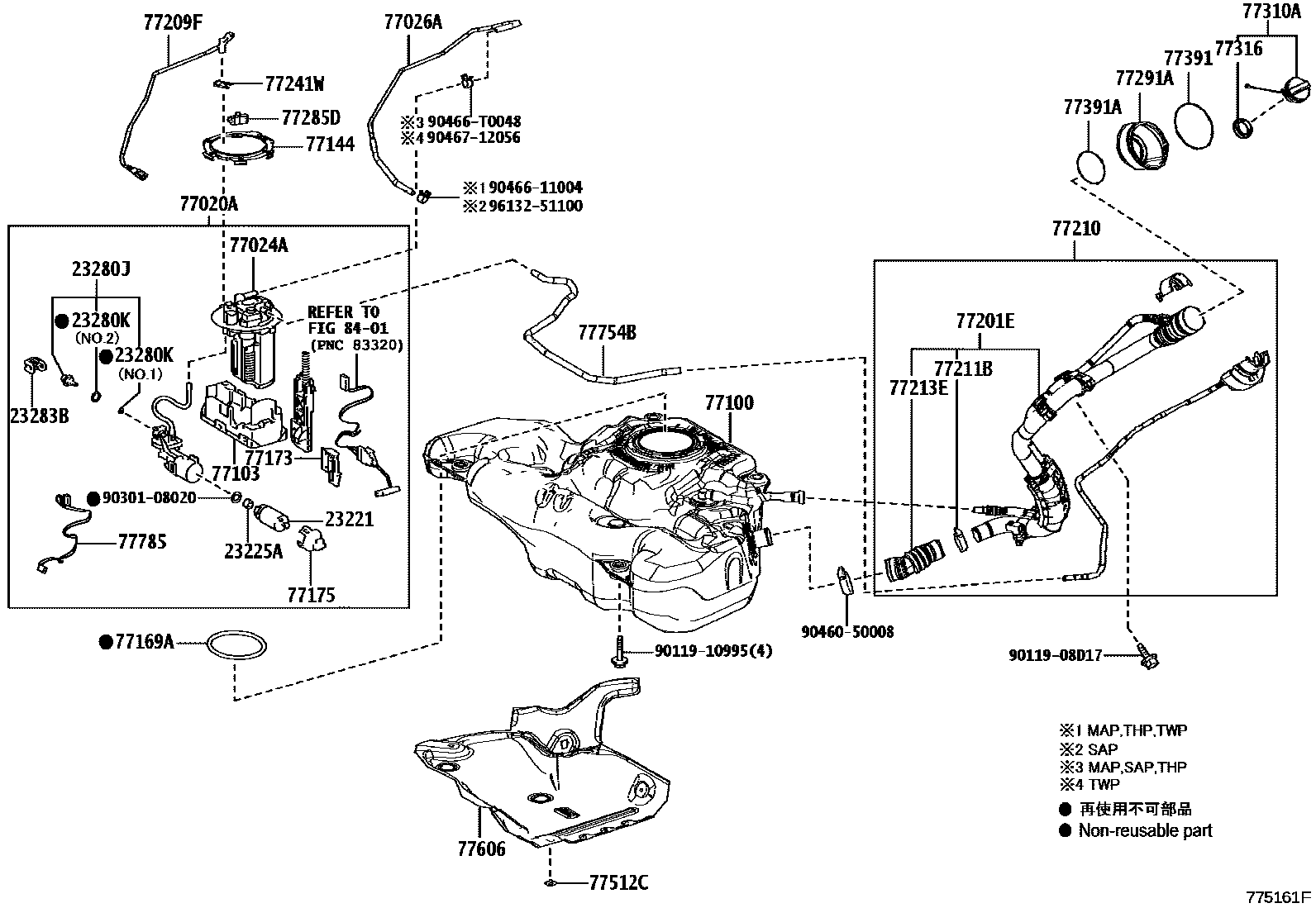

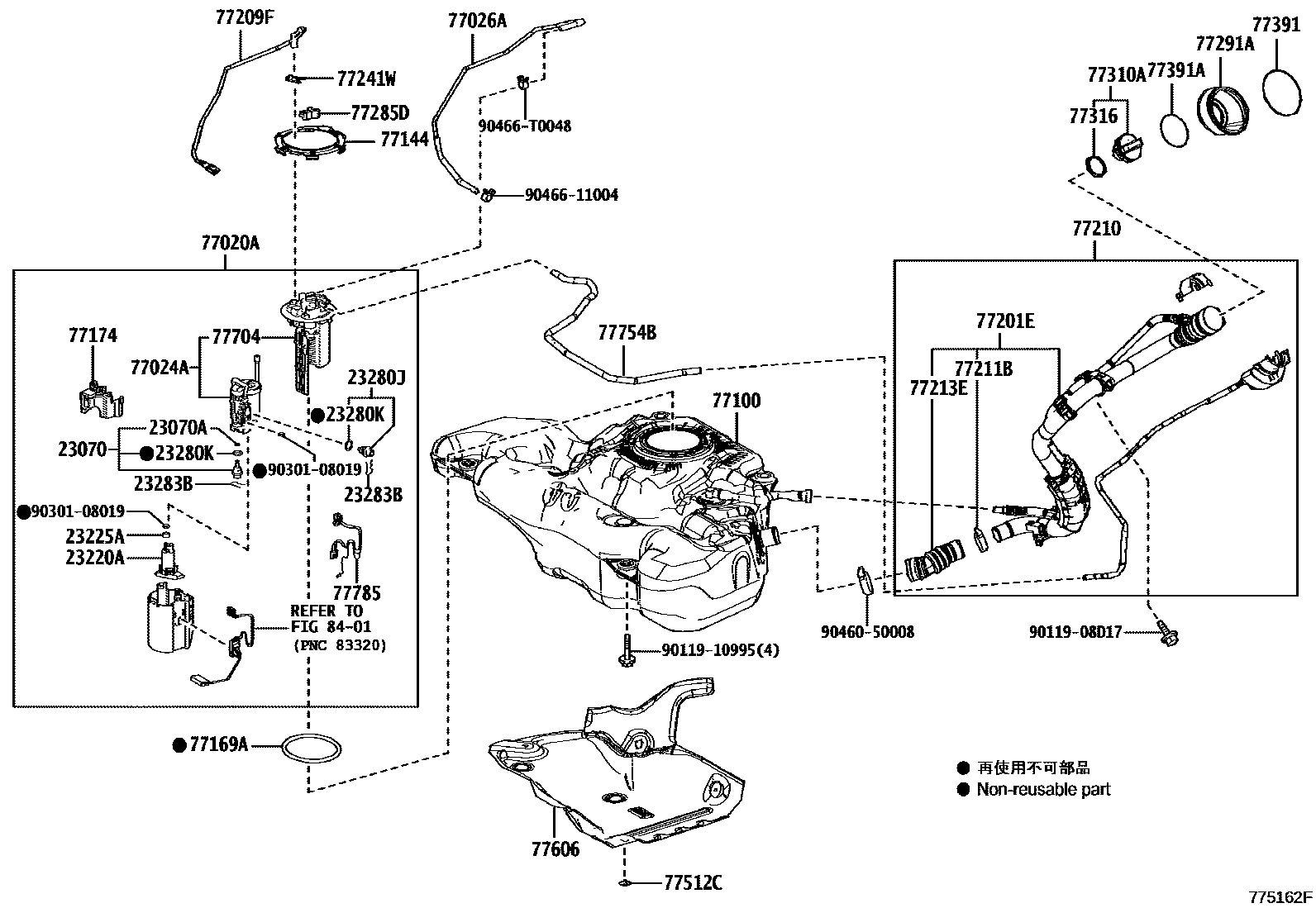

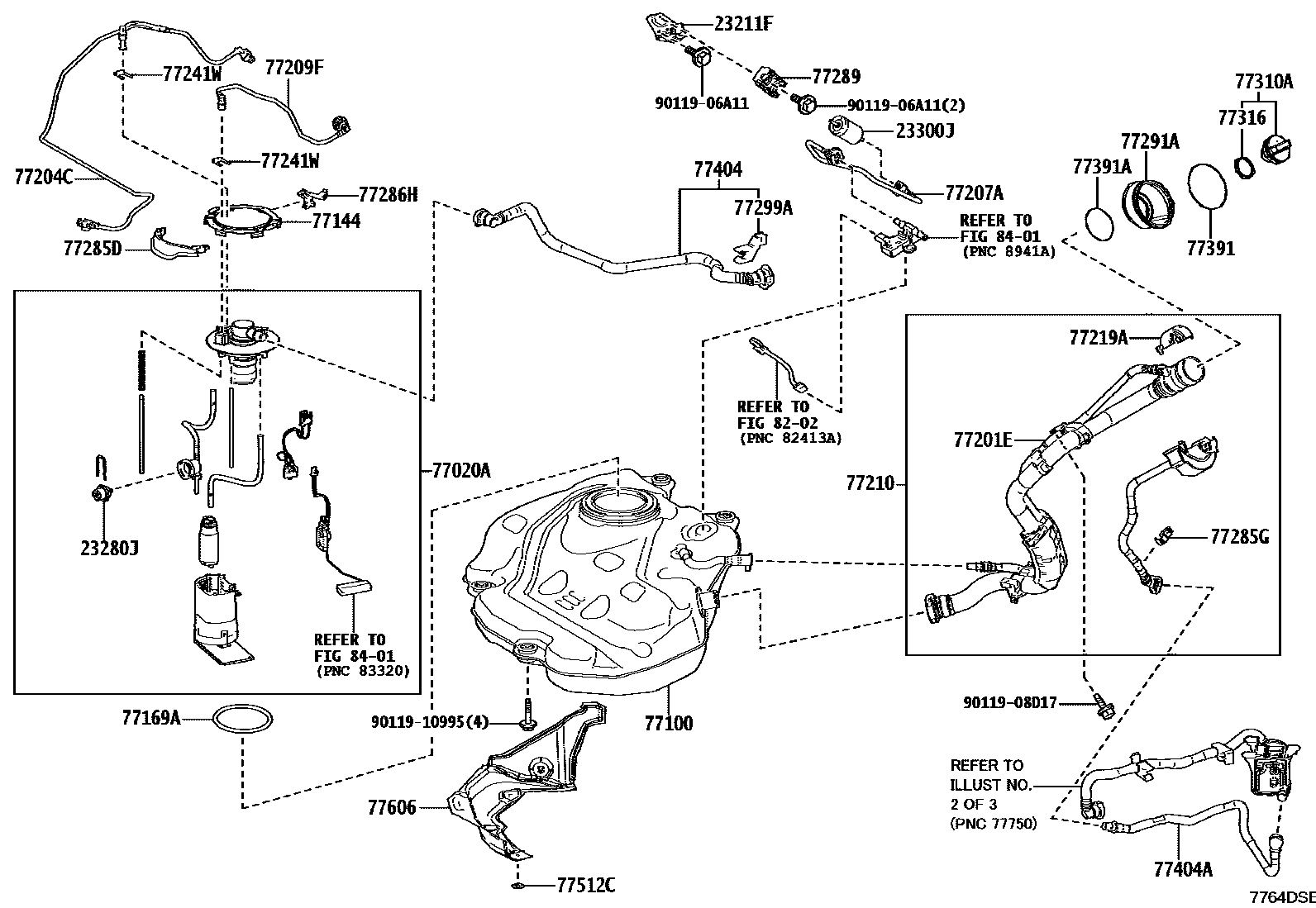

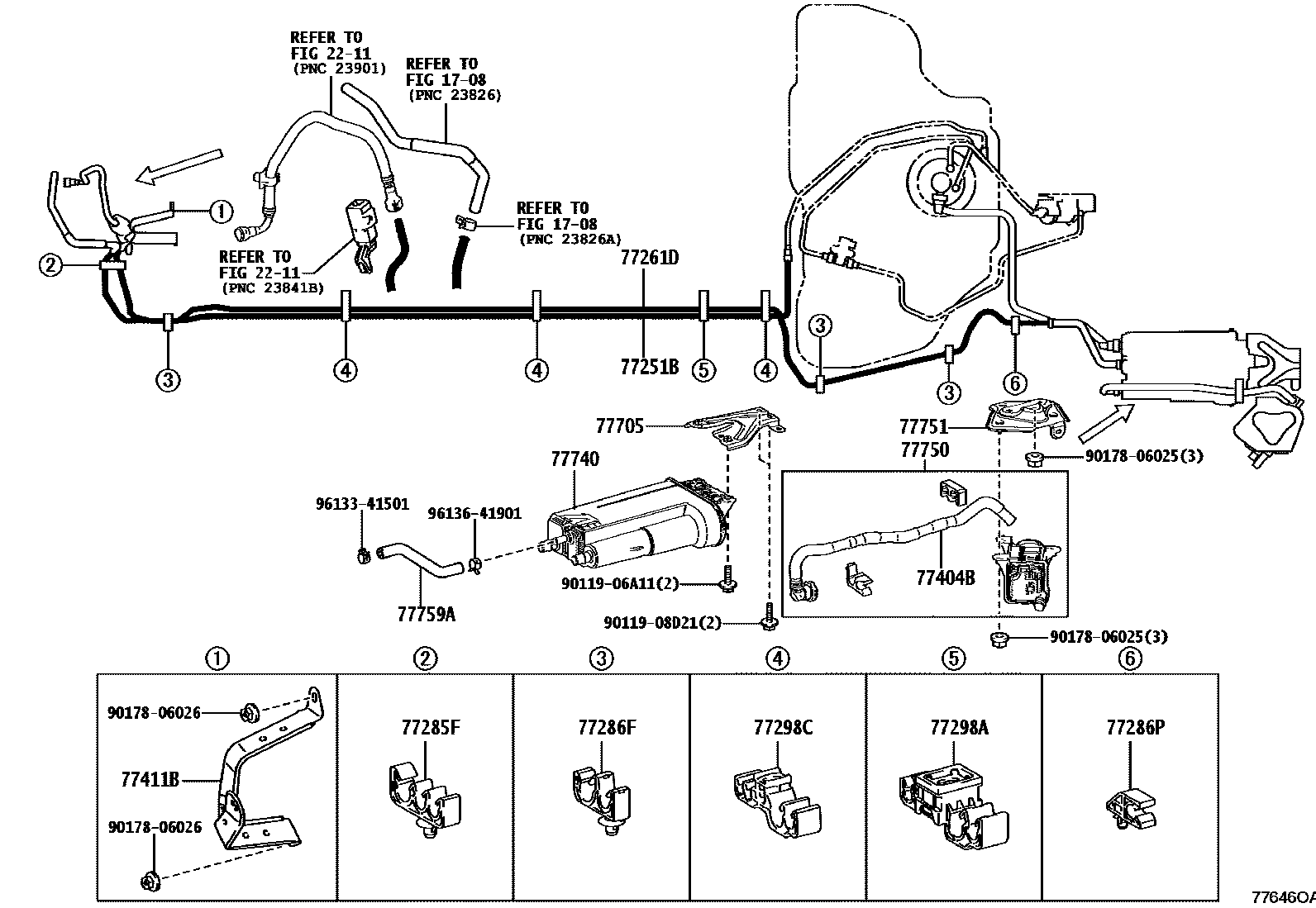

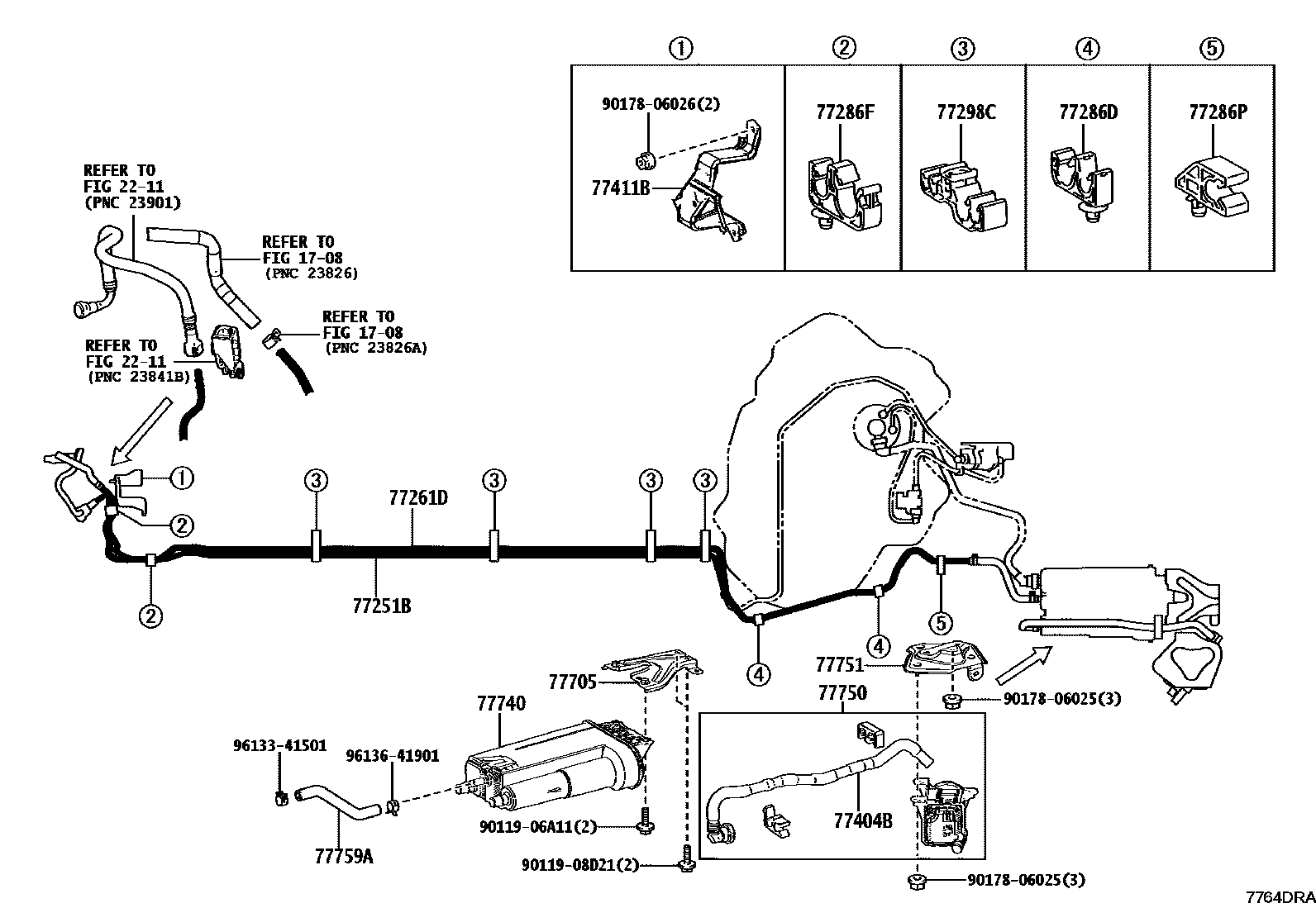

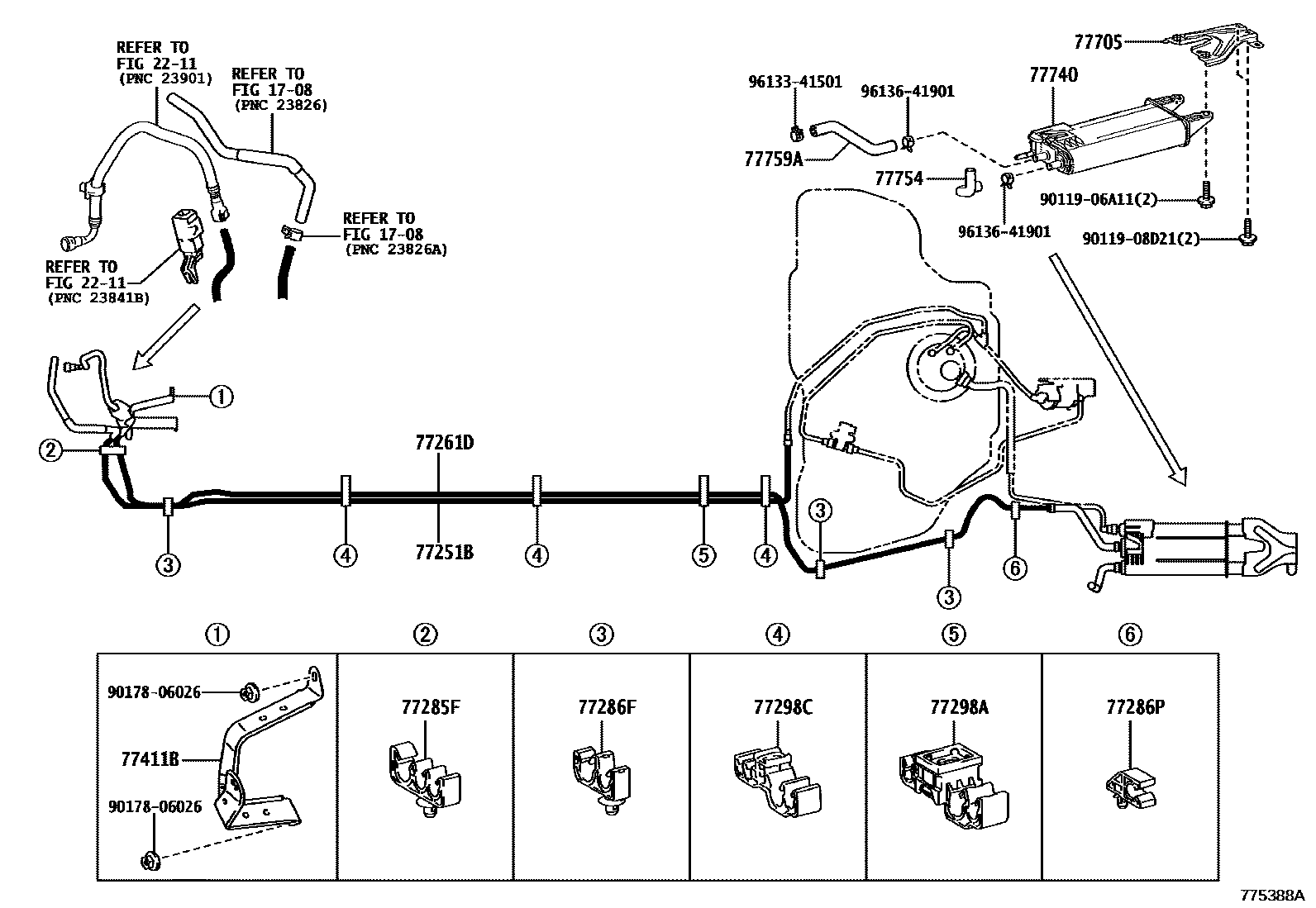

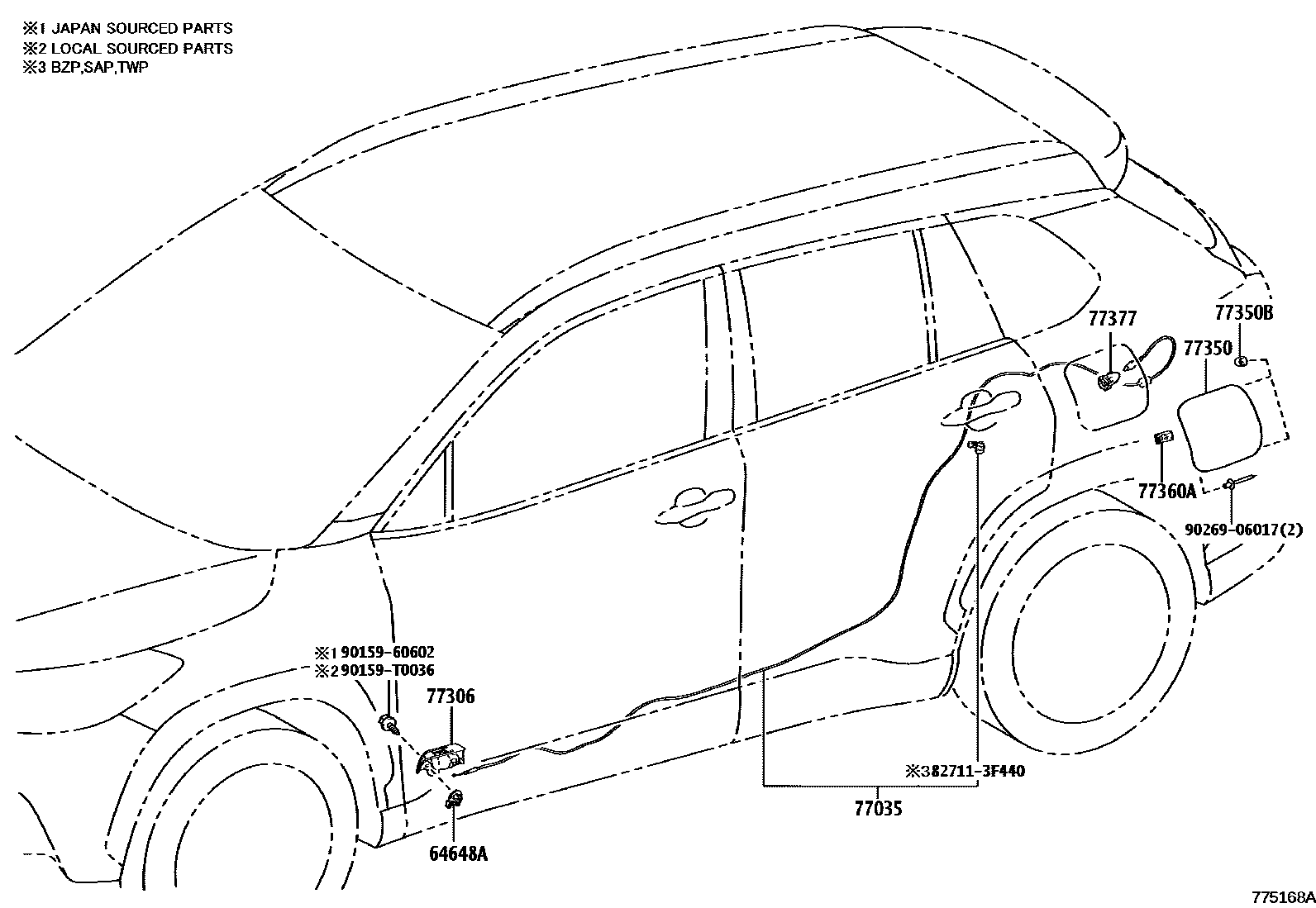

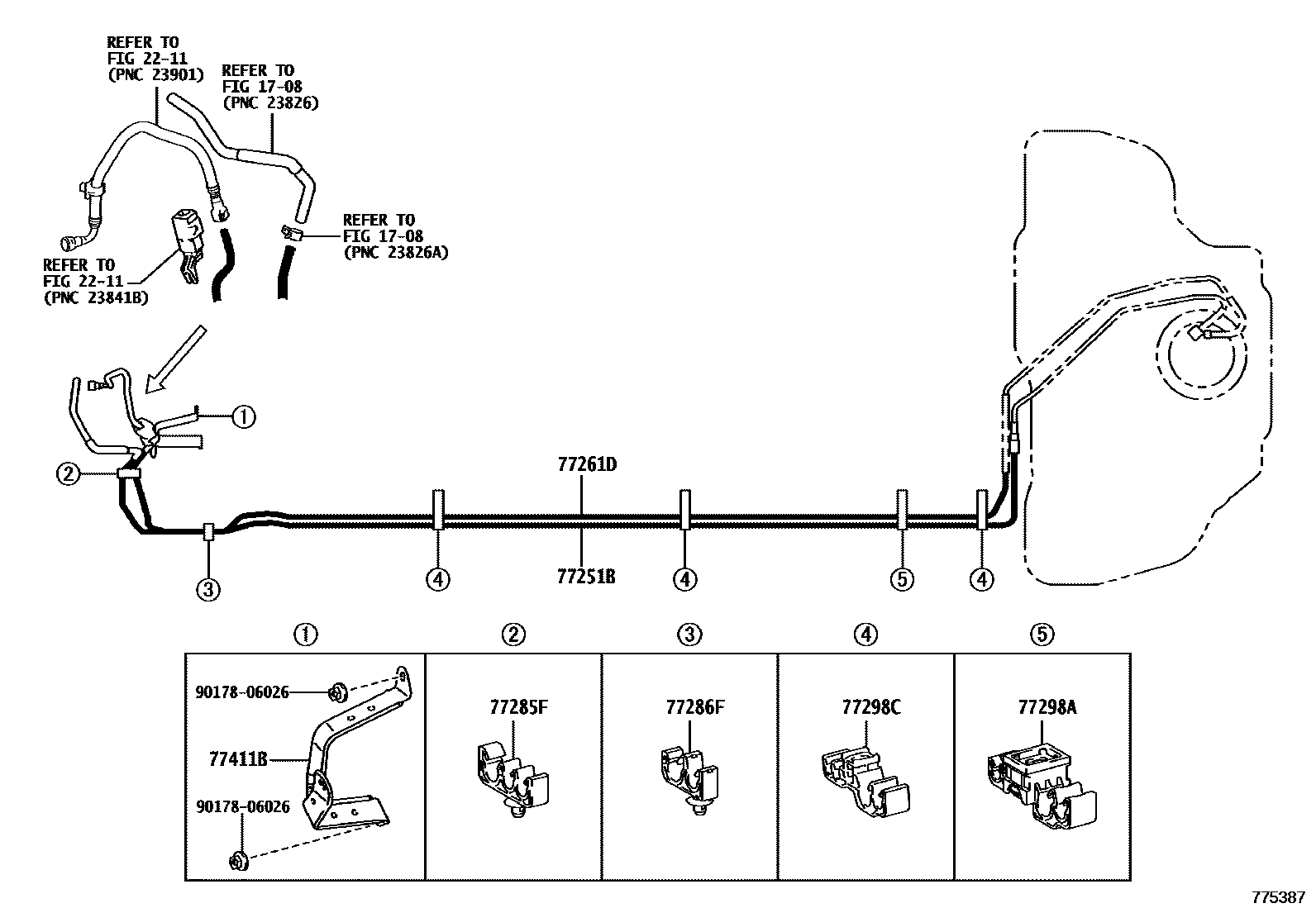

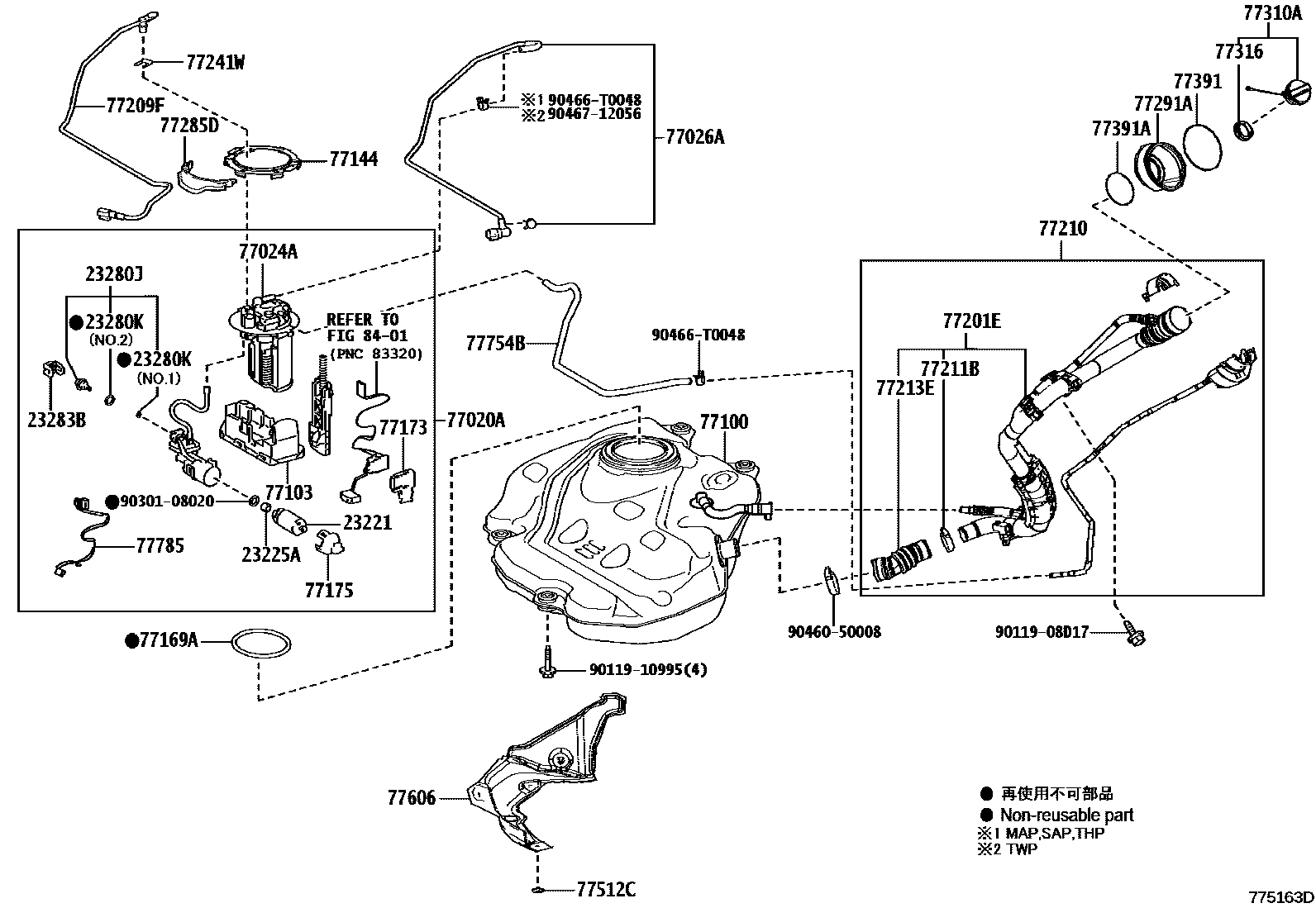

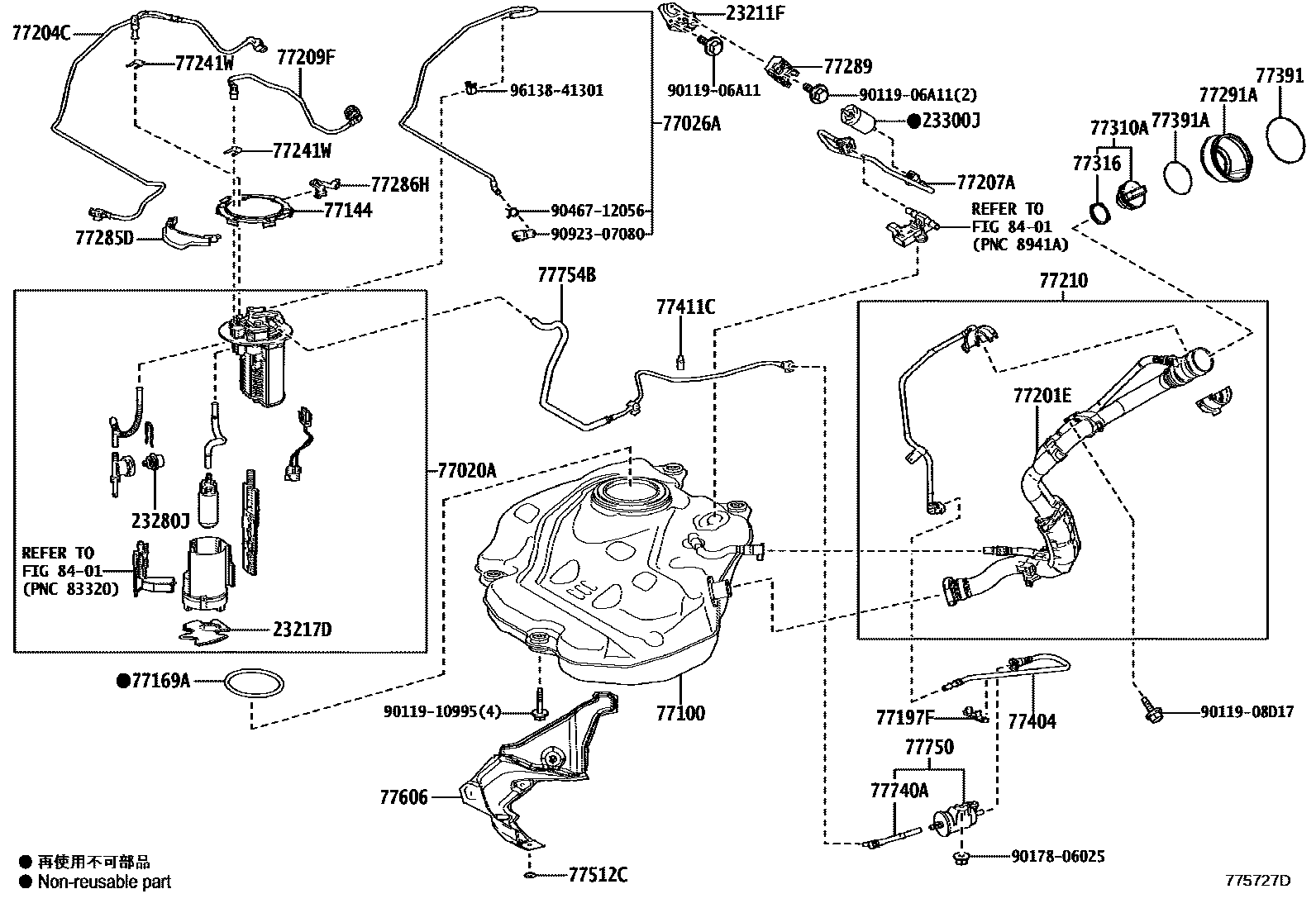

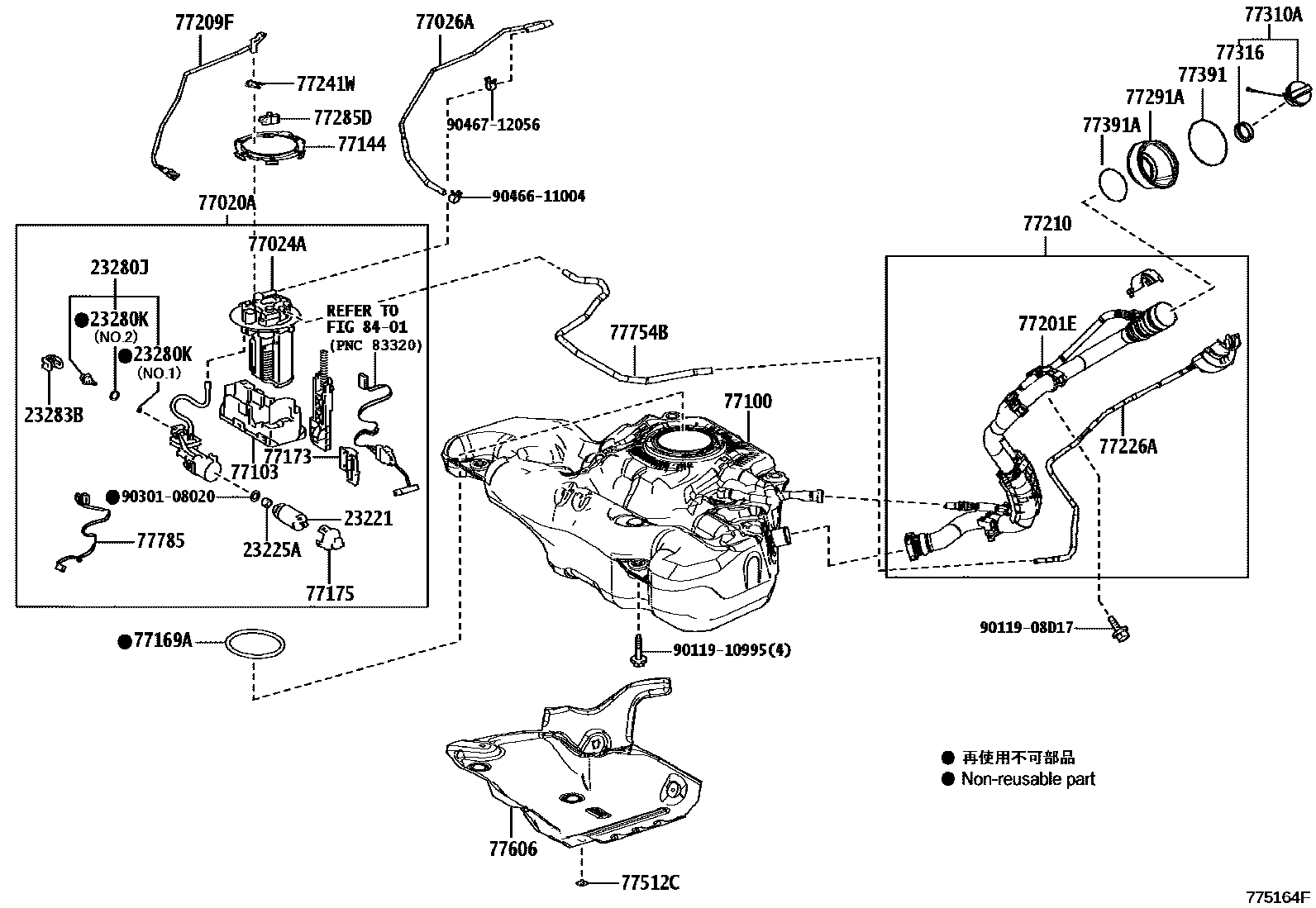

Toyota COROLLA 燃油箱和燃油管 — Figure 7701
Toyota COROLLA EPC diagram 7701, 燃油箱和燃油管, with 21 images and 77 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23070 | Main fuel valve assembly | 23070-25020 · 23070-31050 |
| 23070A | No. 1 O-ring (for main fuel valve) | 90301-04017 |
| 23210A | Water pump assembly with motor and bracket | 23210-24020 |
| 23211F | Bracket | 77705-0A020 |
| 23217D | fuel pump filter | 23217-0Y050 |
| 23220A | Fuel pump assembly with filter | 23220-25010 |
| 23221 | fuel pump | 23221-25030 · 23221-37040 · 23221-47031 |
| 23225A | fuel pump septum | 23225-21020 · 23225-31020 |
| 23280J | Fuel pressure regulator assembly | 23280-0D010 · 23280-21010 · 23280-24010 · 23280-37020 · 23280-F2010 |
| 23280K | O-ring (for fuel pressure regulator) | 90301-04013 · 90301-04017 · 90301-15024 · 90301-15026 |
| 23280N | No. 2 O-ring (for fuel pressure regulator) | 90301-15026 |
| 23283B | Fuel pressure regulator mount | 23283-24010 · 23283-36010 · 23283-37010 |
| 23300J | fuel filter assembly | 23300-F2030 |
| 64648A | Trunk door lock opener seal | 64648-0D020 · 64648-12020 |
| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-0A010 · 77020-0A020 · 77020-0A030 · 77020-0A040 · 77020-0A050 · 77020-0A060 · 77020-0A070 · 77020-0A100 · 77020-0A190 · 77020-16180 · 77020-16190 · 77020-16210 |
| 77024A | Fuel absorber sub-assembly | 77024-16010 · 77024-16020 · 77024-16030 · 77024-16040 |
| 77026A | No. 1 fuel evaporation pipe sub-assembly | 77026-0A030 · 77026-0A040 · 77026-0A080 · 77026-0A090 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-0A030 · 77035-0A040 · 77035-0A050 · 77035-0A060 |
| 77100 | fuel tank assembly | 77001-0A030 · 77001-0A040 · 77001-0A060 · 77001-0A070 · 77001-0A080 · 77001-0A081 · 77001-0A090 · 77001-0A091 · 77001-0A100 · 77001-0A110 · 77001-0A180 · 77001-0A190 · 77001-0A220 · 77001-0A230 · 77001-0A231 · 77001-0A240 · 77001-0A241 · 77001-0A290 · 77001-0A300 |
| 77103 | Auxiliary fuel tank sub-assembly | 77103-12150 · 77103-16010 · 77103-78010 |
| 77144 | Fuel pump instrument fixture | 77144-02160 · 77144-0K040 · 77144-30030 |
| 77169A | Fuel suction pipe fixed gasket | 77169-0K030 · 77169-0R030 · 77169-47030 · 77169-47040 · 77169-F4050 |
| 77173 | Fuel gauge bracket | 77173-12010 · 77173-12020 |
| 77174 | No. 1 oil suction pipe bracket | 77174-33060 |
| 77175 | No. 2 oil suction pipe bracket | 77175-12030 · 77175-12040 · 77175-78010 |
| 77197F | No. 2 evaporation vent pipe clamp | 77197-16010 |
| 77201E | Fuel tank filling pipe sub-assembly | 77201-0A030 · 77201-0A090 · 77201-0A130 · 77201-0A190 |
| 77204C | No. 2 fuel tank main pipe sub-assembly | 77204-0A010 · 77204-0A020 · 77204-0A040 · 77204-0A060 · 77204-0A070 · 77204-0A080 |
| 77207A | Fuel return pipe sub-assembly | 77207-0A030 · 77207-0A040 · 77207-0A050 · 77207-0A060 |
| 77209F | Fuel tank main pipe sub-assembly | 77209-0A010 · 77209-0A020 · 77209-0A030 · 77209-0A040 · 77209-0A080 · 77209-0A090 · 77209-0A100 · 77209-0A110 · 77209-0A180 · 77209-0A190 · 77209-0A210 · 77209-0A220 |
| 77210 | Fuel tank filler pipe assembly | 77210-0A030 · 77210-0A040 · 77210-0A090 · 77210-0A110 · 77210-0A120 · 77210-0A150 · 77210-0A210 |
| 77211B | Clamp (for fuel filler tube) | 90460-46005 |
| 77213E | Fuel tank to filler pipe hose | 77213-0A030 |
| 77219A | Fuel tank filler pipe cap | 77219-76020 |
| 77226A | No. 6 fuel tank breather pipe | 77226-0A030 |
| 77241W | Pipe joint clip | 77241-0K010 · 77241-33011 |
| 77251B | main fuel pipe | 77251-0A060 · 77251-0A070 · 77251-0A080 · 77251-0A090 · 77251-0A100 · 77251-0A110 · 77251-0A180 · 77251-0A190 · 77251-0A200 · 77251-0A210 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-0A060 · 77261-0A070 · 77261-0A080 · 77261-0A090 · 77261-0A100 · 77261-0A110 · 77261-0A120 · 77261-0A180 · 77261-0A190 · 77261-0A200 · 77261-0A210 · 77261-0A280 |
| 77285D | No. 1 fuel pipe clamp | 77285-06570 · 77285-0A060 · 77285-30350 |
| 77285F | No. 1 fuel pipe clamp | 77285-78010 |
| 77285G | No. 1 fuel pipe clamp | 77285-47120 |
| 77286D | No. 2 fuel pipe clamp | 77286-75010 |
| 77286F | No. 2 fuel pipe clamp | 77286-48100 · 77286-75010 · 77286-78040 |
| 77286H | No. 3 fuel pipe clamp | 77285-16140 |
| 77286P | No. 8 fuel pipe clamp | 77285-16110 |
| 77289 | Fuel tank pipe holder | 77289-16040 |
| 77289C | No. 4 fuel pipe clamp | 77285-16130 |
| 77291A | Fuel tank filler pipe cover | 77291-0A010 · 77291-0A020 · 77291-0A030 · 77291-0A070 · 77291-0A080 |
| 77298A | No. 4 fuel pipe clamp | 77298-10080 |
| 77298C | No. 4 fuel pipe clamp | 77298-10050 · 77298-10070 · 77298-10090 |
| 77299A | No. 5 fuel pipe clamp | 77299-0A070 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 77306-0A010 · 77306-0A020 · 77306-0A030 |
| 77310A | Fuel tank cap assembly | 77300-0K010 · 77300-12020 · 77300-12040 · 77300-48020 |
| 77316 | fuel tank cap gasket | 77316-0K020 · 77316-52040 · 77316-75020 |
| 77350 | Fuel filler cap assembly | 77350-K1010 |
| 77350B | Cushion (for fuel filler cap) | 90541-06069 |
| 77360A | Fuel filler cap spring assembly | 77360-30080 · 77360-35040 |
| 77377 | Fuel filler cap lock retainer | 77377-02140 · 77377-02150 · 77377-12100 |
| 77391 | fuel inlet ring | 77391-0A010 |
| 77391A | fuel inlet ring | 77391-02020 |
| 77404 | Fuel tank vent hose sub-assembly | 77404-0A010 · 77404-0A040 · 77404-0A190 · 77404-0A200 · 77404-0A330 |
| 77404A | Fuel tank vent hose sub-assembly | 77404-0A070 |
| 77404B | No. 2 fuel tank vent hose sub-assembly | 77404-16020 |
| 77411B | No. 1 fuel pipe retaining ring bracket | 77411-02080 · 77411-02090 · 77411-02100 · 77411-02110 · 77411-02120 · 77411-02130 · 77411-F4050 · 77411-F4060 |
| 77411C | No. 1 fuel pipe retaining ring bracket | 77411-20050 |
| 77512C | fuel tank bracket | 77512-35140 |
| 77606 | No. 1 fuel tank protective shell sub-assembly | 77606-0A050 · 77606-0A060 · 77606-0A070 · 77606-0A080 · 77606-0A090 · 77606-0A100 |
| 77704 | Carbon canister sub-assembly | 77704-10190 |
| 77705 | Carbon canister bracket sub-assembly | 77705-0A010 |
| 77740 | Carbon canister assembly | 77740-16280 · 77740-33220 · 77740-42120 |
| 77740A | No. 1 fuel hose (for canister) | 77404-16010 |
| 77750 | Carbon canister assembly | 77730-16010 · 77730-16020 · 77730-16030 |
| 77751 | Carbon canister base bracket | 77751-0A120 |
| 77754 | No. 1 carbon canister outlet hose | 77754-16080 |
| 77754B | Carbon canister outlet hose | 77754-0A030 · 77754-0A040 · 77754-16090 · 77754-16100 · 77754-16110 |
| 77759A | Carbon canister hose | 77759-16050 |
| 77785 | fuel pump wiring harness | 77785-12040 · 77785-12050 · 77785-12060 · 77785-33140 · 77785-52120 |
