Toyota COROLLA 后防护条 — Figure 7504

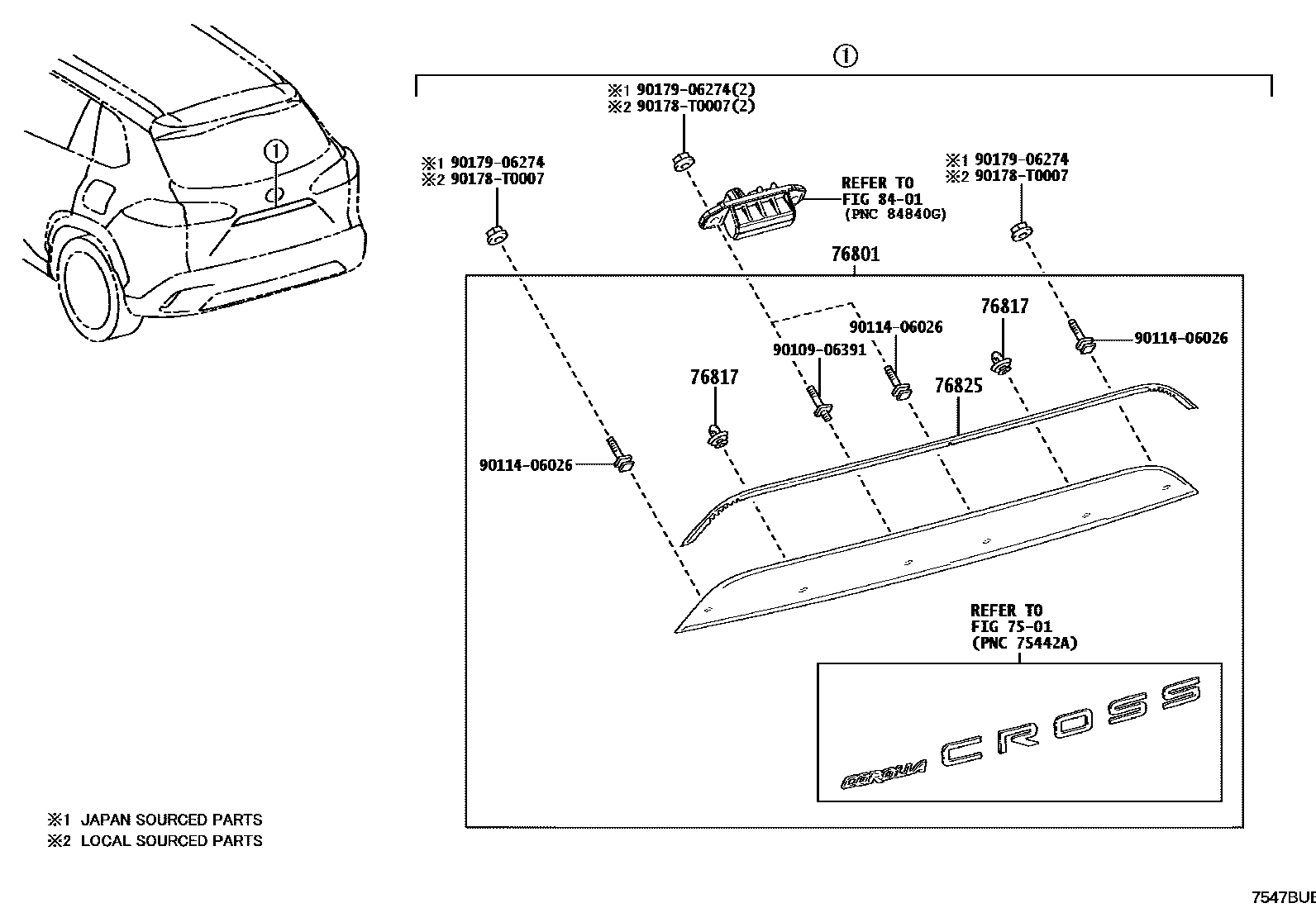

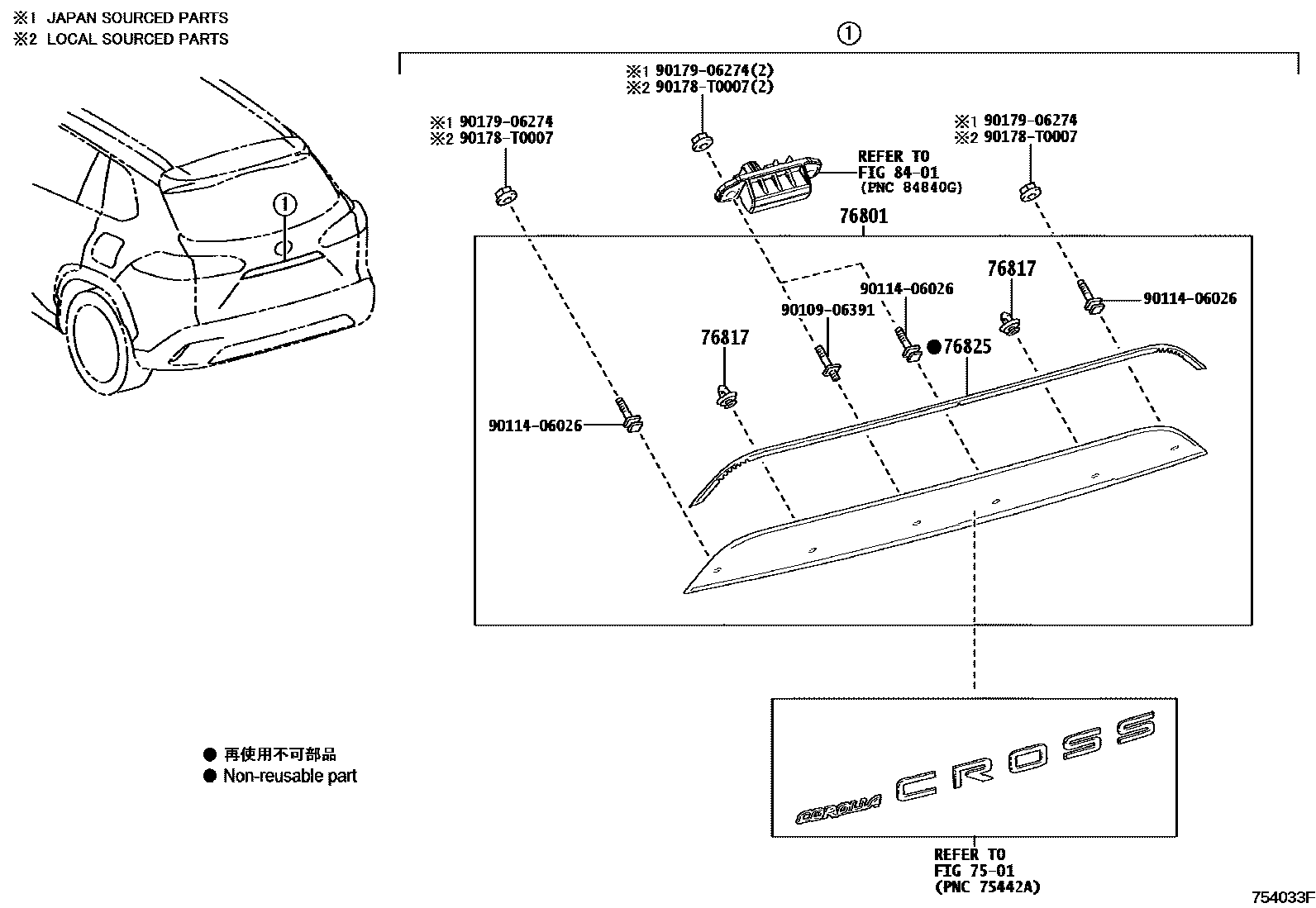

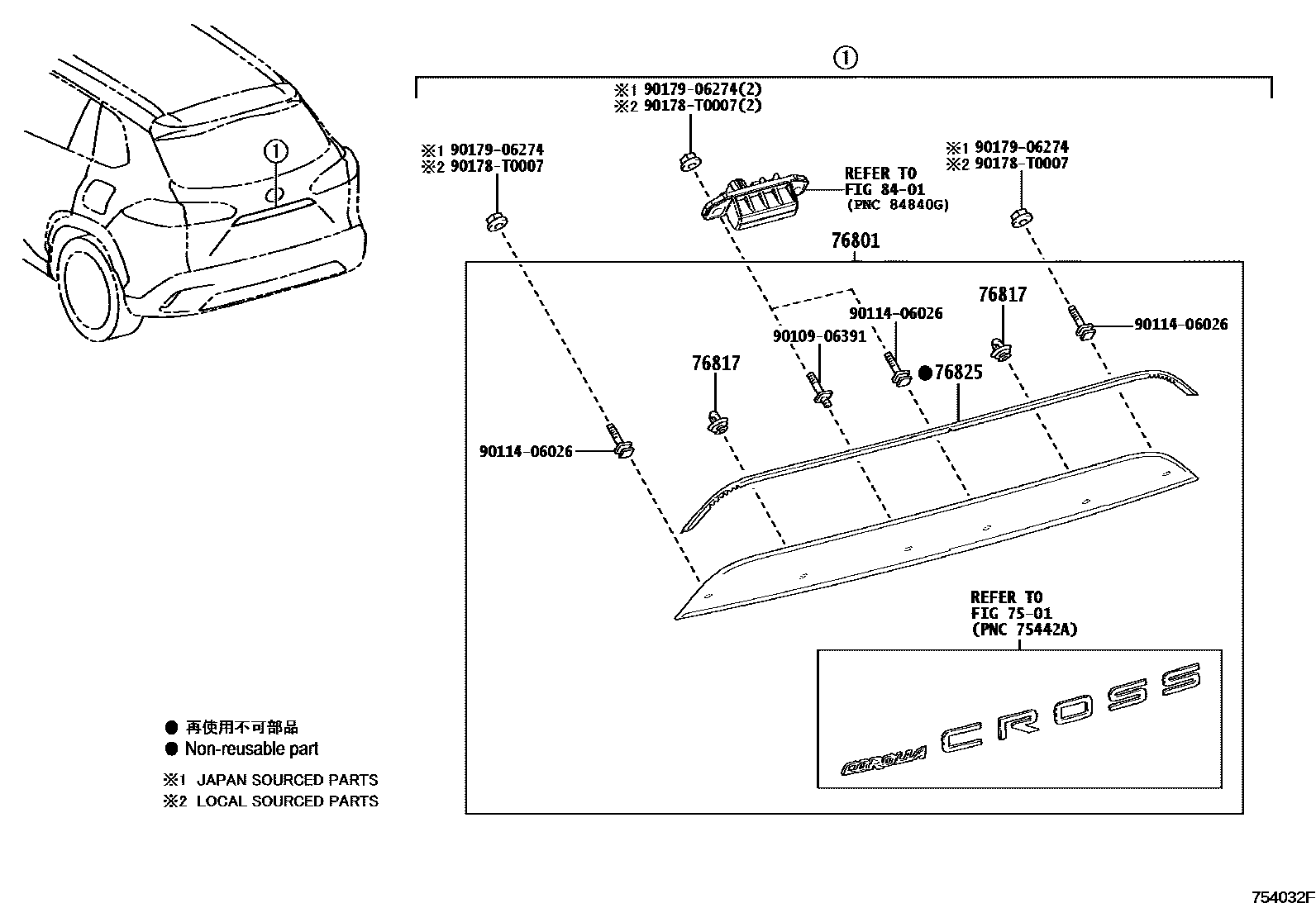

Toyota COROLLA EPC diagram 7504, 后防护条, with 3 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 76801 | Rear door exterior decorative strip sub-assembly | 76801-0A900 · 76801-0A901 · 76801-0A902 · 76801-0A903 · 76801-0A904 · 76801-0A905 · 76801-0A906 · 76801-0A912 · 76801-YY120 · 76801-YY160 |
| 76817 | Rear door exterior decorative strip clip | 90467-09206 |
| 76825 | Rear door exterior decorative strip protective cover | 76825-0A010 · 76825-0A030 · 76825-0A050 · 76825-0A070 · 76825-0A080 |
