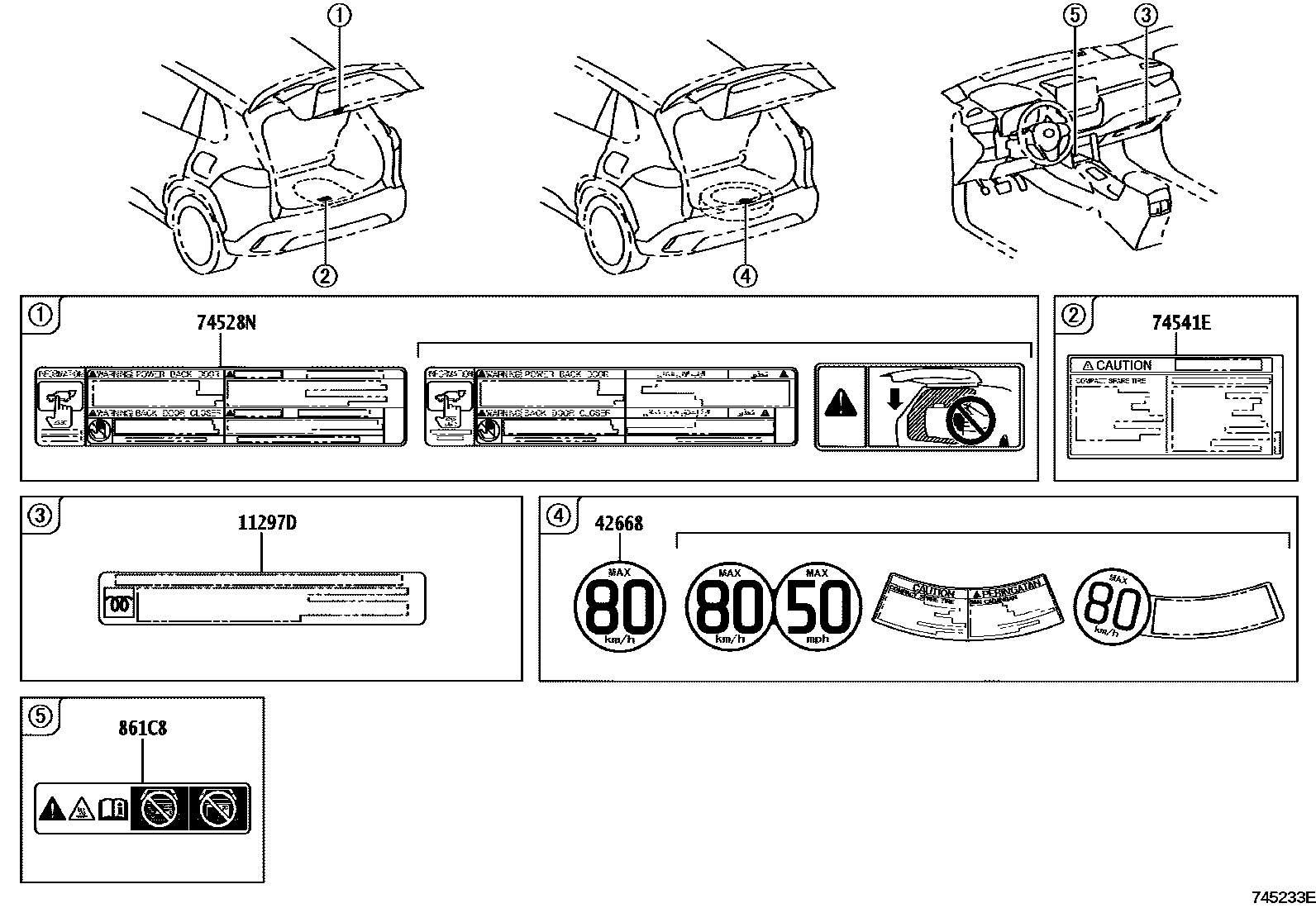

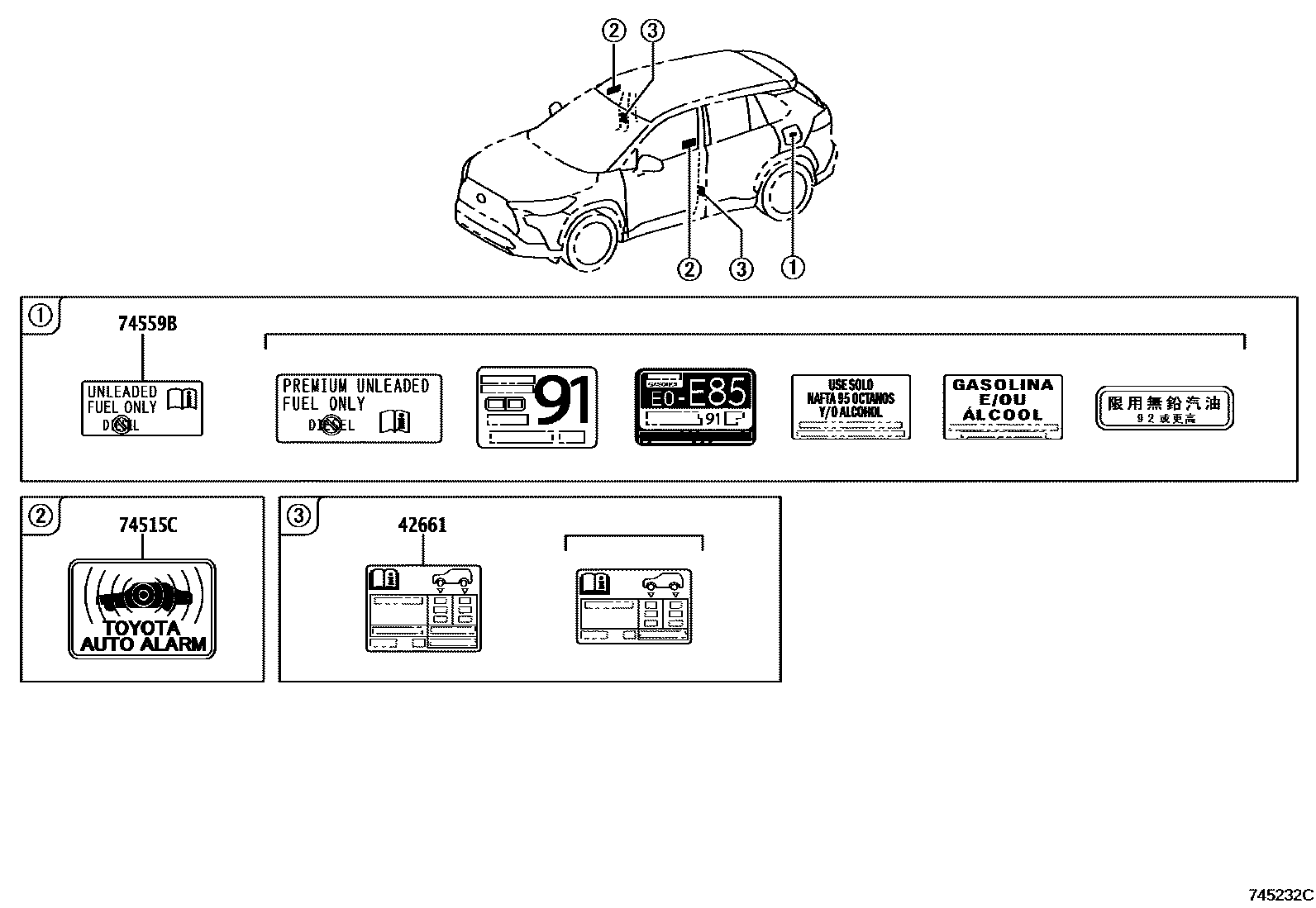

Toyota COROLLA 警示铭牌(车外和车内) — Figure 7403
Toyota COROLLA EPC diagram 7403, 警示铭牌(车外和车内), with 3 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11285A | Coolant System Caution Labels | 11285-0E030 · 11285-0E040 · 11285-0T060 · 11285-0T080 · 11285-0T090 · 11285-0T100 · 11285-11020 · 11285-11030 |
| 11291B | Engine name plate | 11291-37100 · 11291-37130 |
| 11293D | engine warning label | 11293-0T010 · 11293-36070 · 11293-37060 |
| 11297D | Engine starting information label | 11297-0T010 · 11297-0T020 |
| 11298B | Emission Control Information Label | 11298-0T330 · 11298-0T490 · 11298-0T600 · 11298-0T610 · 11298-0T620 · 11298-0T640 · 11298-0T770 · 11298-0T800 · 11298-0T830 · 11298-0T840 |
| 288A2 | Battery location label | 288A2-37020 |
| 42661 | tire pressure information label | 42661-0A070 · 42661-0A080 · 42661-0A090 · 42661-0A110 · 42661-0A130 · 42661-0A150 · 42661-0A160 · 42661-0A180 · 42661-0A250 · 42661-0A280 · 42661-0A300 · 42661-0A310 · 42661-0A320 · 42661-0A330 · 42661-0A340 |
| 42668 | Small spare tire warning label | 42668-0A010 · 42668-0D050 · 42668-20020 · 42668-76040 |
| 47288 | Brake Fluid Caution Label | 47288-71010 |
| 47997C | Accumulator No. 1 Warning Label | 47997-76010 |
| 74515C | Anti-theft warning information label | 74515-0K020 |
| 74528N | Back door No. 2 warning label | 74528-16010 · 74528-42011 · 74528-47020 · 74528-48120 |
| 74541E | Small spare tire warning plate | 42668-02060 |
| 74559B | fuel information label | 11287-0Y010 · 74559-02030 · 74559-02040 · 74559-02050 · 74559-0A030 · 74559-20140 · 74559-60030 · 74579-0B010 |
| 88723H | Cooler maintenance warning label | 88723-0A060 · 88723-0A070 · 88723-0A100 · 88723-0A110 · 88723-0A180 · 88723-0A190 · 88723-0A200 · 88723-0A210 |
| G9275 | No. 1 battery warning label | G9275-12040 · G9275-47110 · G9275-47200 |
