Toyota COROLLA battery holder — Figure 7402

Toyota COROLLA EPC diagram 7402, battery holder, with 2 images and 2 PNC and OE references.

Toyota COROLLA battery holder EPC diagram — 745230A
battery holder — 745230A (202007 – 999999)

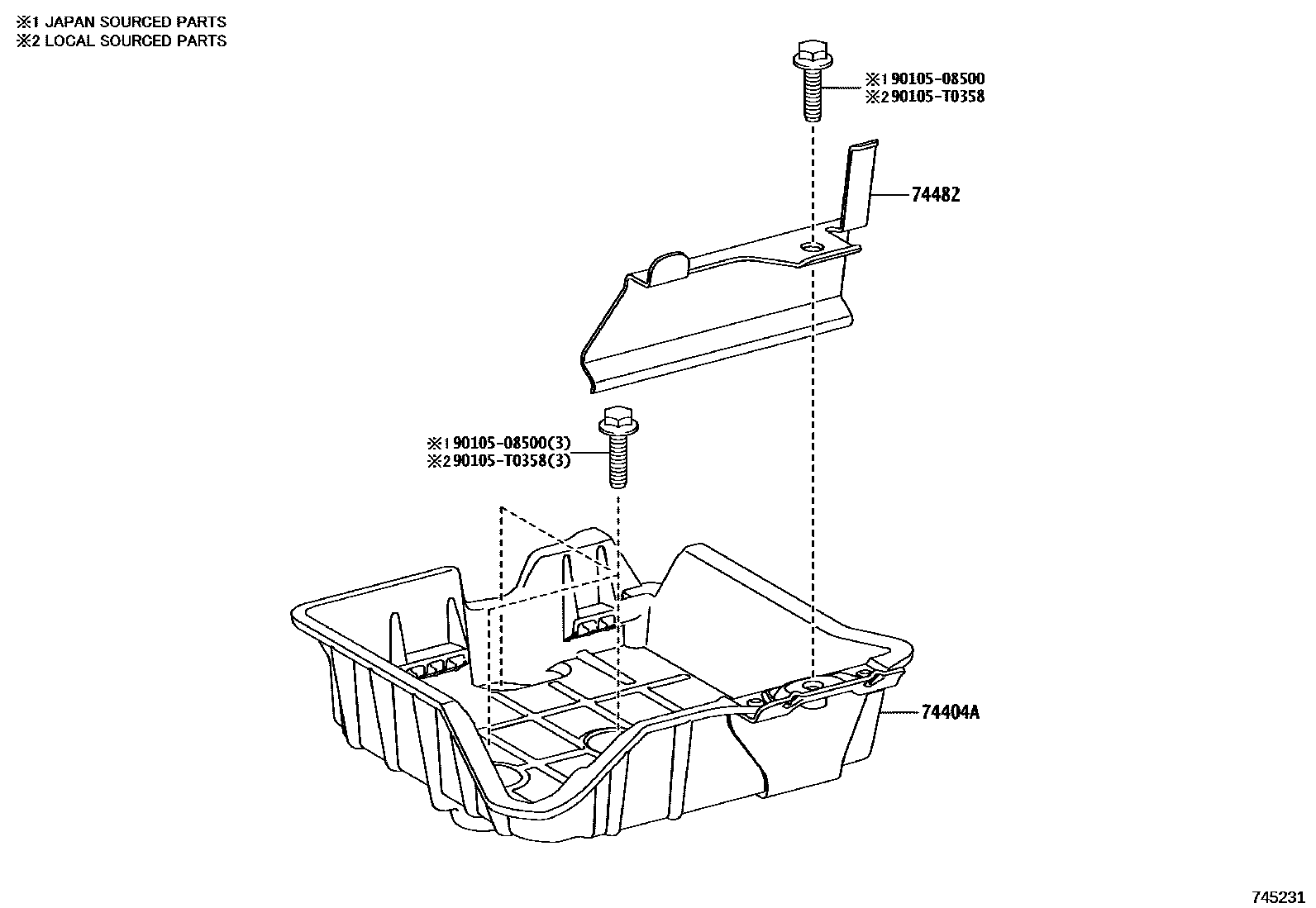

Toyota COROLLA battery holder EPC diagram — 745231
battery holder — 745231 (202007 – 999999)

PNC and OE references

PNCPart nameOE numbers
74404ABattery clip sub-assembly74404-02840 · 74404-02850 · 74404-02880 · 74404-0A050 · 74404-12540 · 74404-47030
74482No. 2 battery clip74405-02050 · 74405-02070 · 74405-02110 · 74482-02260 · 74482-47010 · 74482-F4030
