Toyota COROLLA 扶手和遮阳板 — Figure 7401

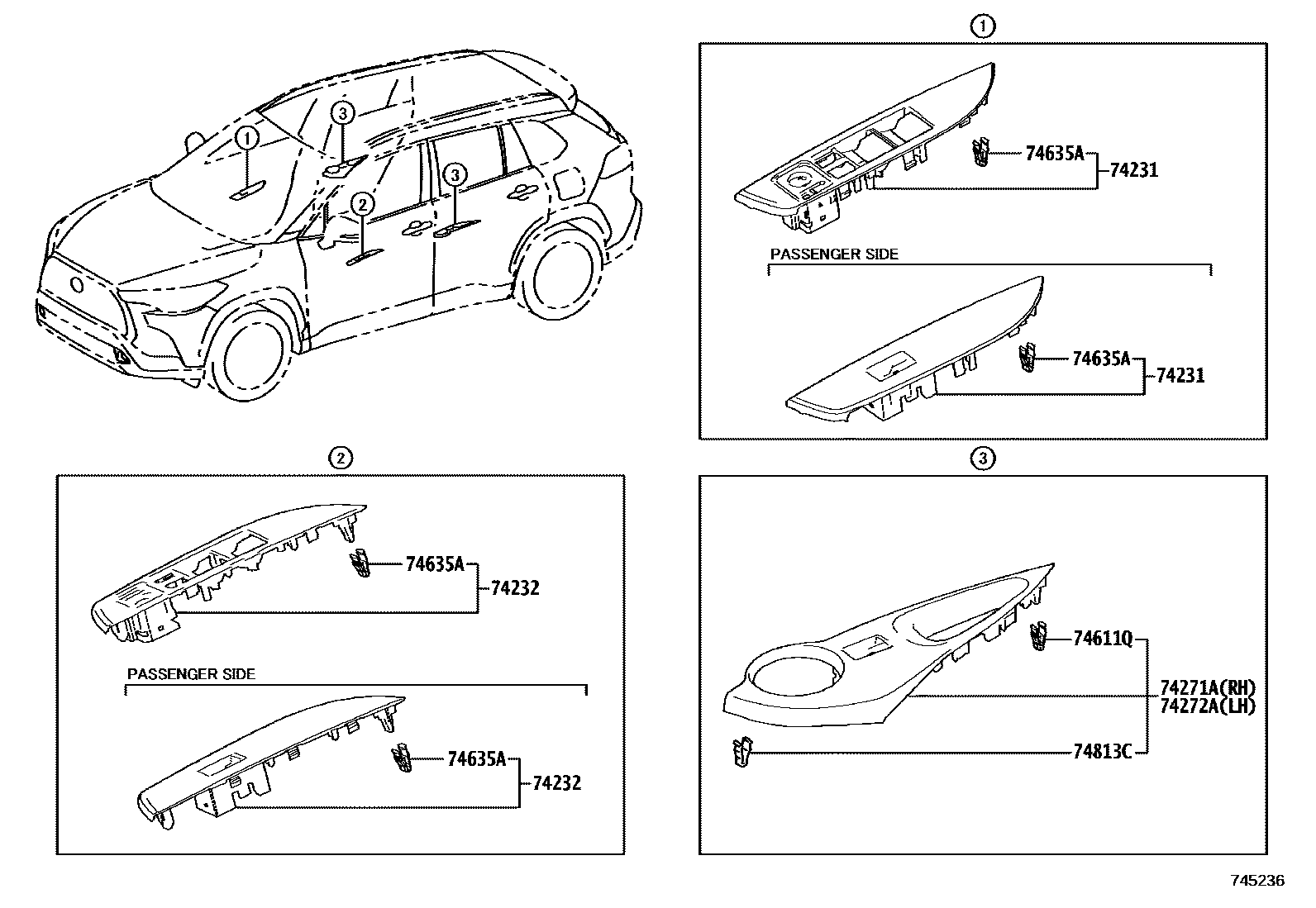

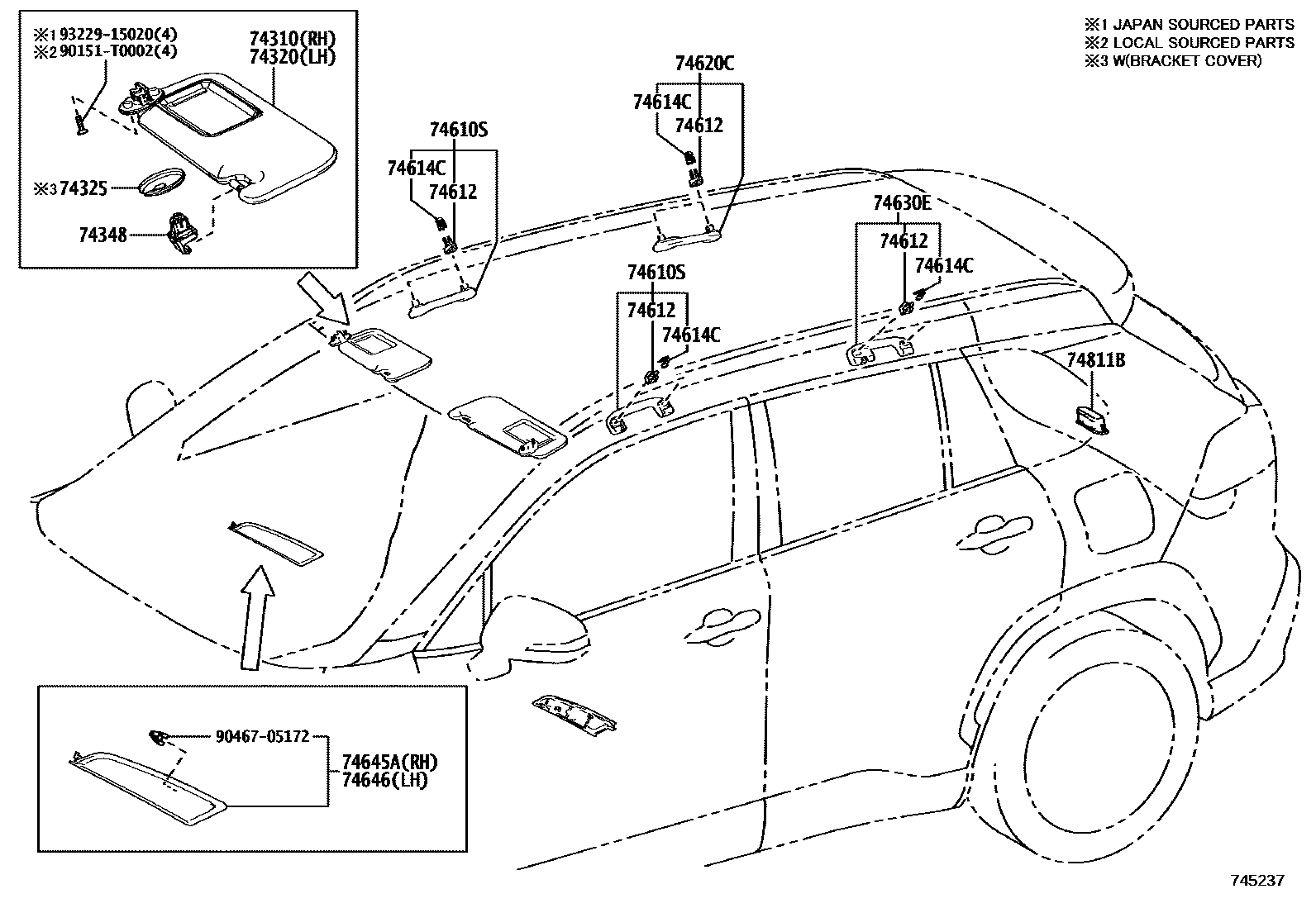

Toyota COROLLA EPC diagram 7401, 扶手和遮阳板, with 3 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74231 | Right front armrest upper panel | 74231-02G30 · 74231-02G50 · 74231-02J00 · 74231-02J20 |
| 74232 | Left front armrest upper panel | 74232-02G90 · 74232-02J30 · 74232-02J80 · 74232-02K70 |
| 74271A | Right rear door armrest upper panel | 74271-0A010 · 74271-0A020 · 74271-0A030 · 74271-0A040 |
| 74272A | Left rear door armrest upper panel | 74272-0A010 · 74272-0A020 · 74272-0A030 · 74272-0A040 |
| 74611Q | clip | 90467-10203 · 90467-A0011 · 90467-T0033 |
| 74614C | Auxiliary handle locking plate | 74614-06010 · 74614-12020 |
| 74635A | clip | 90467-10203 · 90467-T0033 |
| 74645A | Right door auxiliary handle cover | 74645-0A080 |
| 74646 | Left door auxiliary handle cover | 74646-0A080 |
| 74710 | Fire extinguisher assembly | 74710-02010 |
| 74711 | Fire extinguisher bracket sub-assembly | 74702-02020 |
| 74811B | door handle | 69285-0A040 · 69285-0D040 · 69285-0D060 |
| 74813C | clip | 90467-12080 |
