Toyota COROLLA 后排座椅和座椅滑轨 — Figure 7102

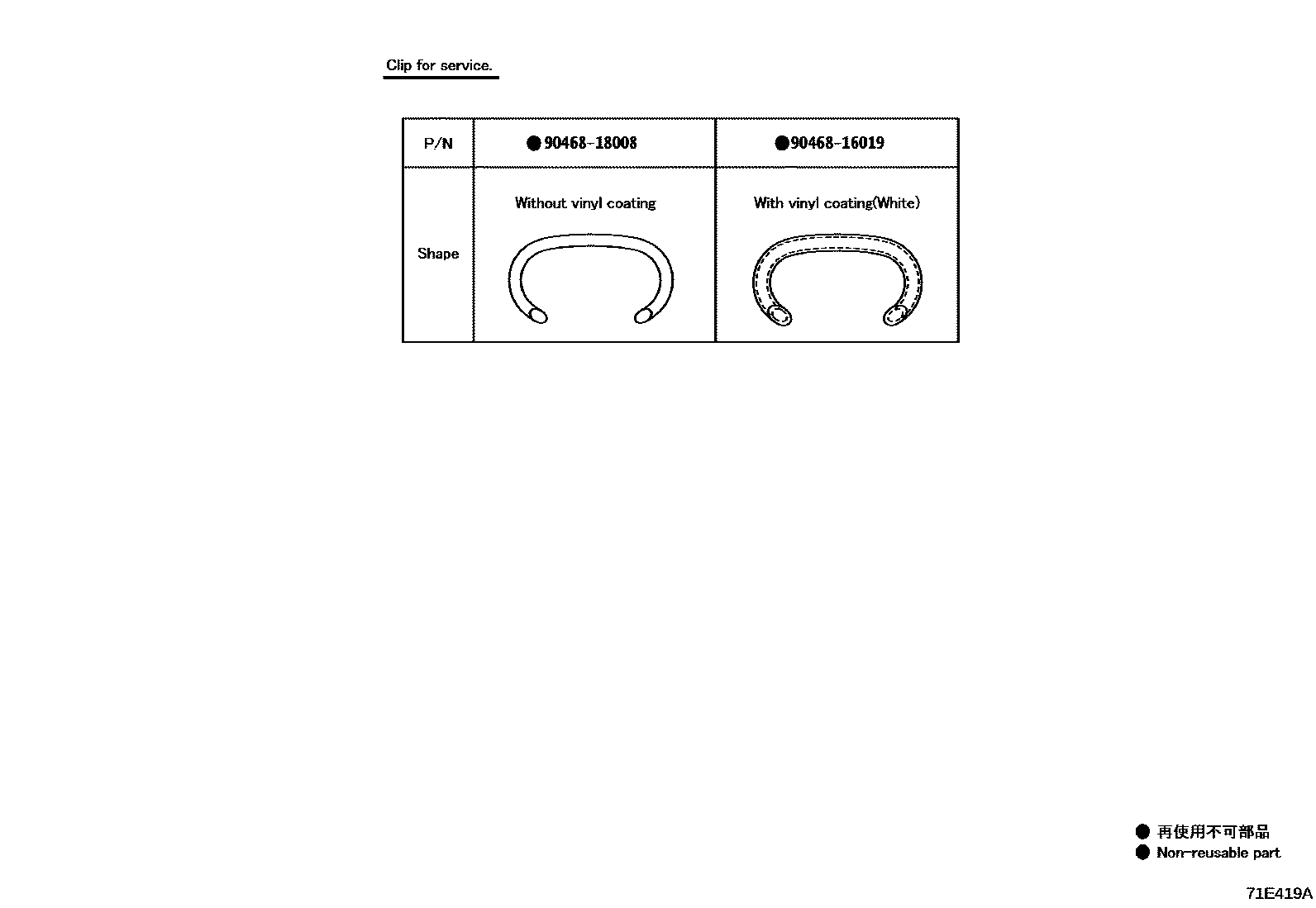

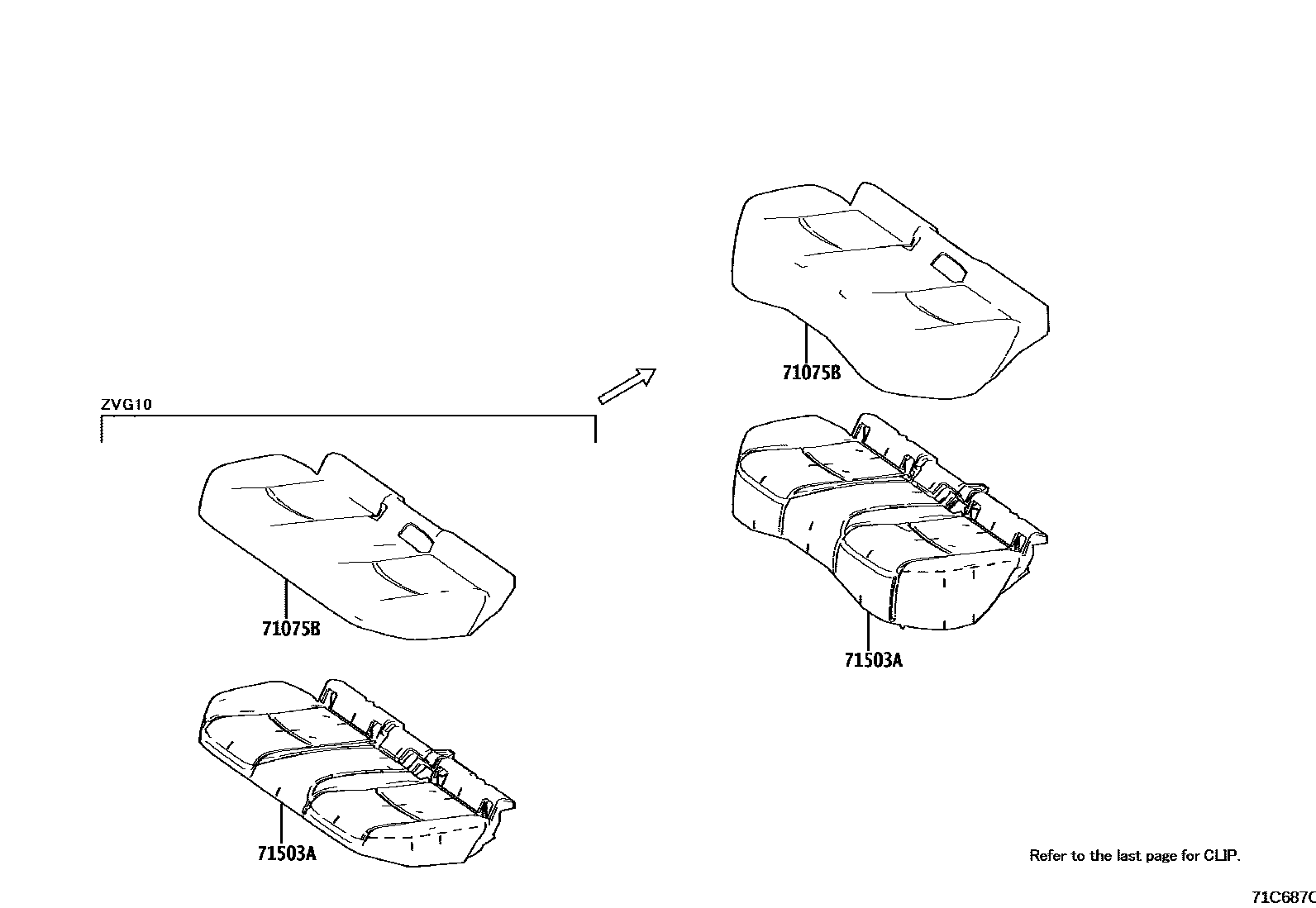

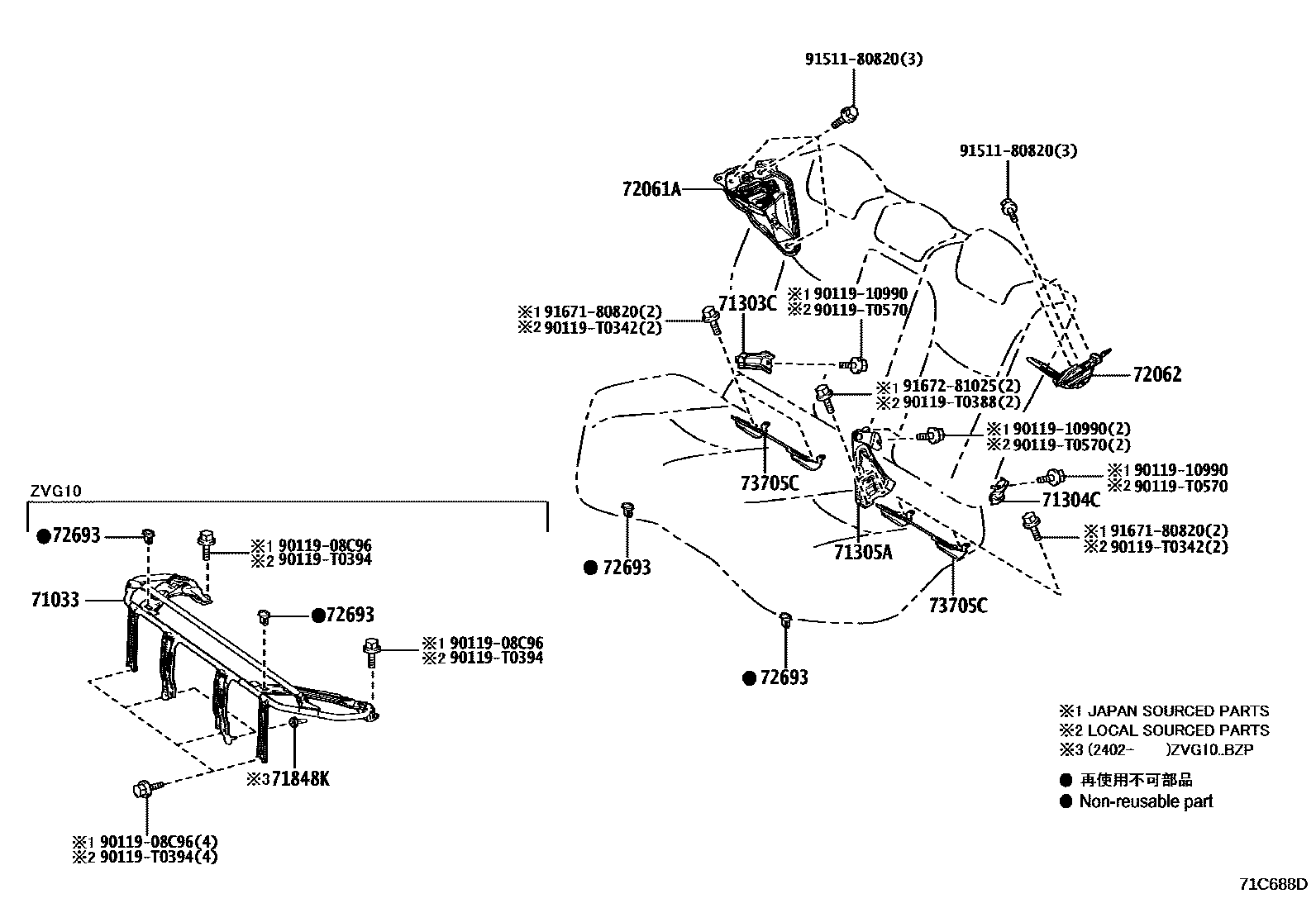

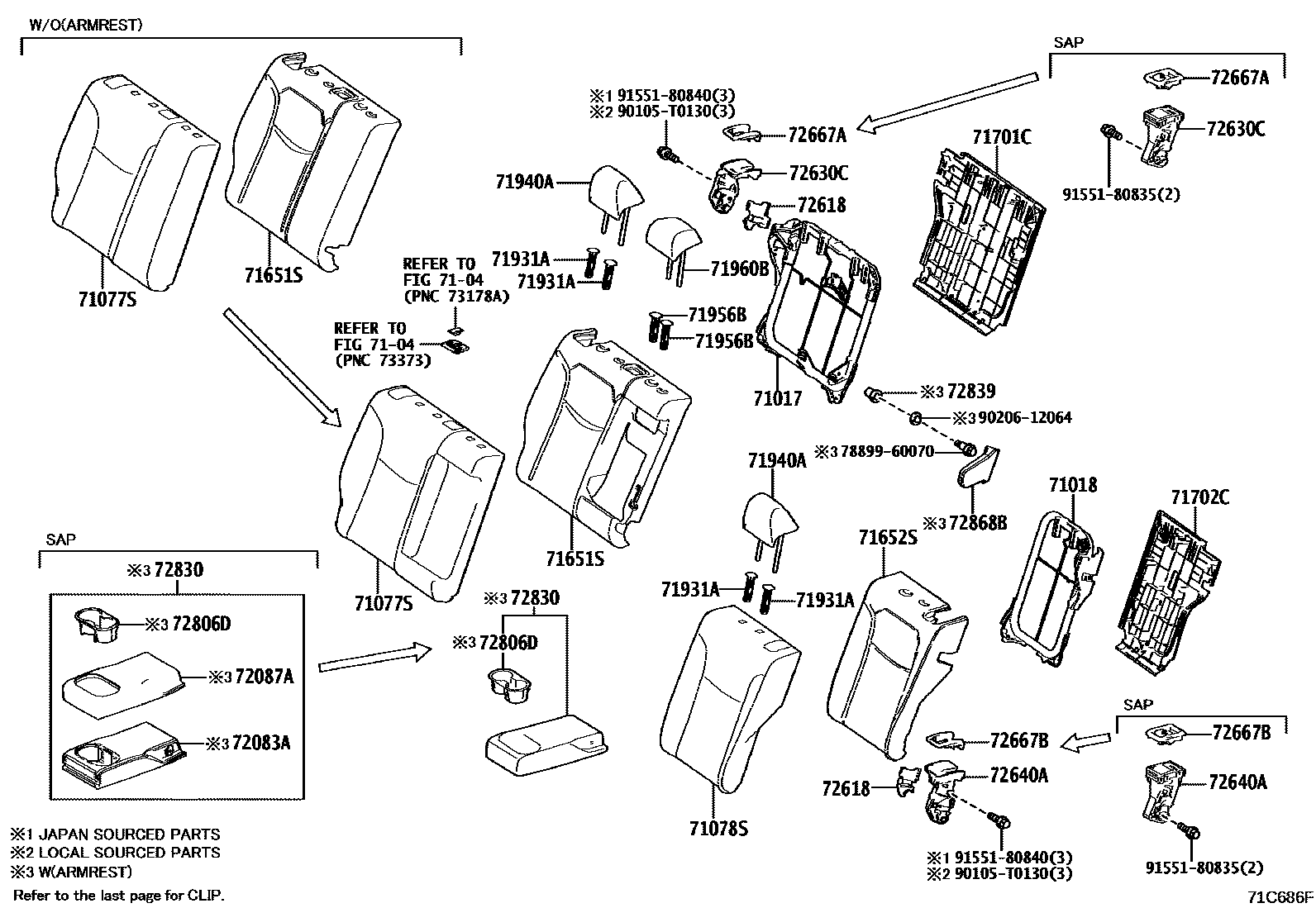

Toyota COROLLA EPC diagram 7102, 后排座椅和座椅滑轨, with 4 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71017 | Right rear seat back frame sub-assembly | 71017-0A030 · 71017-0A040 · 71017-0A050 · 71017-0A060 · 71017-0A130 · 71017-0A140 · 71017-0A150 · 71017-0A160 · 71017-0A170 |
| 71018 | Rear left seat back frame sub-assembly | 71018-0A010 · 71018-0A020 · 71018-0A030 · 71018-0A070 · 71018-0A080 · 71018-0A100 |
| 71033 | Rear seat cushion and leg sub-assembly | 71033-02030 · 71033-02040 · 71033-0A040 · 71033-0A050 · 71033-16030 · 71033-47010 |
| 71075B | Rear seat cushion cover (for bench seat) | 71075-YY100 |
| 71077S | Right rear seat back cover (for split seats) | 71077-YY470 · 71077-YY471 |
| 71078S | Rear left seat back cover (for split seats) | 71078-YY390 · 71078-YY391 |
| 71303C | Rear right seat backrest hinge sub-assembly | 71303-0A050 · 71303-10060 |
| 71304C | Rear left seat back hinge sub-assembly | 71304-0A050 · 71304-10100 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-0A010 · 71305-0A020 · 71305-0A030 · 71305-0A100 |
| 71503A | Rear seat cushion sub-assembly | 71503-0A030 · 71503-0A040 · 71503-0A050 · 71503-0A060 · 71503-0A061 · 71503-0A070 · 71503-0A071 · 71503-0A080 · 71503-0A130 · 71503-0A140 · 71503-0A150 · 71503-0A160 · 71503-0A220 · 71503-0A230 · 71503-0A240 · 71503-0A250 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-0A010 · 71651-0A020 · 71651-0A030 · 71651-0A040 · 71651-0A110 · 71651-0A120 · 71651-0A130 · 71651-0A160 · 71651-0A170 · 71651-YY020 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-0A010 · 71652-0A020 · 71652-0A030 · 71652-0A070 · 71652-0A080 · 71652-0A110 · 71652-YY010 |
| 71701C | Rear right seat back panel sub-assembly | 71701-0A010 · 71701-0A020 · 71701-0A030 · 71701-0A060 · 71701-0A090 |
| 71702C | Rear left seat back panel sub-assembly | 71702-0A010 · 71702-0A020 · 71702-0A030 · 71702-0A070 · 71702-0A090 |
| 71848K | seat adjuster cover | 71848-47050 |
| 71931A | Rear seat headrest bracket | 71930-0K050 · 71931-0K040 |
| 71940A | Rear seat headrest assembly | 71940-0A050 · 71940-0A171 · 71940-0A181 |
| 71956B | Rear seat headrest bracket | 71930-0K050 · 71931-0K040 |
| 71960B | Rear center seat headrest assembly | 71960-0A070 · 71960-0A101 · 71960-0A111 |
| 72061A | Rear right seat back lock base sub-assembly | 72061-0A010 · 72061-0A020 · 72061-0A030 · 72061-0A070 |
| 72062 | Rear left seat back lock base sub-assembly | 72062-0A010 · 72062-0A020 · 72062-0A030 · 72062-0A070 |
| 72083A | Rear seat center armrest pad sub-assembly | 72083-0A060 |
| 72618 | Rear seat back lock protective cover | 72618-0A010 · 72618-0A020 · 72618-0A030 · 72618-0A040 · 72618-0A050 · 72618-0A060 · 72618-0A110 · 72618-0A120 |
| 72693 | Rear seat cushion hook | 72693-12080 |
| 72806D | Rear seat center armrest cup holder sub-assembly | 72806-0A030 |
| 72830 | Rear seat center armrest assembly | 72830-0A060 |
| 72839 | Rear seat armrest hinge gasket | 72839-22010 |
| 72868B | Center armrest hinge cover | 72868-0A010 |
| 73705C | Child restraint seat anchor bracket sub-assembly | 73705-0A010 · 73705-0A030 · 73705-0A050 · 73705-0A140 |
