Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101

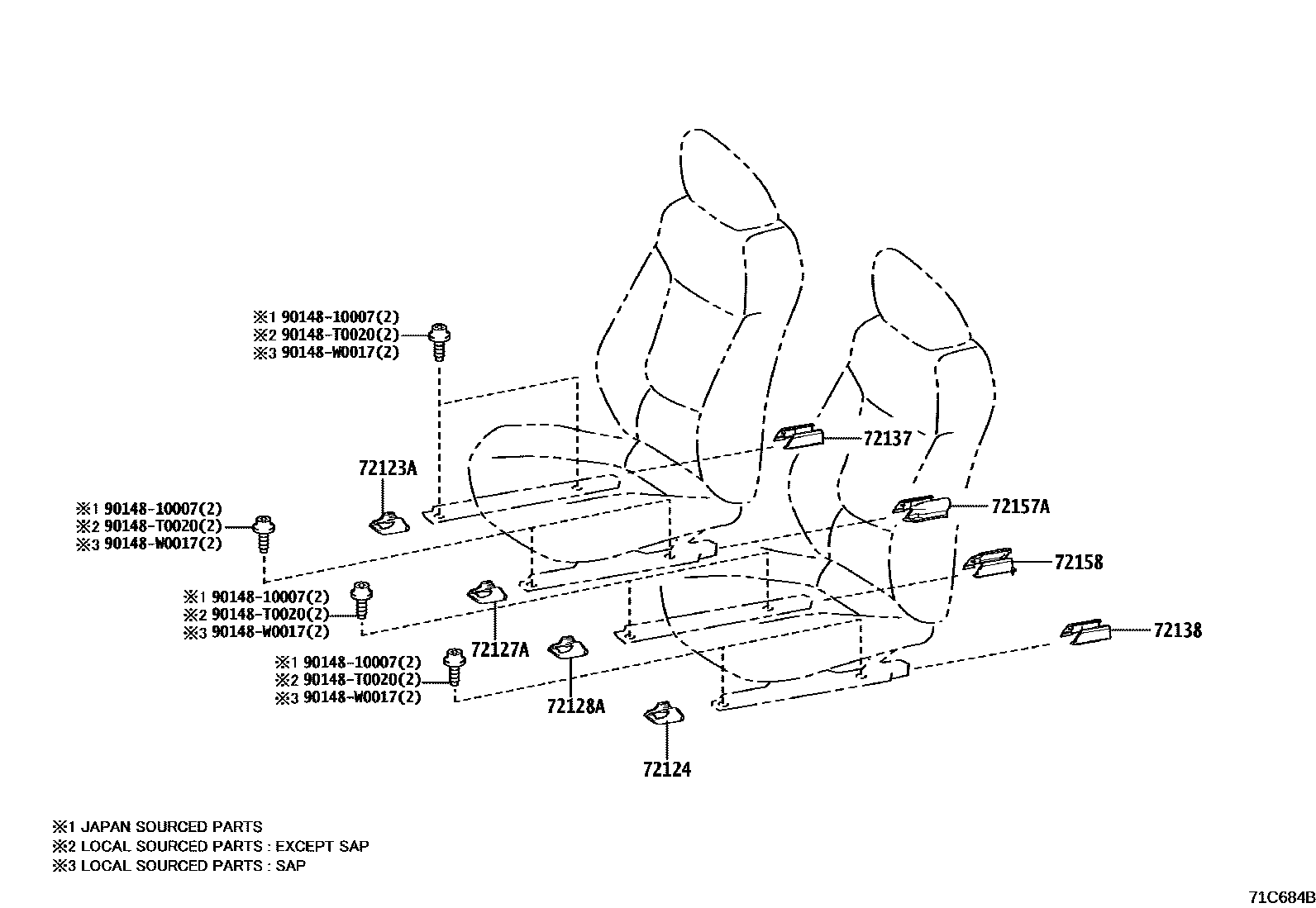

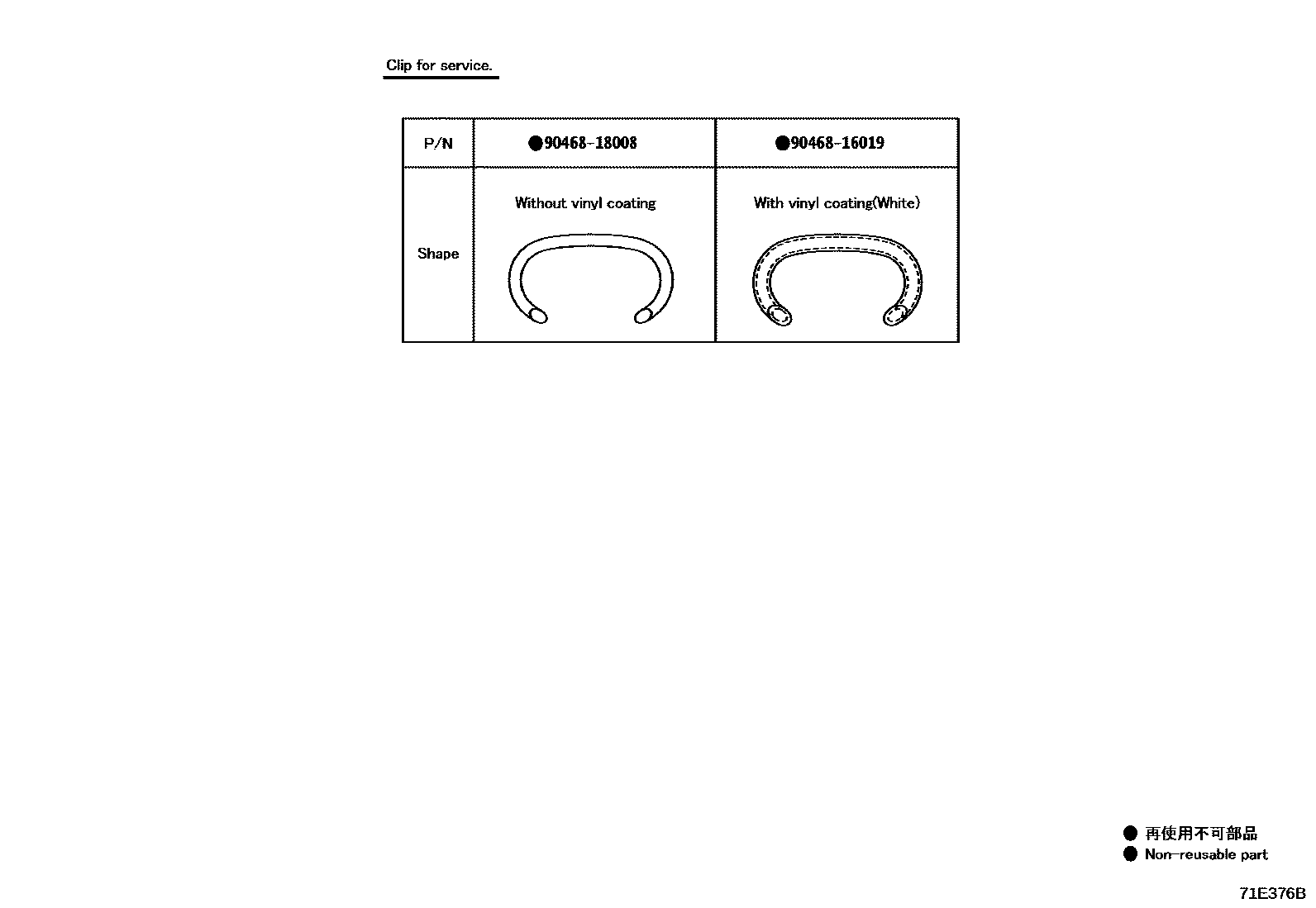

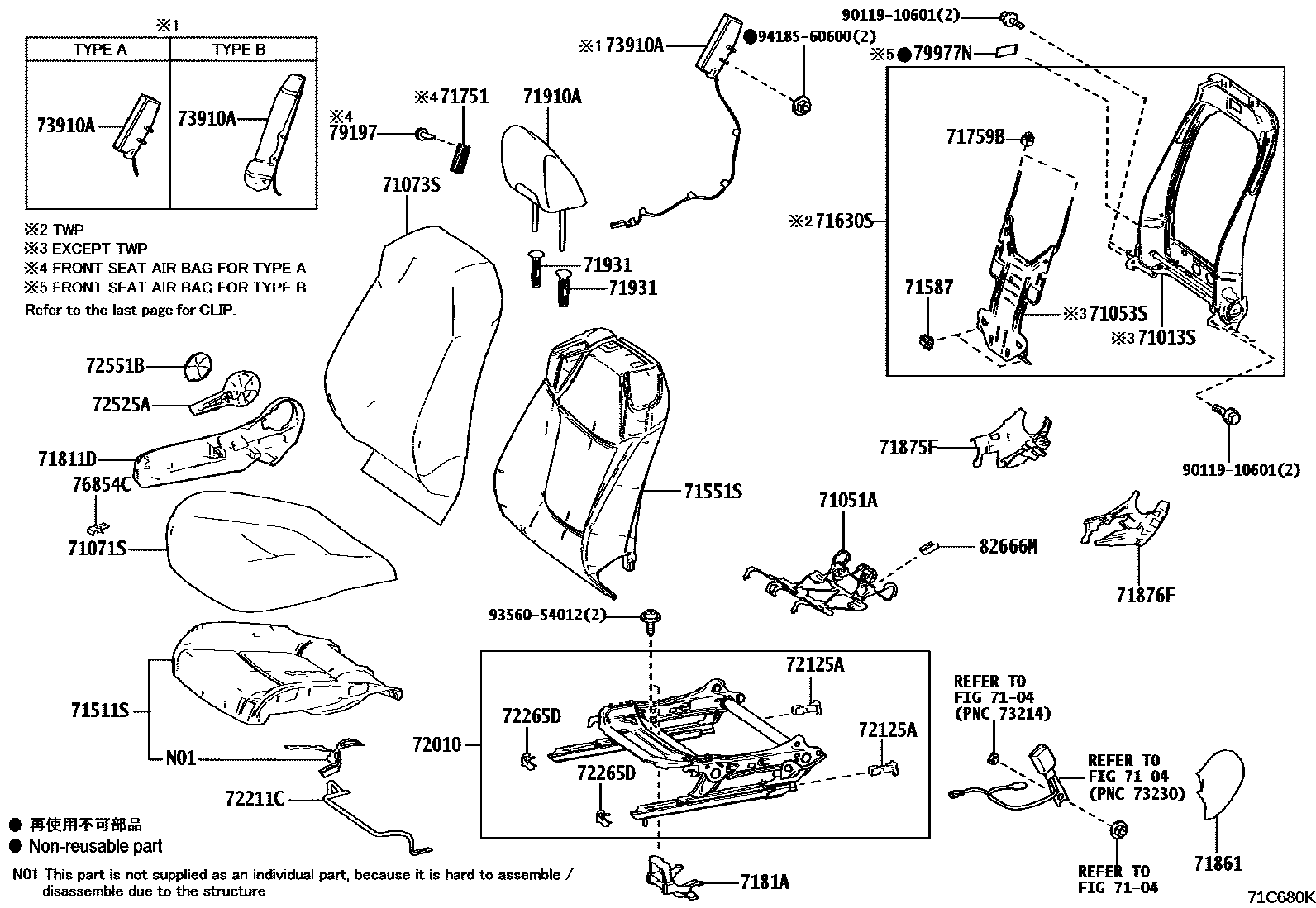

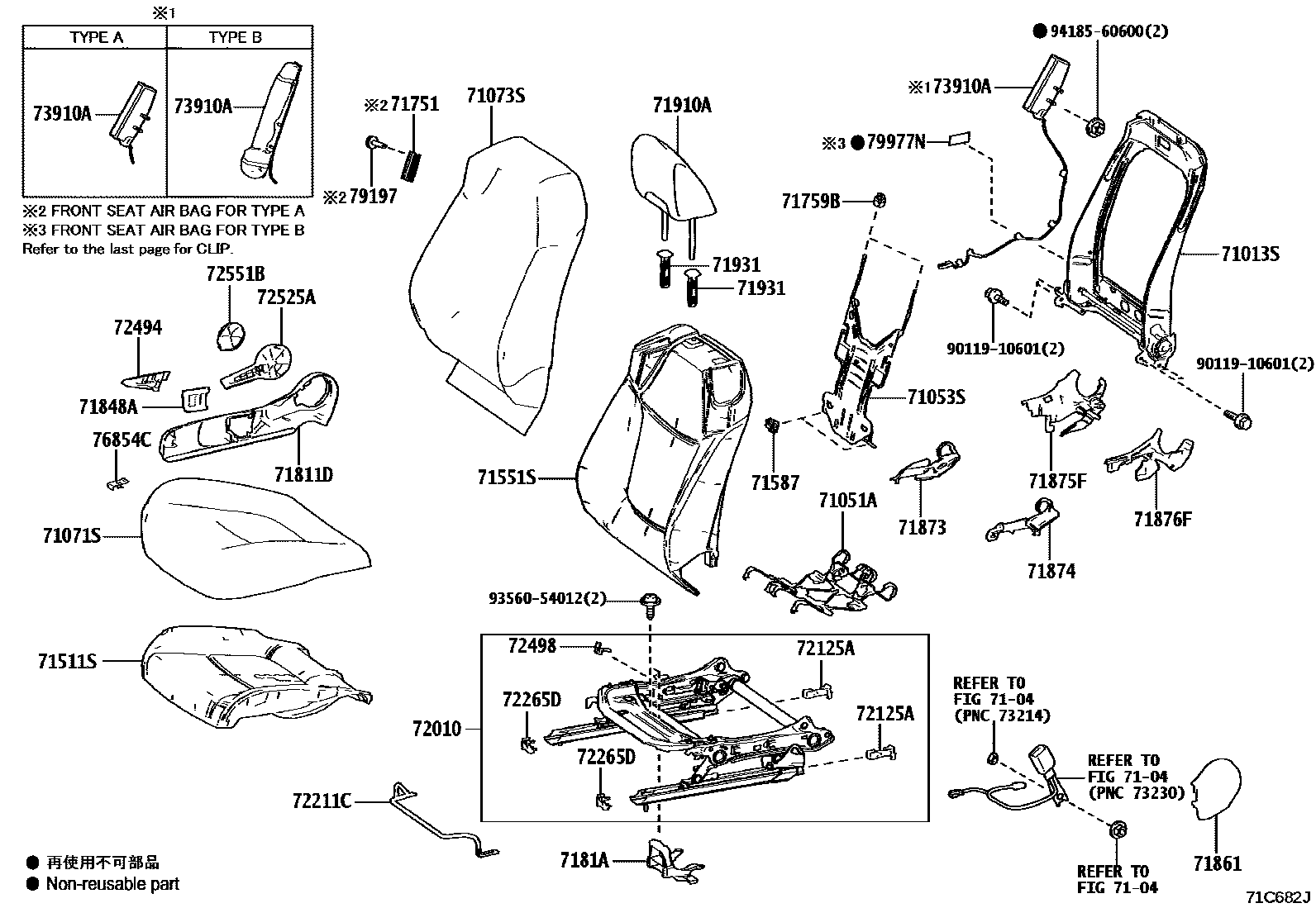

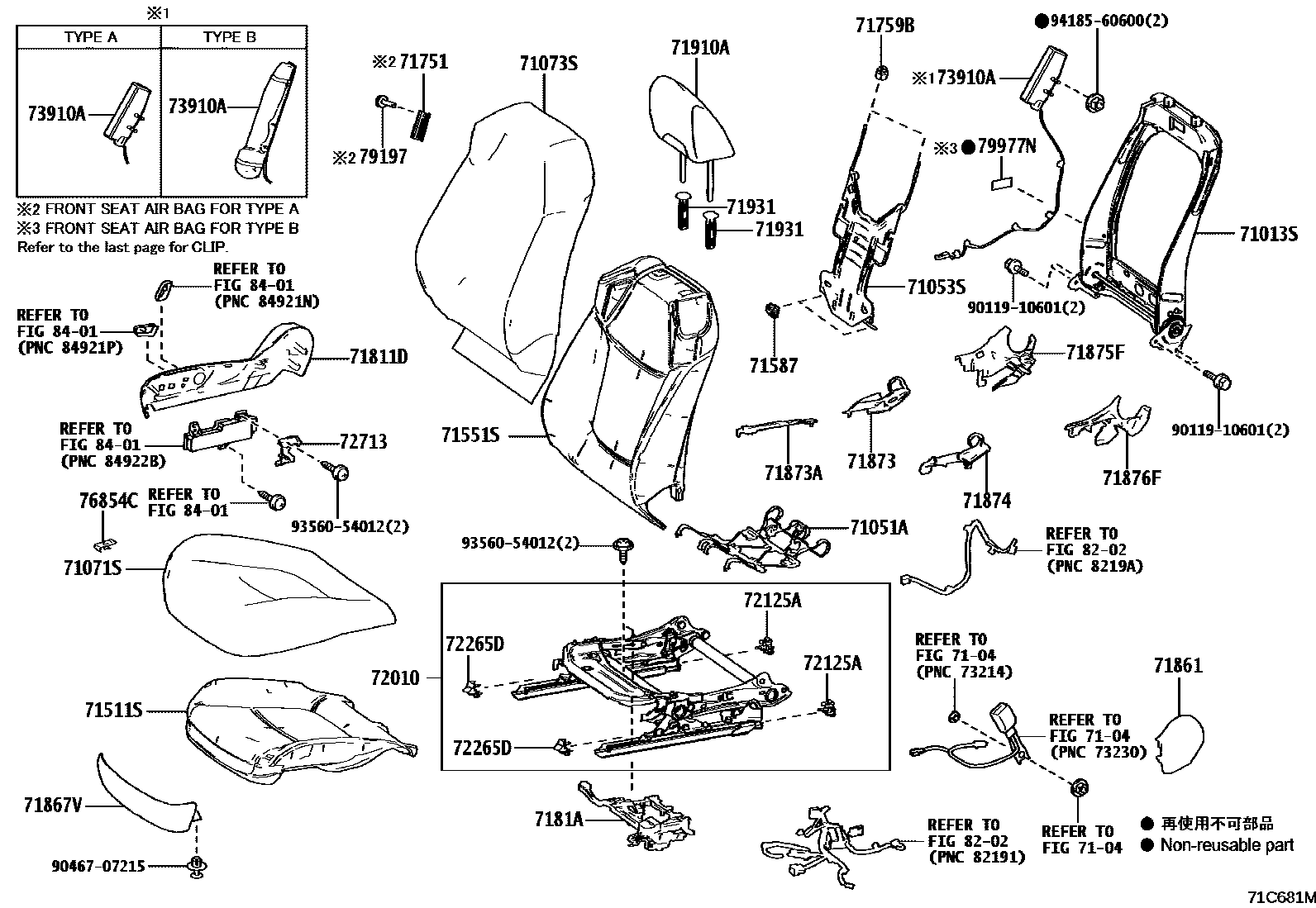

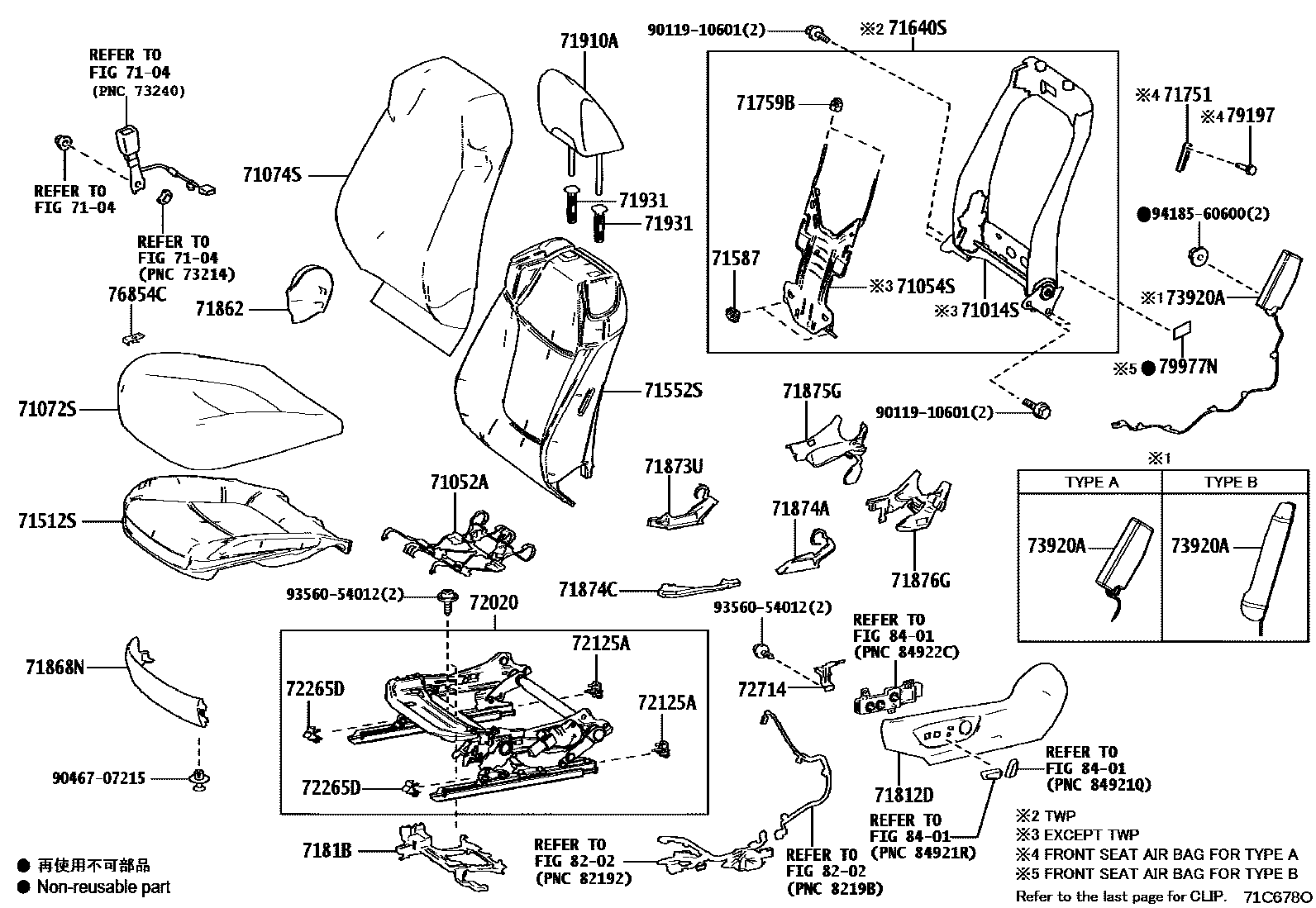

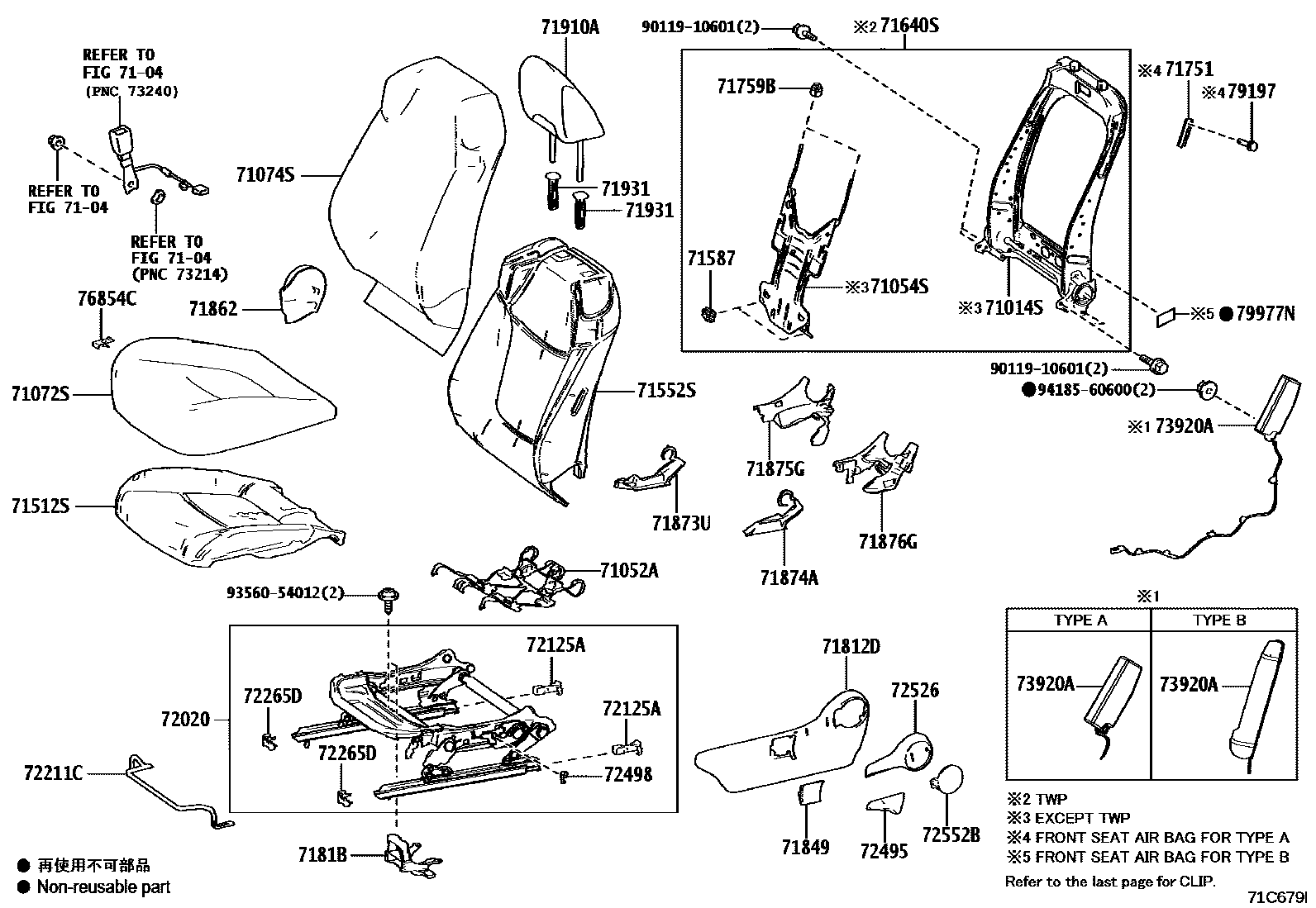

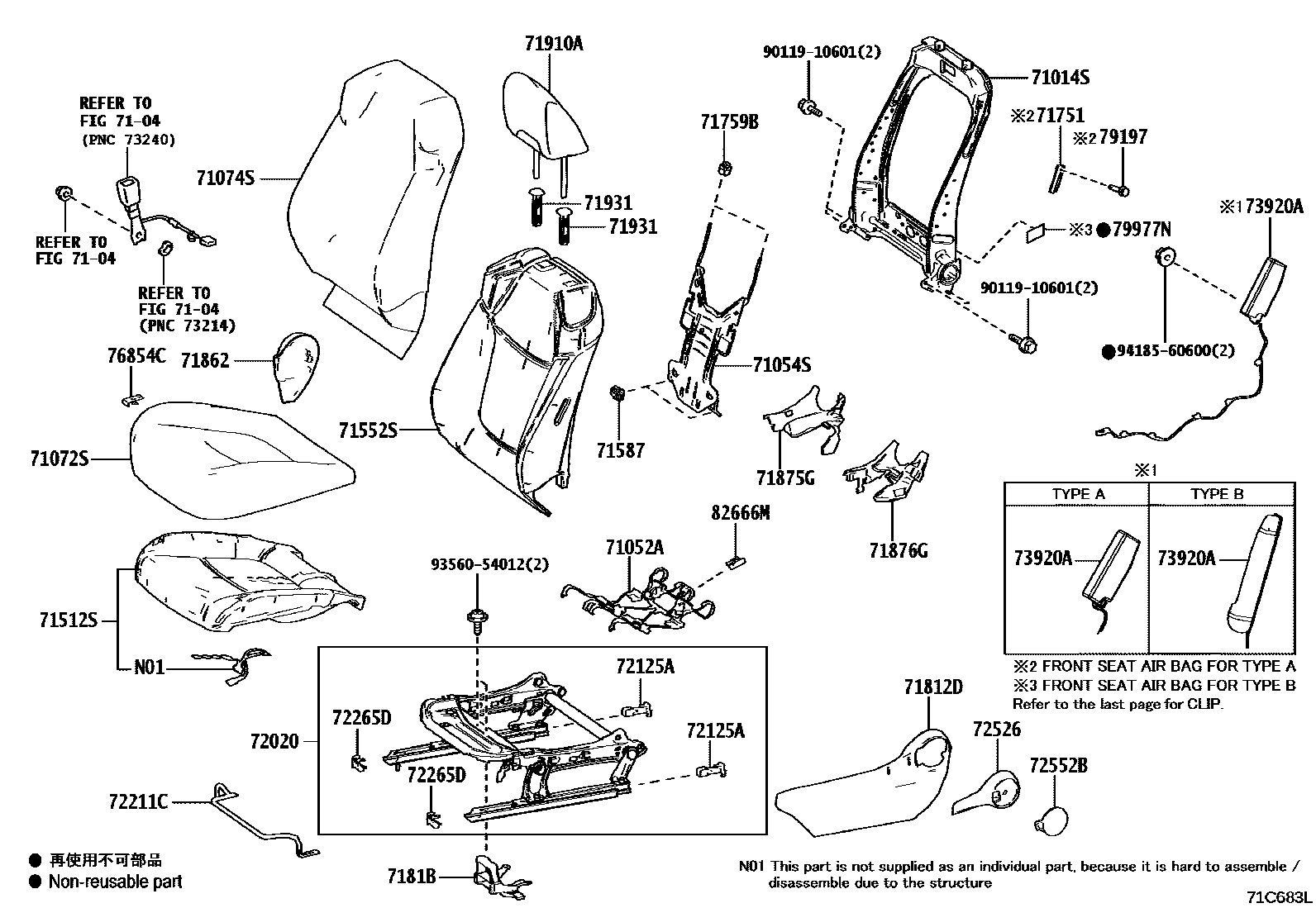

Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 8 images and 57 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71013S | Front right seat back frame sub-assembly | 71013-06581 · 71013-06620 · 71013-0A040 · 71013-0A080 · 71013-0A090 · 71013-0A100 |
| 71014S | Front left seat back frame sub-assembly | 71014-06521 · 71014-06560 · 71014-0A010 · 71014-0A030 · 71014-0A100 · 71014-0A110 · 71014-42211 |
| 71051A | Front right seat cushion spring sub-assembly | 71051-02400 · 71051-06120 · 71051-0A020 · 71051-0A040 |
| 71052A | Front left seat cushion spring sub-assembly | 71051-02400 · 71051-06120 · 71051-0A020 · 71051-0A040 |
| 71053S | Front right seat back spring sub-assembly | 71053-06160 · 71053-0A010 · 71053-0A020 |
| 71054S | Front left seat back spring sub-assembly | 71053-06160 · 71053-0A010 · 71053-0A020 |
| 71074S | Front left seat back cover (for split seats) | 71074-YY550 |
| 71511S | Front right seat cushion cushion (for split seats) | 71501-0A010 · 71501-0A020 · 71501-0A030 · 71501-0A040 · 71511-0A030 · 71511-0A040 · 71511-0A110 · 71511-0A120 · 71511-0A130 |
| 71512S | Front left seat cushion cushion (for split seats) | 71502-0A010 · 71502-0A020 · 71502-0A030 · 71512-0A010 · 71512-0A020 · 71512-0A030 · 71512-0A040 · 71512-0A050 · 71512-0A060 · 71512-0A130 |
| 71551S | Front right seat back cushion (for split seats) | 71551-0A010 · 71551-0A020 · 71551-0A030 · 71551-0A040 · 71551-0A060 · 71551-0A080 · 71551-0A090 · 71551-0A120 · 71551-0A130 · 71551-0A140 · 71551-YY020 |
| 71552S | Front left seat back cushion (for split seats) | 71551-0A040 · 71551-0A060 · 71551-0A130 · 71552-0A010 · 71552-0A020 · 71552-0A030 · 71552-0A080 · 71552-0A090 · 71552-0A120 · 71552-0A140 · 71552-YY020 |
| 71587 | Front seat back edge protective cover | 71587-47010 · 71587-F4010 · 71587-F4030 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-02A90 |
| 71640S | Front left seat back spring assembly (for split seats) | 71640-02B90 · 71640-0A020 |
| 71751 | Seat cover hanger | 71751-0K070 |
| 71759B | Front seat back hook | 71759-0K060 · 71759-50040 |
| 71812D | Front left seat cushion guard | 71812-06620 |
| 7181A | Front right seat cushion harness holder | 7181A-02030 · 7181A-06030 · 7181A-0A020 · 7181A-0A050 · 7181A-F4020 · 7181A-F4050 |
| 7181B | Front left seat cushion harness holder | 7181B-02030 · 7181B-02060 · 7181B-06030 · 7181B-0A030 · 7181B-0A050 · 7181B-0A060 · 7181B-F4020 |
| 71862 | Front seat cushion left inner guard panel | 71862-06370 |
| 71873 | Front right seat cushion lower guard panel | 71873-06430 · 71873-06550 · 71873-0A010 |
| 71873A | Front seat cushion lower guard | 71873-06550 · 71873-0A010 |
| 71873U | Front right seat cushion lower guard panel | 71874-02330 · 71874-06640 · 71874-0A020 · 71874-0A050 |
| 71874 | Front left seat cushion lower guard | 71873-06620 · 71873-0A020 |
| 71874A | Front left seat cushion lower guard | 71874-02320 · 71874-06420 · 71874-0A010 · 71874-0A040 |
| 71874C | Front seat cushion lower guard | 71874-02370 · 71874-06570 |
| 71875G | Right backrest recliner inner cover (for left seat) | 71876-06550 |
| 71876G | Left backrest recliner inner cover (for left seat) | 71876-06540 |
| 71910A | Front seat headrest assembly | 71910-YY300 |
| 71931 | Front seat headrest bracket | 71930-0K050 · 71931-0K040 |
| 72010 | Front right seat adjuster assembly | 72010-02820 · 72010-06440 · 72010-06461 · 72010-06470 · 72010-0A010 · 72010-0A030 · 72010-0A040 · 72010-0A050 · 72010-0A060 |
| 72020 | Front left seat adjuster assembly | 72020-02841 · 72020-02850 · 72020-06420 · 72020-06441 · 72020-06450 · 72020-0A010 · 72020-0A020 · 72020-0A050 · 72020-0A060 · 72020-0A070 |
| 72123A | Front right seat outer slide rail bracket cover | 72123-02150 · 72123-06130 · 72123-0A020 · 72123-0A030 · 72123-10100 |
| 72124 | Front left seat outer slide rail bracket cover | 72123-02150 · 72123-06130 · 72123-0A020 · 72123-0A030 · 72123-10100 |
| 72125A | Rear seat upper slide rail cover | 72125-02100 · 72125-02110 · 72125-06090 · 72125-06100 · 72125-47010 · 72125-47020 · 72125-F4030 |
| 72127A | Front right seat inner slide rail bracket cover | 72123-02150 · 72123-06130 · 72123-0A020 · 72123-0A030 · 72123-10100 |
| 72128A | Front left seat inner slide rail bracket cover | 72123-02150 · 72123-06130 · 72123-0A020 · 72123-0A030 · 72123-10100 |
| 72137 | Right seat outer slide rail cover | 72137-02390 · 72137-06150 · 72137-0A040 · 72137-0A050 · 72137-47060 |
| 72138 | Left seat outer slide rail cover | 72137-02390 · 72137-06150 · 72137-0A040 · 72137-0A050 · 72137-47060 |
| 72157A | Right seat inner slide rail bracket cover | 72157-0A060 · 72157-10090 |
| 72158 | Left seat inner slide rail bracket cover | 72158-0A060 · 72158-10040 |
| 72211C | Seat slide adjustment handle | 72211-02190 · 72211-06150 · 72211-0A010 · 72211-F4010 |
| 72265D | Seat rail upper rail cover | 72265-06040 · 72265-06060 · 72265-47010 · 72265-47020 · 72265-F4020 |
| 72494 | Right height adjuster handle | 72494-10021 |
| 72495 | Left height adjuster handle | 72495-16010 |
| 72498 | Height adjuster bracket cover | 72498-02040 · 72498-06010 · 72498-06020 · 72498-47010 · 72498-47020 |
| 72525A | Right seat back recliner release handle | 72525-10070 |
| 72526 | Left seat back recliner release handle | 72526-06140 · 72526-16020 |
| 72552B | Left seat backrest tilt hinge cover | 72551-06020 |
| 72713 | Right seat adjuster protective clip bracket | 72713-06020 · 72713-47010 |
| 72714 | Left seat adjuster protective clip bracket | 72714-02060 · 72714-06020 |
| 73910A | Front right seat airbag assembly | 73910-02270 · 73910-06210 · 73910-0A020 · 73910-12100 · 73910-16010 |
| 73920A | Front left seat airbag assembly | 73920-02270 · 73920-06220 · 73920-0A020 · 73920-12090 · 73920-16010 |
| 76854C | Front seat cushion cover wire fixings | 76854-44010 |
| 79197 | Seat back cover hook | 79197-0K010 |
| 79977N | Seat back felt pad | 79977-02120 · 79977-0A010 · 79977-0A020 |
| 82666M | Connector holder | 82666-47630 |
