Toyota COROLLA 背门锁和背门把手 — Figure 6709

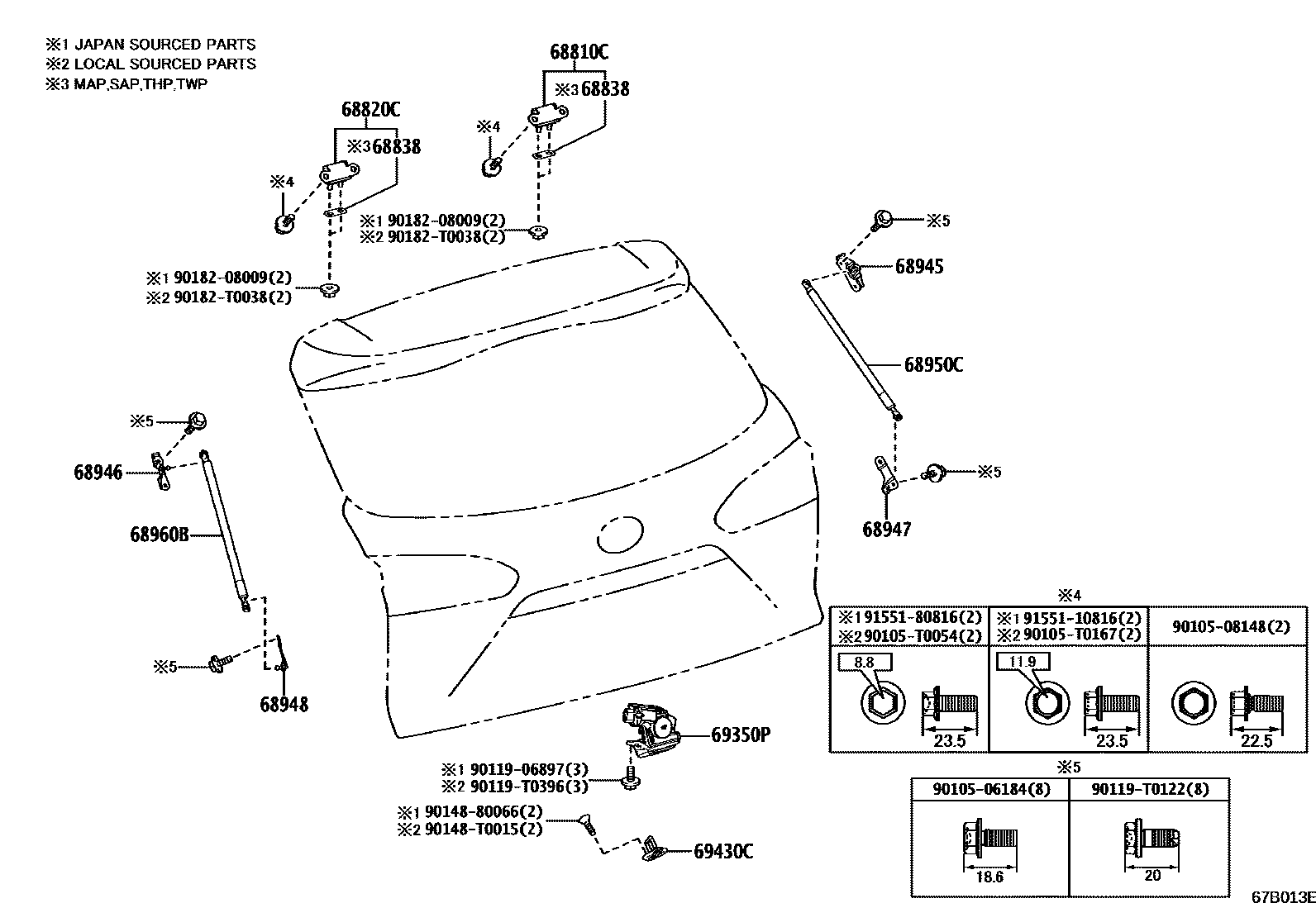

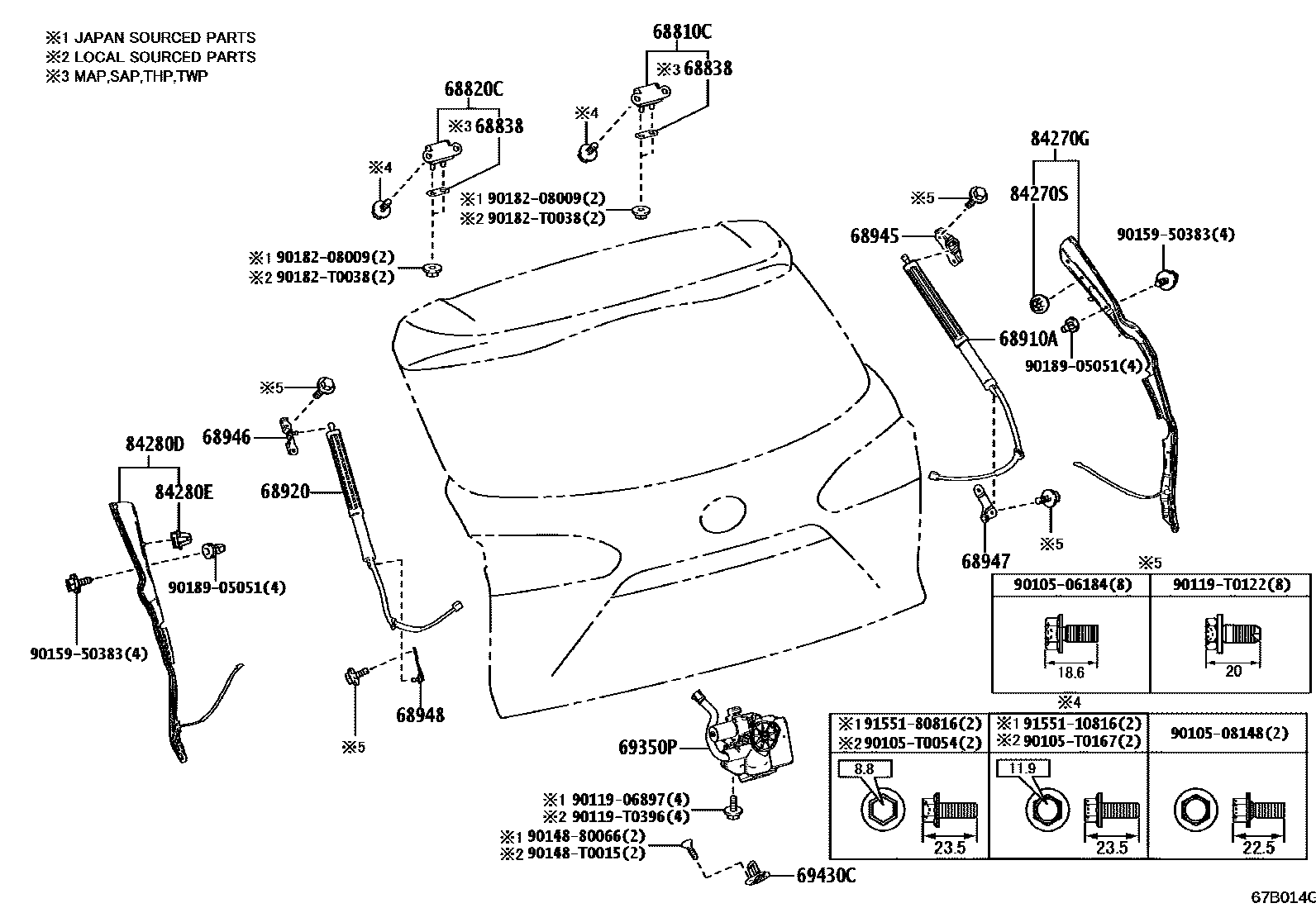

Toyota COROLLA EPC diagram 6709, 背门锁和背门把手, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68810C | Back door right hinge assembly | 68810-0A030 · 68810-0A060 · 68810-0A080 · 68810-0A200 · 68810-0A260 · 68810-0A270 · 68810-0A280 · 68810-0A310 · 68810-0A330 · 68810-0A350 |
| 68820C | Back door left hinge assembly | 68810-0A030 · 68810-0A060 · 68810-0A080 · 68810-0A200 · 68810-0A260 · 68810-0A270 · 68810-0A280 · 68810-0A310 · 68810-0A330 · 68810-0A350 |
| 68838 | Back door hinge No. 1 gasket | 68838-0A040 · 68838-0A050 · 68838-0A060 · 68838-0A190 · 68838-0A200 · 68838-0A210 · 68838-42010 · 68838-42020 · 68838-42030 · 68838-F4050 |
| 68910A | Right rear door electric unit assembly assembly | 68910-16010 · 68910-16022 |
| 68920 | Left rear door electric unit assembly assembly | 68920-16010 · 68920-16022 |
| 68945 | Back door right damping stay upper bracket | 68945-0A010 · 68945-0A020 · 68945-0A050 · 68945-0A120 · 68945-0A140 · 68945-0A150 · 68945-0A160 · 68945-0A170 · 68945-0A200 · 68945-0A210 |
| 68946 | Rear door left damping strut upper bracket | 68946-0A010 · 68946-0A020 · 68946-0A050 · 68946-0A120 · 68946-0A140 · 68946-0A150 · 68946-0A160 · 68946-0A170 · 68946-0A200 · 68946-0A210 |
| 68947 | Back door right damping strut lower bracket | 68947-0A010 · 68947-0A050 · 68947-0A100 · 68947-0A130 · 68947-0A150 · 68947-0A170 |
| 68948 | Rear door left damping strut lower bracket | 68948-0A010 · 68948-0A050 · 68948-0A060 · 68948-0A120 · 68948-0A150 · 68948-0A170 |
| 68950C | Back door right support rod assembly | 68950-0A010 · 68950-0A030 · 68950-0A100 · 68950-0A110 |
| 68960B | Back door left support rod assembly | 68960-0A010 · 68960-0A030 · 68960-0A100 · 68960-0A110 |
| 69350P | Back door with door control light switch lock assembly | 69350-0A070 · 69350-0K190 · 69350-42060 · 69350-42070 · 69350-78090 |
| 69430C | Back door lock assembly | 69430-0A030 · 69430-28050 · 69430-F4020 |
| 84270G | Electric back door right side sensor assembly | 84270-16010 · 84270-16020 |
| 84270S | Catch (sensor on the right side of the electric back door) | 61617-42040 |
| 84280D | Electric back door left sensor assembly | 84280-16010 · 84280-16020 |
| 84280E | Catch (electric back door left sensor) | 61617-42040 |
