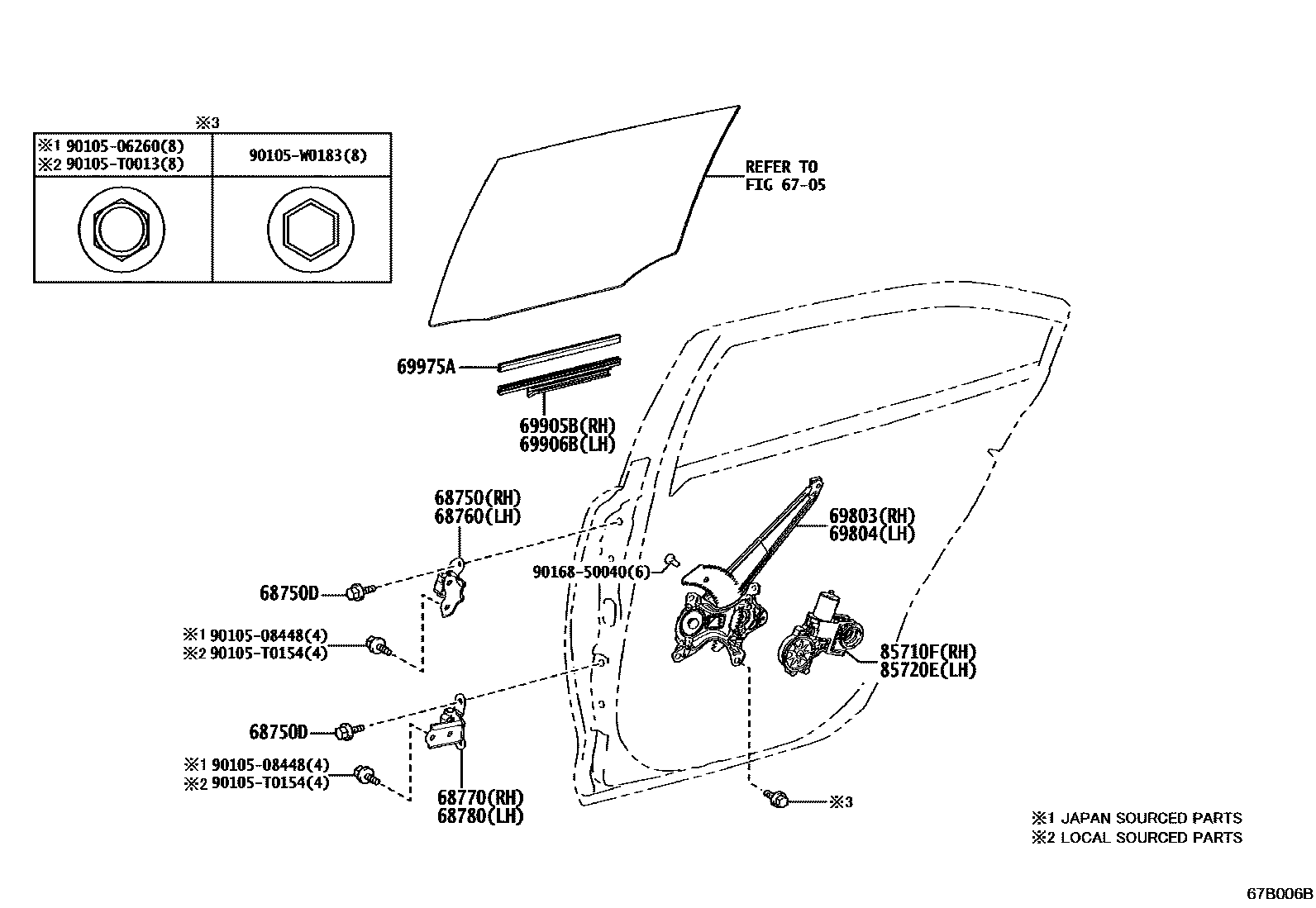

Toyota COROLLA 后门车窗升降器和合页 — Figure 6707
Toyota COROLLA EPC diagram 6707, 后门车窗升降器和合页, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68750 | Right rear door upper hinge assembly | 68750-02020 · 68750-02090 · 68750-0D030 |
| 68750D | Bolt No. 1 (for rear door hinge) | 90105-08485 · 90105-T0343 · 90109-T0049 |
| 68760 | Left rear door upper hinge assembly | 68760-02020 · 68760-02090 · 68760-0D030 |
| 68770 | Right rear door lower hinge assembly | 68770-02020 · 68770-0A020 · 68770-0D030 |
| 68780 | Left rear door lower hinge assembly | 68780-02020 · 68780-0A020 · 68780-0D030 |
| 69803 | Right rear door window lifter sub-assembly | 69803-0A050 · 69803-0A060 · 69803-0A070 · 69803-0A080 |
| 69804 | Left rear door window lifter sub-assembly | 69804-0A050 · 69804-0A060 · 69804-0A070 · 69804-0A080 |
| 69905B | Right rear door glass groove sub-assembly | 69905-02080 · 69905-02160 · 69905-0D130 · 69905-52060 · 69905-F4040 |
| 69906B | Left rear door glass groove sub-assembly | 69906-02080 · 69906-02160 · 69906-0D130 · 69906-52060 · 69906-F4040 |
| 69975A | Rear door glass channel filler | 69975-0D100 · 69975-0D130 · 69975-0K050 · 69975-F4010 |
| 85710F | Right power window lift motor assembly | 85720-0A060 · 85720-0A070 · 85720-0A080 |
| 85720E | Left electric window lift motor assembly | 85710-0A070 · 85710-0A080 · 85710-0A090 |
