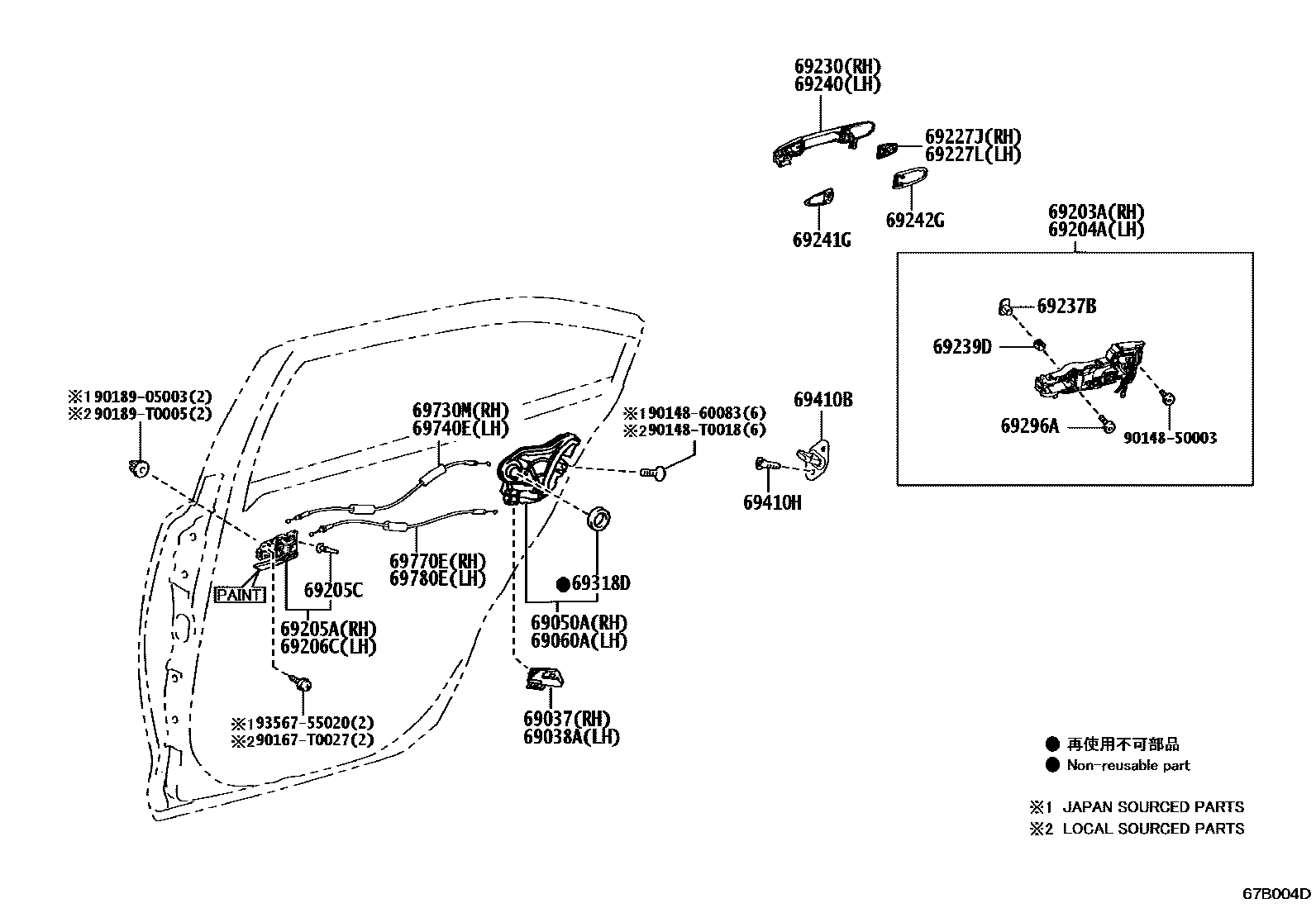

Toyota COROLLA 后门锁和后门把手 — Figure 6706
Toyota COROLLA EPC diagram 6706, 后门锁和后门把手, with 1 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69037 | Right rear door door lock cover sub-assembly | 69037-02010 · 69037-02020 · 69037-02040 · 69037-02050 |
| 69038A | Left rear door door lock cover sub-assembly | 69038-02010 · 69038-02020 · 69038-02040 · 69038-02050 |
| 69050A | Right rear door lock assembly with motor | 69050-02370 · 69050-02381 · 69050-02400 · 69050-02420 |
| 69060A | Left rear door lock assembly with motor | 69060-02370 · 69060-02381 · 69060-02400 · 69060-02420 |
| 69203A | Right rear door outer handle frame sub-assembly | 69203-0A010 · 69203-0A020 · 69203-0A030 · 69203-0A070 |
| 69204A | Left rear door outer handle frame sub-assembly | 69204-0A010 · 69204-0A020 · 69204-0A030 · 69204-0A070 |
| 69205C | Cushion pad (for rear door inner handle) | 90541-04014 |
| 69227J | Right rear door outer handle cover | 69227-02400 · 69227-02420 · 69227-06140 · 69227-0A010 |
| 69227L | Left rear door outer handle cover | 69227-02400 · 69227-02420 · 69227-06140 · 69227-0A010 |
| 69230 | Right rear door outer handle assembly | 69211-02938 · 69211-02940 · 69211-02941 · 69211-0A901 |
| 69237B | Rear door handle nut | 69237-0A010 · 69237-0K040 · 69237-0K070 · 69237-62010 |
| 69239D | Rear door handle bushing | 69239-02080 · 69239-06060 · 69239-0A010 · 69239-47010 |
| 69240 | Left rear door outer handle assembly | 69211-02938 · 69211-02940 · 69211-02941 · 69211-0A901 |
| 69241G | Rear door front exterior handle pad | 69241-02260 · 69241-02300 · 69241-06140 · 69241-0A010 |
| 69242G | Rear door rear outer handle pad | 69242-02250 · 69242-02290 · 69242-06140 · 69242-0A010 |
| 69296A | Car door inner handle screws | 69296-0A010 · 69296-0M010 · 69296-30010 · 90148-50006 |
| 69318D | door lock harness seal | 69318-51010 |
| 69410B | Rear door lock plate assembly | 69410-02040 · 69410-02090 · 69410-0K070 · 69410-20110 |
| 69410H | Rear door lock screw | 90148-80066 · 90148-T0015 · 90148-W0004 |
| 69730M | Right rear door lock remote control cable (for opening lever) | 69730-0A010 · 69730-0A020 · 69730-0A030 |
| 69740E | Left rear door lock remote control cable (for opening lever) | 69730-0A010 · 69730-0A020 · 69730-0A030 |
| 69770E | Right rear door inner locking cable (for locking/unlocking handle) | 69770-0A010 · 69770-0A020 · 69770-0A030 |
| 69780E | Left rear door inner lock cable (for locking/unlocking handle) | 69770-0A010 · 69770-0A020 · 69770-0A030 |
