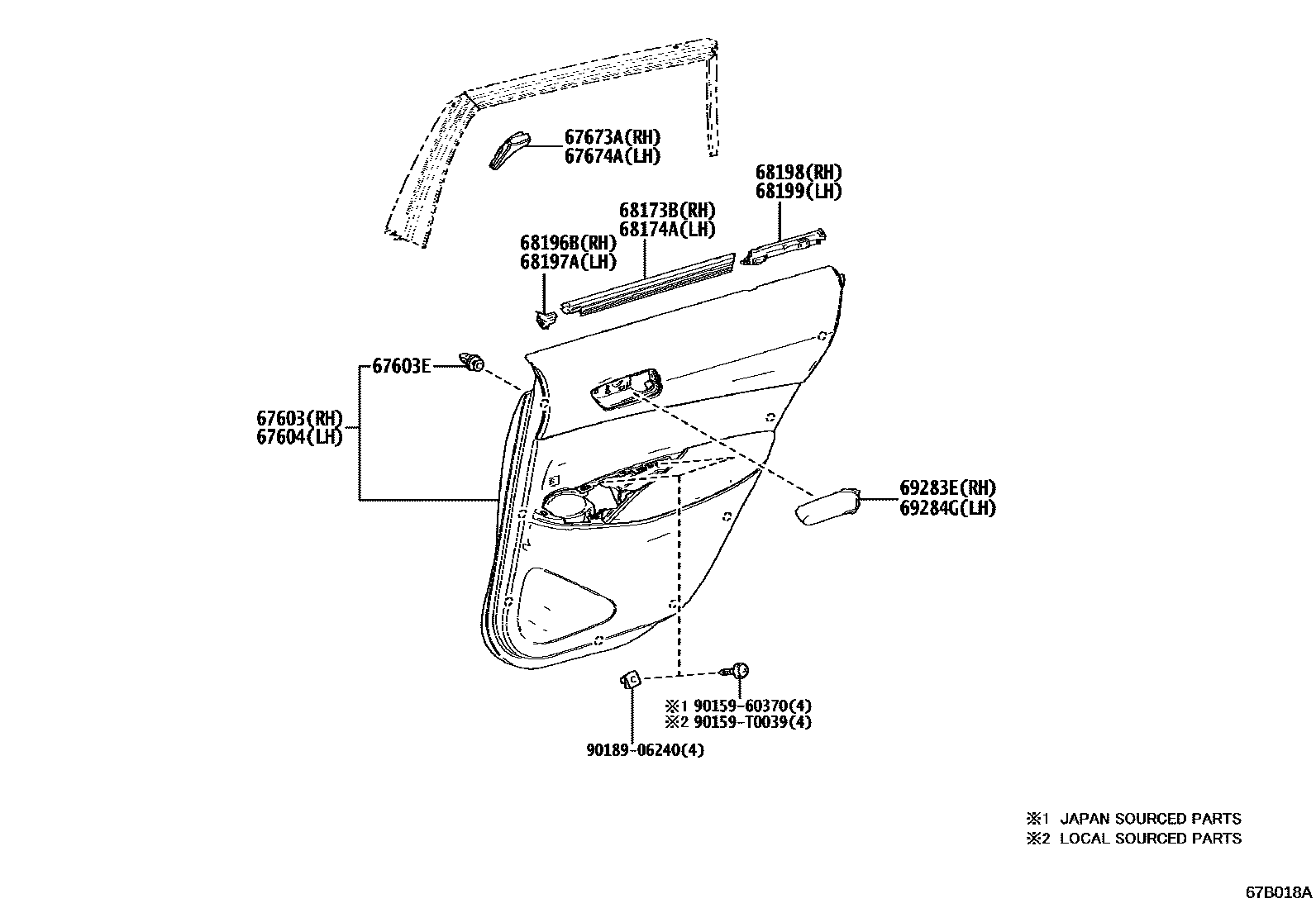

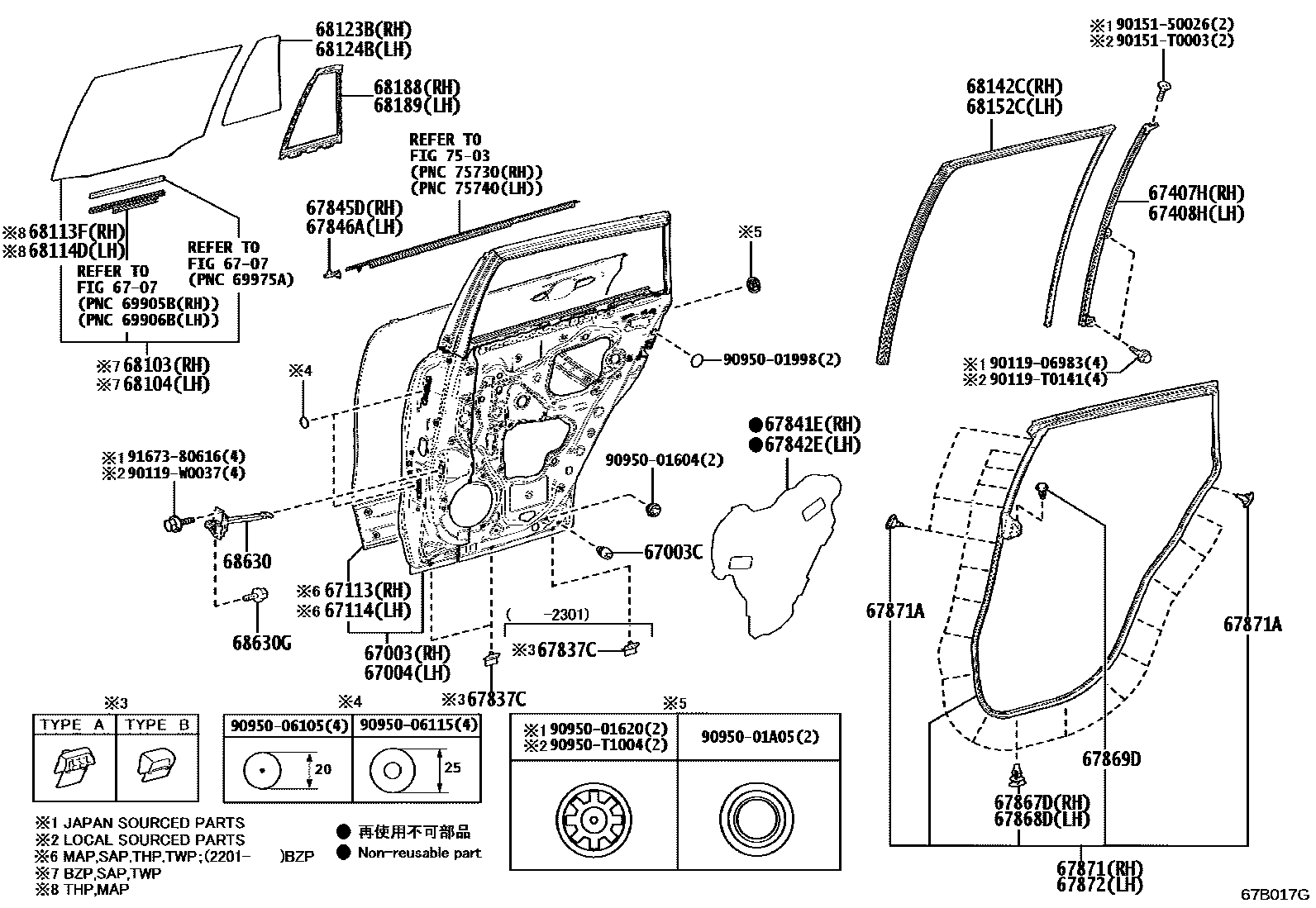

Toyota COROLLA 后门板和后门玻璃 — Figure 6705
Toyota COROLLA EPC diagram 6705, 后门板和后门玻璃, with 2 images and 39 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-0A080 · 67003-0A090 · 67003-0A100 · 67003-0A110 · 67003-K1010 |
| 67003C | Rear door panel cushion | 90541-09124 |
| 67004 | Left rear door panel sub-assembly | 67004-0A080 · 67004-0A090 · 67004-0A100 · 67004-0A110 · 67004-K1010 |
| 67113 | Right rear door outer panel | 67113-0A050 · 67113-0A060 · 67113-K1010 |
| 67114 | Left rear door outer panel | 67114-0A050 · 67114-0A060 · 67114-K1010 |
| 67407H | Right sliding door window divider sub-assembly | 67407-0A010 · 67407-0A020 |
| 67408H | Left rear sliding door window divider sub-assembly | 67408-0A010 · 67408-0A020 |
| 67603E | Catch (for rear door trim panel) | 90467-09206 · 90467-T0019 |
| 67673A | Right rear door frame decorative strip | 67673-0A010 · 67673-0A020 · 67673-0A070 |
| 67674A | Left rear door frame decorative strip | 67674-0A010 · 67674-0A020 · 67674-0A070 |
| 67837C | Rear door dust seal retainer | 67837-0K090 · 67837-0K092 · 67837-10041 |
| 67841E | Right rear door access hole cover | 67841-0A060 · 67841-0A070 · 67841-0A080 · 67841-0A120 · 67841-0A130 |
| 67842E | Left rear door access hole cover | 67842-0A030 · 67842-0A040 · 67842-0A050 · 67842-0A090 · 67842-0A100 |
| 67845D | Right rear door front outer seal | 67845-0A010 · 67845-0A020 |
| 67846A | Left rear door front outer seal | 67846-0A010 · 67846-0A020 |
| 67867D | Right rear door seal strip fixing | 67867-0A040 · 67867-0D180 · 67867-12150 |
| 67868D | Left rear door seal strip fixing | 67867-0A050 · 67867-0D210 · 67867-12150 |
| 67869D | Car door seal strip clip | 67869-20030 |
| 67871 | Right rear door sealing strip | 67871-0A020 · 67871-0A021 · 67871-0A022 · 67871-0A030 · 67871-0A040 · 67871-0A080 · 67871-0A090 |
| 67871A | Fixings (for rear door sealing strip) | 67867-0D070 · 67867-12150 |
| 67872 | Left rear door sealing strip | 67872-0A020 · 67872-0A021 · 67872-0A022 · 67872-0A030 · 67872-0A040 · 67872-0A080 · 67872-0A090 |
| 68103 | Right rear door glass sub-assembly | 68103-0A030 · 68103-0A040 · 68103-0A041 · 68103-0A090 |
| 68104 | Left rear door glass sub-assembly | 68104-0A030 · 68104-0A040 · 68104-0A041 · 68104-0A090 |
| 68113F | Right rear door glass | 68113-0A090 · 68113-0A170 |
| 68114D | VITRE, PORTE ARR, MG | 68114-0A090 · 68114-0A170 |
| 68123B | Right rear door corner window glass | 68123-0A060 · 68123-0A070 · 68123-0A080 · 68123-0A081 · 68123-0A130 · 68123-0A140 |
| 68124B | Left rear door corner window glass | 68124-0A060 · 68124-0A070 · 68124-0A080 · 68124-0A081 · 68124-0A130 · 68124-0A140 |
| 68142C | Right rear door glass lift slot | 68142-0A030 · 68142-0A040 · 68142-0A050 · 68142-0A090 · 68142-0A100 |
| 68152C | Left rear door glass lift slot | 68152-0A030 · 68152-0A040 · 68152-0A050 · 68152-0A090 · 68152-0A100 |
| 68173B | Right rear door glass inner sealing strip | 68173-0A020 · 68173-0A030 · 68173-0A040 · 68173-0A080 · 68173-0A090 |
| 68174A | Left rear door glass inner sealing strip | 68174-0A020 · 68174-0A030 · 68174-0A040 · 68174-0A080 · 68174-0A090 |
| 68188 | Right rear door corner window seal | 68188-0A030 · 68188-0A040 · 68188-0A050 · 68188-0A090 |
| 68189 | Left rear door corner window seal | 68189-0A030 · 68189-0A040 · 68189-0A050 · 68189-0A090 |
| 68196B | Right rear door beltline front seal | 68196-0A010 · 68196-0A020 |
| 68197A | Left rear door beltline front seal | 68197-0A010 · 68197-0A020 |
| 68198 | Right rear door beltline rear seal | 68198-0A010 · 68198-0A020 |
| 68199 | Left rear door waistline rear seal | 68199-0A010 · 68199-0A020 |
| 68630 | Rear door opening limiter assembly | 68630-0A020 · 68630-0A030 · 68630-0A040 · 68630-0A080 |
| 68630G | Rear door opening limiter bolt | 90109-08295 · 90109-T0011 · 90109-W0017 |
