Toyota COROLLA 前门车窗升降器和合页 — Figure 6704

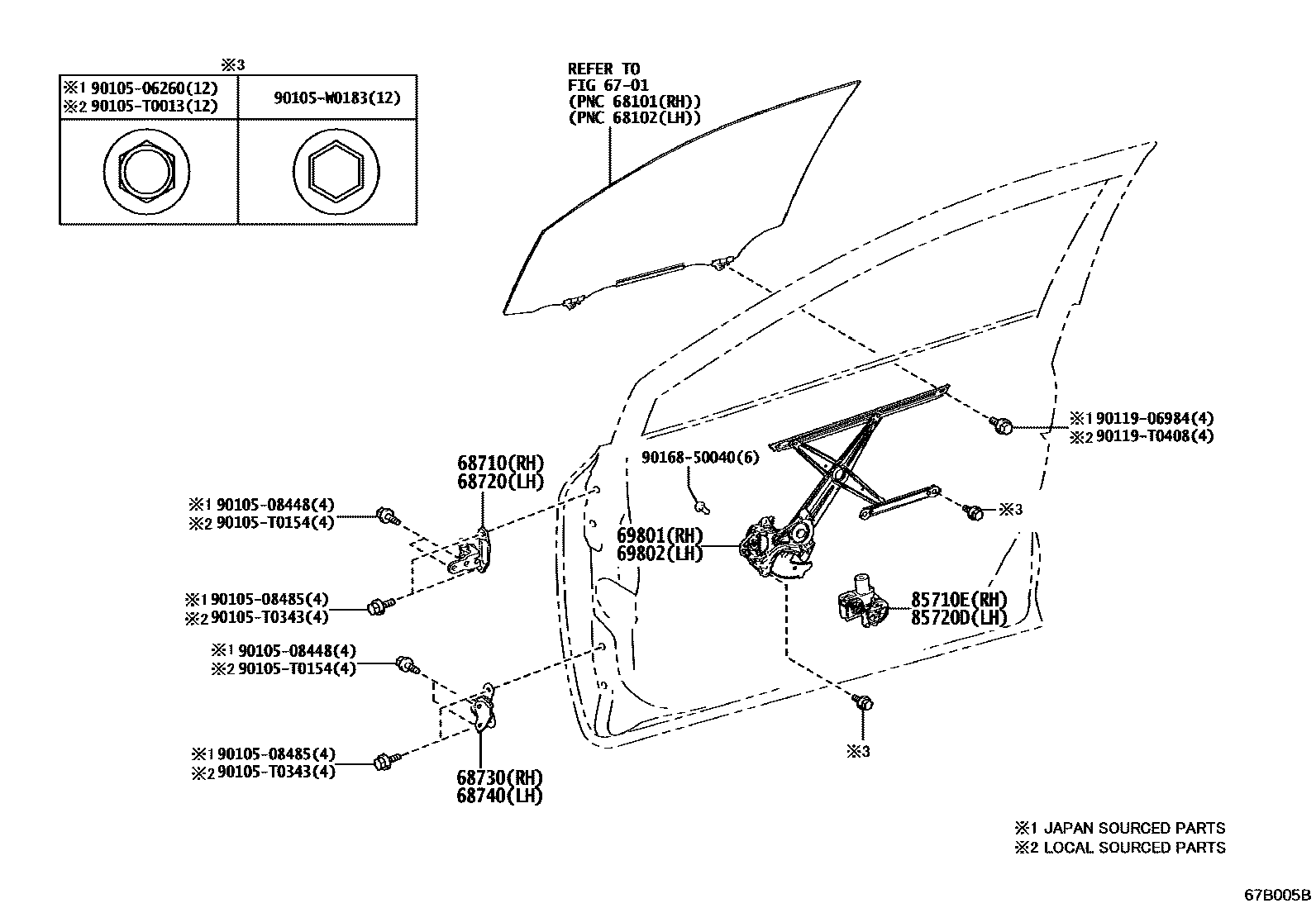

Toyota COROLLA EPC diagram 6704, 前门车窗升降器和合页, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68710 | Right front door upper hinge assembly | 68710-02070 · 68710-02090 · 68710-0D050 |
| 68720 | Left front door upper hinge assembly | 68720-02070 · 68720-02090 · 68720-0D050 |
| 68730 | Right front door lower hinge assembly | 68730-02070 · 68730-02100 · 68730-02120 |
| 68740 | Left front door lower hinge assembly | 68740-02070 · 68740-02100 · 68740-02120 |
| 69801 | Right front door window lifter sub-assembly | 69801-0A060 · 69801-0A080 · 69801-0D200 · 69801-0D351 · 69801-0K140 |
| 69802 | Left front door window lifter sub-assembly | 69802-0A050 · 69802-0A060 · 69802-0A080 · 69802-0D331 · 69802-0K140 |
| 85710E | Right power window lift motor assembly | 85710-0A040 · 85710-0A041 · 85710-0A050 · 85710-0A060 |
| 85720D | Left electric window lift motor assembly | 85720-0A030 · 85720-0A031 · 85720-0A040 · 85720-0A050 |
