Toyota COROLLA 前门锁和车门把手 — Figure 6703

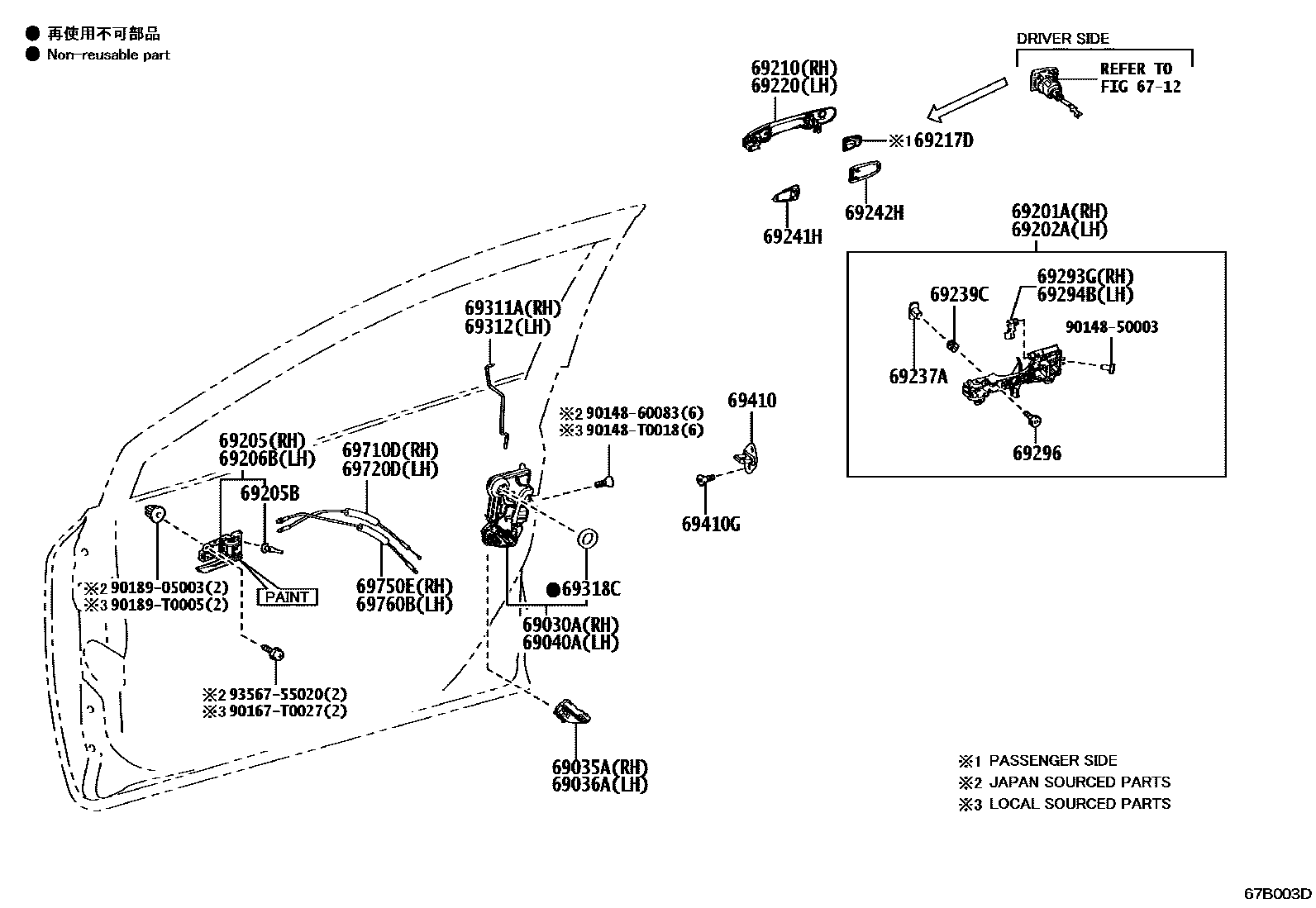

Toyota COROLLA EPC diagram 6703, 前门锁和车门把手, with 1 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69030A | Right front door lock assembly with motor | 69030-02470 · 69030-02480 · 69030-02501 · 69030-02530 · 69030-02560 · 69030-02580 |
| 69035A | Right front door lock cover sub-assembly | 69035-02010 · 69035-02020 · 69035-02040 · 69035-02050 |
| 69036A | Left front door lock cover sub-assembly | 69036-02010 · 69036-02020 · 69036-02040 · 69036-02050 |
| 69040A | Left front door door lock assembly with motor | 69040-02450 · 69040-02470 · 69040-02491 · 69040-02510 · 69040-02530 · 69040-02560 |
| 69201A | Right front door outer handle frame sub-assembly | 69201-02330 · 69201-02350 · 69201-02360 · 69201-0A030 · 69201-47070 |
| 69202A | Left front door outer handle frame sub-assembly | 69202-02270 · 69202-02290 · 69202-02300 · 69202-0A030 · 69202-47040 |
| 69205B | Cushion pad (for inner front door handle) | 90541-04014 |
| 69210 | Right front door outer handle assembly | 69211-02938 · 69211-02941 · 69211-0A900 · 69211-0A901 |
| 69217D | Front door outer handle cover | 69217-02590 · 69217-02630 · 69217-06210 · 69217-0A010 · 69217-47020 |
| 69220 | Left front door outer handle assembly | 69211-02937 · 69211-02942 · 69211-0A900 · 69211-0A901 |
| 69237A | Front door handle nut | 69237-0A010 · 69237-0K040 · 69237-0K070 · 69237-62010 |
| 69239C | Front door handle bushing | 69239-02080 · 69239-06060 · 69239-0A010 · 69239-47010 |
| 69241H | Front door exterior handle pad | 69241-02260 · 69241-02300 · 69241-06140 · 69241-0A010 |
| 69242H | Front door rear outer handle pad | 69242-02250 · 69242-02290 · 69242-06140 · 69242-0A010 |
| 69293G | Right front door outer handle buckle | 69293-02060 · 69293-06030 · 69293-0A030 · 69293-12030 |
| 69294B | Left front door outer handle buckle | 69293-02080 · 69293-06040 · 69293-0A040 · 69293-12040 |
| 69296 | Car door inner handle screws | 69296-0A010 · 69296-0M010 · 69296-30010 · 90148-50006 |
| 69311A | Right front door lock opening lever | 69311-0A020 · 69311-0A030 · 69311-0A040 · 69311-0A090 |
| 69312 | Left front door lock opening lever | 69312-0A020 · 69312-0A030 · 69312-0A040 · 69312-0A100 |
| 69318C | door lock harness seal | 69318-51010 |
| 69410 | Front door lock plate assembly | 69410-02040 · 69410-02090 · 69410-0K070 · 69410-20110 |
| 69410G | Front door lock screw | 90148-80066 · 90148-T0015 · 90148-W0004 |
| 69710D | Right front door lock remote control cable (for opening lever) | 69710-0A010 · 69710-0A020 · 69710-0A030 |
| 69720D | Left front door lock remote control cable (for opening lever) | 69710-0A010 · 69710-0A020 · 69710-0A030 |
| 69750E | Right front door inner locking cable (for locking/unlocking handle) | 69750-0A010 · 69750-0A020 · 69750-0A030 |
| 69760B | Left front door inner locking cable (for locking/unlocking handle) | 69750-0A010 · 69750-0A020 · 69750-0A030 |
