Toyota COROLLA 前门板和前门玻璃 — Figure 6701

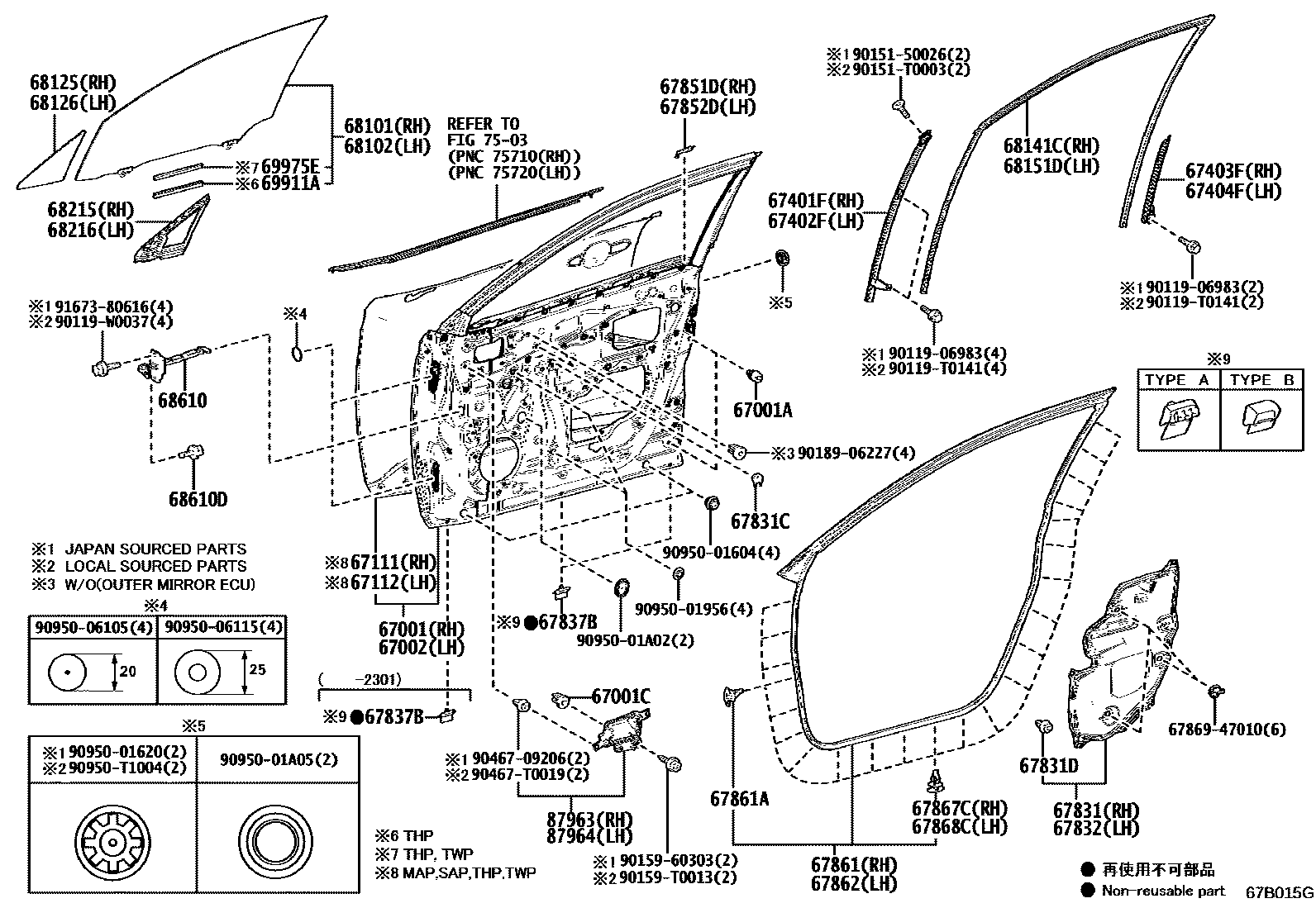

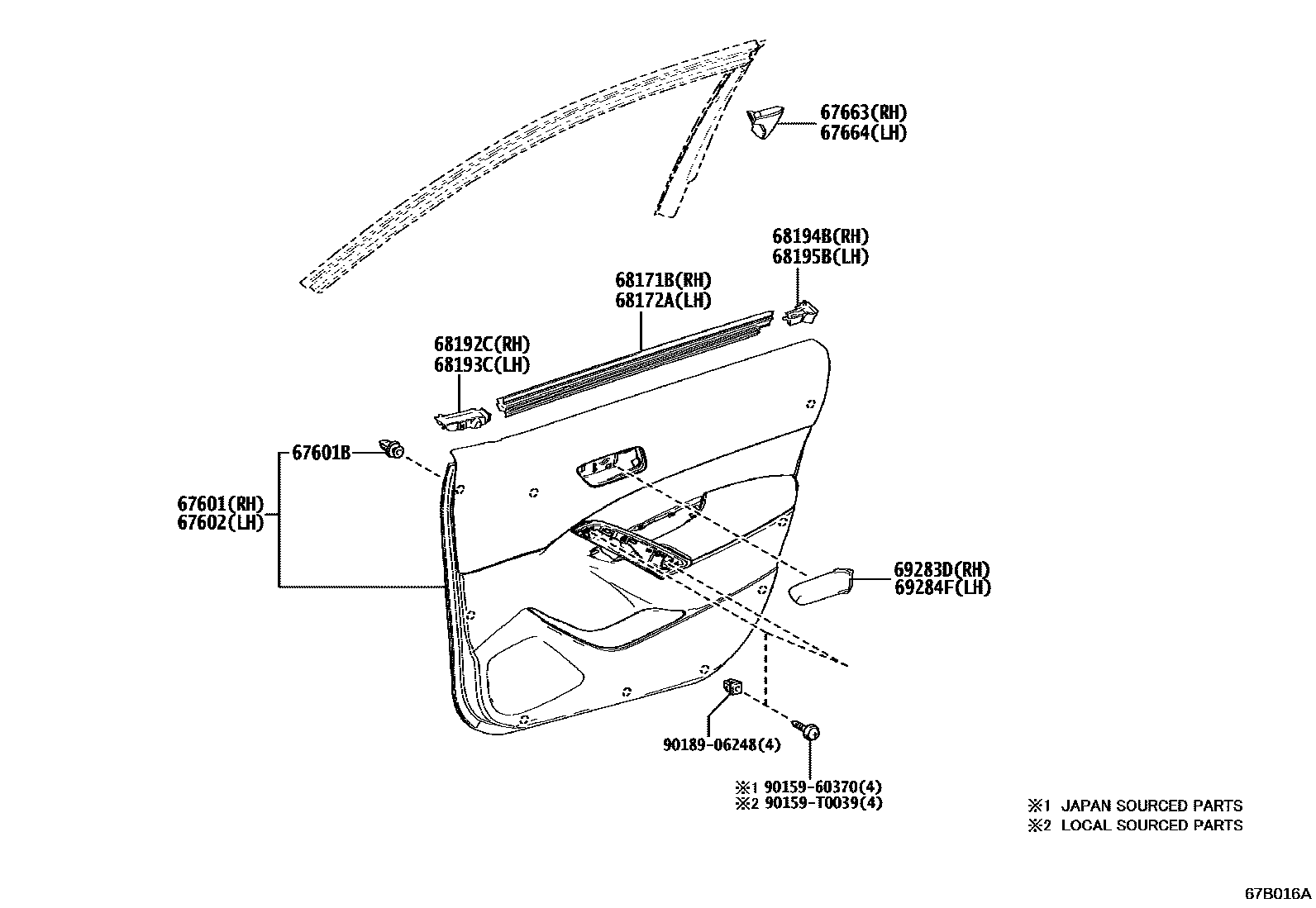

Toyota COROLLA EPC diagram 6701, 前门板和前门玻璃, with 2 images and 45 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67001 | Right front door panel sub-assembly | 67001-0A080 · 67001-0A090 · 67001-K1010 |
| 67001A | Front door panel cushion | 90541-09124 |
| 67001C | Seals (for front door panels) | 90189-06197 · 90189-06227 |
| 67002 | Left front door panel sub-assembly | 67002-0A080 · 67002-0A090 · 67002-K1010 |
| 67111 | Outer right front door panel | 67111-0A050 · 67111-0A060 · 67111-K1010 |
| 67112 | Outer left front door panel | 67112-0A050 · 67112-0A060 · 67112-K1010 |
| 67401F | Right front door front lower door frame sub-assembly | 67401-0A020 · 67401-0A030 |
| 67402F | Left front door front lower door frame sub-assembly | 67402-0A020 · 67402-0A030 |
| 67403F | Right front door rear lower door frame sub-assembly | 67403-0A010 · 67403-0A030 |
| 67404F | Left front door rear lower door frame sub-assembly | 67404-0A010 · 67404-0A030 |
| 67601B | Catch (for front door trim panel) | 90467-09206 · 90467-T0019 |
| 67663 | Decorative strip on right door frame | 67663-0A010 · 67663-0A020 |
| 67664 | Decorative strip on left door frame | 67664-0A010 · 67664-0A020 |
| 67831 | Right front door access hole cover | 67831-0A030 · 67831-0A040 · 67831-0A050 · 67831-0A090 · 67831-0A100 |
| 67831C | Front door access hole cover | 67833-47010 |
| 67831D | Catch (for front door access hole cover) | 90467-09206 |
| 67832 | Left front door access hole cover | 67832-0A030 · 67832-0A040 · 67832-0A050 · 67832-0A090 · 67832-0A100 |
| 67837B | Front door dust seal retainer | 67837-0K090 · 67837-0K092 · 67837-10041 |
| 67851D | Right front door rear outer seal | 67851-0A010 · 67851-0A020 |
| 67852D | Left front door rear outer seal | 67852-0A010 · 67852-0A020 |
| 67861 | Right front door seal | 67861-0A020 · 67861-0A030 · 67861-0A040 · 67861-0A080 · 67861-0A090 |
| 67861A | Fixing piece (for front door sealing strip) | 67867-52040 |
| 67862 | Left front door seal | 67862-0A020 · 67862-0A030 · 67862-0A040 · 67862-0A080 · 67862-0A090 |
| 67867C | Right front door seal strip fixing | 67867-0A020 · 67867-12150 · 67868-0D070 |
| 67868C | Left front door seal strip fixing | 67867-0A030 · 67867-12150 · 67868-0D050 |
| 68101 | Right front door glass sub-assembly | 68101-0A010 · 68101-0A020 · 68101-0A030 · 68101-0A031 · 68101-0A070 · 68101-0A080 |
| 68102 | Left front door glass sub-assembly | 68102-0A010 · 68102-0A020 · 68102-0A030 · 68102-0A031 · 68102-0A070 · 68102-0A080 |
| 68125 | Right front door fixed window glass | 68125-0A010 · 68125-0A020 · 68125-0A030 · 68125-0A031 · 68125-0A070 · 68125-0A080 |
| 68126 | Left front door fixed window glass | 68126-0A010 · 68126-0A020 · 68126-0A030 · 68126-0A031 · 68126-0A070 · 68126-0A080 |
| 68141C | Right front door glass lift channel | 68141-0A030 · 68141-0A040 · 68141-0A050 · 68141-0A090 · 68141-0A100 |
| 68151D | Left front door glass lift channel | 68151-0A030 · 68151-0A040 · 68151-0A050 · 68151-0A090 · 68151-0A100 |
| 68171B | Right front door glass inner sealing strip | 68171-0A020 · 68171-0A030 · 68171-0A040 · 68171-0A080 · 68171-0A090 |
| 68172A | Left front door glass inner sealing strip | 68172-0A020 · 68172-0A030 · 68172-0A040 · 68172-0A080 · 68172-0A090 |
| 68192C | Right front door beltline front seal | 68192-0A010 · 68192-0A020 · 68192-0A030 |
| 68193C | Left front door beltline front seal | 68193-0A010 · 68193-0A020 · 68193-0A030 |
| 68194B | Right front door beltline rear seal | 68194-0A010 · 68194-0A020 |
| 68195B | Left front door beltline rear seal | 68195-0A010 · 68195-0A020 |
| 68215 | Right front door fixed window seal | 68215-0A010 · 68215-0A020 · 68215-0A030 · 68215-0A070 |
| 68216 | Left front door fixed window seal | 68216-0A010 · 68216-0A020 · 68216-0A030 · 68216-0A070 |
| 68610 | Front door opening limiter assembly | 68610-0A020 · 68610-0A030 · 68610-0A040 · 68610-0A080 |
| 68610D | Front door opening limiter bolt | 90109-08295 · 90109-T0011 · 90109-W0017 |
| 69911A | No. 1 front door glass slot | 69911-F4010 |
| 69975E | No. 1 front door glass groove filler | 69975-0D060 |
| 87963 | Right exterior rearview mirror mounting hole cover | 87963-0A010 · 87963-0A020 · 87963-0A030 · 87963-0A070 |
| 87964 | Left exterior rearview mirror mounting hole cover | 87964-0A010 · 87964-0A020 · 87964-0A030 · 87964-0A070 |
