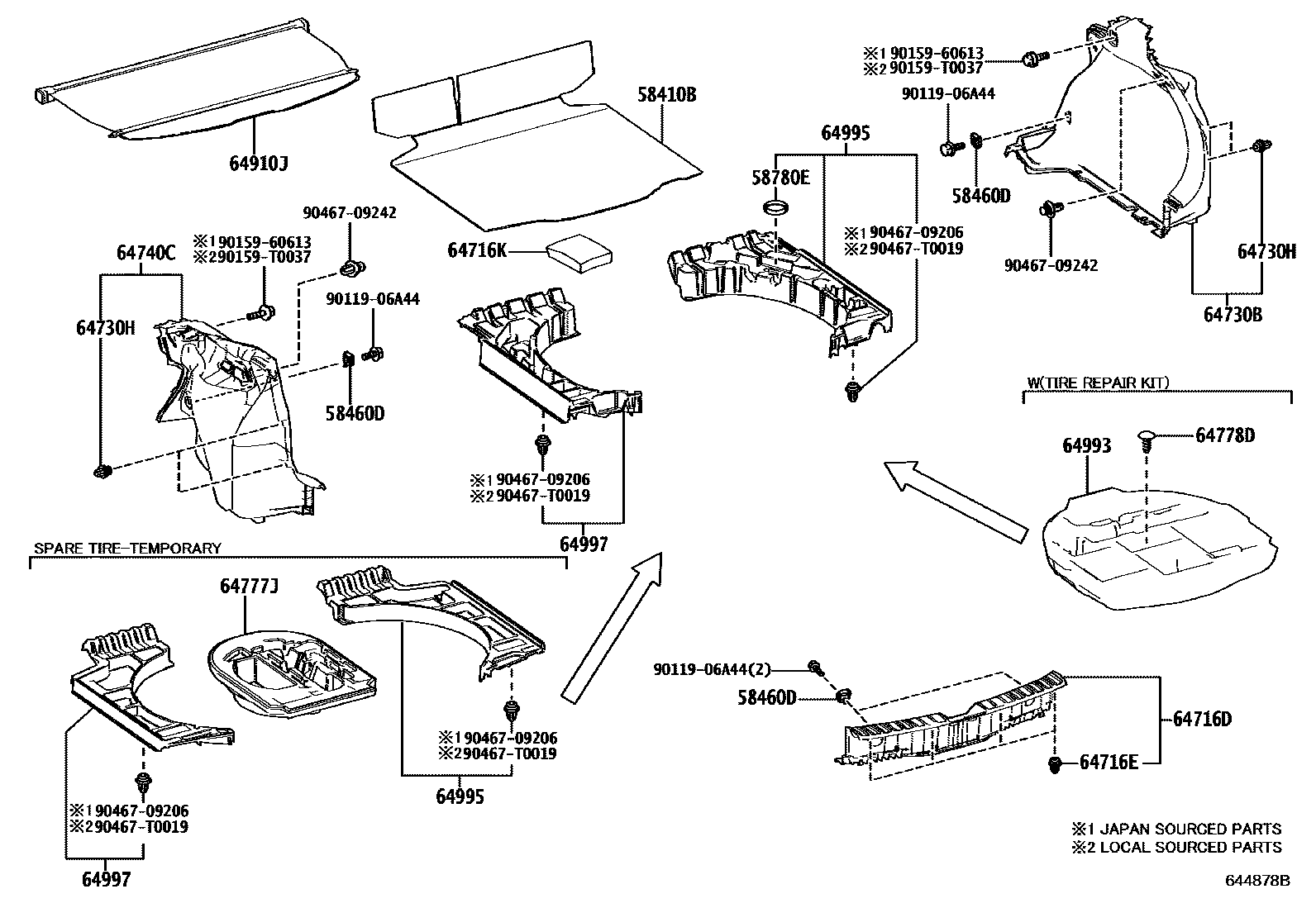

Toyota COROLLA 底板和底板装饰罩 — Figure 6404
Toyota COROLLA EPC diagram 6404, 底板和底板装饰罩, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58460D | Luggage fixing belt lock assembly | 58460-33020 |
| 58780E | Tool box strap assembly | 58781-52010 |
| 64716E | Clip (for rear floor decorative cover) | 62489-0E010 · 90467-10161 · 90467-T0021 |
| 64716K | Base panel decorative cover lining | 64727-0A010 |
| 64730H | Clip (for bottom panel side decorative panel) | 62489-0E010 · 90467-10161 · 90467-T0021 |
| 64777J | Spare tire cushion | 64777-0A010 · 64777-0A050 · 64777-0A120 · 64777-0A130 |
| 64778D | Spare tire protection device | 64778-52160 |
| 64993 | Bottom floor box | 64993-0A010 · 64993-0A020 |
