Toyota COROLLA 车顶内衬和消声垫 — Figure 6402

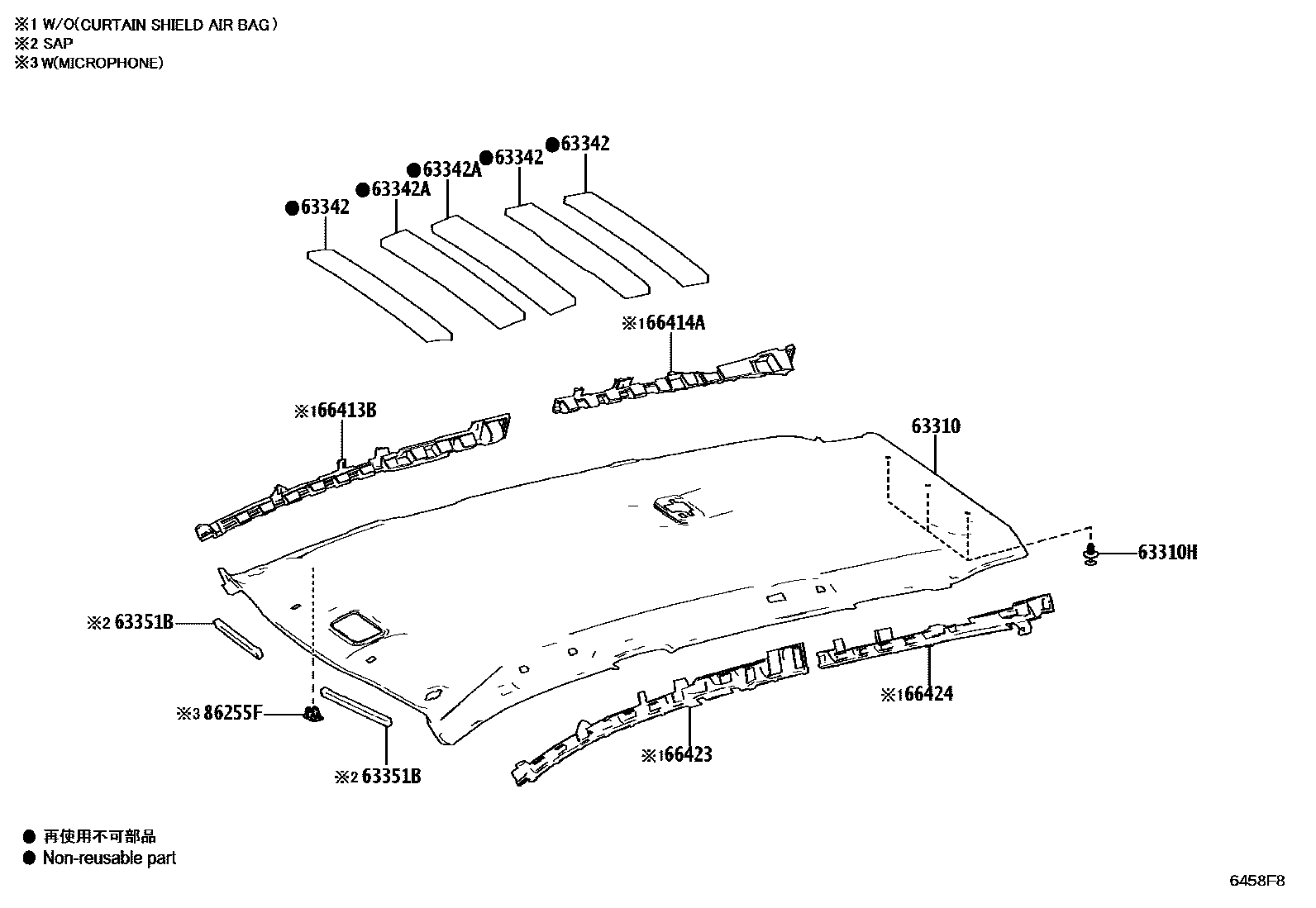

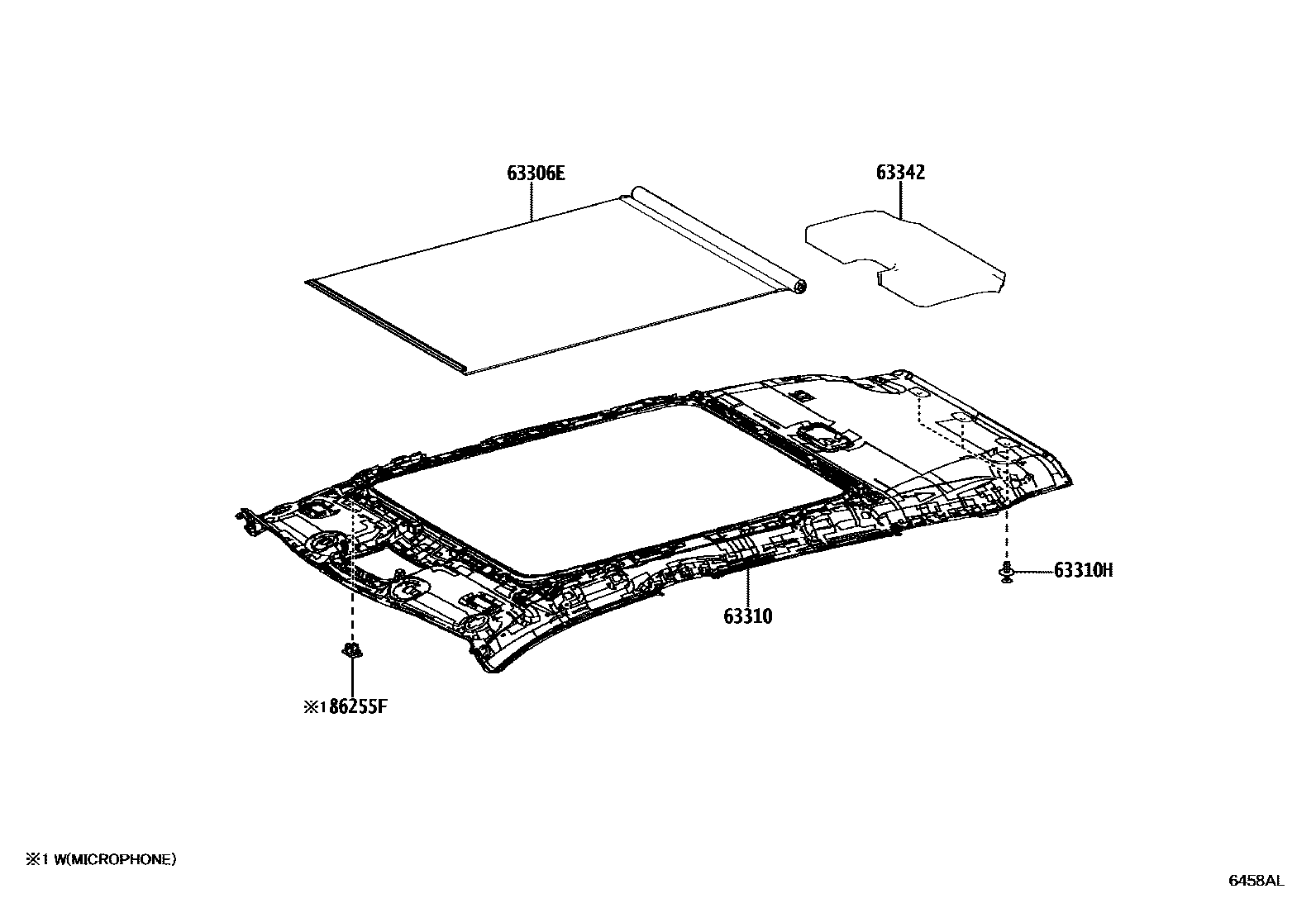

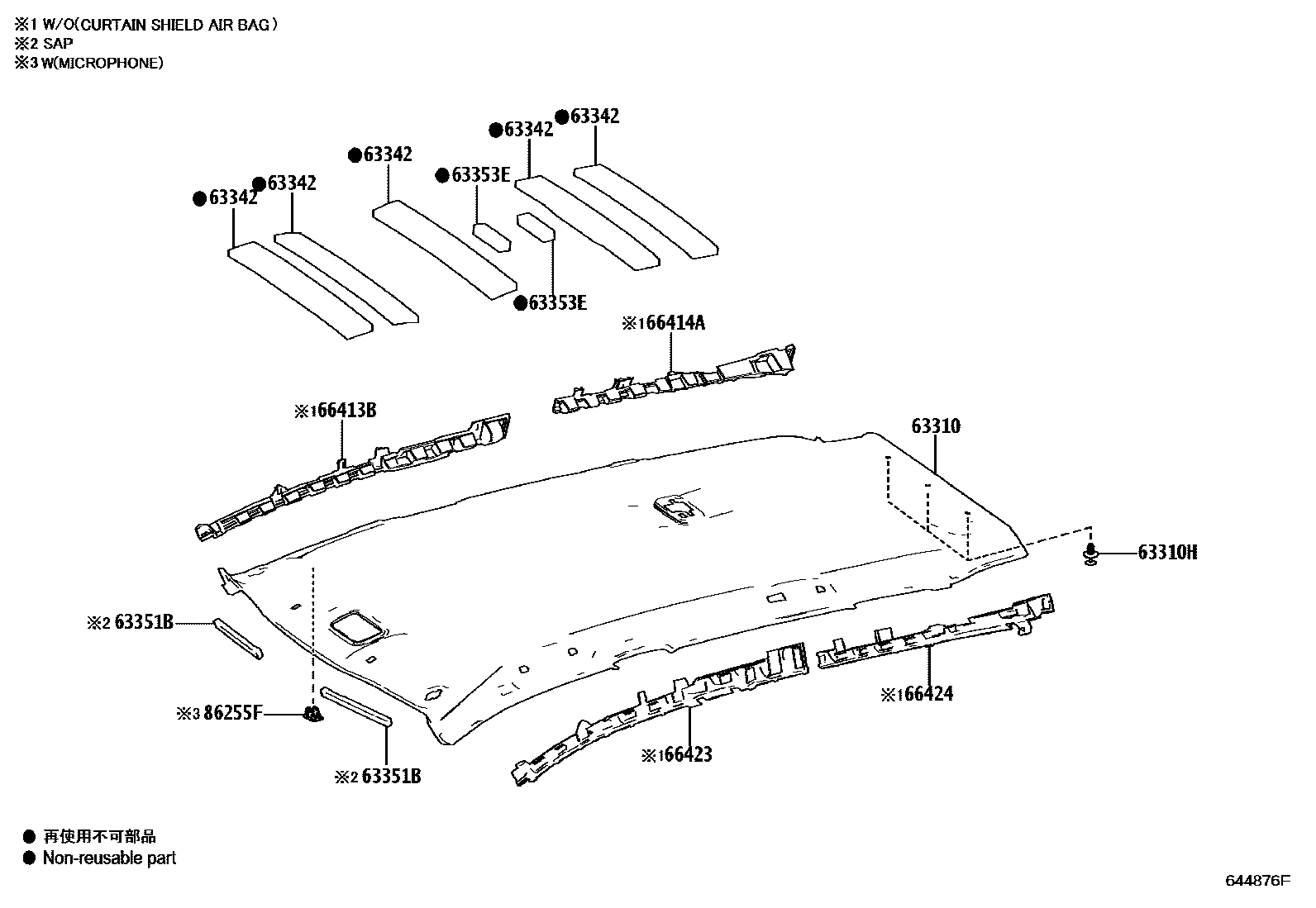

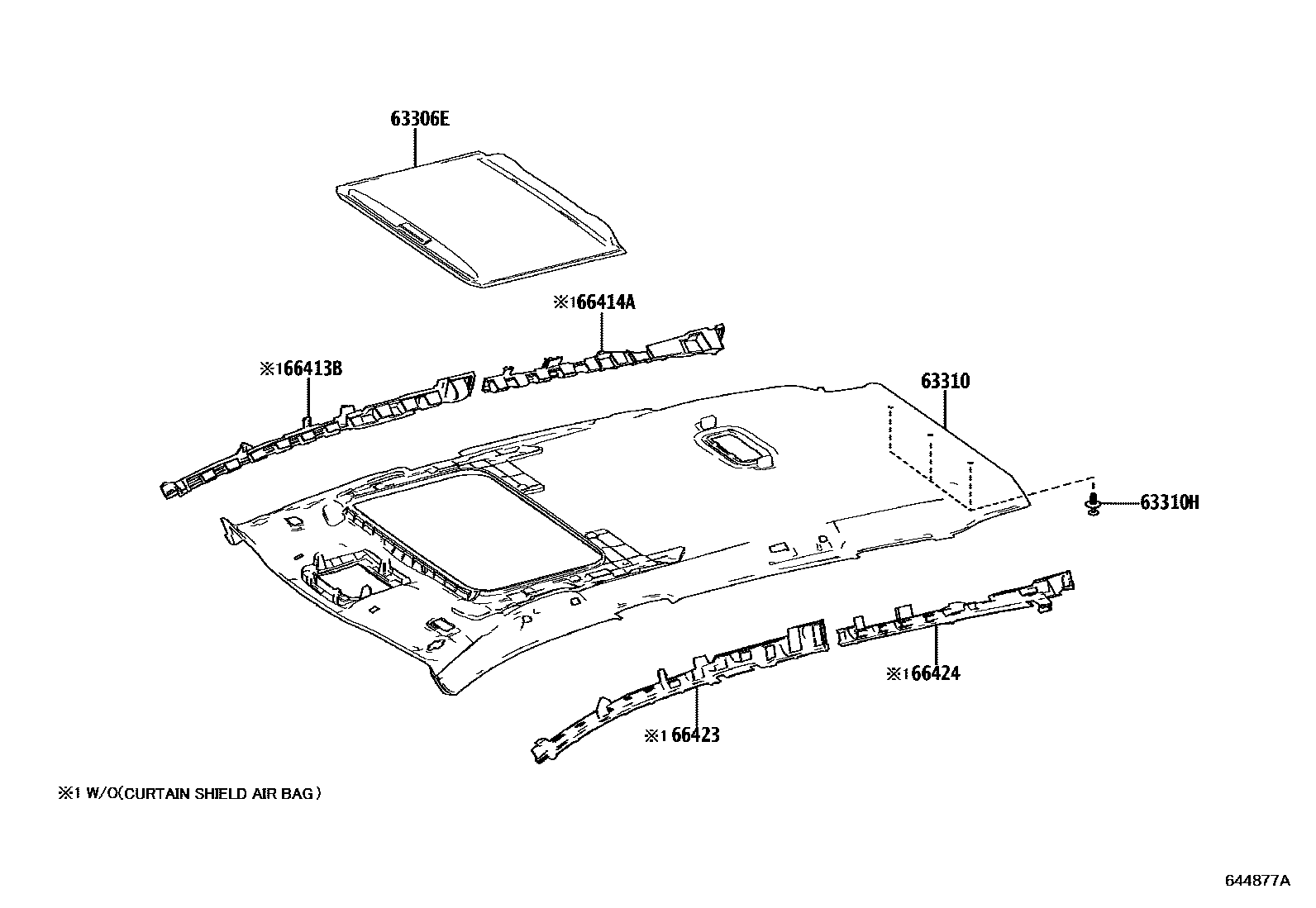

Toyota COROLLA EPC diagram 6402, 车顶内衬和消声垫, with 4 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63342 | No. 2 roof muffler pad | 63342-02860 · 63342-02880 · 63342-02A00 · 63342-0A050 · 63342-0A060 · 63342-0A080 · 63342-0A170 |
| 63342A | No. 2 roof silencer | 63342-02860 · 63342-02880 · 63342-02A00 · 63342-0A050 · 63342-0A080 · 63342-0A170 |
| 63351B | roof lining pads | 63351-0A030 |
| 63353E | Center roof lining lining | 63353-0A020 · 63353-0A040 · 63353-0A060 · 63353-0A070 · 63353-0A080 |
| 66413B | Right front longitudinal member spacer | 66413-0A010 · 66413-0A020 |
| 66414A | Right rear longitudinal member spacer | 66414-0A010 · 66414-0A020 |
| 66423 | Left front longitudinal member spacer | 66423-0A010 · 66423-0A020 |
| 66424 | Left rear longitudinal member spacer | 66424-0A010 · 66424-0A020 |
